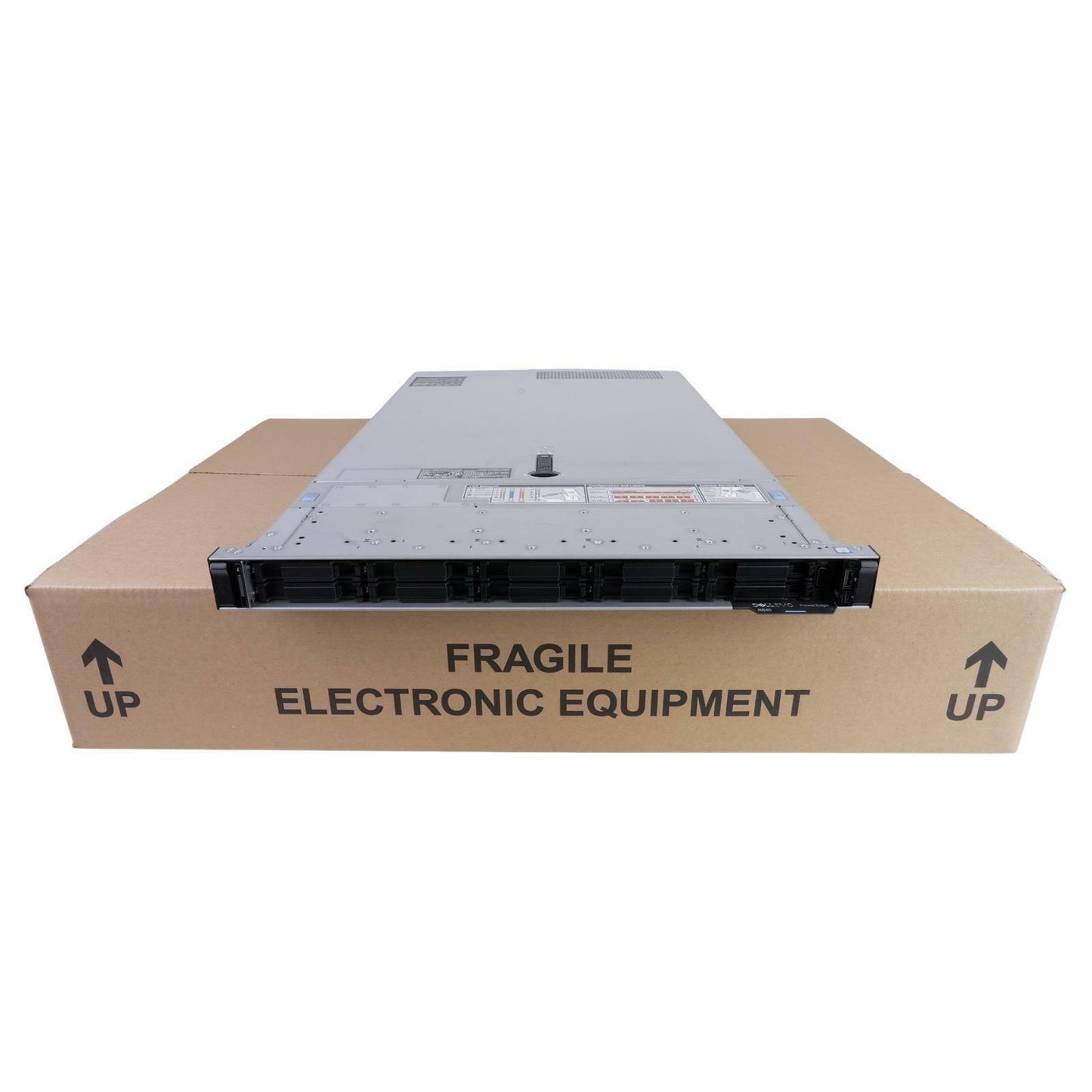

Dell PowerEdge R640 2.5" SFF 10-bay PERC H740P 8GB iDRAC 9 DC OM 2x750W 1U CTO
93314Dell PowerEdge R640 2.5" SFF 10-bay PERC H740P 8GB iDRAC 9 DC OM 2x750W 1U CTO
Dell PowerEdge R640 2.5" SFF 10-Bay PERC H740P 8GB iDRAC 9 Datacenter Performance Cooling 2x750W CTO 1U Rackmount Server with iDRAC9 Datacenter and OpenManage Enterprise Advanced Licenses
*** CPUs, RAM, Drives, Caddies, and Rackmount Rails are not included ***
Condition: Off-lease equipment. Clean and tested by a qualified technician. It comes with no memory, no CPUs, and no drives installed. Rails are not included.
Specifications:
| Component | Description |
|---|---|
| Form Factor | 1U Rack Mount |
| Model |
Dell PowerEdge R640 10x 2.5" SFF Bay - 10 2.5" Bays 321-BCQL: 2.5 Chassis with up to 10 Hard Drives and 3PCIe slots |
| System Board |
Dell P/N: H28RR, X45NX, or G5DR5 Dell motherboard for Dell EMC PowerEdge R640 Supports up to (2) two FCLGA3647 sockets Compatible with Intel Scalable 1st and 2nd Gen processors (24) twenty-four DDR4 DIMM slots |
| Processor(s) | No CPUs installed - supports Intel Xeon Scalable 1st and 2nd Gen processors |
| Memory | No memory installed - supports up to (24) twenty-four DDR4 DIMM slots |
| Hard Drives | No drives installed, hard drive caddies are not included. Some servers will come with some blank fillers. |
| HDD Backplane |
Dell P/N: PGJ4P and MWY54 or similar 10-Bay 2.5" NVMe capable SAS 12G Backplane with SAS Expander Daughter Board |
| RAID Controller |
Dell P/N: 0878M, 5FMY4, or GP6RN PERC H740P 8GB RAID Controller Supports RAID 0, 1, 5, 6, 10, 50, 60 |
| Riser 1 |
Dell P/N: 05X7X with 815DM cage Riser #1 2x PCI-E 3.0 x16 (Slot 1 CPU 1 PCI-E 3.0 x16, Slot 2 CPU 1 PCI-E 3.0 x16) half height |
| Riser 2 |
Dell P/N: W6D08 Riser #2 1x PCI-E 3.0 x16 (Slot 3 CPU 2 PCI-E 3.0 x16) half height |
| Heatsinks |
Dell P/N: C6R9H Quantity: 2 1U High performance Heatsinks |
| Fans |
Dell P/N: KG52T Quantity: 6 High performance hot plug fan |
| NIC |
Dell P/N: CD2VM Dell Intel X550/I350 2x 10GBase-T + 2x 1GBase-T quad port RNDC |
| Power Supply |
Dell P/N: 5RHVV, 061XT, 4V8KD, G6CCK, KTW3M or W8R3C Quantity: 2 Dell power supply 750W, input 100-240V, 50-60Hz, 10-5A, 80 Plus Platinum, 94% efficiency, extended power performance (EPP), hot plug |
| Remote Access | iDRAC 9 Datacenter |
| Installed Licenses |
|
| Rackmount Rails | Not included |
| Power Cord | Not included |
Each server is configured to order. This process involves rigorous quality control which includes:
- Thorough visual inspection for physical damages
- Verification of all components and their functionality
- Full diagnostic test is performed utilizing the manufacturer’s diagnostic tools
- Passwords and settings are restored to factory defaults
Custom configurations are available. Please contact us for a quote or if you have questions regarding the current configuration.
30-Day Warranty!
