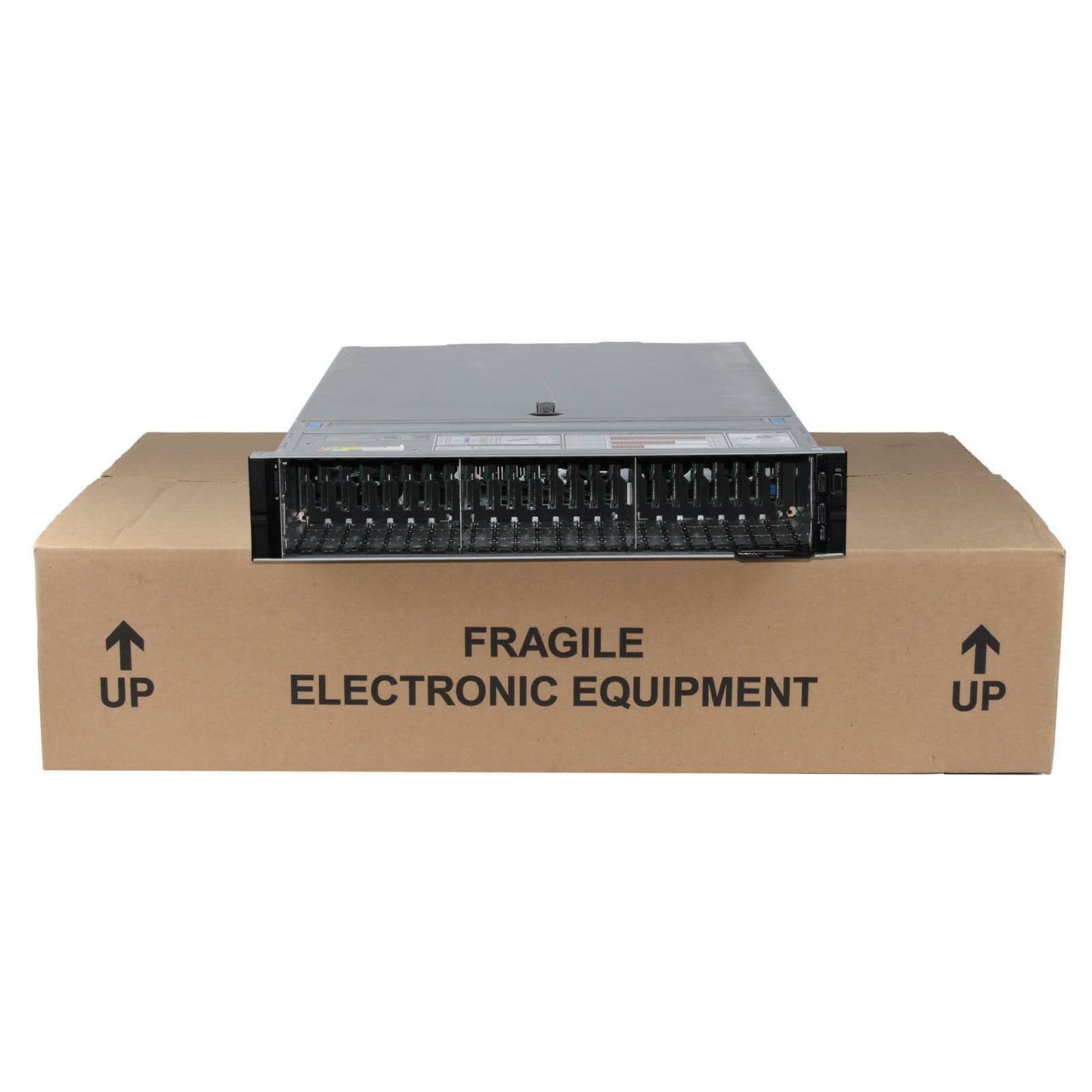

Dell PowerEdge R740xd 2.5" SFF 24-bay PERC H740P 8GB iDRAC 9 Ent 2x2000W 2U CTO
92470Dell PowerEdge R740xd 2.5" SFF 24-bay PERC H740P 8GB iDRAC 9 Ent 2x2000W 2U CTO

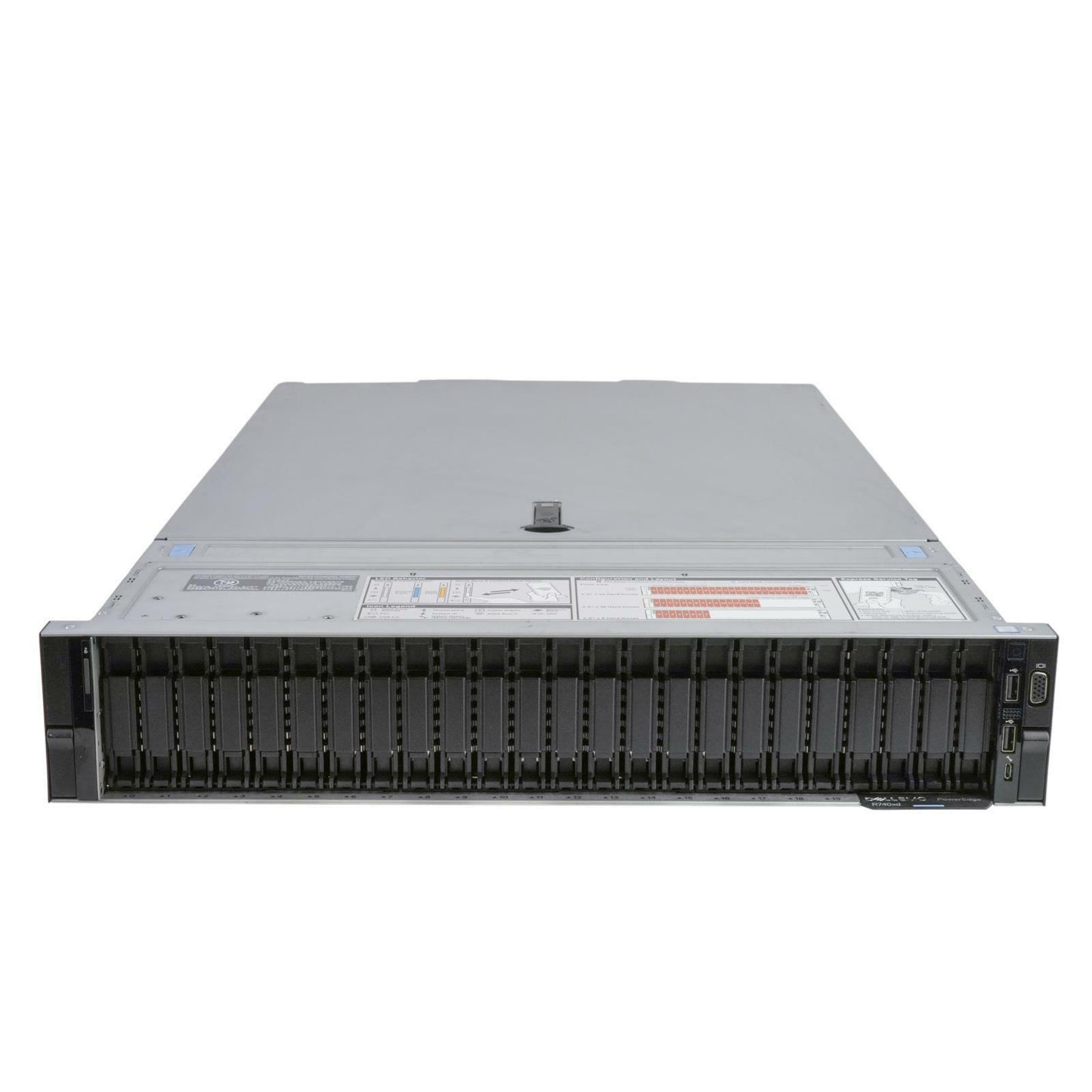

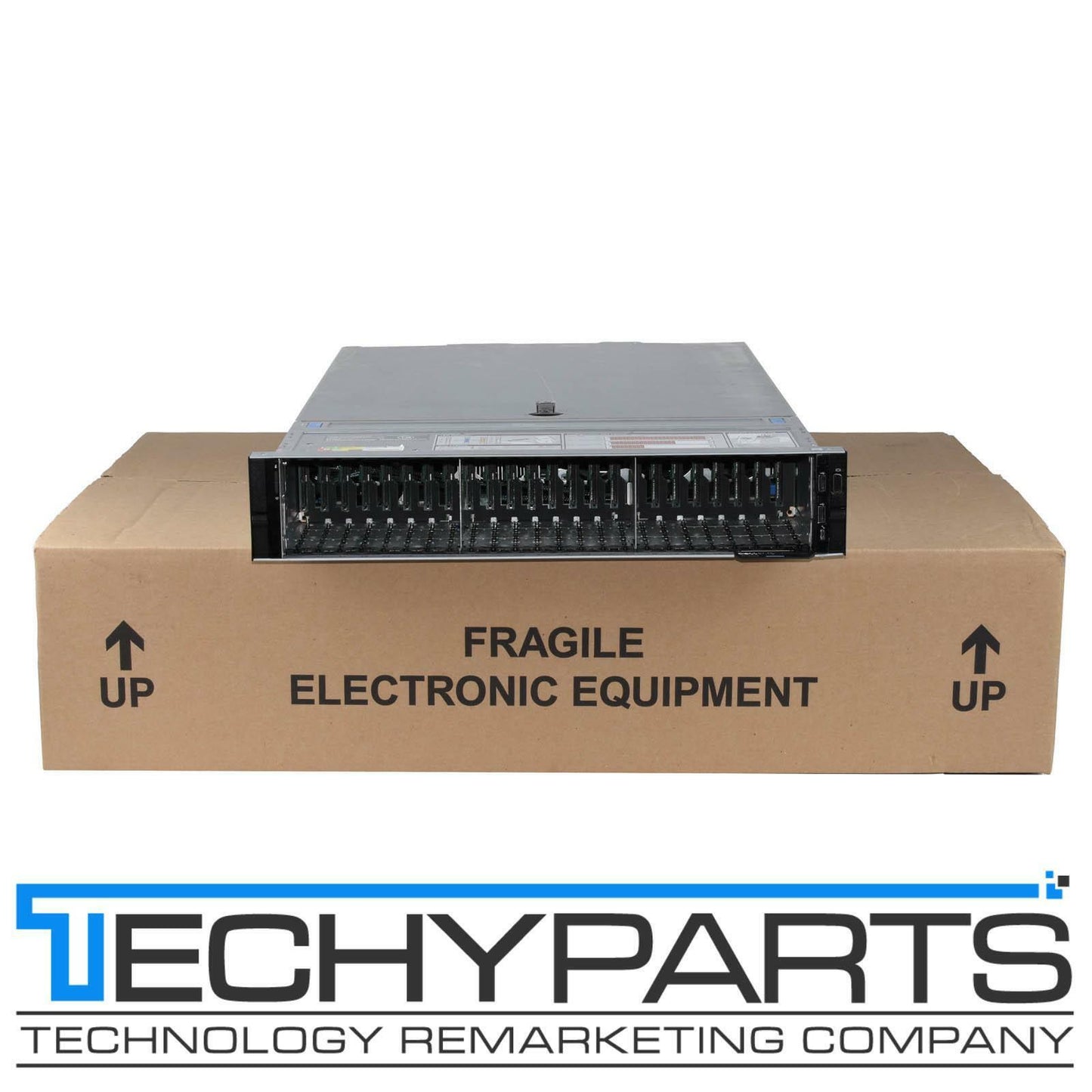

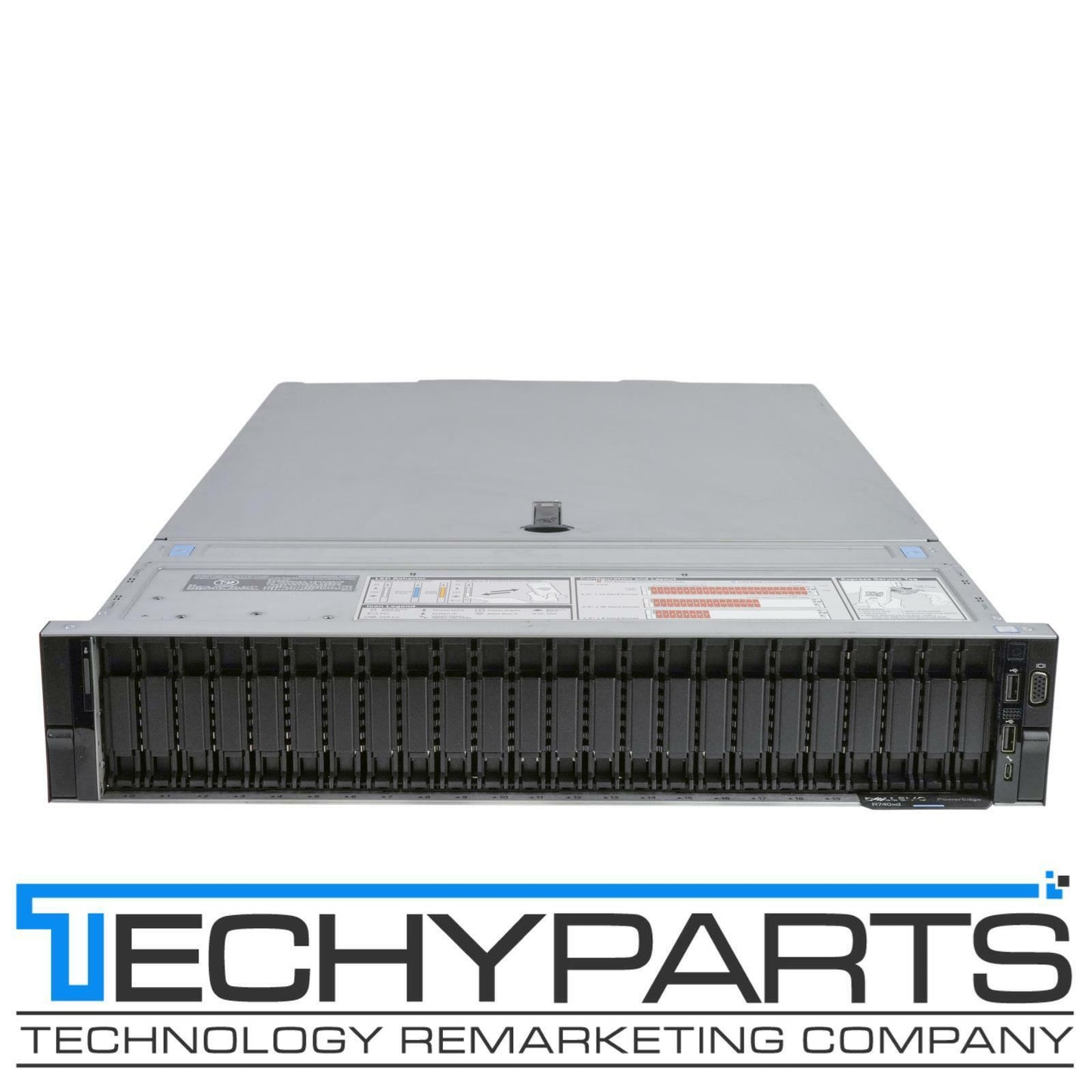

Dell PowerEdge R740xd 2.5" SFF 24-Bay PERC H740P 8GB iDRAC 9 Enterprise 2x2000W CTO 2U Rackmount Server - NO CPUs, NO RAM, NO Drives
Condition: Off-lease equipment. Clean and tested by a qualified technician. It comes with no memory, no CPUs, and no drives installed. Rails are not included.
Specifications:
| Component | Description |
|---|---|
| Form Factor | 2U Rack Mount |

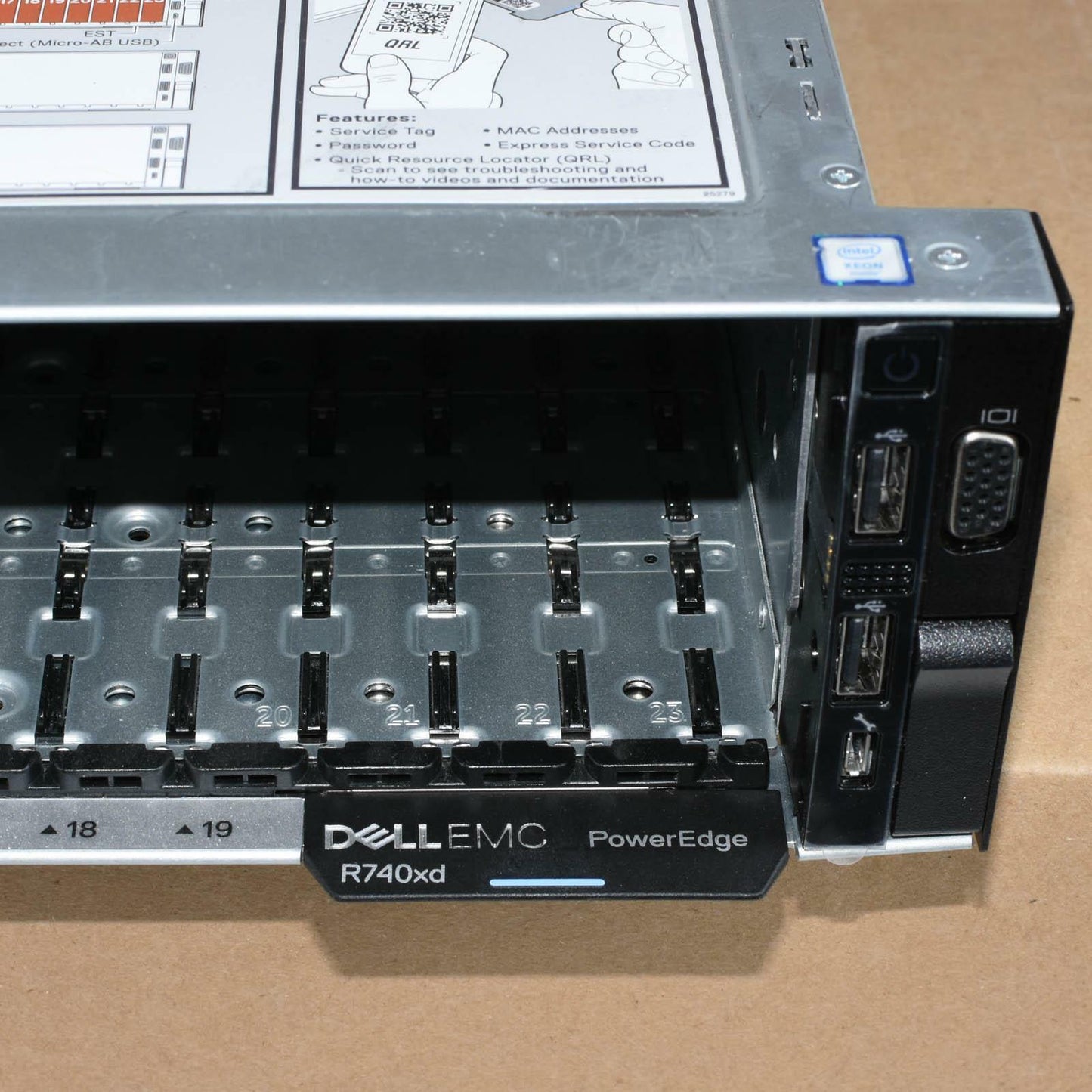

| Model | Dell PowerEdge R740xd 24x 2.5" SFF Bay - 24 2.5" Bays |
| System Board |

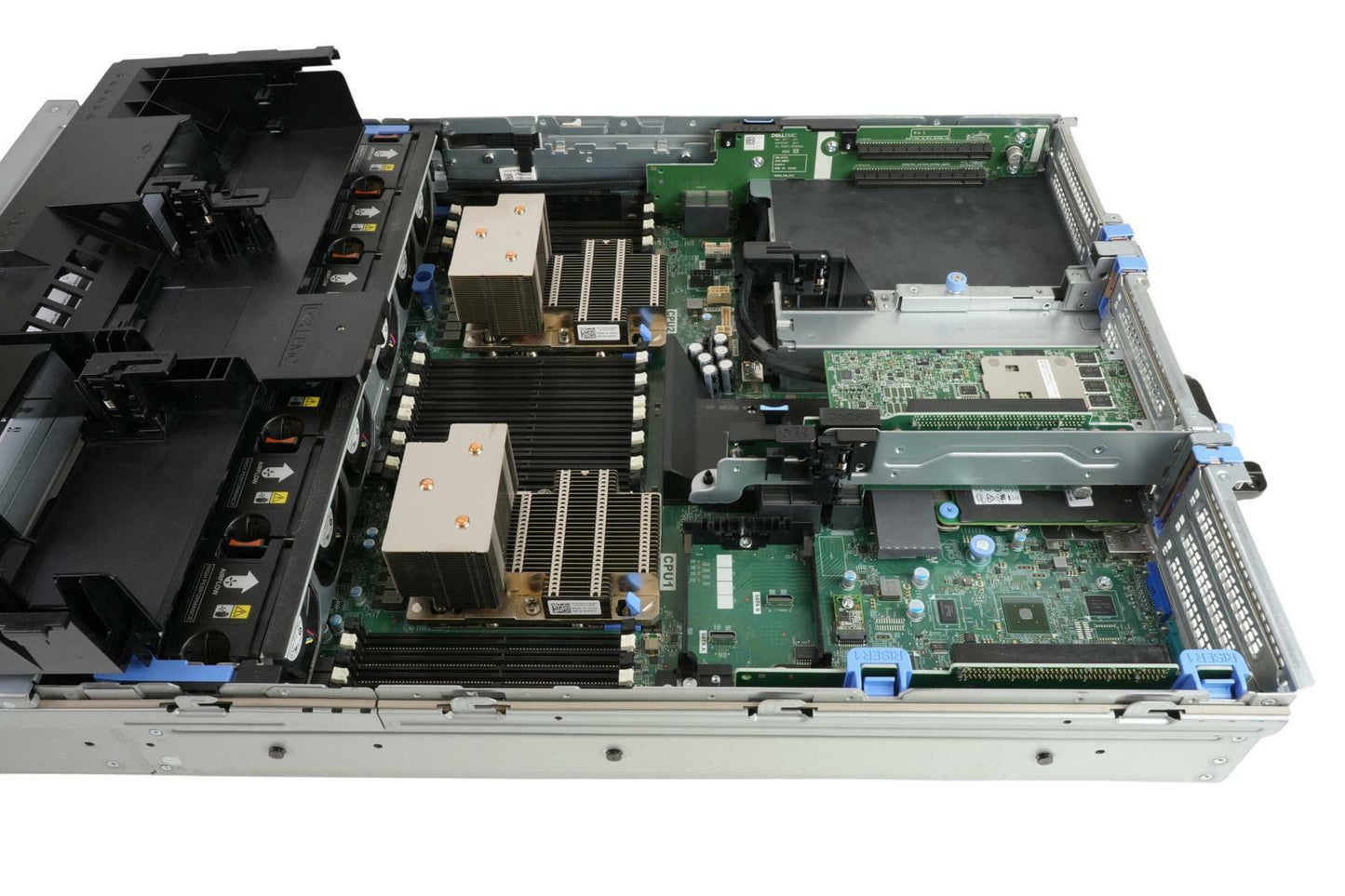

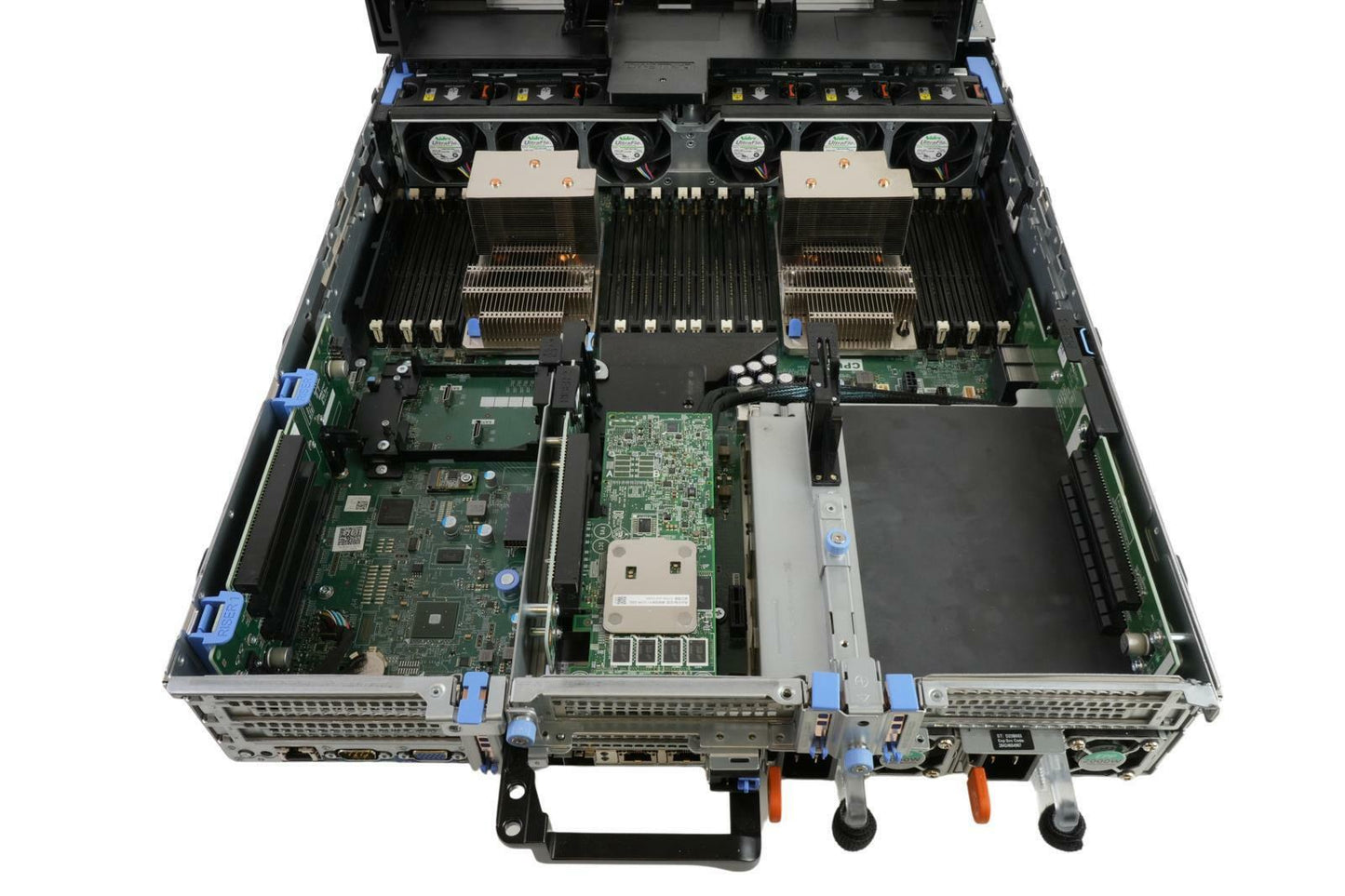

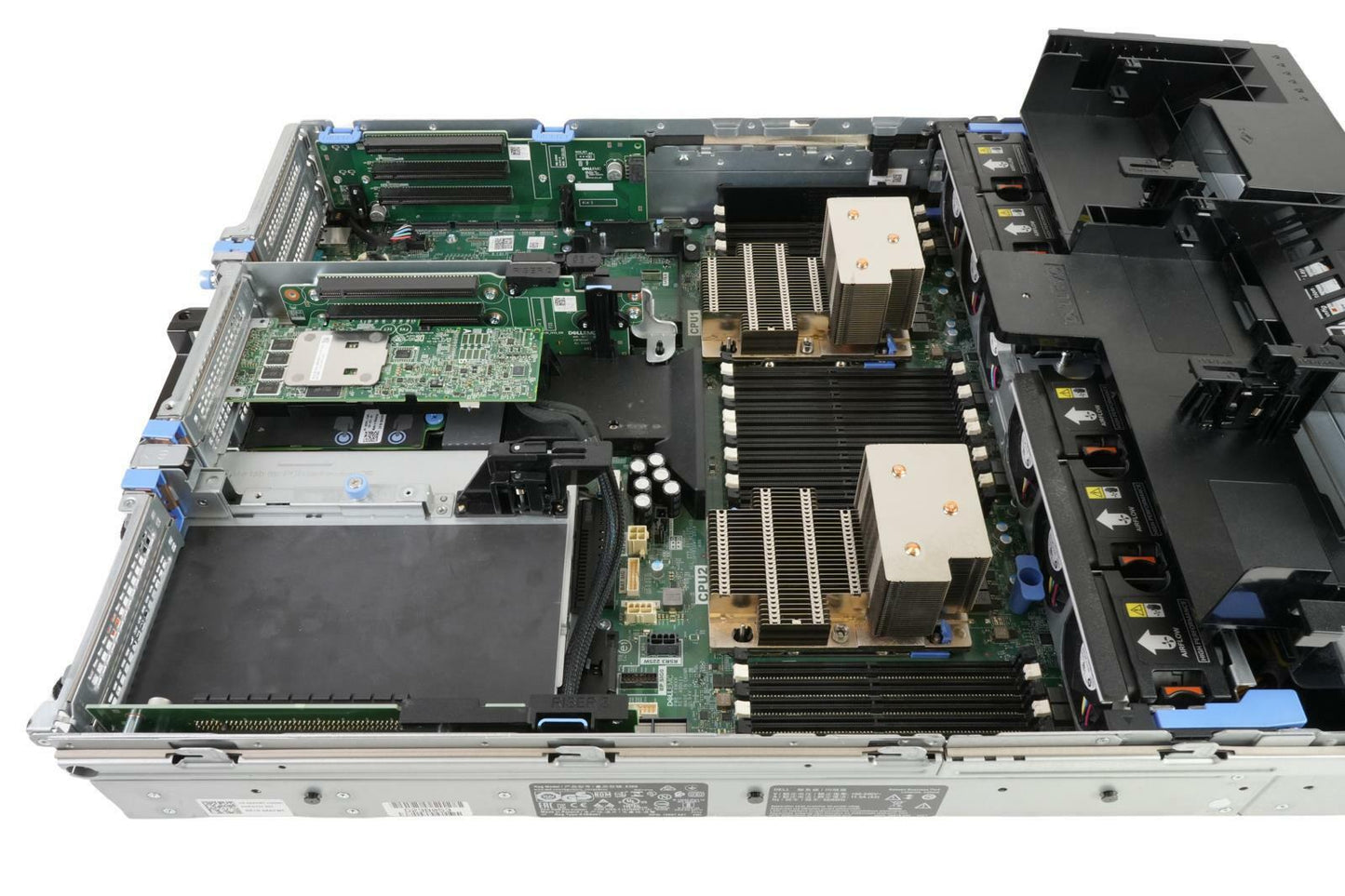

Dell P/N: WXD1Y Dell motherboard for Dell EMC PowerEdge R740/R740xd Supports up to (2) two FCLGA3647 sockets Compatible with Intel Scalable 1st and 2nd Gen processors (24) twenty-four DDR4 DIMM slots |
| Processor(s) | No CPUs installed - supports Intel Xeon Scalable 1st and 2nd Gen processors |
| Memory | No memory installed - supports up to (24) twenty-four DDR4 DIMM slots |
| Hard Drives | No drives installed, hard drive caddies are not included. Some servers will come with blank some blank fillers |
| HDD Backplane |
Dell P/N: K2Y8N and 58D2W 24-Bay 2.5" Backplane with Daughter Board |
| RAID Controller |
Dell P/N: 1M71J PERC H740P 8GB RAID Controller Supports RAID 0, 1, 5, 6, 10, 50, 60 |
| Riser 1 |
Dell P/N: GHGTP Riser #1 1x PCI-E 3.0 x16 2x PCI-E 3.0 x8 (x16 physical) |
| Riser 2 |
Dell P/N: J7W3K Riser #2 1x PCI-E 3.0 x16 2x PCI-E 3.0 x8 (x16 physical) |
| Riser 3 |
Dell P/N: DTTHJ Riser #3 1x PCI-E 3.0 x16 1x PCI-E 3.0 x8 (x16 physical) |
| Heatsinks |
Dell P/N: TRJT7 Quantity: 2 2U Heatsinks |
| Fans |
Dell P/N: 4VXP3 Quantity: 6 High performance hot plug fan |
| NIC |
Dell P/N: 6VDPG Dell Intel X710/I350 v2 10GbE DA/SFP+ dual port + 1GBase-T dual port RNDC |
| Power Supply |

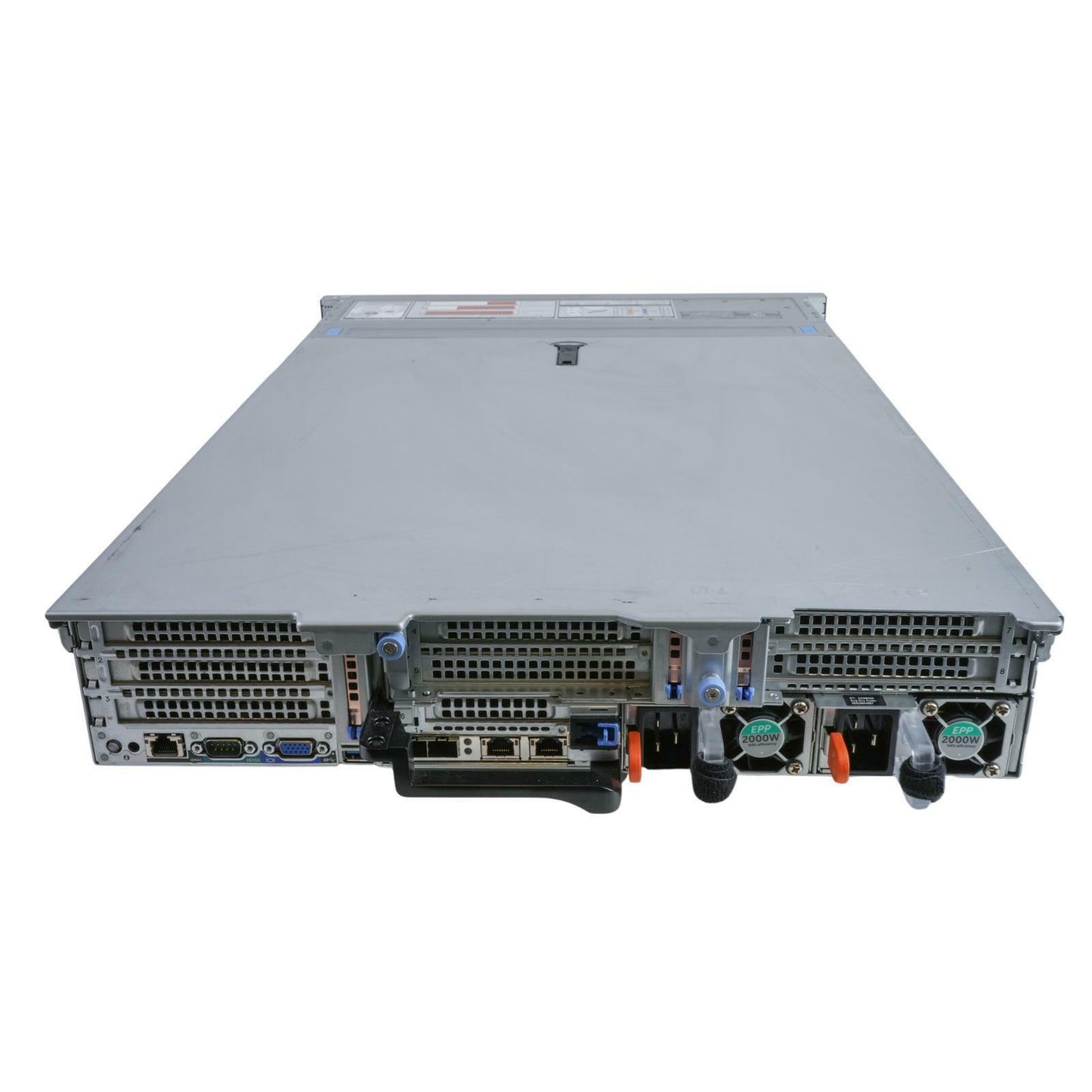

Dell P/N: VWWF1 Quantity: 2 Dell power supply 2000W, input 100-240V, 50-60Hz, 11.5A, 80 Plus Platinum, 94% efficiency, extended power performance (EPP), hot plug |
| Remote Access | iDRAC 9 Enterprise |
| Installed Licenses |
|
| Rackmount Rails | Not included |
| Power Cord | Not included |
Each server is configured to order. This process involves rigorous quality control which includes:
- Thorough visual inspection for physical damages
- Verification of all components and their functionality
- Full diagnostic test is performed utilizing the manufacturer's diagnostic tools
- BIOS and firmware updates are installed at the time of listing
- Passwords and settings are restored to factory defaults
Custom configurations are available. Please contact us for a quote or if you have questions regarding the current configuration.
30-Day Warranty!
