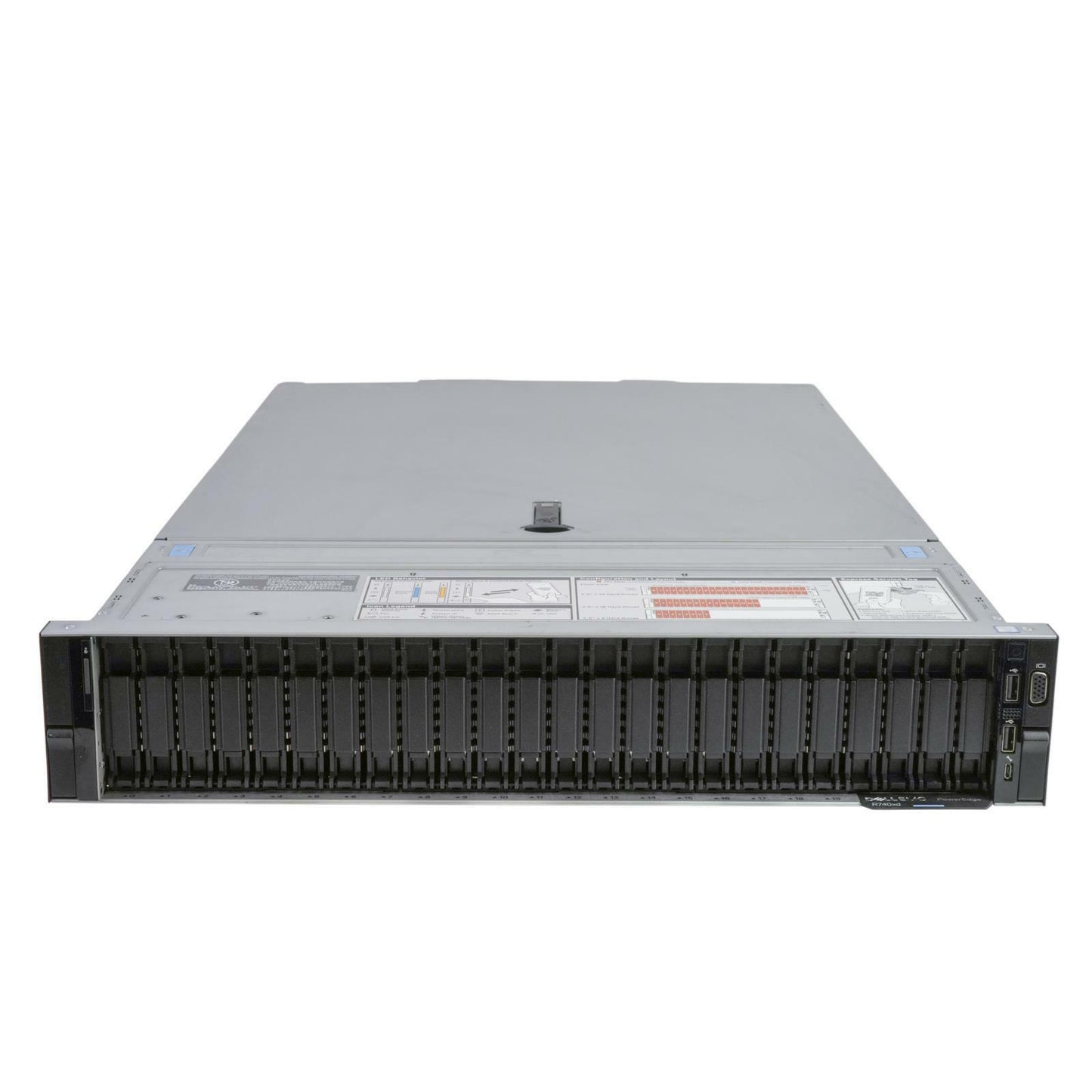

Dell PowerEdge R740xd 28SFF 2x Xeon Gold 6140 512GB PERC H740P iDRAC9 Flexbay
93516Dell PowerEdge R740xd 28SFF 2x Xeon Gold 6140 512GB PERC H740P iDRAC9 Flexbay
Dell PowerEdge R740xd 2.5" SFF 28-Bay 2x Intel Xeon Gold 6140 2.3Ghz 18-Core CPUs 512GB RAM PERC H740P 8GB iDRAC 9 Enterprise 2x2000W CTO 2U Rackmount Server - with iDRAC9 Enterprise and OpenManage Enterprise Advanced Licenses
Condition: Off-lease equipment. Clean and tested by a qualified technician. Rails are not included.
Specifications:
| Component | Description |
|---|---|
| Form Factor | 2U Rack Mount |
| Model | Dell PowerEdge R740xd 28x 2.5" SFF Bay - 24x 2.5" Bays (front) + 4x 2.5" Bays (rear) |
| System Board |
Dell P/N: WXD1Y Dell motherboard for Dell EMC PowerEdge R740/R740xd Supports up to (2) two FCLGA3647 sockets Compatible with Intel Scalable 1st and 2nd Gen processors (24) twenty-four DDR4 DIMM slots |
| Processor(s) | 2x Intel Xeon Gold 6140 2.3Ghz (18 cores each, 36 cores total) |
| Memory | 512GB DDR4-2666 ECC Registered (16x 32GB RDIMMs) |
| Hard Drives |
No drives installed, hard drive caddies are not included. Some servers will come with blank some blank fillers. Hard drive caddies available for purchase, see the link below: |
| HDD Backplane |
Dell P/N: K2Y8N and 58D2W 24-Bay 2.5" Backplane with Daughter Board |
| RAID Controller |
Dell P/N: 1M71J PERC H740P 8GB RAID Controller Supports RAID 0, 1, 5, 6, 10, 50, 60 |
| Riser 1 |
Dell P/N: GHGTP Riser #1 1x PCI-E 3.0 x16 2x PCI-E 3.0 x8 (x16 physical) |
| Riser 2 |
Dell P/N: RJRK7 Riser #2 1x PCI-E 3.0 x16 |
| 4x 2.5" Flexbay |
Dell P/N: WMJR0 - 4x 2.5" Flex Bay Rear Backplane Dell P/N: PG7T4 - BP SAS B1 to Rear BP Flex Bay Cable Dell P/N: M2CV4 - Rear Flex Bay Backplane Signal Cable Dell P/N: V87NX - 8-Pin 5.5" Backplane Power Cable |
| Heatsinks |
Dell P/N: TRJT7 Quantity: 2 2U Heatsinks |
| Fans |
Dell P/N: 4VXP3 Quantity: 6 High performance hot plug fan |
| NIC |
Dell P/N: 6VDPG Dell Intel X710/I350 v2 10GbE DA/SFP+ dual port + 1GBase-T dual port RNDC |
| Power Supply |
Dell P/N: VWWF1 Quantity: 2 Dell power supply 2000W, input 100-240V, 50-60Hz, 11.5A, 80 Plus Platinum, 94% efficiency, extended power performance (EPP), hot plug |
| Remote Access | iDRAC 9 Enterprise |
| Installed Licenses |
|
| Rackmount Rails |
Not included, available for purchase, see the link below: |
| Power Cord | Not included |
Each server is configured to order. This process involves rigorous quality control which includes:
- Thorough visual inspection for physical damages
- Verification of all components and their functionality
- Full diagnostic test is performed utilizing the manufacturer's diagnostic tools
- BIOS and firmware updates are installed at the time of listing
- Passwords and settings are restored to factory defaults
Custom configurations are available. Please contact us for a quote or if you have questions regarding the current configuration.
30-Day Warranty!
