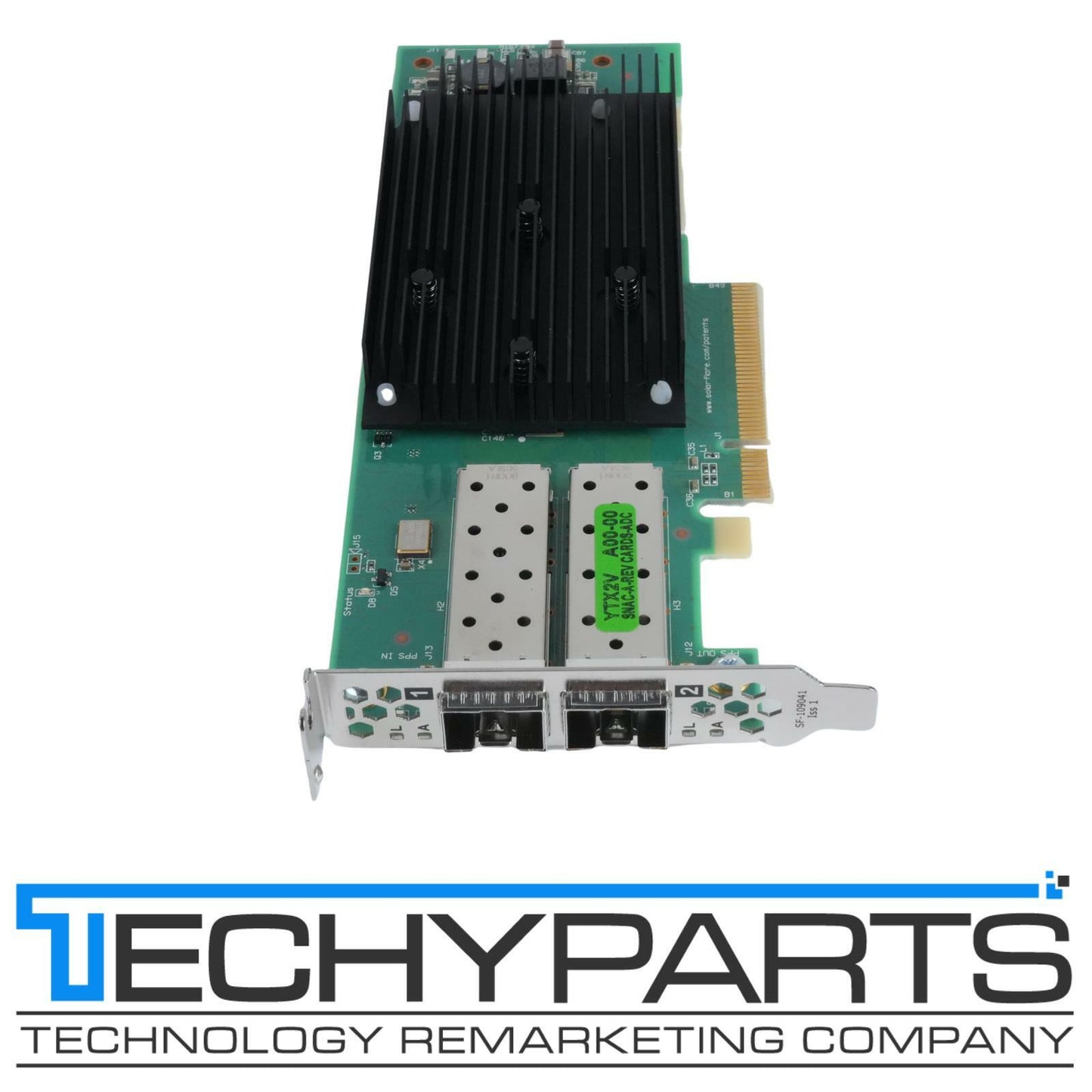

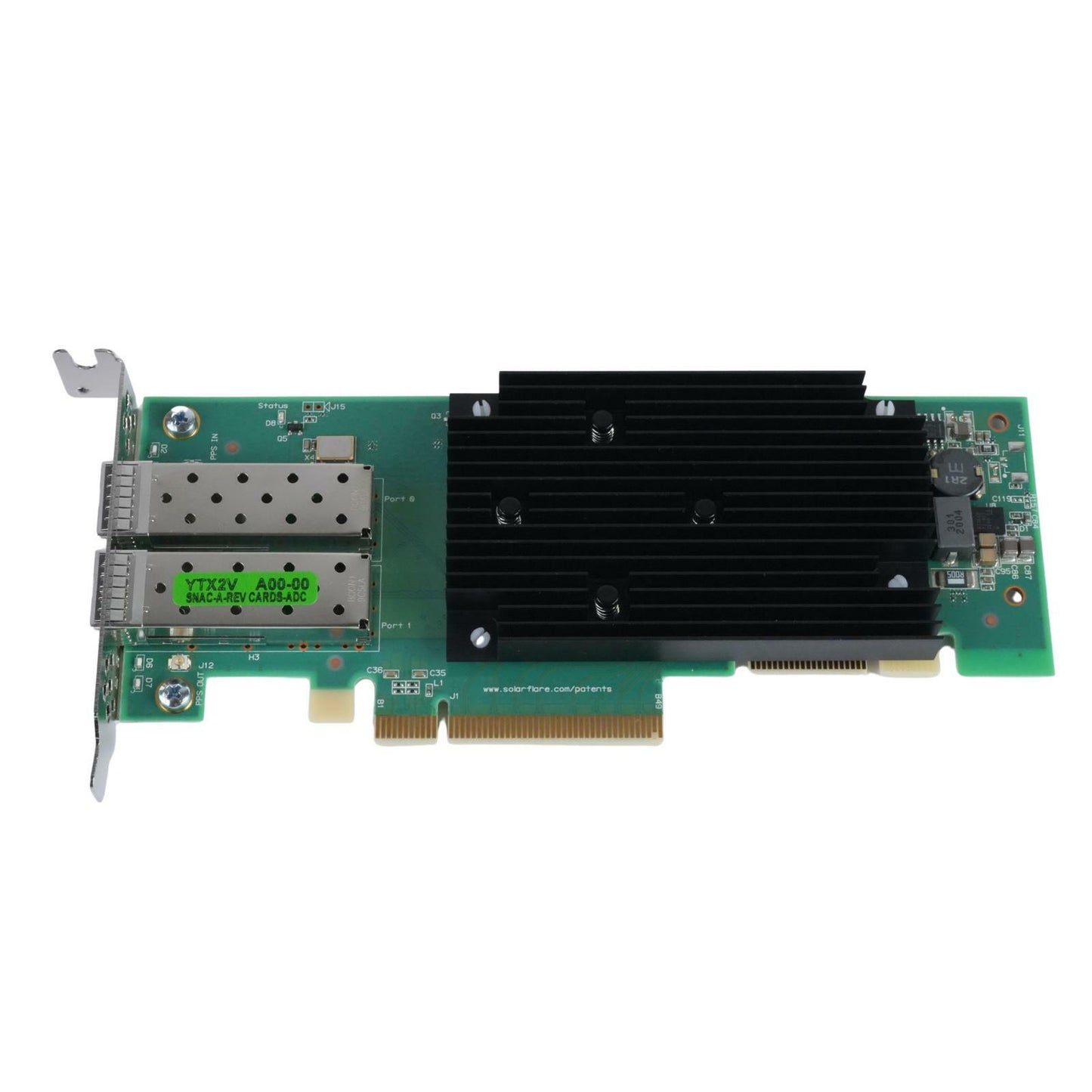

Dell YTX2V SolarFlare XtremeScale X2522-25G 2P 25G SFP28 PCIe LP ScaleOut Onload
94407Dell YTX2V SolarFlare XtremeScale X2522-25G 2P 25G SFP28 PCIe LP ScaleOut Onload
Dell YTX2V Solarflare XtremeScale X2522-25G Dual-Port 10/25GbE SFP28 PCIe 3.1 x8 NIC with ScaleOut Onload Licenses
DELL P/N: YTX2V
SOLARFLARE P/N: X2522-25G
Transceivers: Not included
Bracket: Low-profile / SFF (small form factor) bracket installed
Condition: Clean, tested pull 100% Fully Working & Verified!
Includes valuable ScaleOut Onload license enables ultra-low latency TCP/UDP acceleration and application-level networking directly from user space. Perfect for high-frequency trading, packet capture, fintech, and any latency-sensitive workload.
30-Day Hassle-Free Warranty!
Ships fast & securely packaged same day if ordered before 3PM EST!
Key Features & Benefits:
- Dual-port 10/25GbE SFP28 backward compatible with 10G SFP+
- PCIe 3.1 x8 full bandwidth even with two 25G ports active
- Ultra-low deterministic latency with Onload kernel bypass
- Hardware timestamping / PTP (IEEE 1588) support
- ScaleOut Onload license included huge value (normally thousands of $)
- Ideal for HFT, market data, telco/NFV, packet capture, OpenOnload applications
Full Technical Specifications:
| Manufacturer | Solarflare (Xilinx) |
| Dell Part Number | YTX2V |
| Solarflare Part Number | X2522-25G |
| Device Type | Dual-port 10/25GbE Network Adapter |
| Form Factor | Low-profile PCIe card |
| Interface (Bus) | PCI Express 3.1 x8 |
| Ports | 2 25G SFP28 (also supports 10G SFP+) |
| Controller | Solarflare SFC9250 |
| Licenses Included | ScaleOut Onload (TCPDirect, kernel bypass, user-space networking) |
| Data Rates Supported | 10 Gbps & 25 Gbps per port |
| Supported Protocols | TCP/IP, UDP/IP |
| Key Offloads & Features | UEFI support, VLAN tagging, Jumbo Frames (9K), RSS, TSO, LRO, GSO, RSC, Accelerated RFS, PTP/IEEE 1588 hardware timestamping, Flow steering, XtremePacket Engine, PXE boot |
| Compliant Standards | IEEE 802.3by, 802.3bx, 802.1Q, 802.1p, 802.3ad (LACP), RoHS, FCC |
| Supported OS | Linux (RHEL, CentOS, Ubuntu, SLES), Windows Server, VMware ESXi |
| OpenOnload Support | Yes dramatically reduces latency and CPU utilization |
| Dimensions (card only) | 6.6 in 2.7 in (167 mm 69 mm) |
| Operating Temperature | 0C to 55C (32F to 131F) |
| Humidity | 10 80% non-condensing |
