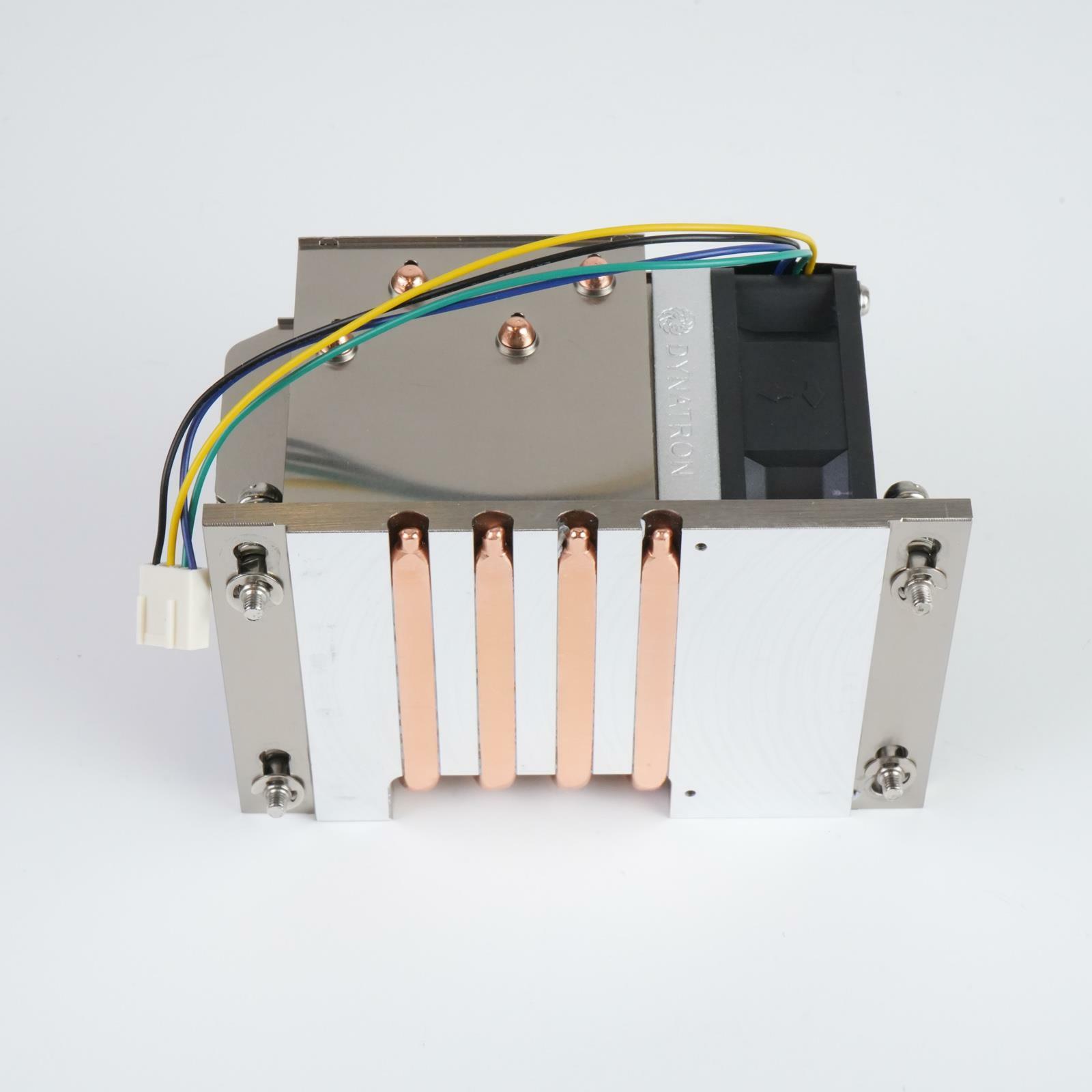

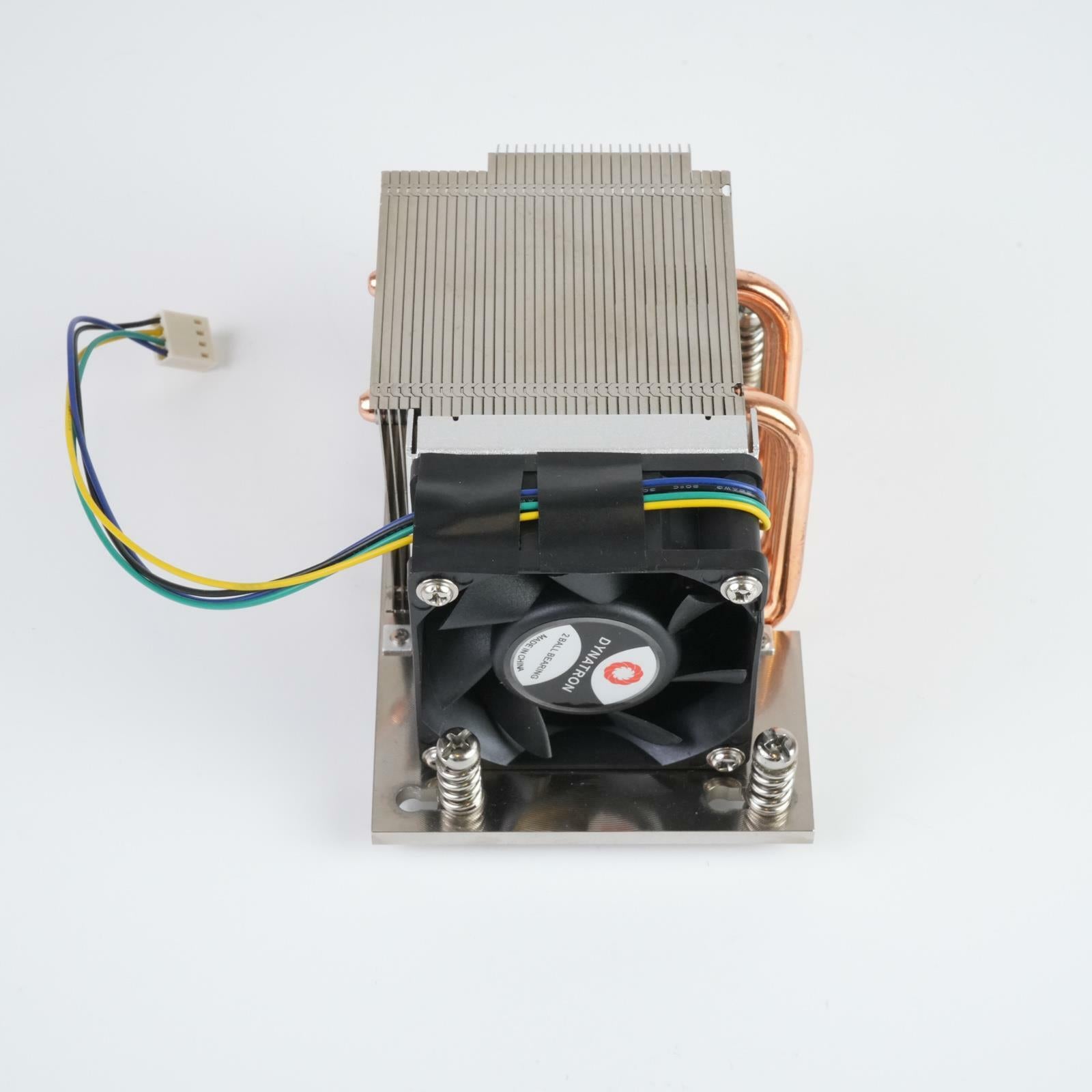

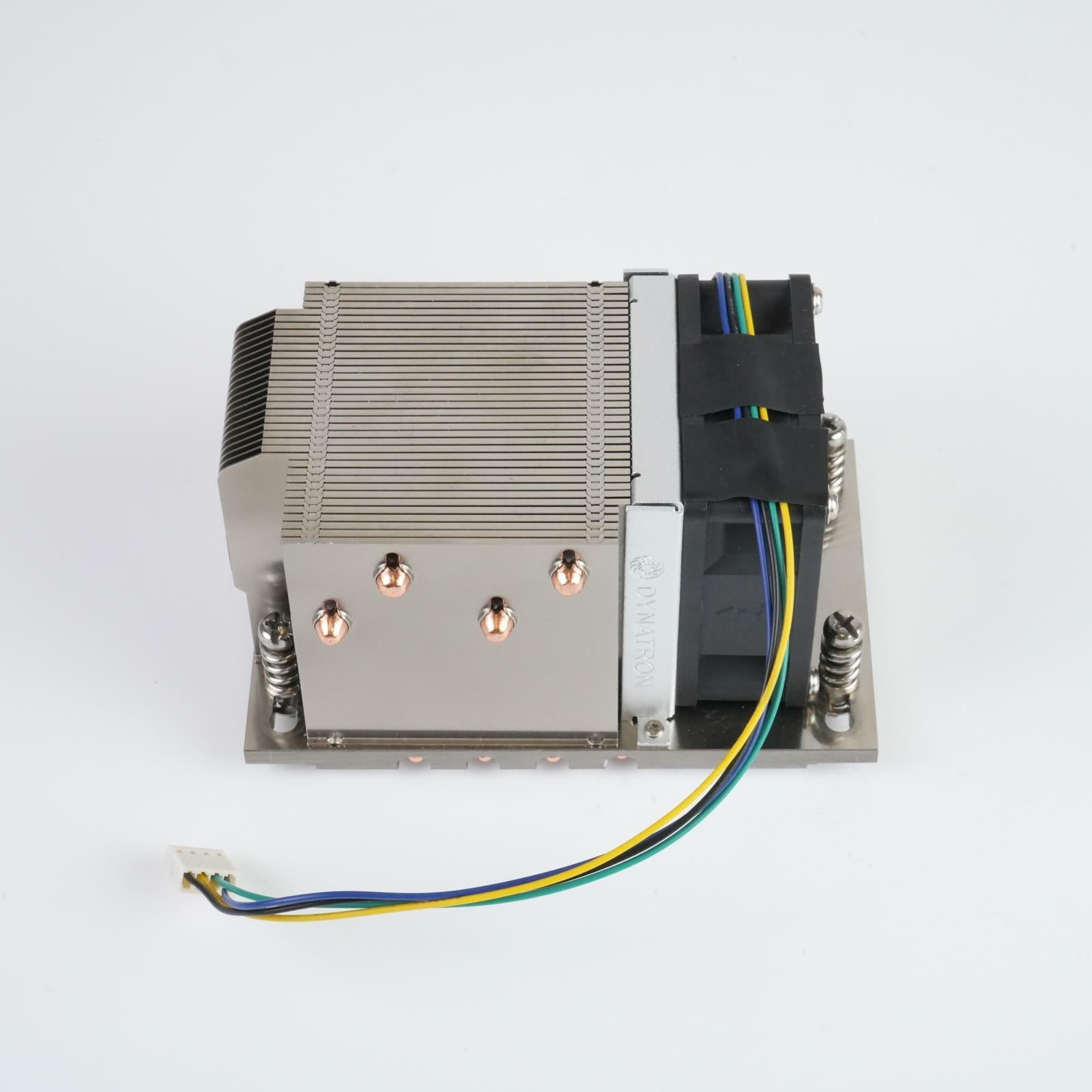

Dynatron A26 2U Active Aluminum Heatsink with Heatpipe AMD sWRX8/sTRX4/TR4/SP3
94274Dynatron A26 2U Active Aluminum Heatsink with Heatpipe AMD sWRX8/sTRX4/TR4/SP3
Dynatron A26 2U Active Aluminum Heatsink with Heatpipe Embedded for AMD Socket sWRX8/sTRX4/TR4/SP3
Condition: Clean, tested pull - Guaranteed 100% working!
30-Day Warranty!
Manufacturer's description and specifications:
| Category | Specification |
|---|---|
| CPU Support | AMD |
| CPU Socket | sWRX8 / sTRX4 / TR4 / SP3 |
| Screw Type | M3.5 |
| Installation Torque | 12.5 15.1 in-lb |
| Solution | 2U Server and Up |
| Maximum Power | 280 W |
| Dimensions (Heatsink) | 119.0 x 79.0 x 65.0 mm |
| Weight | 450 g |
| Material | Aluminum Heatsink with Embedded Heatpipe |
| Fan Dimensions | 60 x 60 x 25 mm |
| Fan Speed (Duty Cycle) | 20 %: 1600 200 RPM 50 %: 4000 10 % RPM 100 %: 8000 10 % RPM |
| Fan Power (Duty Cycle) | 20 %: 1.2 W 50 %: 2.28 W 100 %: 7.2 W |
| Bearing Type | Ball Type, Double |
| Rated Voltage | 12 V |
| Air Flow (Duty Cycle) | 20 %: 8.85 CFM 50 %: 21.88 CFM 100 %: 43.75 CFM |
| Noise Level (Duty Cycle) | 20 %: 18 dBA 50 %: 37.9 dBA 100 %: 53 dBA |
| Air Pressure (Duty Cycle) | 20 %: 0.76 mm-H2O 50 %: 4.76 mm-H2O 100 %: 19.04 mm-H2O |
| Lead Wire Pin-Out | Pin 1 (-) Pin 2 (+) Pin 3 (Tachometer/Signal output) Pin 4 (PWM) |
| Life (Continuous operation at 40 C / 104 F) | 70,000 hours |
| Notes | All specifications and images are subject to change without notice. |
