Dynatron N11 Intel Socket FCLGA 4189-4/5 (Socket P4/P5) Active 2U CPU Cooler
94457Dynatron N11 Intel Socket FCLGA 4189-4/5 (Socket P4/P5) Active 2U CPU Cooler

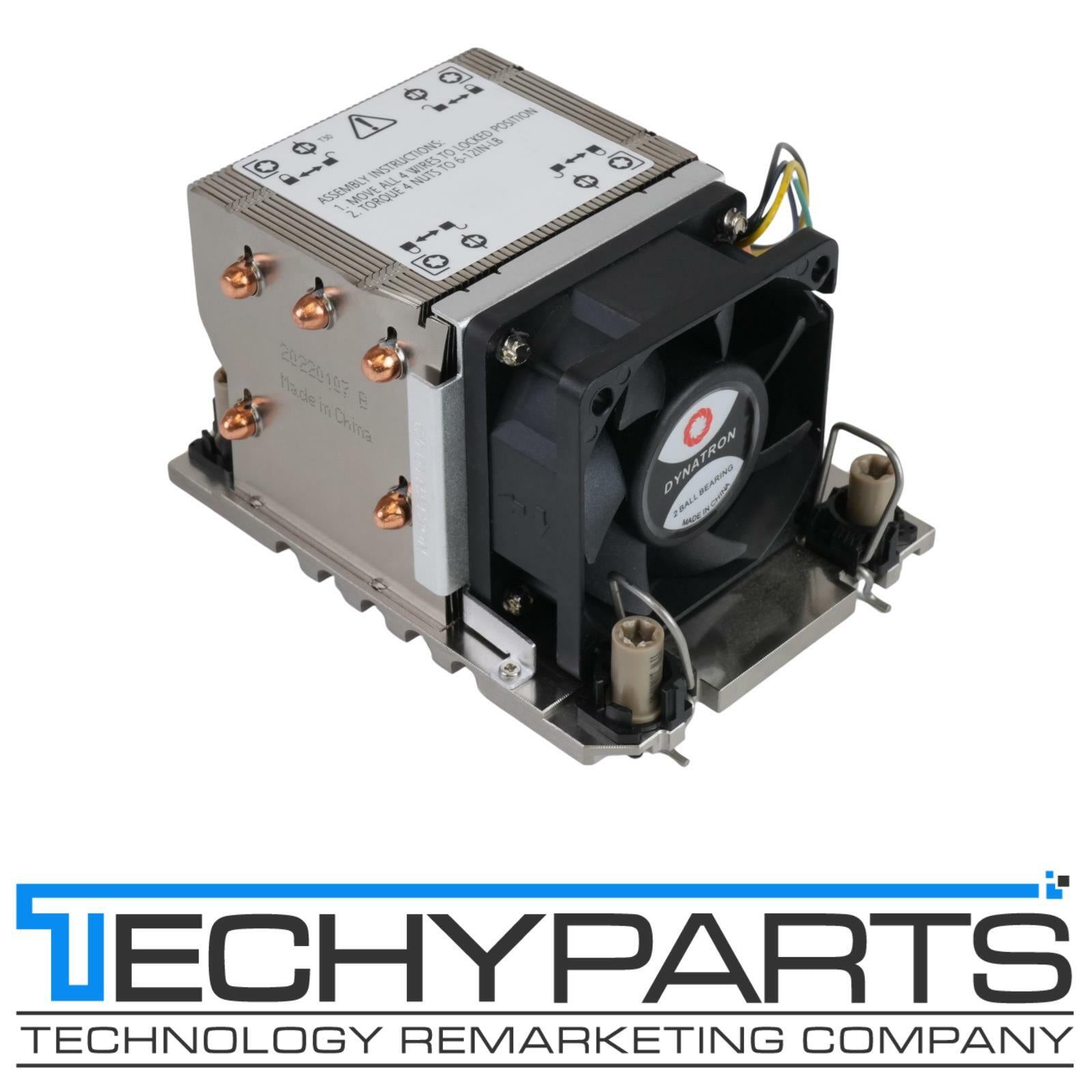

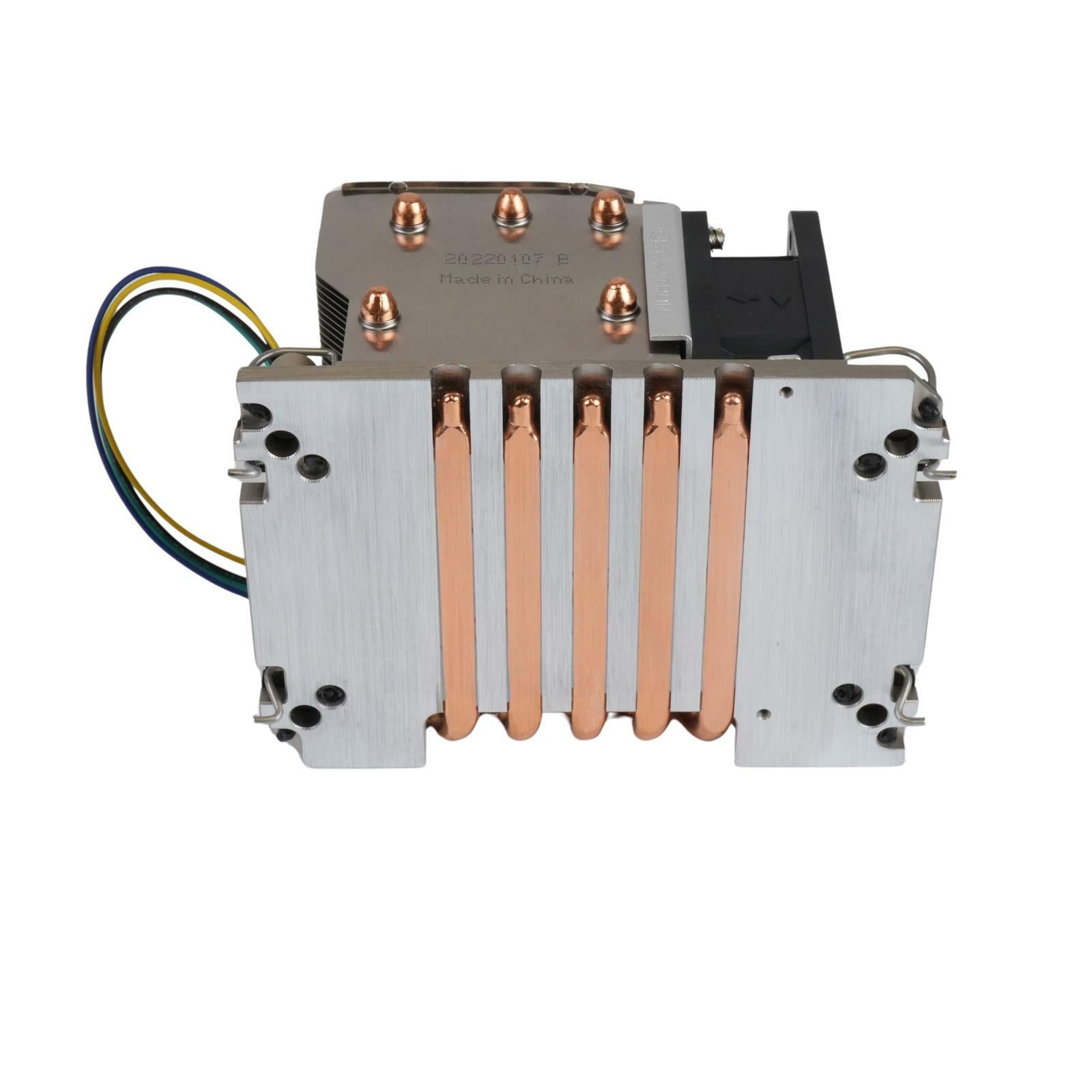

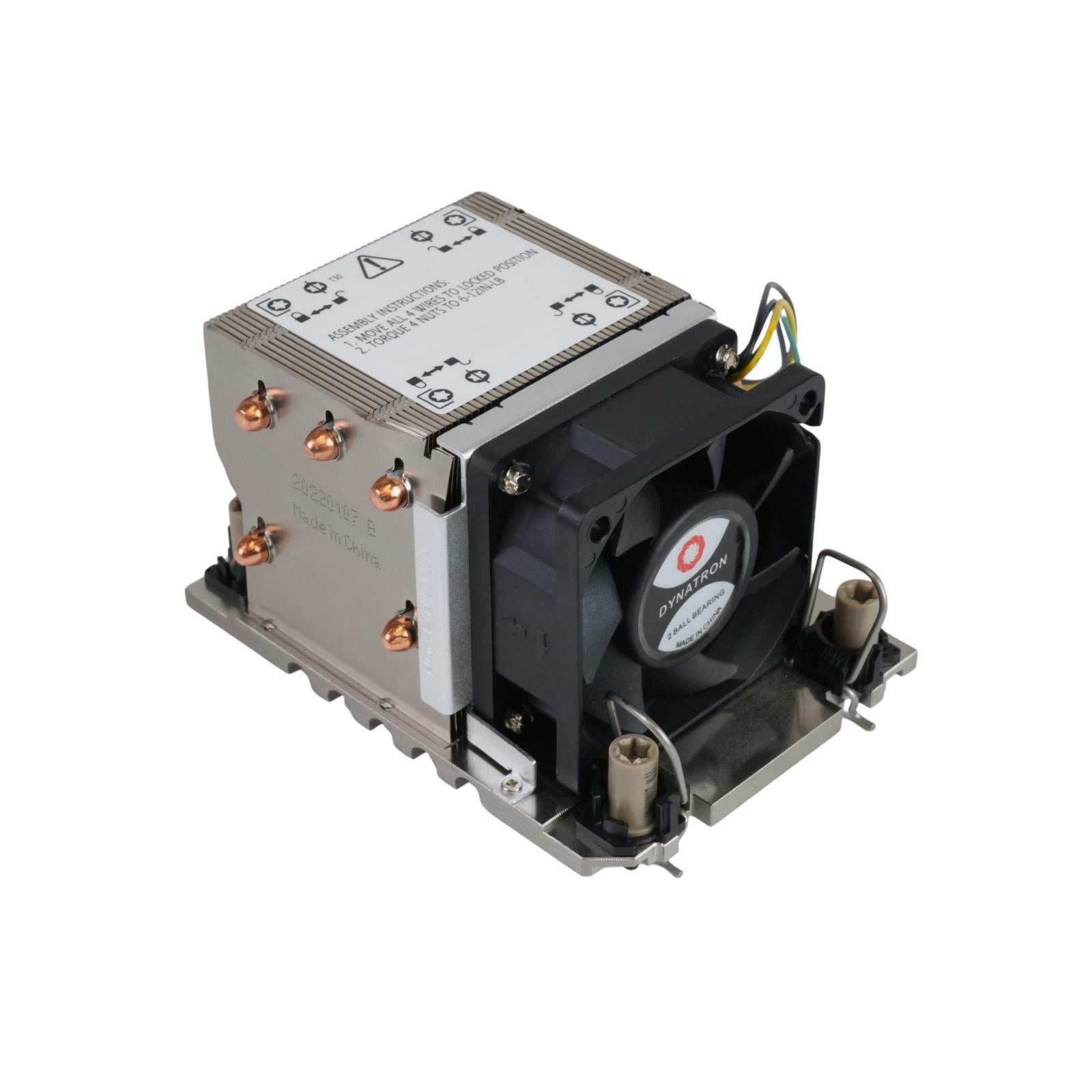

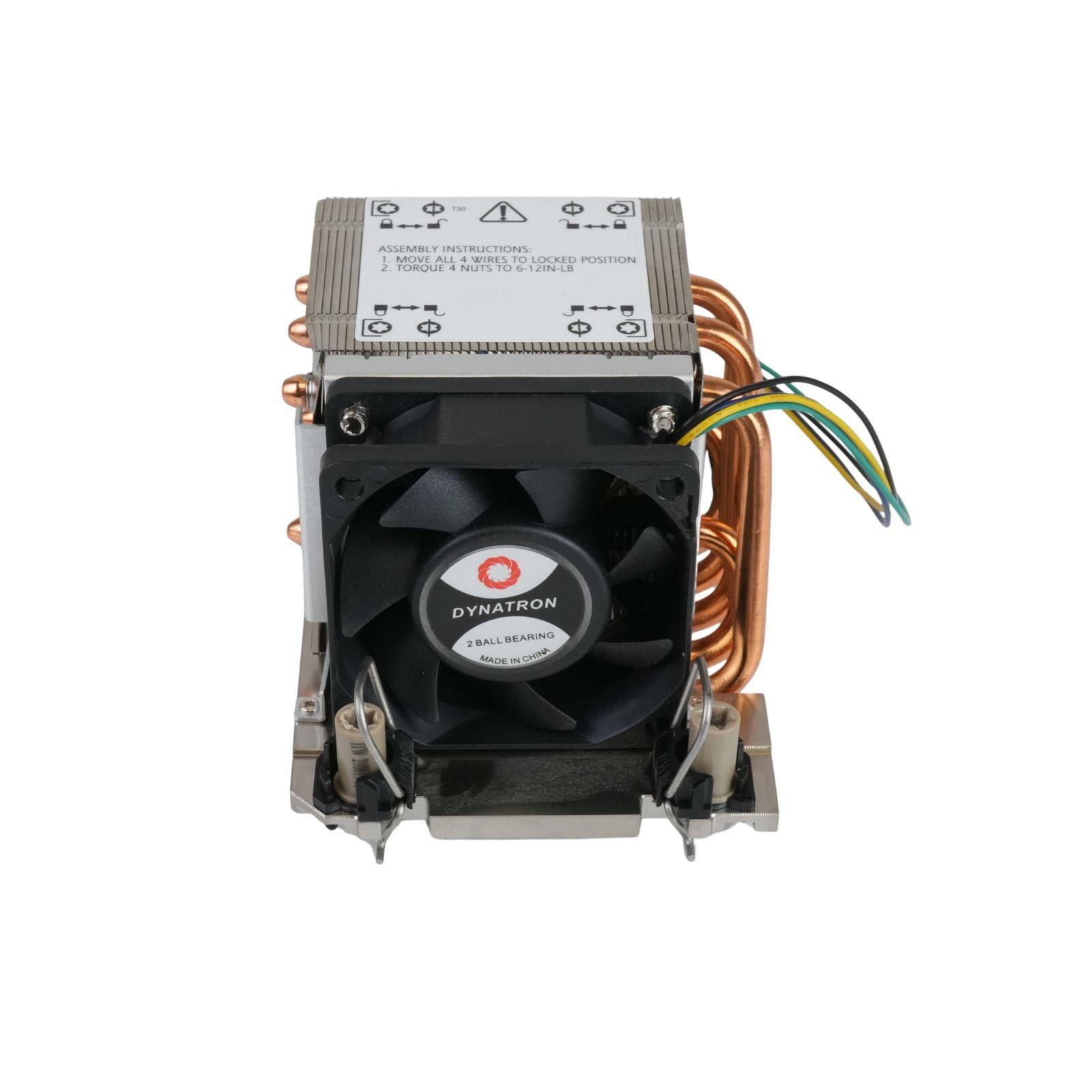

Dynatron N11 2U Active CPU Cooler for Intel Socket FCLGA4189-4/5 (Socket P4/P5) with DY-PK-4189-P4 Package Carrier
* Note: For Intel 3rd Gen Xeon Scalable Processors (code name Copper Lake, Socket LGA4189-5), the DY-PK-4189-P5 Package Carrier must be purchased separately.
Clean Tested Pull 100% Fully Working Ready to Install!
What's Included:
1 Genuine Dynatron N11 Active CPU Cooler

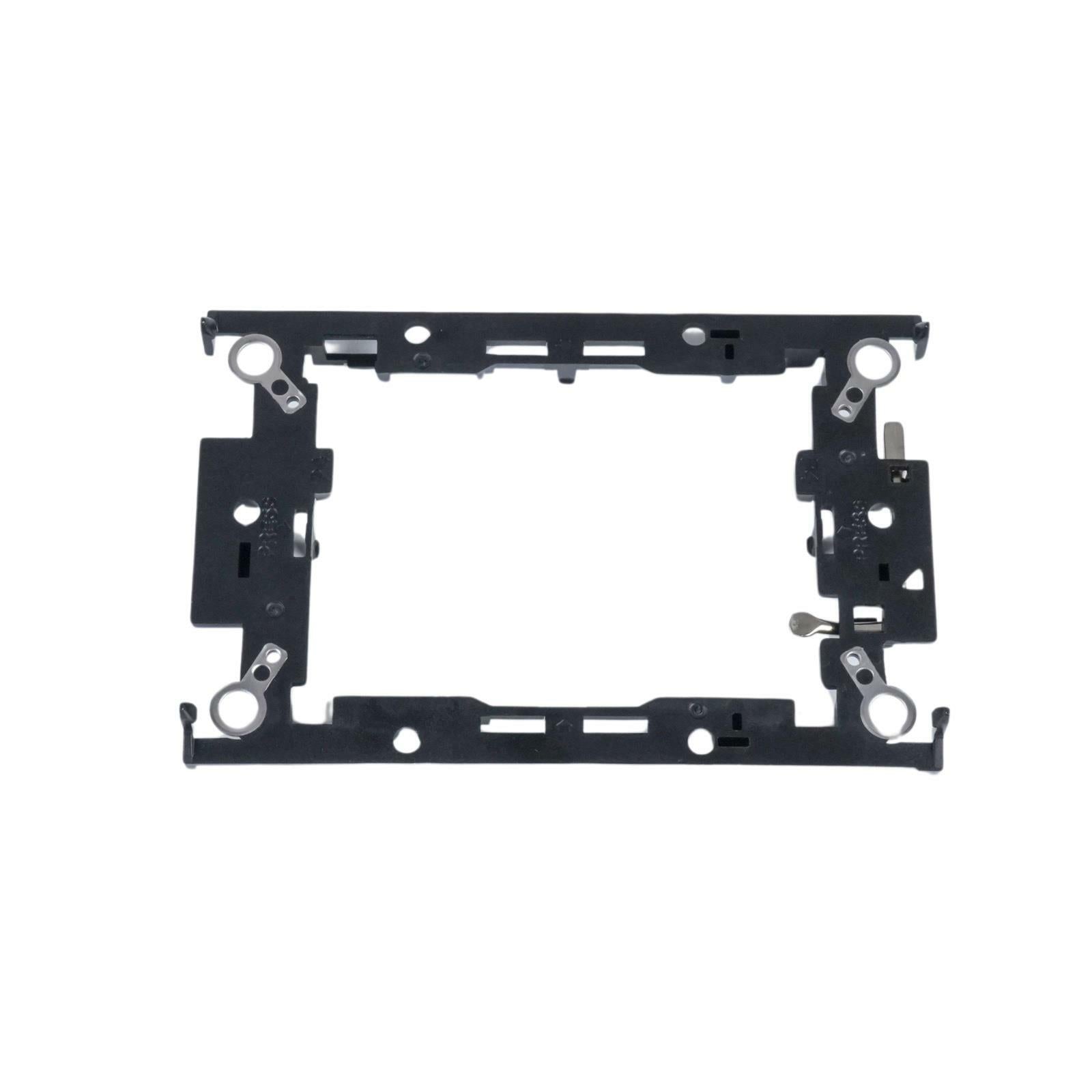

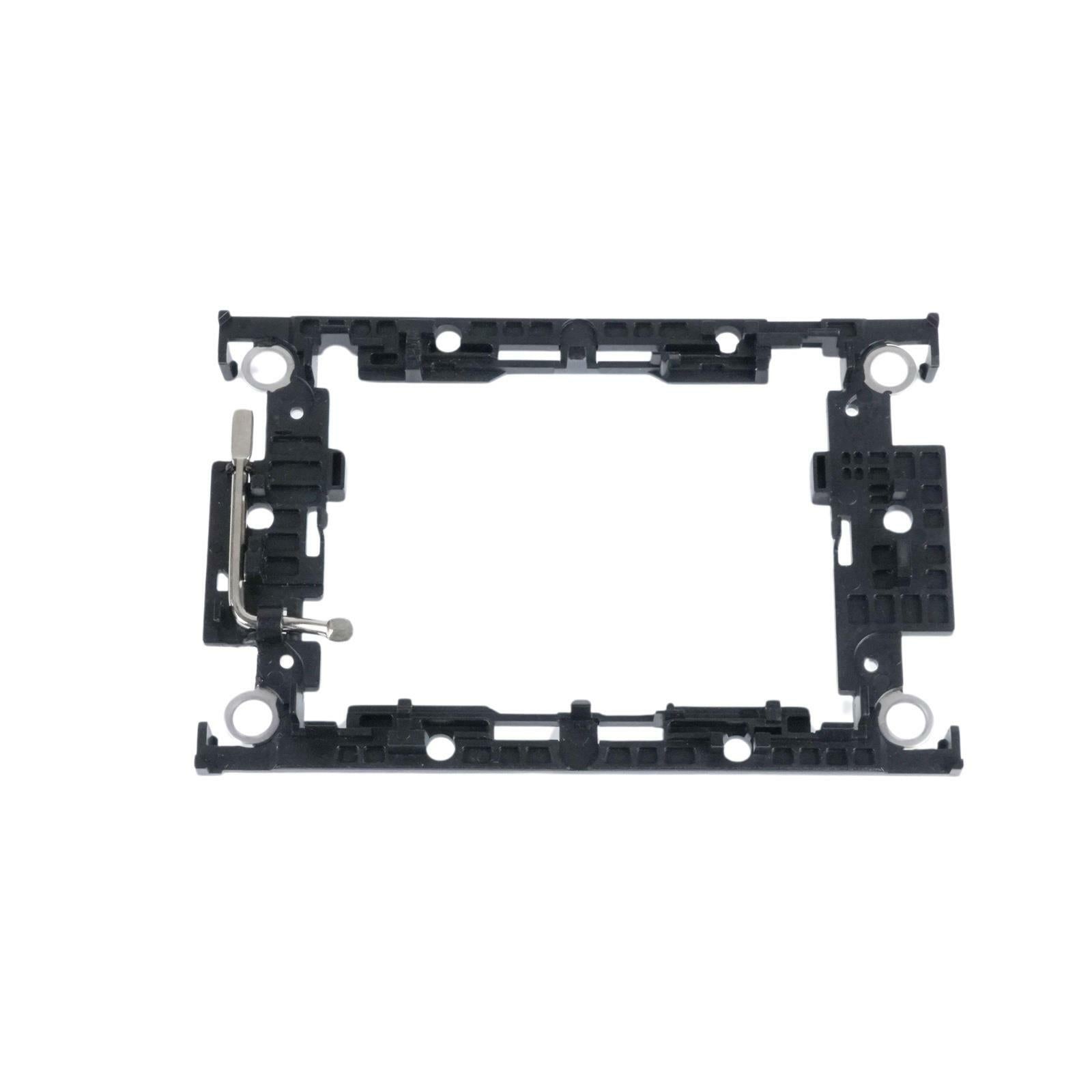

1 DY-PK-4189-P4 Package Carrier (pre-installed)
No additional accessories included
30-Day Warranty!
Why This Cooler?
High-performance active cooling solution for Intel 3rd Gen Xeon Scalable (Ice Lake / Copper Lake) processors in 2U+ server chassis. Features embedded heatpipes, aluminum fins, and a powerful 60mm PWM fan for excellent thermal management up to high TDP loads. Professionally pulled from a working enterprise environment pristine condition, fully tested under load.
Shipping:
Ships fast and securely packaged from the USA same day if ordered before 3PM EST!
Manufacturer's Specifications:
| CPU Support | Intel 3rd Gen Xeon Scalable Processor (Ice Lake and Copper Lake) |
| CPU Socket | FCLGA4189-4/5 (Socket P4/P5) |
| Screw Type | #8-32 |
| Installation Torque | 8 in-lb |
| Solution | 2U Server and Up |
| Dimensions | 113.0 82.0 66.0 mm |
| Weight | 460 g |
| Material | Aluminum fin stack with heat pipe embedded |
| Fan Dimension | 60 60 25 mm |
| Speed | Up to 8500 RPM |
| Rated Voltage | 12 V |
| Bearing | 2 Ball Bearing |
| Power Consumption | At Duty Cycle 020%: 1.2 W At Duty Cycle 50%: 2.52 W At Duty Cycle 100%: 9.6 W |
| Air Flow | At Duty Cycle 020%: 9.86 CFM At Duty Cycle 50%: 23.21 CFM At Duty Cycle 100%: 49.32 CFM |
| Noise Level | At Duty Cycle 020%: 19.3 dBA At Duty Cycle 50%: 37.9 dBA At Duty Cycle 100%: 54.3 dBA |
| Air Pressure | At Duty Cycle 020%: 0.86 mm-H2O At Duty Cycle 50%: 4.76 mm-H2O At Duty Cycle 100%: 21.5 mm-H2O |
| Lead Wire Pin-Out | Pin #1 Black (-) Pin #2 Yellow (+) Pin #3 Green (Tachometer/Signal Output) Pin #4 Blue (PWM) |
| Life Expectancy | 70,000 hours (continuous operation at 40C / 104F) |
