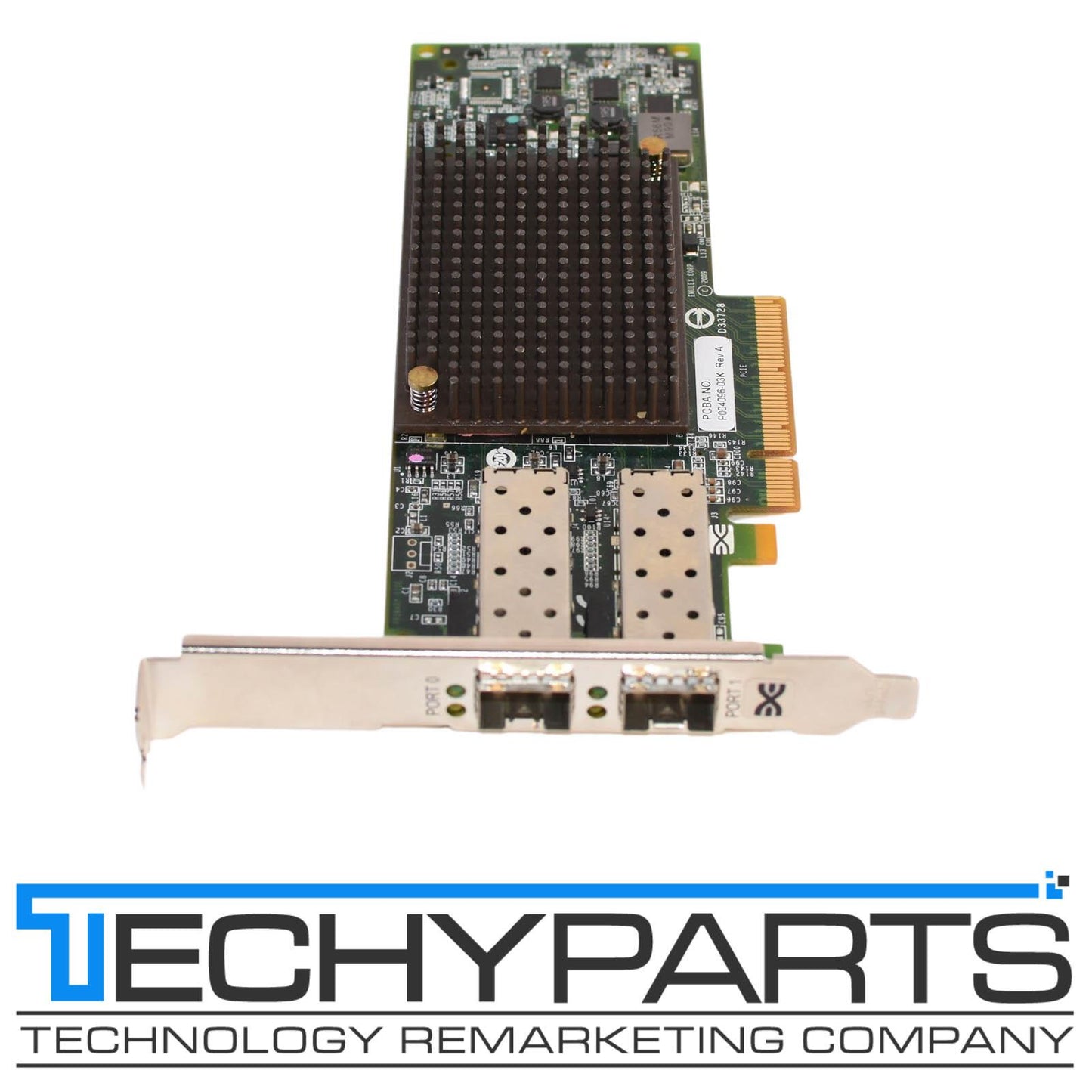

Emulex OCe10102-F Dual Port 10Gb SFP+ Fibre Channel PCI-e 2.0 x8 CNA HBA P004096
89597Emulex OCe10102-F Dual Port 10Gb SFP+ Fibre Channel PCI-e 2.0 x8 CNA HBA P004096
Emulex OCe10102-F Dual Port 10Gb SFP+ Fibre Channel PCI-e 2.0 x8 CNA HBA P004096
Emulex OCe10102-F Dual Port 10Gb SFP+ Fibre Channel PCI-e 2.0 x8 Ethernet Adapter CNA HBA
EMULEX Model P/N: OCE10102-F, EMU-P004096 (A)
ASSY P/N: P004476-03F, P004476-03G
PCBA P/N: P004096-03H, P004096-03K
Tranceiver: Not included
Mounting bracket: Full Height
Condition: Clean, tested pull - Guaranteed 100% working!
No software, cables or other accessories included. Comes with Full Height mounting bracket only.
30-Day Warranty!
Manufacturer's description and specifications:
The Emulex OCe10102-F is a high-performance 10Gbps Fibre Channel over Ethernet (FCoE) adapter that consolidates traffic for networking, Fibre Channel and FCoE storage. A member of the Emulex OneConnect™ Universal Converged Network Adapter (UCNA) family, the OCe10102-F FCoE adapter supports a common 10 Gigabit Ethernet (10GbE) infrastructure for networking and storage, reducing capital expense (CapEx) for adapters, switches and cables, and operational expense (OpEx) for power, cooling and IT administration.
- Maximum return on investment
- Converges network and storage I/O with high-performance 10GbE connectivity
- One network infrastructure reduces CapEx
- One management console reduces OpEx
- Leverages existing IT investments Optimized for server virtualization with vEngine technology
- More virtual machines (VMs) per server
| Controller | |
OCe10102-F | |
| Data Path | |
Eight Lanes (x8) | |
| Data Bus | |
PCIe Express 2.0 (x8, 5GT/s), MSI-X support | |
| Form Factor | |
Low profile with standard bracket (low-profile bracket available) | |
| Interconnect | |
| Copper SFP+ Direct Attached Twin-Ax Copper interface Standards compliant passive and active copper cables supported up to 5m Optical Optics: 10GBASE-SR short wave lasers with LC type connector | |
| Transfer Rate | |
10Gbps | |
| Ethernet Ports | |
Two | |
| Wake On LAN | |
Yes | |
| Boot from LAN/SAN | |
Yes | |
| PXE Support | |
2.1 | |
| Receive Side Scaling (RSS) | |
Yes | |
| 10G based SR standard | |
Yes | |
| Stateless TCP/IP & TCP Chimney Offload Engine (TOE) | |
Yes | |
| 10Gbps Ethernet and FCoE offload | |
Yes | |
| FCoE CNA | |
Yes | |
| PXE Boot | |
Yes | |
| UDP Checksum | |
Yes | |
| Jumbo Frames | |
Yes, up to 9000 Bytes | |
| ACPI | |
V2.0 | |
| TCP Segmentation | |
Yes | |
| 802.1q VLAN Tagging Insertion & Extraction | |
Yes | |
| Link Aggregation & Load ACPI Balancing | |
Yes | |
| NETBUI | |
Yes | |
| Carrier Sense Multiple Access/Collision Avoidance | |
Yes | |
| 802.1p Netbios | |
Yes | |
| IPX/SPX, IPX, IP, TCP/IP | |
Yes | |
| Advanced Features | |
| TCP/IP Offload Engine(TOE) for increased bi-directional throughput and performance Receive Side Scaling (RSS) TCP Segmentation 802.1q VLAN Tagging Link Aggregation and Load Balancing Jumbo Frames | |
| FCoE Features | |
| Common driver for UCNAs and HBAs N_Port ID Virtualization (NPIV) Support for FIP and FCoE Ethernet Types Fabric Provided MAC Addressing (FPMA) support 1024 concurrent port logins (RPIs) 2048 active exchanges (XRIs) per port | |
| Ethernet Features | |
| IPv4/IPv6 TCP, UDP checksum offload; Large Send Offload(LSO); Large Receive Offload; Receive Side Scaling (RSS); IPV4 TCP Chimney Offload VLAN insertion and extraction Jumbo frames up to 9000 Bytes Preboot eXecutive Environment (PXE) 2.0 network Boot support Interrupt coalescing Load balancing and failover support including Adapter fault tolerance (AFT), switch fault tolerance (SFT), adaptive load balancing (ALB), teaming Support and IEEE 802.3ad | |
| Operating Systems | |
| Windows Server 2008, Windows Server 2003 Red Hat Enterprise Linux Server Novell SUSE® Linux Enterprise Server VMware ESX Microsoft Server 2003® Scalable Networking Pack required for TOE | |
| Operating Voltage | |
| 3.3V +/-5%, Maximum 1950 mA (DC) 12.0V +/- 5%, Maximum 1240mA @12.0V (DC) | |
| Operating Temperature | |
0° to 55° C (32° to 131° F) | |
| Storage Temperature | |
-40° to 70° C (-40° to 158° F) | |
| Relative humidity | |
5% to 95% non-condensing | |
| Performance Features | |
| FCoE offload TCIP/IP stateless offloads TCP Chimney offload | |
