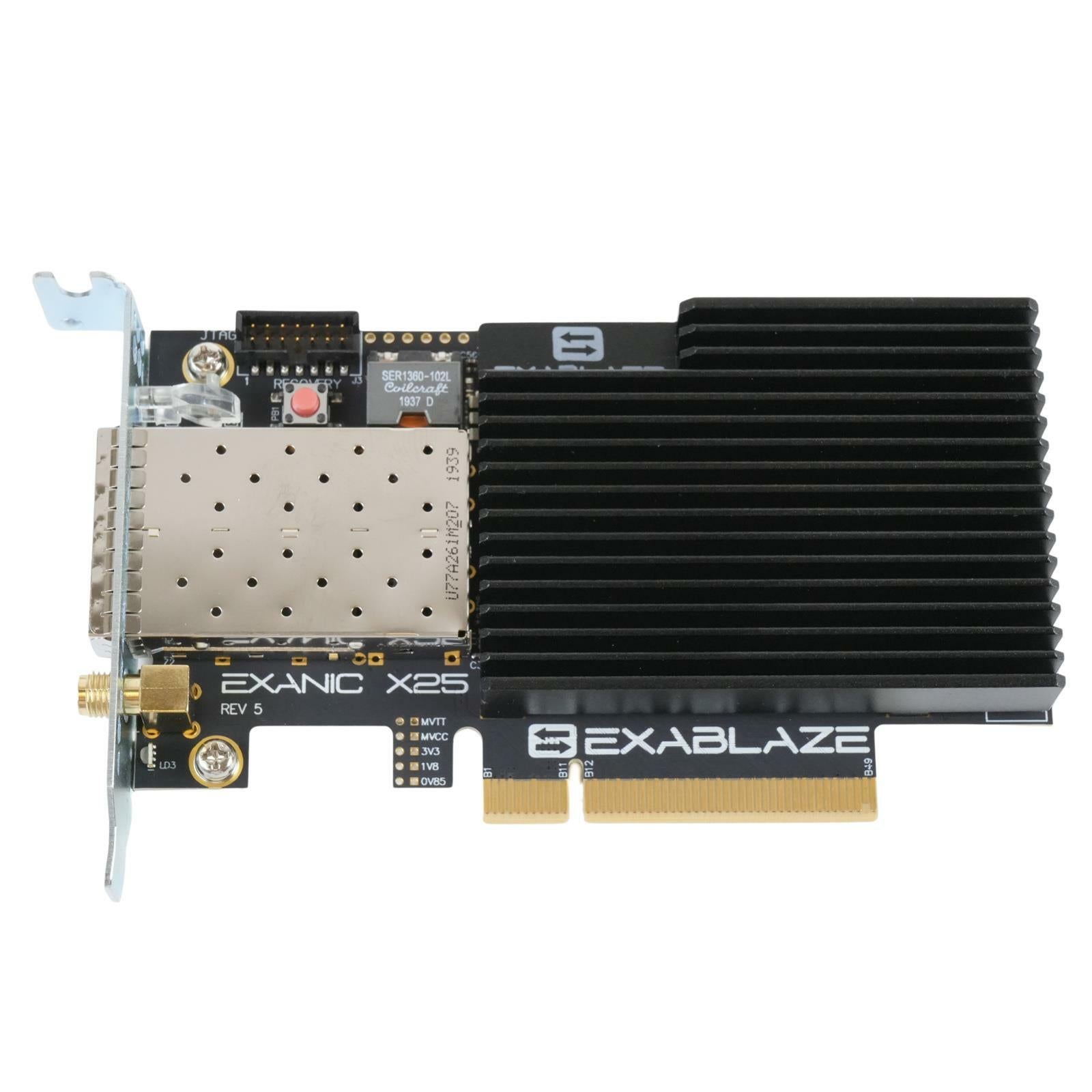

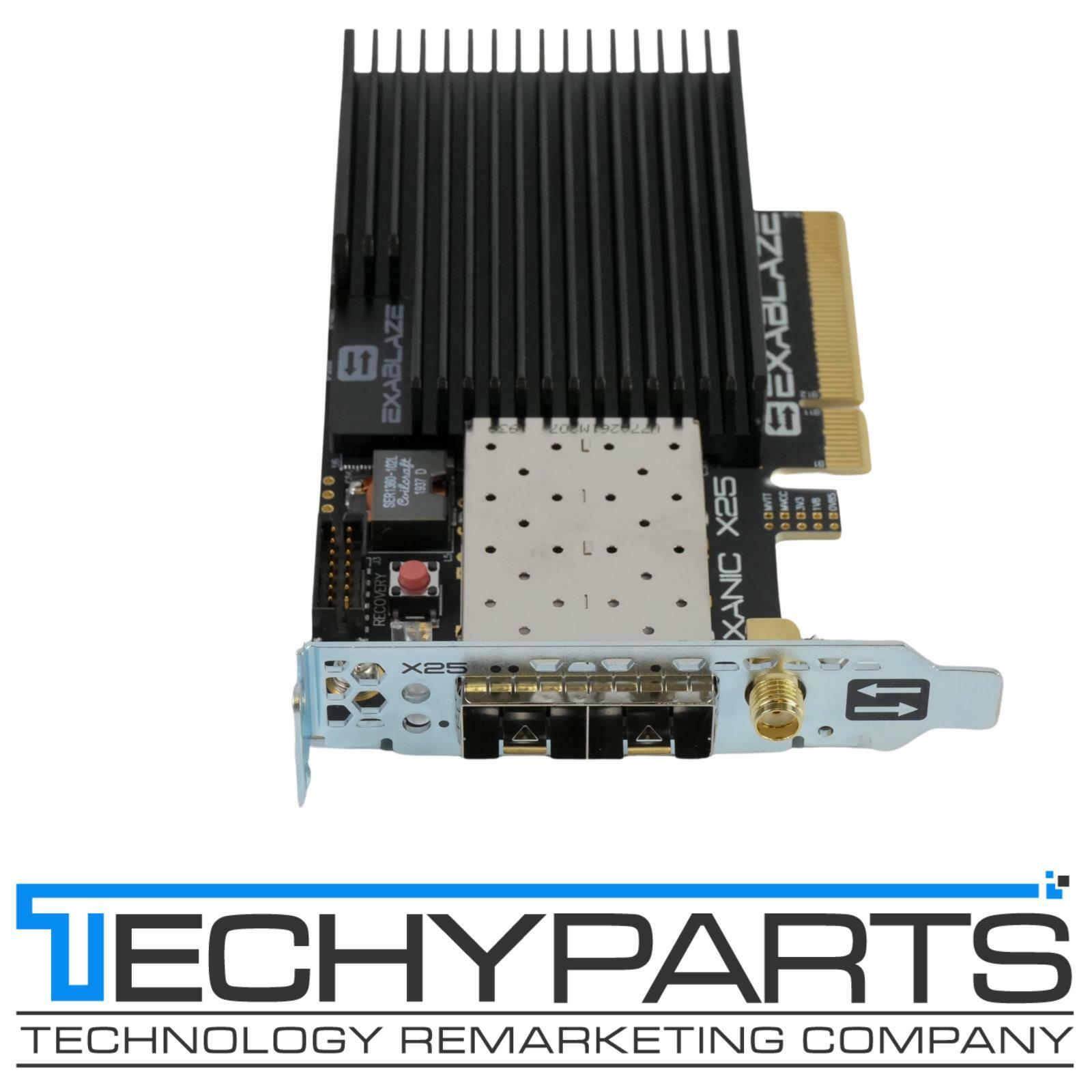

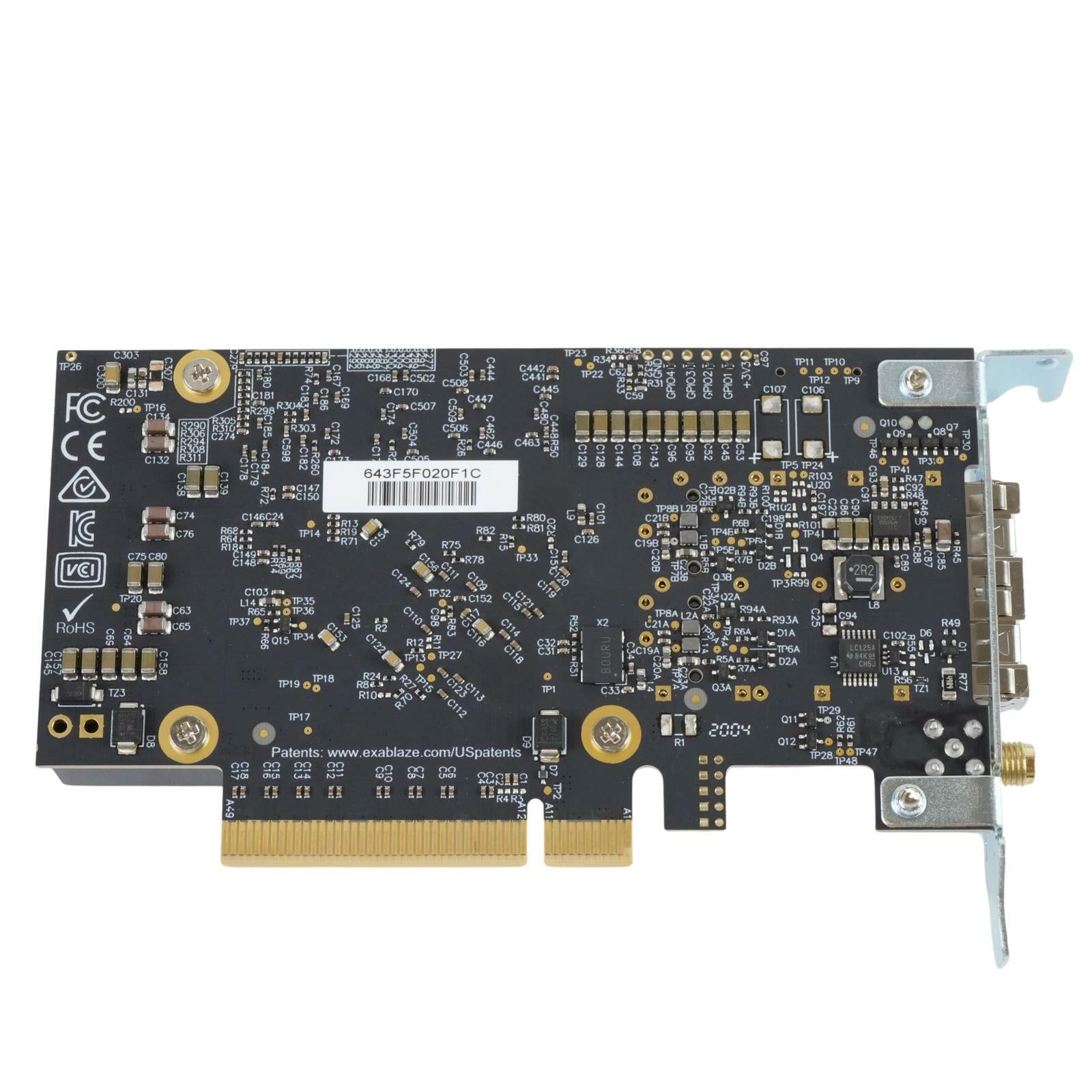

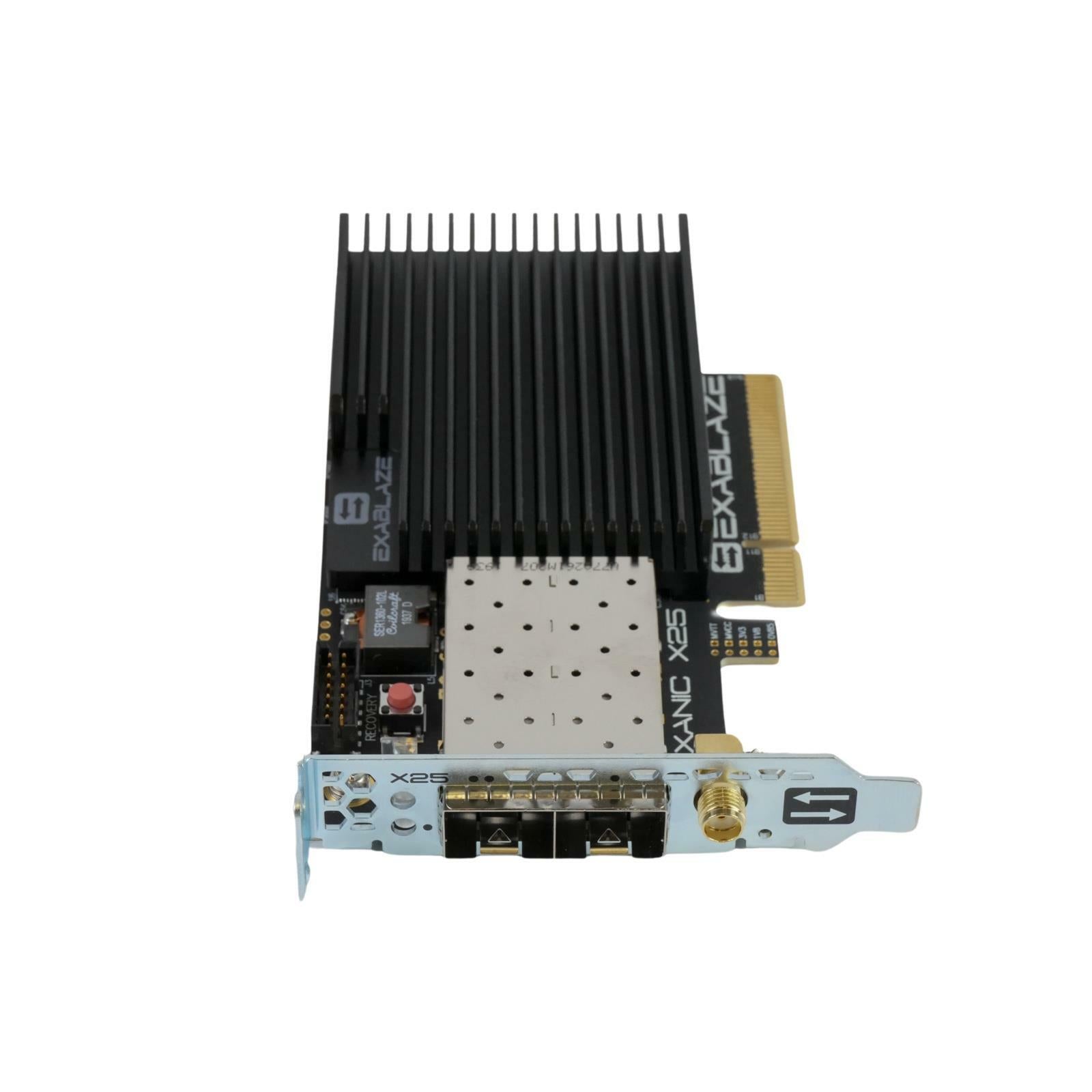

Exablaze ExaNIC X25 Dual-Port 10/25GbE SFP28 Low Latency PCIe 3.0 x8 FPGA NIC Network Card with Low Profile Half Height Mounting Bracket

EXABLAZE P/N: EXANIC X25

Tranceiver: Not included

Mounting bracket: Low Profile, Half-Height

Condition: Clean, tested pull - Guaranteed 100% working!

No software, cables or other accessories included. Comes with low profile, half height mounting bracket only.

30-Day Warranty!

Manufacturer's description and specifications:

The ExaNIC X25 is the fastest ExaNIC ever built. It is up to 20% faster than previous ExaNIC models.

Users will find this drop-in replacement NIC accelerates low latency application performance to previously unachievable levels. It offers software trigger-to-response latencies as low as 568ns for small Ethernet frames.

The device features an advanced free and open source software interface optimized for low latency network processing. Features include: zero latency programmable receive steering, cut-through packet streaming, pre-loaded packet transmission, and TCP/IP acceleration.

The ExaNIC X25 is built using the latest generation of Xilinx Ultrascale+ FPGA. Users can make use of the FPGA by offloading critical network processing functions directly into the NIC, while maintaining the ease of use and administration of a production grade network adapter. It optionally ships with 4GB of DDR4 memory for custom use.

Performance

Typical latency, raw frames:
- 64 bytes: 696ns
- 256 bytes: 897ns
Typical latency, raw frames with pre-loaded TX buffer:
- 64 bytes: 629ns
- 256 bytes: 665ns
Typical latency, UDP (using ExaSOCK sockets acceleration).:
- 14 bytes: 810ns
- 256 bytes: 1.1s
Typical latency, TCP (using ExaSOCK sockets acceleration).:
- 14 bytes: 850ns
- 300 bytes: 1.1s

Timestamping

Timestamp resolution:
- 4ns
Timestamp availability:
- All received (RX) frames
- Most recent transmitted (TX) frame
Time synchronization:
- Host clock synchronization
- PTP (IEE1588)(+/-5ns)
- PPS in/out
Time synchronization software:
- Linux PTP (PTP4L)
- PTPD (hardware timestamp branch)
- exanic-clock-sync
- Solarflare PTPD (SFPTP)

Other features

Advanced software API:
- Cut-through receive (CT-RX) processing
- Packet staging/pre-loading
Zero-Latency Flow steering and flow hashing:
- 128 IP rules per port
- 64 MAC rules per port
High rate packet capture:
- Using free and open source Exact Capture software
- Best paired with ExaDISK high rate capture NVMe drives
FPGA Customization:
- Xilinx KU3P Ultrascale+ device
- 4GB DDR4 (32bit) variant available
- Low-latency optimized Firmware Development Kit available
- JTAG header on board (via apater cable - not included)

General

Form factor:
- Low profile (half-height) PCI Express card
Host Interface:
- PCIe Gen 3 x8 @ 8.0 GT/s per lane
Ports:
- 2x SFP28
- 3.3V PPS in/out, software-selectable 50 ohm termination
Data rates / Supported Media:
- 25 Gigabit Ethernet*, 10 Gigabit Ethernet, 1 Gigabit Ethernet, 100M Ethernet
- Fiber (25GBASE-SR, 25GBASE-LR, 10GBASE-SR, 10GBASE-LR, 1000BASE-SX, 1000BASE-LX)
- SFP(+/28) Direct Attach
- For best compatibility and performance, use genuine optical modules and cables from Exablaze.
Operating systems:
- Linux (any distribution)
- Windows (via 3rd party drivers)
