Fusion-io F08-002-1T65-CS-0001 1650GB ioFX2 PCI-E 2.0 x4 Solid State Drive SSD
87737Fusion-io F08-002-1T65-CS-0001 1650GB ioFX2 PCI-E 2.0 x4 Solid State Drive SSD
Fusion-io F08-002-1T65-CS-0001 1650GB ioFX2 PCI-E 2.0 x4 Solid State Drive SSD
WD Fusion-io F08-002-1T65-CS-0001 1650GB 1.65TB ioFX2 PCI-E 2.0 x4 Solid State Drive SSD with Full Height Mounting Bracket
Please note: This SSD drive cannot be used as a boot drive and requires drivers installed prior to usage. Drives can be downloaded from WD Enterprise support website by creating an account. The fan on the card is on the loud side.
Manufacturer: WESTERN DIGITAL
WESTERN DIGITAL Part Number: F08-002-1T65-CS-0001
Capacity: 1650GB
Interface: PCIe 2.0 x 4
Sequential Reads: 1400MB/S
Sequential Writes: 1100MB/S
Maximum Random 4k Read: 140,000 IOPS
Maximum Random 4k Write: 170,000 IOPS
This part is a working pull. It has been tested by a qualified technician. Latest firmware has been installed.
Drive health status is: 100% health remaining

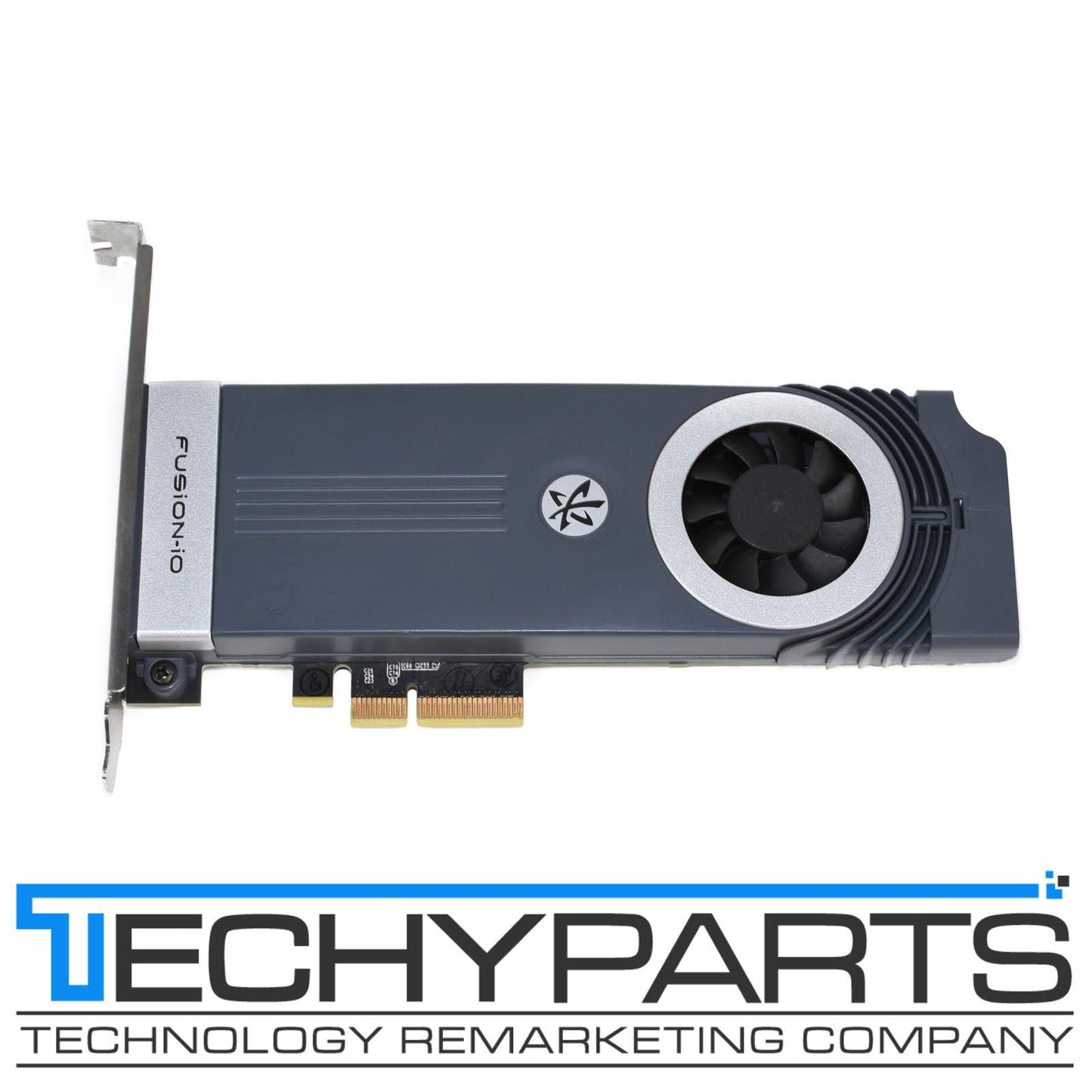

You will receive this part as pictured. SSD comes with full height mounting bracket.
30-Day Warranty!
Test log:
c:\Temp>fio-status.exe
Found 1 ioMemory device in this system
Driver version: 3.2.15 build 1699
Adapter: ioMono
Fusion-io 1.65TB ioFX2, Product Number:F08-002-1T65-CS-0001, SN:1336G0725, FIO SN:1336G0725
External Power: NOT connected
PCIe Power limit threshold: 24.75W
Connected ioMemory modules:
fct0: Product Number:F08-002-1T65-CS-0001, SN:1336G0725
fct0 Attached
ioDrive2 Adapter Controller, Product Number:F08-002-1T65-CS-0001, SN:1336G0725
PCI:02:00.0
Firmware v7.1.17, rev 116786 Public
1650.00 GBytes device size
Internal temperature: 39.37 degC, max 40.85 degC
Reserve space status: Healthy; Reserves: 100.00%, warn at 10.00%
Contained VSUs:
fct0: ID:0, UUID:96a88ec0-ff98-104a-8ece-6029df982f54
fct0 State: Online, Type: block device
ID:0, UUID:96a88ec0-ff98-104a-8ece-6029df982f54
1650.00 GBytes device size
Specifications:
| Altitude | Operational: 10,000 Non-operational: 30,000 |
| Connectivity | PCI Express 2.0 x 4 electrical x4 physical |
| Capacity | 1650 GB |
| NAND | MLC (Multi Level Cell) |
| Bandwidth | At 1 MB Read: 1.4 GB/s Write: 1.1 GB/s |
| Read Access Latency | 77 µs (4 K) |
| Write Access Latency | 19 µs (4 K) |
| Bus Interface | PCI-Express 2.0 x 4 (x4 physical) |
| Bundle Software | ioSphere |
| Supported Operating System | Microsoft Windows: 64-bit Windows Server 2012, Windows Server 2008 R2, Windows 8, Windows 7 Linux: RHEL 5/6, SLES 10/11, OELv5/6 OSX: 10.6 (Snow Leopard), 10.7 (Lion), 10.8 (Mountain Lion) Note: Linux: CentOS 5/6, Debian Squeeze, Fedora 16/17, Ubuntu 10/11/12, OpenSUSE 12 Hypervisors: VMware ESX 4.0/4.1, VMware ESXi 4.1/5.0/5.1, Windows 2008 R2 with Hyper-V, Hyper-V Server 2008 R2 |
| Ambient Temperature | Operational: 0 to 35°C Non-Operational: -40 to 70°C |
| Power Requirements | 25 W |
| Air Flow | Active cooling no enclosure air flow required |
| Humidity (Non-condensing) | Active cooling no enclosure air flow required |
