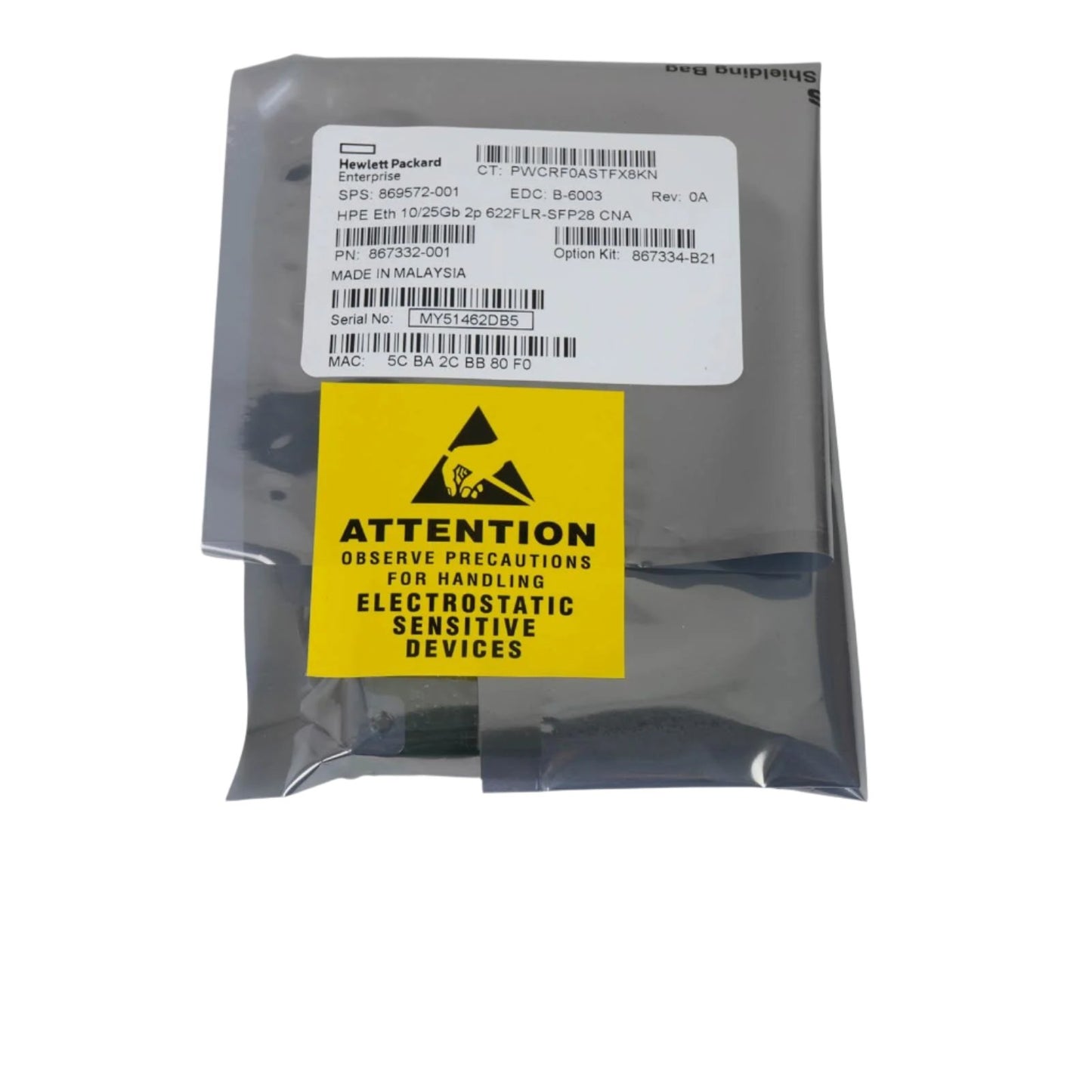

HPE 867334-B21 622FLR-SFP28 10/25GbE 2Pt SFP28 FlexibleLOM 869572-001 867332-001

90599

HPE 867334-B21 622FLR-SFP28 10/25GbE 2Pt SFP28 FlexibleLOM 869572-001 867332-001

  • 90599-867334-B21-49369_base
1 1

HPE

$29.95 USD
$29.95 USD
Sale Sold out
Shipping calculated at checkout.

163 in stock
View full details

HPE 867334-B21 622FLR-SFP28 10/25GbE 2Pt SFP28 FlexibleLOM 869572-001 867332-001

HPE 867334-B21 622FLR-SFP28 10/25GbE 2-Port SFP28 FlexibleLOM Ethernet Adapter NIC 869572-001 867332-001

HPE Option P/N: 867334-B21

HPE Spare P/N: 869572-001

HPE P/N: 867332-001

Tranceiver: Not included

Mounting bracket: FlexibleLOM

Condition: New, bulk

30-Day Warranty!

Manufacturer's description and specifications:

The HPE Ethernet 10/25Gb 2-port 622FLR-SFP28 Converged Network Adapter for ProLiant servers are designed to optimize Cloud efficiency, and improve performance and security of applications - Especially where I/O, block storage and database performance are critical and the need for maximum VM density and up-scalability are greatest

Feature
Description
Key features

  • Dual 25Gb ports provide up to 100 Gb/s of converged bi-directional Ethernet bandwidth

  • Jumbo frame

  • FlexibleLOM

  • HPE Sea of Sensors 3D

  • Tunnel offload (NVGRE and VxLAN)

  • RDMA over converged Ethernet (RoCE v2, RoCE v1)

  • Single-Root Input/Output Virtualizaton (SR-IOV)

  • IPv6 acceleration

  • Preboot eXecution Environment (PXE)

  • Checksum and segmentation offload

  • VMware NetQueue and Microsoft Virtual Machine Queue (VMQ)

  • Precision Time Protocol (PTP)

  • Support for Wake on LAN (WoL)

  • Receive-Side Scaling (RSS)

  • Receive-Side Coalescing (RSC)

  • Active Health Systems support

  • Authentication of digitally signed firmware

  • Additional security features include: UEFI secure boot, sanitization, audit logs and device-level firewall

  • Full RDMA –enable the iWARP stacks on adapters in addition to the ROCE capability. (No iWarp and RoCE on the same port)
Throughput- Theoretical bandwidth
This adapter delivers 50 Gb/s bi-directional Ethernet transfer rate per port (100 Gb/s per adapter), providing the network performance needed to improve response times and alleviate bottlenecks
Audit logs
Audit Logs are a forensics capability that provides traceability into authenticated firmware updates by capturing changes in standard system logs
Authenticated updates
Authenticated updates brings cryptographic keys onto the NIC (For HW Authentication) to protect user and configuration data from unauthorized access and verify digitally signed firmware
Checksum and segmentation offload

  • Normally the TCP Checksum is computed by the protocol stack. Segmentation offload is technique for increasing outbound throughput of high-bandwidth network connections by reducing CPU overhead

  • The technique is also called TCP Segmentation Offload (TSO) when applied to TCP, or Generic Segmentation Offload (GSO)
Device-level firewall
Device-level Firewall blocks any unmanaged access to memory or storage. This ensures that on-device firmware and configuration data can only be accessed by authorized agents
Form factor
This adapter series offers FlexibleLOM
HPE Sea Of Sensors 3D

  • Support for the HPE Sea of Sensors which is a collection of 32 sensors that automatically track thermal activity - heat - across the server

  • When temperatures get too high, sensors can initiate fans and make other adjustments to reduce energy usage

  • A significant improvement lies in the ability to apply fan speed increases only to the portion of the system that is rising in temperature, rather than all six fans in unison, which reduces the amount of energy used for cooling
IPv6
IPv6 uses 128-bit addressing allowing for more devices and users on the internet. IPv4 supported 32-bit addressing
Jumbo frames

  • This adapter supports jumbo frames (Also known as extended frames), permitting up to a 9,600 byte (KB) transmission unit (MTU) when running Ethernet I/O traffic

  • This is over six times the size of a standard 1500- byte Ethernet frame. With jumbo frames
Management support
This adapter ships with agents that can be managed from HPE Systems Insight Manager or other management application that support SNMP
Preboot eXecution Environment (PXE)

  • Support for PXE enables automatic deployment of computing resources remotely from anywhere

  • It allows a new or existing server to boot over the network and download software, including the operating system, from a management/ deployment server at another location on the network

  • Additionally, PXE enables decentralized software distribution and remote troubleshooting and repairs
Receive Side Scaling (RSS)

  • RSS resolves the single-processor bottleneck by allowing the receive side network load from a network adapter to be shared across multiple processors

  • RSS enables packet receive-processing to scale with the number of available processors
Sanitization
Sanitization (Secure user data erase) renders user and configuration data on the NIC irretrievable so that NICs can be safely repurposed or disposed
Secure boot
Secure Boot safeguards the system and ensures no rogue drivers are being executed on start-up
Server integration

  • This adapter is a validated, tested, and qualified solution that is optimized for HPE ProLiant servers

  • Hewlett Packard Enterprise validates a wide variety of major operating systems drivers with the full suite of web-based enterprise management utilities including HPE Intelligent Provisioning and HPE Systems Insight Manager that simplify network management
Single-Root I/O Virtualization (SR-IOV)

  • SR-IOV provides a mechanism to bypass the host system hypervisor in virtual environments providing near metal performance and server efficiency

  • SR-IOV provides mechanism to create multiple Virtual Functions (VFs) to share single PCIe resources

  • The device is capable of SR-IOV, and requires Server BIOS support, controller firmware, and OS support
Precision Time Protocol (IEEE 1588 PTP)
Synchronization of system clocks throughout a network, achieving clock accuracy in the sub-microsecond range, making it suitable for measurement and control systems
Wake-on-LAN (WoL)

  • This adapter provides WoL support through the PCI Express bus

  • A system that supports WoL can remain available to the systems administrator during its normal downtime

  • Once the machine is awakened, the systems administrator can remotely control, audit, debug, or manage the machine
Supported Server
Description
ProLiant DL and Apollo XL

  • HPE ProLiant DL120 Gen10 Server

  • HPE ProLiant DL160 Gen10 Server

  • HPE ProLiant DL180 Gen10 Server

  • HPE ProLiant DL360 Gen10 Server

  • HPE ProLiant DL380 Gen10 Server

  • HPE ProLiant DL560 Gen10 Server

  • HPE ProLiant DL580 Gen10 Server

  • HPE Apollo 2000 - XL170r Gen10 Server

  • HPE Apollo 2000 - XL190r Gen10 Server

  • HPE Apollo 4500 - XL450 Gen10 Server

  • HPE Apollo 6500 - XL270d Gen10 Server
