InnoDisk SL 3ME3 V2 Series DESML-B56D08BCAQCA-B073 SATADOM 256GB
94560InnoDisk SL 3ME3 V2 Series DESML-B56D08BCAQCA-B073 SATADOM 256GB
InnoDisk SL 3ME3 V2 Series DESML-B56D08BCAQCA-B073 SATADOM 256GB
Manufacturer: Innodisk
Model: SATADOM-ML 3ME3 V2
Part Number: DESML-B56D08BCAQCA-B073
Base P/N: DESML-B56D08BCAQCA

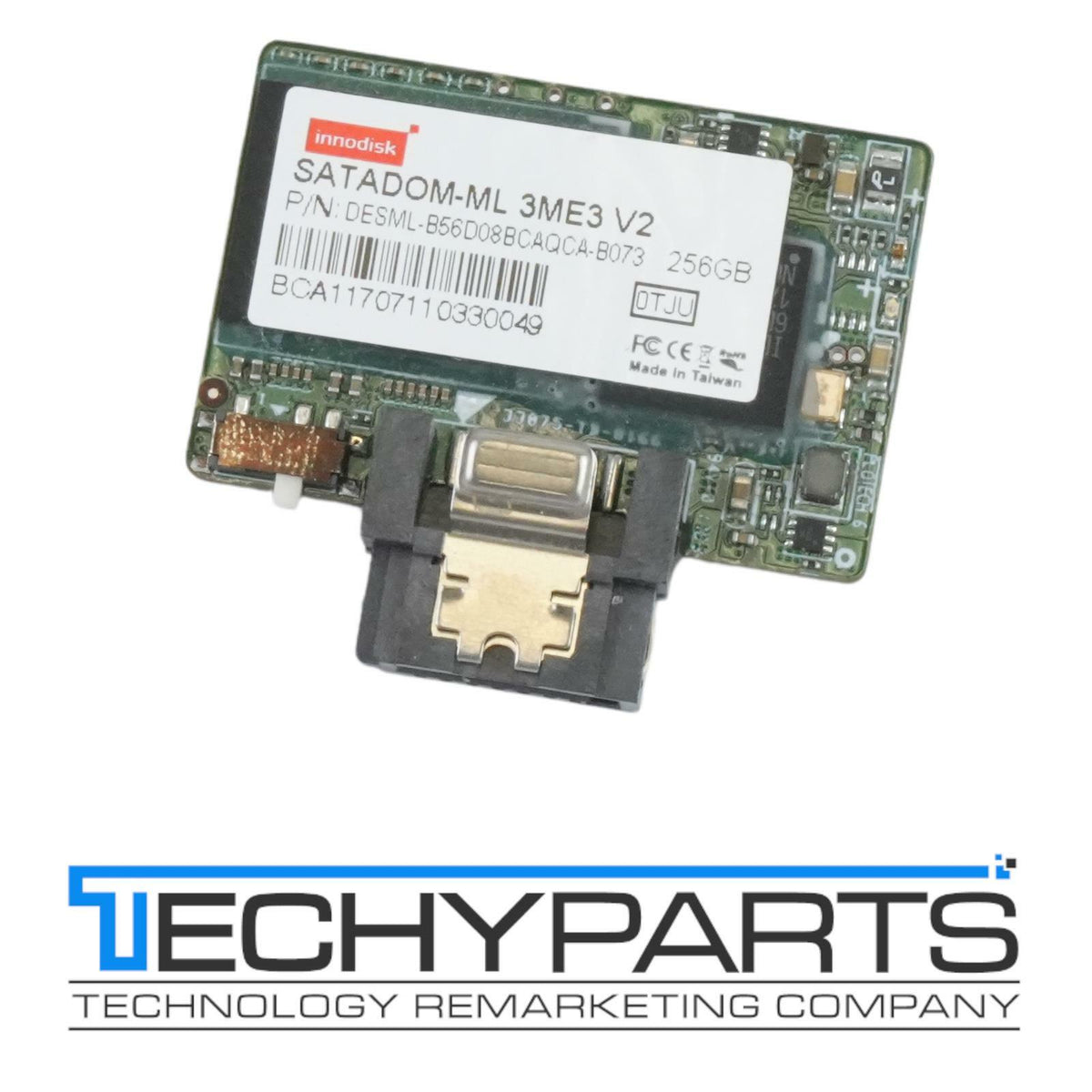

This is a genuine Innodisk SATADOM-ML 3ME3 V2 256GB SATA Disk-on-Module. It plugs into a motherboard SATA port and is used as a compact boot, license, or OS drive in servers and embedded systems.
Condition: Clean working pull from enterprise equipment. Fully tested by a qualified technician and guaranteed working.
Power note: This module supports Pin 8 power from the SATA connector on boards that provide it (typical on newer Supermicro yellow SATA ports). A separate 5V power cable is not included. Older boards with white SATA connectors may require a 5V cable.
What's Included:
• Innodisk SATADOM-ML 3ME3 V2 256GB (DESML-B56D08BCAQCA-B073) only
Note: 5V power cable, screws, and other accessories are not included.
30-Day Warranty Included!
256GB industrial MLC SATADOM for server boot and embedded storage.
Manufacturer's description and specifications:
Innodisk SATADOM supports the SATA III (6.0Gb/s) interface. The 3ME3 V2 series uses MLC NAND with a DRAM-less design, iData Guard, S.M.A.R.T., and Pin 8 power so the module can run from the SATA connector on compatible boards. It is intended as a boot drive or compact storage device, not as a high-write cache drive.
Key Specifications:
Capacity: 256GB
Interface: SATA III 6.0 Gb/s
Form Factor: SATADOM-ML (vertical Disk-on-Module)
Flash Type: MLC
Sequential Read: up to 200 MB/s
Sequential Write: up to 80 MB/s
External DRAM: No
S.M.A.R.T.: Yes
Pin 8 Power: Yes
Max Power: about 1.8W
MTBF: >3 million hours
