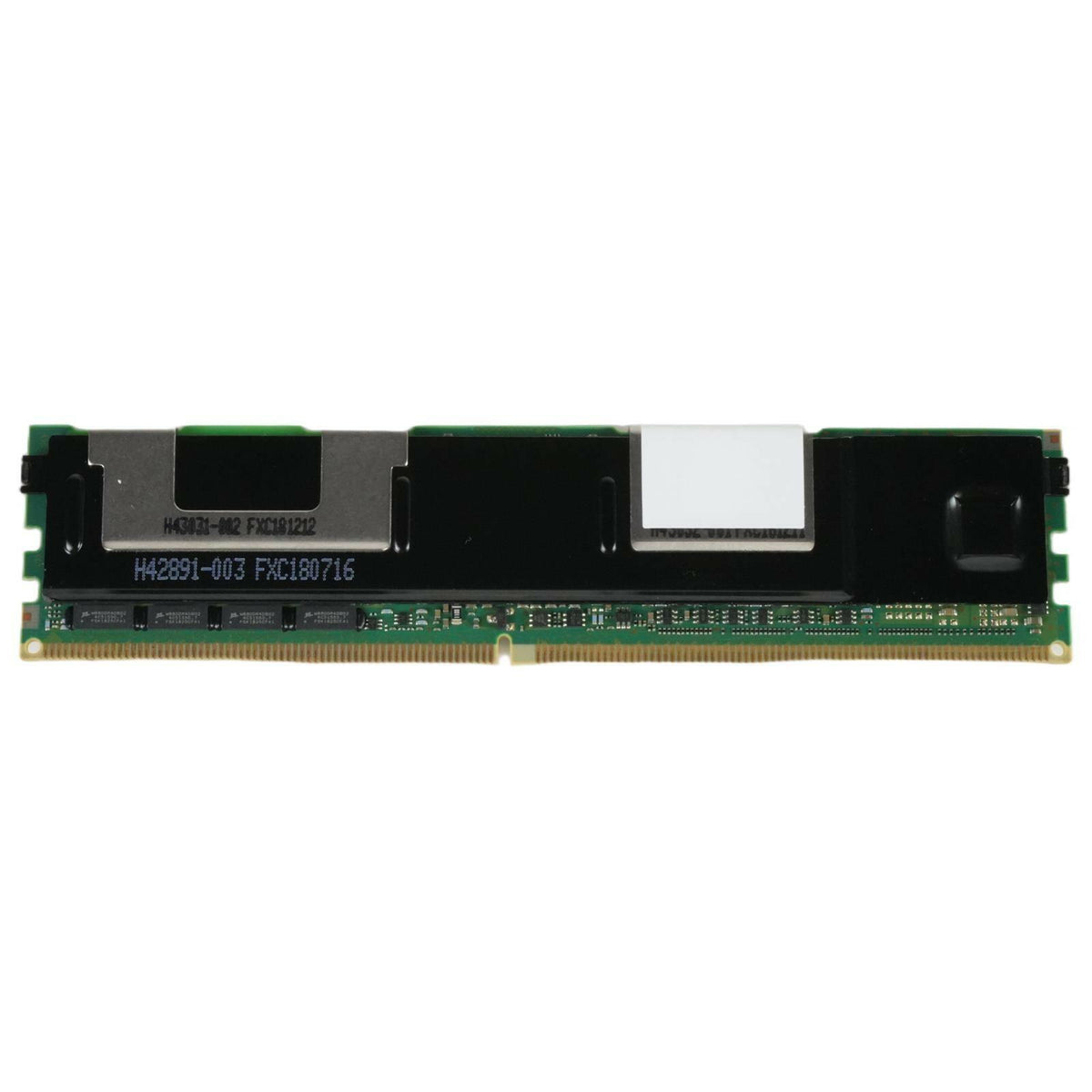

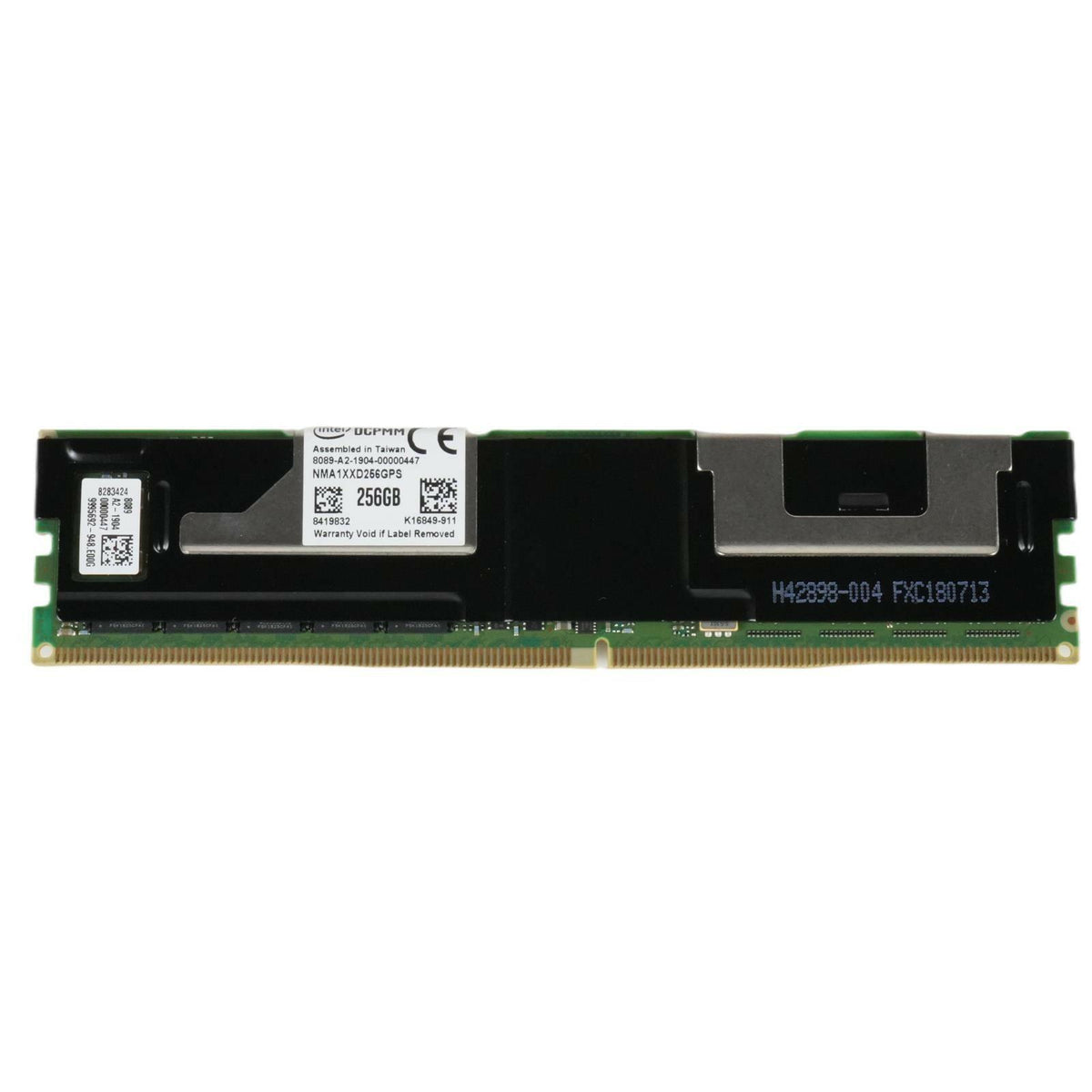

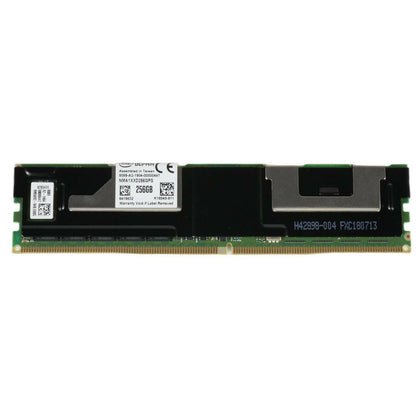

Intel 256GB DCPMM Optane DC Persistent Memory PMem 100 Series NMA1XXD256GPS
95483Intel 256GB DCPMM Optane DC Persistent Memory PMem 100 Series NMA1XXD256GPS
Intel 256GB DCPMM Optane DC Persistent Memory PMem 100 Series NMA1XXD256GPS
Manufacturer: Intel
Model: Optane DC Persistent Memory 100 Series
Part Number: NMA1XXD256GPS
This is a genuine Intel Optane DC Persistent Memory 100 Series 256GB module. It installs in a standard 288-pin DIMM slot and can run in Memory Mode (DRAM as cache) or App Direct Mode (byte-addressable persistent memory) on supported Cascade Lake servers.
Please note that this is Optane Persistent Memory, not standard DDR4 RAM. It only works in servers with 2nd Generation Intel Xeon Scalable (Cascade Lake) Gold or Platinum processors that support Optane DC Persistent Memory. It does not work with Celeron, Pentium, Core i3, Core i5, Athlon, Phenom, or Ryzen processors. It does not work in desktops or laptops.
Condition: Clean working pull from enterprise equipment. Fully tested by a qualified technician and guaranteed 100% working. All modules are Healthy with 100% life/health remaining.
30-Day Warranty Included!
256GB Optane PMem 100 module with 100% health remaining for supported Cascade Lake servers.
Manufacturer's description and specifications:
Intel Optane DC Persistent Memory 100 Series (codename Apache Pass) provides high-capacity persistent memory that bridges DRAM and storage. Modules use the DDR-T interface and install in standard DIMM slots on supported platforms.
Key Specifications:
Capacity: 256GB
Part Number: NMA1XXD256GPS
Series: Optane DC Persistent Memory 100 Series
Interface: DDR-T
Form Factor: 288-pin Persistent Memory Module (PMem)
Speeds: 1866 / 2133 / 2400 / 2666 MT/s
Modes: Memory Mode, App Direct Mode
Power: 12W to 18W typical
Encryption: AES 256-bit
Health: Healthy, 100% life remaining
Compatibility: 2nd Gen Intel Xeon Scalable (Cascade Lake) Gold and Platinum processors with Optane PMem support
