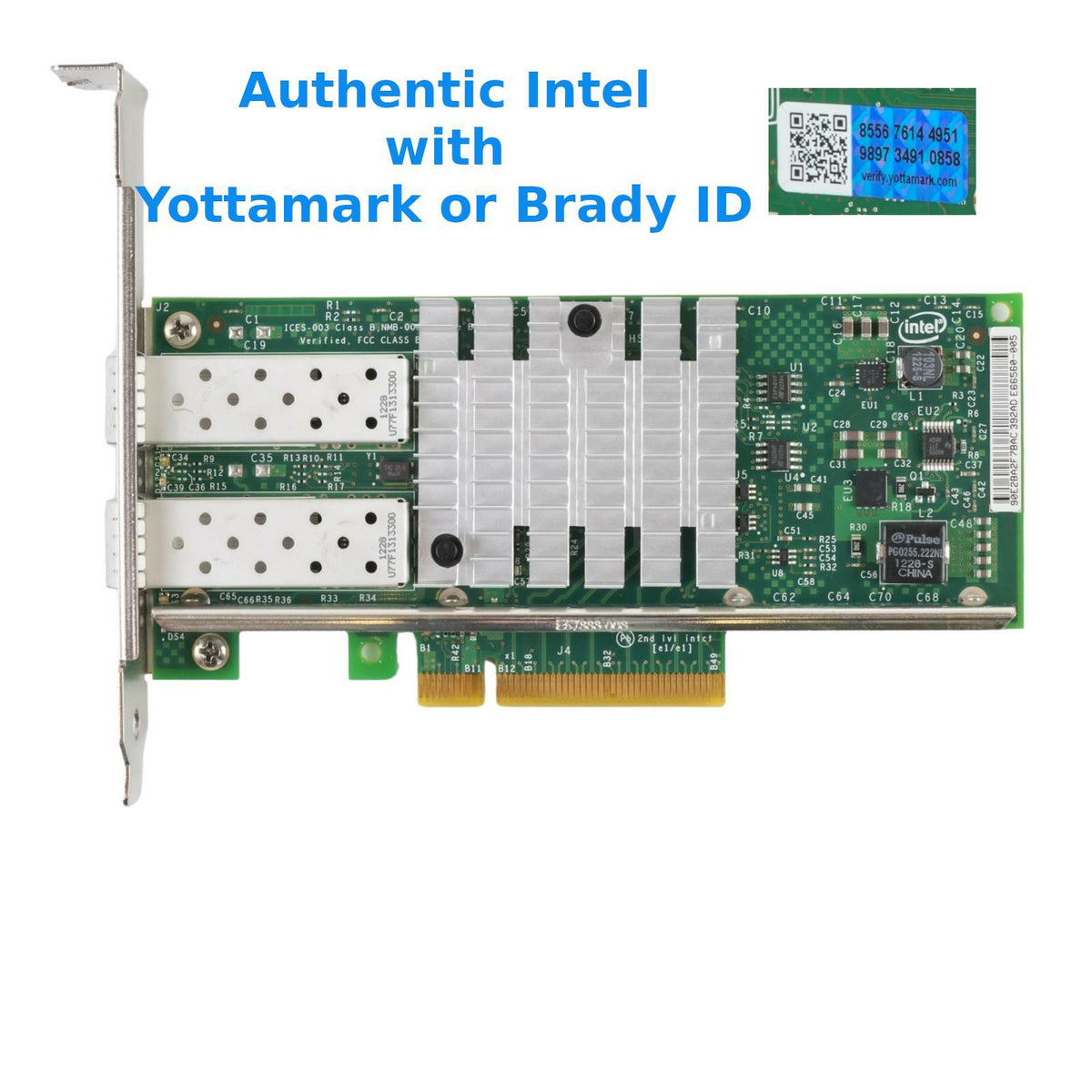

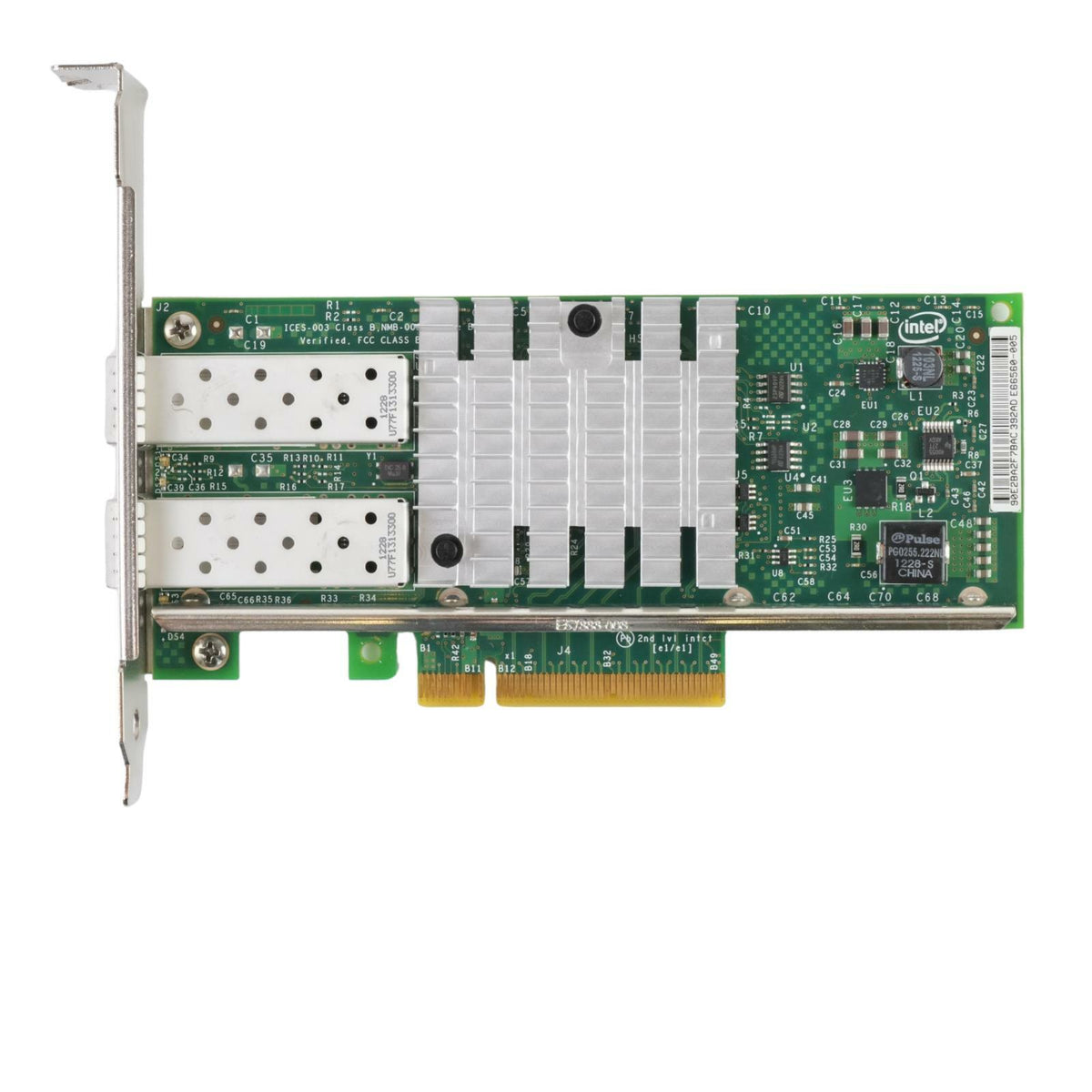

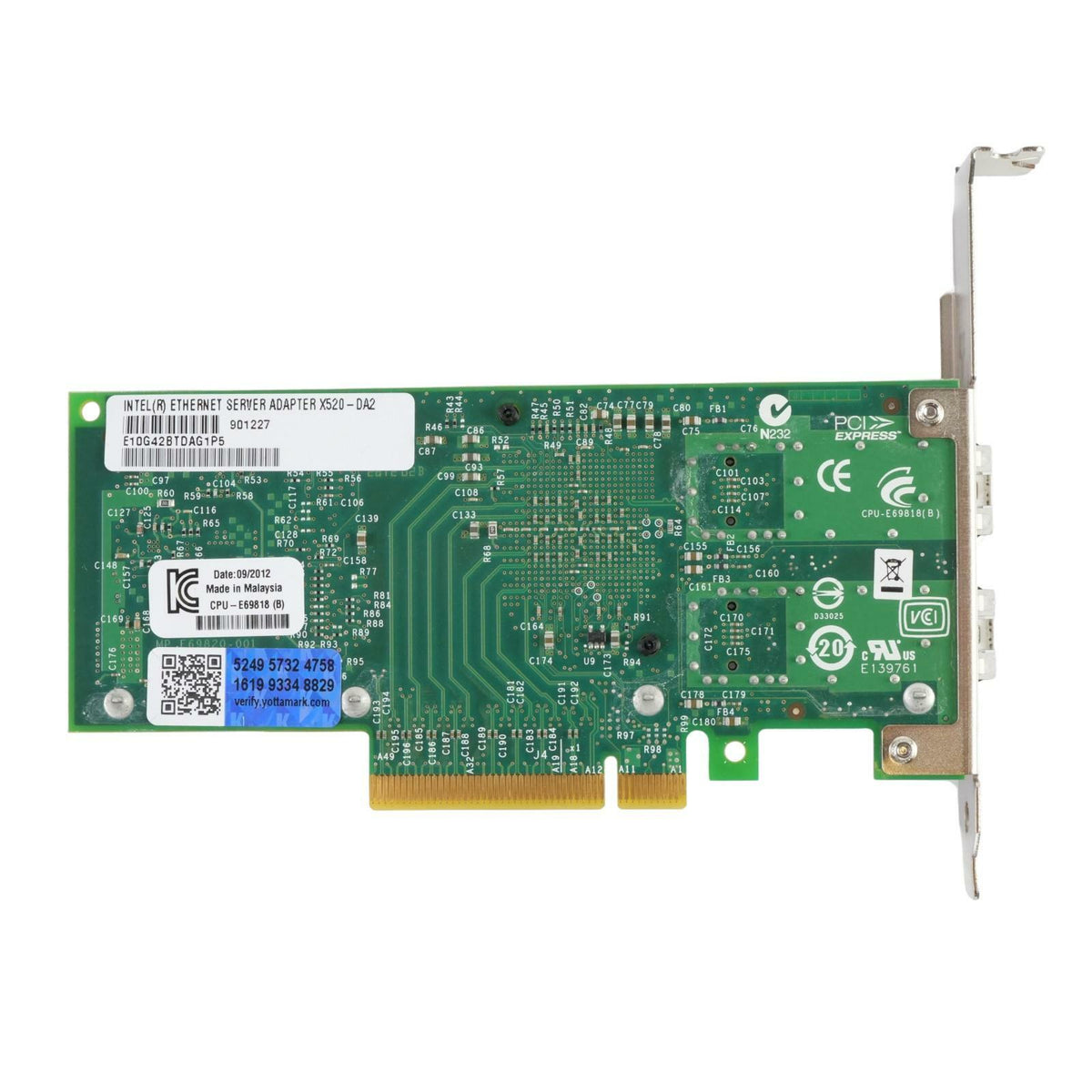

Intel E10G42BTDAG1P5 X520-DA2 Dual Port 10Gb/s PCI-E 2.0 x8 Ethernet CNA
92556Intel E10G42BTDAG1P5 X520-DA2 Dual Port 10Gb/s PCI-E 2.0 x8 Ethernet CNA
Intel E10G42BTDAG1P5 X520-DA2 Dual Port 10Gb/s PCI-E 2.0 x8 Ethernet CNA Converged Network Adapter NIC
Manufacturer: Intel
Model: X520-DA2
Part Number: E10G42BTDAG1P5
Genuine Intel with Yottamark or BradyID Authentication Sticker.
This is a genuine Intel Ethernet Converged Network Adapter X520-DA2. Dual SFP+ 10GbE ports on the Intel 82599 controller make it a proven choice for servers that need 10 Gigabit Ethernet, iSCSI, or FCoE.
Key Specifications:
Ports: Dual 10GbE SFP+
Connector Type: SFP+
Interface: PCIe 2.0 x8
Form Factor: Half Height PCIe Card
Bracket: Full Height (only)
Transceivers / Cables: Not Included
Condition: Clean working pull from enterprise equipment. Fully tested by a qualified technician and guaranteed 100% working.
What's Included:
• Intel X520-DA2 Dual Port 10GbE NIC with Full Height Mounting Bracket (only)
• Yottamark or BradyID Authentication Sticker on the card
Note: SFP+ transceivers, DAC cables, low profile bracket, and software are not included.
30-Day Warranty!
Manufacturer's description and specifications:
Intel Ethernet Server Adapter X520 dual-port 10 Gigabit SFP+ adapters provide flexibility and scalability in virtual and unified storage environments. The X520-DA2 uses the Intel 82599 10 Gigabit Ethernet Controller and a PCIe 2.0 x8 host interface.
| Essentials | |
|---|---|
| Product Collection | Intel Ethernet Converged Network Adapter X520 |
| Product P/N | X520-DA2 / E10G42BTDA / E10G42BTDAG1P5 |
| Vertical Segment | Server |
| Cabling Type | SFP+ Direct Attach; SFP+ optical modules (not included) |
| Bracket Height | Full Height included (card is half height / low profile capable) |
| Networking Specifications | |
| Port Configuration | Dual |
| Data Rate Per Port | 10GbE / 1GbE (1GbE with compatible SFP modules) |
| Intel VT-c | Yes |
| Speed and Slot Width | 5.0 GT/s, x8 Lane |
| Controller | Intel 82599 10 Gigabit Ethernet Controller |
| Package Specifications | |
| System Interface Type | PCIe v2.0 (5.0 GT/s) x8 |
| Intel Virtualization Technology for Connectivity | |
| On-chip QoS and Traffic Management | Yes |
| Flexible Port Partitioning | Yes |
| Virtual Machine Device Queues (VMDq) | Yes |
| PCI-SIG SR-IOV Capable | Yes |
| Advanced Technologies | |
| iWARP/RDMA | No |
| Intel Data Direct I/O Technology | Yes |
| Intelligent Offloads | Yes |
| Storage Over Ethernet | iSCSI, FCoE, NFS |
