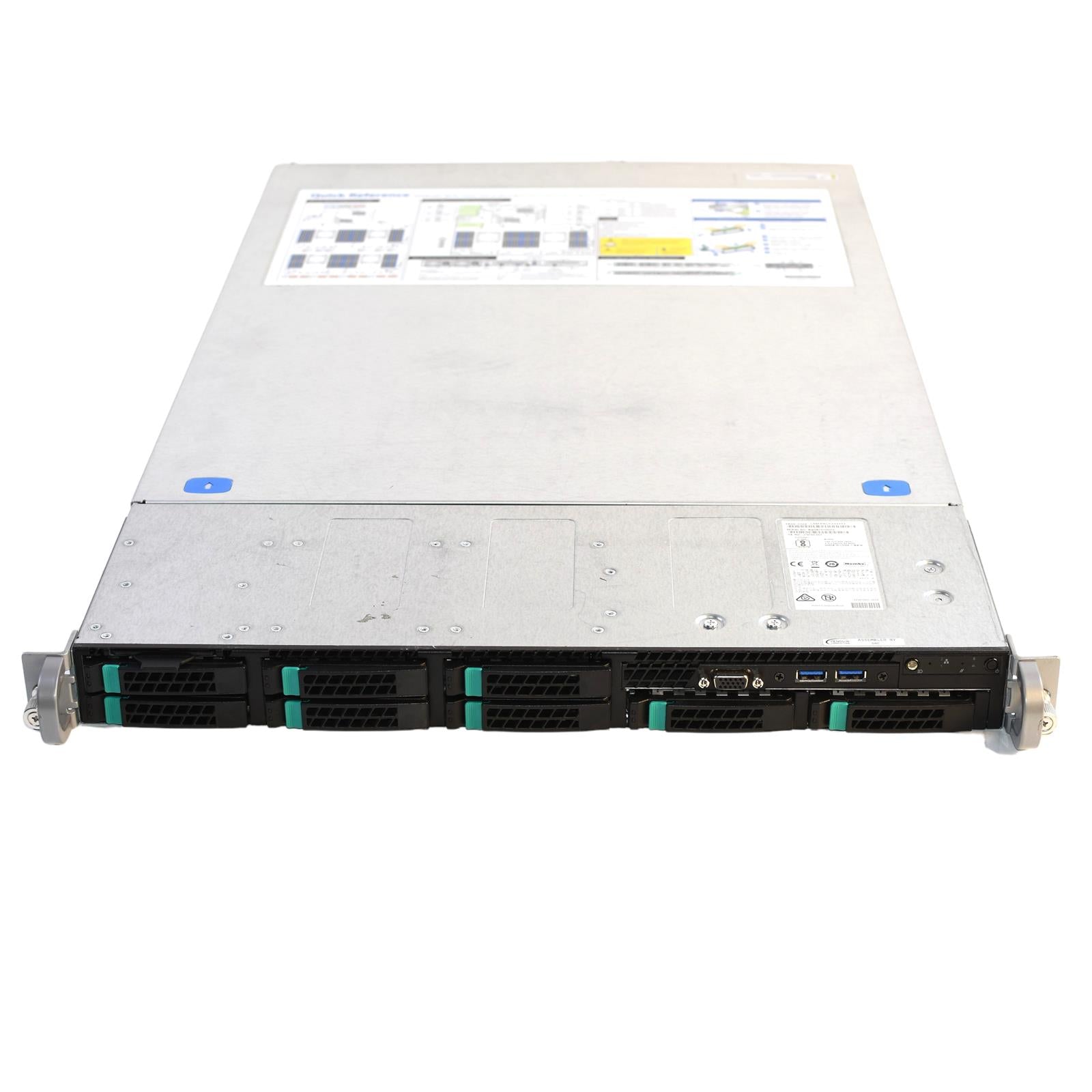

Intel R1208WT2GCR S2600WT 2x Xeon LGA2011v3 2.5" 8-Bay 1U Rackmount Server CTO
89778Intel R1208WT2GCR S2600WT 2x Xeon LGA2011v3 2.5" 8-Bay 1U Rackmount Server CTO
Intel R1208WT2GCR S2600WT 2x Xeon LGA2011v3 2.5" 8-Bay 1U Rackmount Server CTO
Intel R1208WT2GCR R1000WT S2600WT 2x Xeon LGA2011v3 2.5" 8-Bay 1U Rackmount Server CTO
Barebone system - NO CPU/NO MEMORY/NO HDD Installed. Unit sold as pictured, no other parts/accessories included.
Specifications:
| Form Factor | 1U 1U Rackmount |
|---|---|
| Model | INTEL R1208WT2GCR - 8 2.5" Bays S2600WT2R Server Board Intel C612 Chipset |
| Processor(s) | Dual Socket LGA2011v3 supporting 1or 2 Intel XEON Processor E5-2600v3 or v4 product family |
| Memory | DDR4 ECC RDIMM/LRDIMM 1600/1866/2133/2400, Max memory supported 1.5TB |
| # of DIMMs and Capacity | 24x DDR4 Memory Slots |
| Hard Drives | 8x 2.5" Hot Swap Drive Bays |
| RAID Controller |
Integrated RAID Module RMS3CC080 with Intel RAID Maintenance Free Backup AXXRMFBU5 12Gb/s (SAS 3.0) 8 internal port SAS/SATA mezzanine card built with PCIe 3.0 dual-core RAID-On-Chip (ROC), RAID levels 0/1/10/5/50/6/60, and support for optional Maintenance Free Backup Unit and Premium Feature upgrade keys. |
| RAID Levels | 0/1/10/5/50/6/60 |
| Power Supply | 2x 750W |
| Optical Drive | NONE |
| Network | Intel I350 2x 1GbE |
| Remote Access |
IPMI 2.0 with OEM extensions |
| Rackmount Rails | No |
| Operating System | N/A |
| Power Cord | No |
Condition: Off-lease equipment. Clean and tested by a qualified technician.
Each server is configured to order. This process involves rigorous quality control which includes:
- Throughout visual inspection for physical damages
- Verification of all components and their functionality
- A full diagnostic test is performed utilizing the manufacturer's diagnostic tools
- BIOS and firmware updates are installed
- All logs are cleared
- Passwords and settings are restored to factory defaults
Custom configurations are available. Please contact us for a quote or if you have questions regarding the current configuration.
