JUNIPER

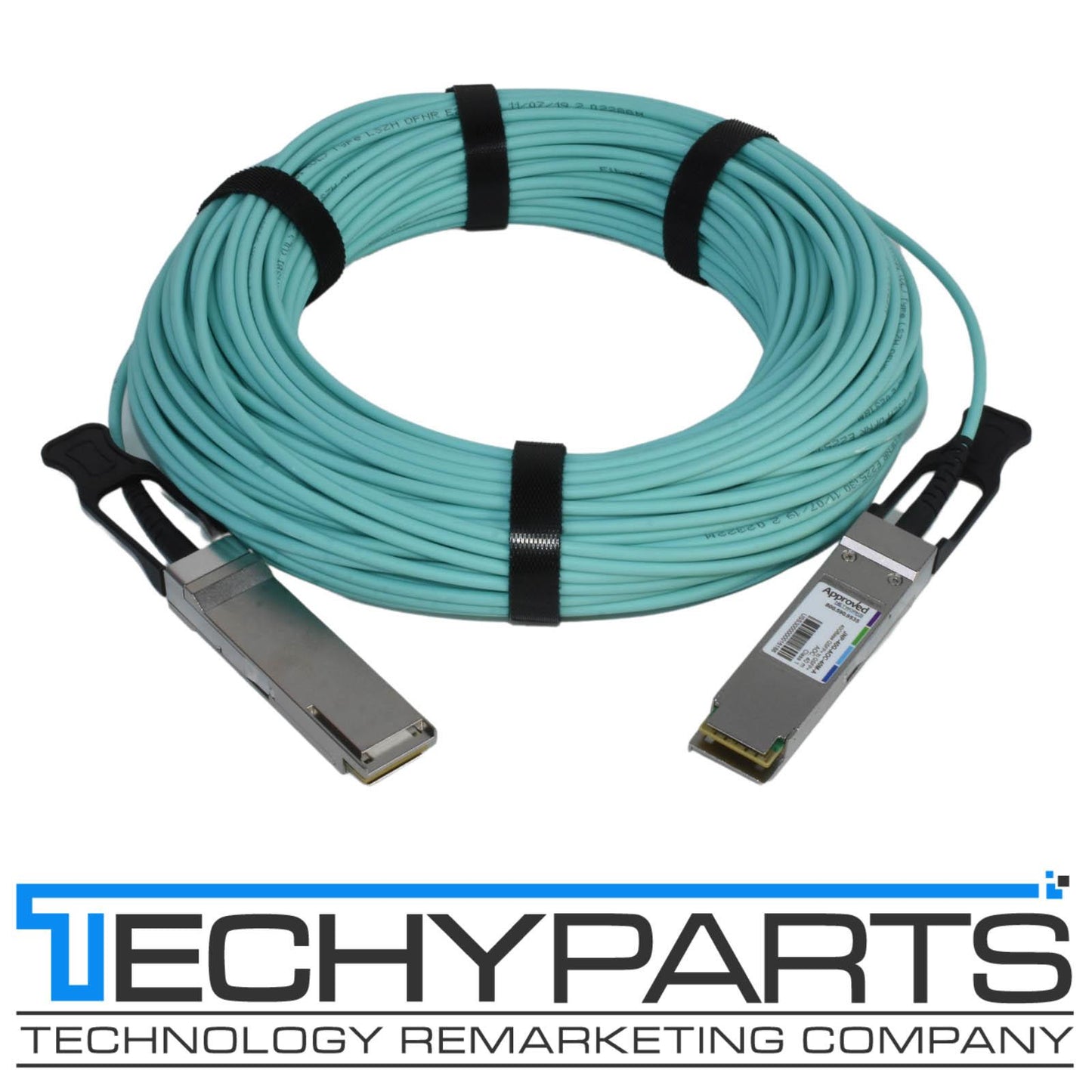

JNP-40G-AOC-40M-A Juniper Compatible 40G QSFP+ 40 Meter 40M Active Optical Cable
JNP-40G-AOC-40M-A Juniper Compatible 40G QSFP+ 40 Meter 40M Active Optical Cable
Low stock: 4 left
Couldn't load pickup availability
SKU:89902
Approved Networks JNP-40G-AOC-40M-A Juniper Compatible 40G QSFP+ 40M Active Optical Cable
Condition: Clean, tested pull - Guaranteed 100% working!
30-Day Warranty!
Manufacturer's description:
This Juniper JNP-40G-AOC-40M compatible QSFP+ Active Optical Cable Assembly is made with Optical Engine technology. It features a high reliability 850 nm VCSEL array, PIN photodetector array, and multimode optical fiber to support an aggregate bandwidth of up to 40Gbps. It is suitable for short-distance high-speed data interconnection within data centers, enterprise networks, and high-performance computing applications. The active optical cable has been tested and programmed at the factory to ensure quality, high performance, and compatibility.
Features:
- Functionally identical to Juniper JNP-40G-AOC-10M
- Ethernet and InfiniBand electrical compliance
- Compliant with the 40G Ethernet IEEE802.3ba 40GBase-SR4 standards
- High-density QSFP+ connector (SFF-8436)
- Low weight for high-port-count architectures
| OEM Part Number | JNP-40G-AOC-40M | Approved Networks Part Number | JNP-40G-AOC-40M-A |
| Form Factor | QSFP+ AOC | Data Rate | 40 Gb/s |
| Wavelength | 850 nm | Supply Voltage | 3.3V |
| Cable Color | Aqua | Fiber Type | OM3 MMF |
| Cable Length | 40 meter (131.2 ft) | Cable Diameter | 3 mm |
| Minimum cable bend radius | 25 mm | Cable Jacket Type | LSZH |
| Connector | QSFP+ to QSFP+ | Digital Diagnostic Monitoring | Yes |
| Environment | Operating: 0°C to 70°C Storage: -40°C to 85°C |
Weight | 0.6 kg |
| Application | InfiniBand SDR, DDR, QDR 40GBASE-SR4 Ethernet 8G, 10G Fibre Channel Rack-to-Rack, Shelf-to-Shelf Interconnect Proprietary Cluster Interconnect Networking, SAN Hubs, switches, routers, servers, NIC cards |
Compliance | RoHS |
