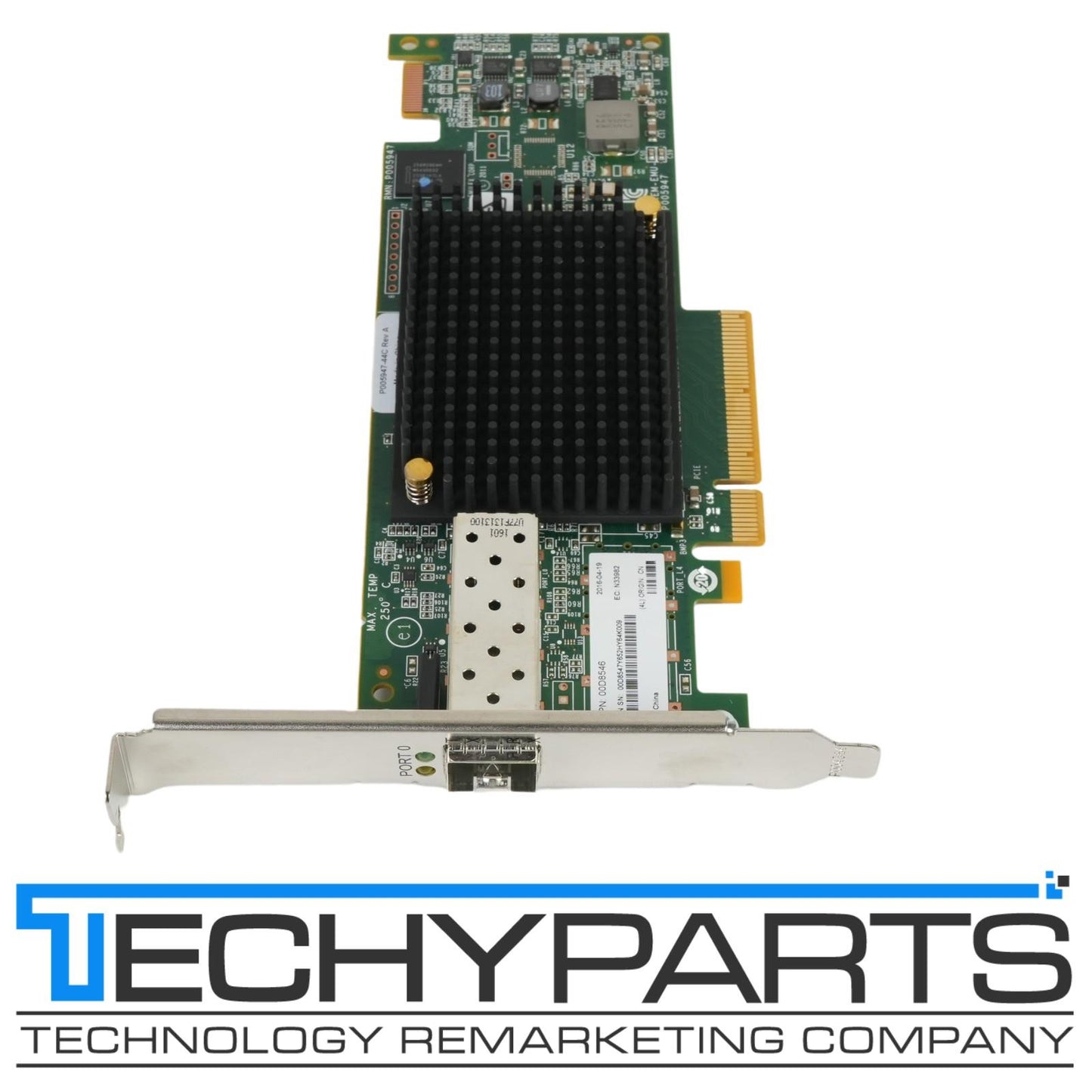

Lenovo 00D8546 Emulex LightPulse 16GB/s 1-Port Fibre Channel PCIe 2.0 X8 HBA

Lenovo 00D8546 Emulex LightPulse 16GB/s 1-Port Fibre Channel PCIe 2.0 X8 HBA

LENOVO P/N: 00D8546

EMULEX LPe16000

Tranceiver: Not included

Mounting bracket: Full Height

Condition: Clean, tested pull - Guaranteed 100% working!

No software, cables or other accessories included. Comes with Full Height mounting bracket only.

30-Day Warranty!

General Specifications

• The host system interface of the XE201 controller consists of an eight-lane (x8) PCI Express PCIe 2.0 bus (backward compatibility to to PCIe 1.0 supported)

Architecture

• Single-channel (LPe16000) or dual-channel (LPe16002)
• Supports 16GFC, 8Gb FC and 4Gb FC link speeds, automatically negotiated
• Supports up to 2 FC ports at 16Gb FC max (dual port model)
• Integrated data buffer and code space memory

Optical

• Data rates: 14.025 Gb/s (1600MB/s); 8.5 Gb/s (800MB/s); 4.25 Gb/s (400 MB/s) (auto-detected)
• Optics: Short wave lasers with LC type connector
• Cable: Operating at 16Gb

  • 15m at 16Gb on 62.5/125 μm OM1 MMF
  • 35m at 16Gb on 50/125 μm OM2 MMF
  • 100m at 16Gb on 50/125 μm OM3 MMF
  • 125m at 16Gb on 50/125 μm OM4 MMF
