Lenovo 00FC962 NVIDIA Quadro P600 2GB GDDR5 PCI-E 3.0 x16 Workstation Video Card
88611Lenovo 00FC962 NVIDIA Quadro P600 2GB GDDR5 PCI-E 3.0 x16 Workstation Video Card
Lenovo 00FC962 NVIDIA Quadro P600 2GB GDDR5 PCI-E 3.0 x16 Workstation Video Card

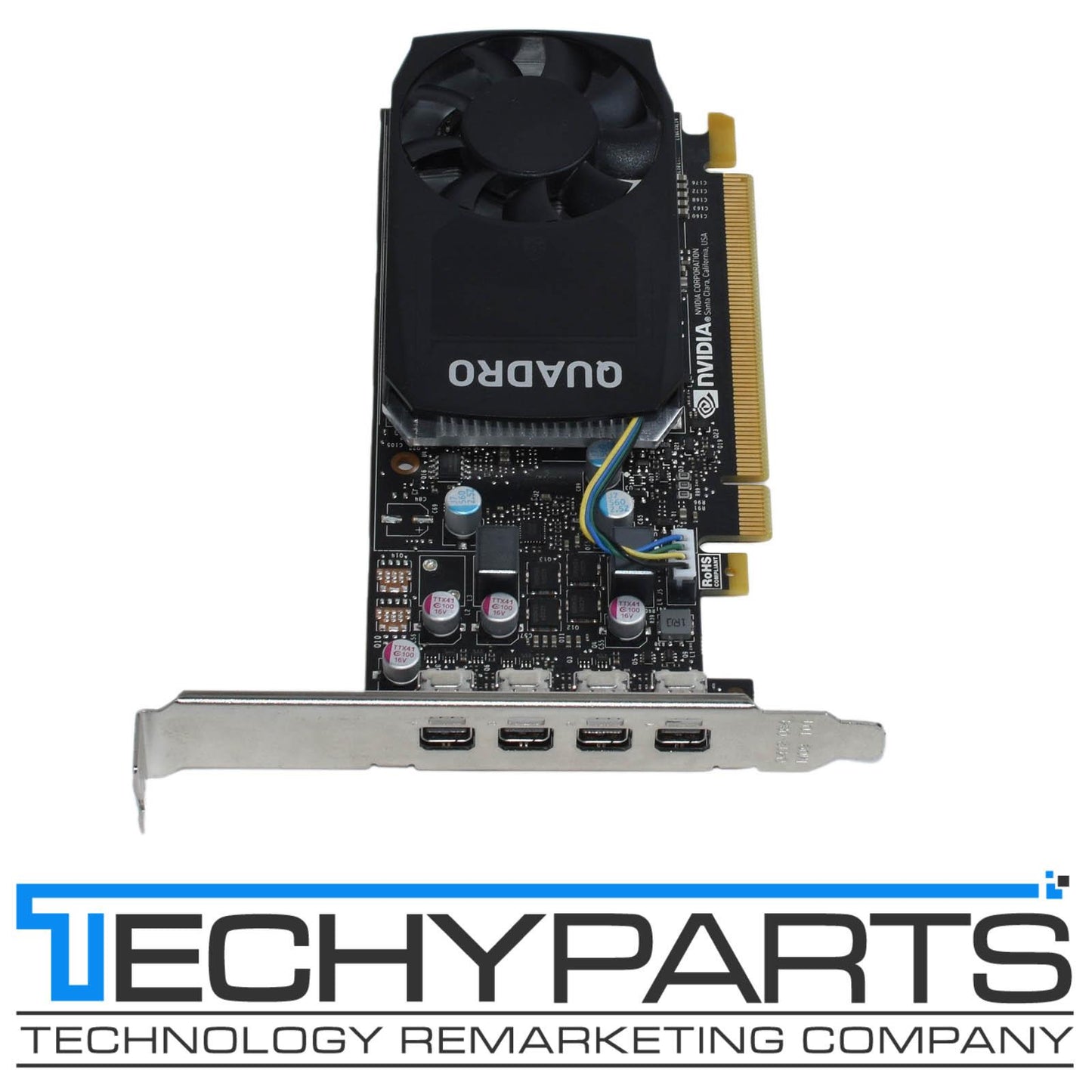

Lenovo 00FC962 NVIDIA Quadro P600 2GB GDDR5 4-port Mini-DisplayPort PCI-Express 3.0 x16 Workstation Video Card
Lenovo FRU P/N: 00FC962
NVIDIA P/N: 699-5G212-0501-110
Mounting bracket: Full height mounting bracket
Condition: Clean, tested pull - Guaranteed 100% working!
No software, cables or other accessories included. Comes with full height mounting bracket only.
30-Day Warranty!
Manufacturer's description and specifications:
Nvidia Quadro P600 2GB GDDR5 4-port Mini-DisplayPort Graphics Card - Full Height is compatible with ThinkStation Tower form factor machines.
It is powered by Nvidia Pascal Grpahics Processing Unit(GPU) technology and 2GB of GDDR5 memory. It is targeted for professional CAD, DCC and visualization designers, engineers and users.
The ThinkStation Nvidia Quadro P600 Graphics card with HP Bracket delivers amazing creative experien
Key Performance features and capabilities include:
- 2GB GDDR5 graphics memory allows designers and animators to model, store and render characters and scenes at unprecedented scale, complexity, and richness;
- 384 streaming multiprocessor cores deliver incredible performance with a peak power consumption of 40W in a cool and quiet single slot form factor;
- Support four simultaneous displays and up to 5K resolution with VESA DisplayPort 1.4;
- Comes with high-Profile bracket, 100% compatible with ThinkStation specified tower Form Facotr machines;
Board Specifications:
- Over voltage protection: yes
- Processor: NVDIA Quadro
- Resolution:
- Dual Link internal TMDS(DVI 1.0): Maximum resolution over digital port(single GPU): 2560*1600*32bpp @60Hz
- Single Link internal TMDS(DVI 1.0): Maximum resolution over digital port(single GPU): 1920*1200*32bpp @60Hz DisplayPort 1.4:
- Maximum pixel clock:1050 Mpixels per second
- Maximum bandwith:32.4 Gbps
- Example of maximum resolution with CVT-RB timings: 7680*4320*24 bpp@120Hz; 7680*4320*24 bpp@60Hz;5120*2880*24 bpp@60Hz
- HDMI 2.0: Maximum resolution:5120*2880*24 bpp@60Hz
- Memory Size: 2GB
- Memory ECC: Not Support
- HDCP support: 2.2
- Connectivity: Mini DisplayPort x 4
- Interface: PCI Express 3.0 x16
- Physical Dimensions: 2.713*5.7*0.62(in) / 115*144*16 (mm)
- Approximate Weight: 0.13 kg
Board Environmental Conditions
- Maximum Temperature: 55? / 131?
- Minimum Temperature: 0? / 32?
- Memory clock speed: 2000 MHz
- Maximum relative humidity: 90%
- Minimum relative humidity: 0
- Maximum power consumption: 40W
Operating System
- Windows 7 (64-bit)
- Windows 10 (64-bit)
- Linux Redhat 7.3 (64-bit)
Compatible Systems
- ThinkStation P320, P410 Tower, P510, P520, P520c, P710, P720, P910, P920
