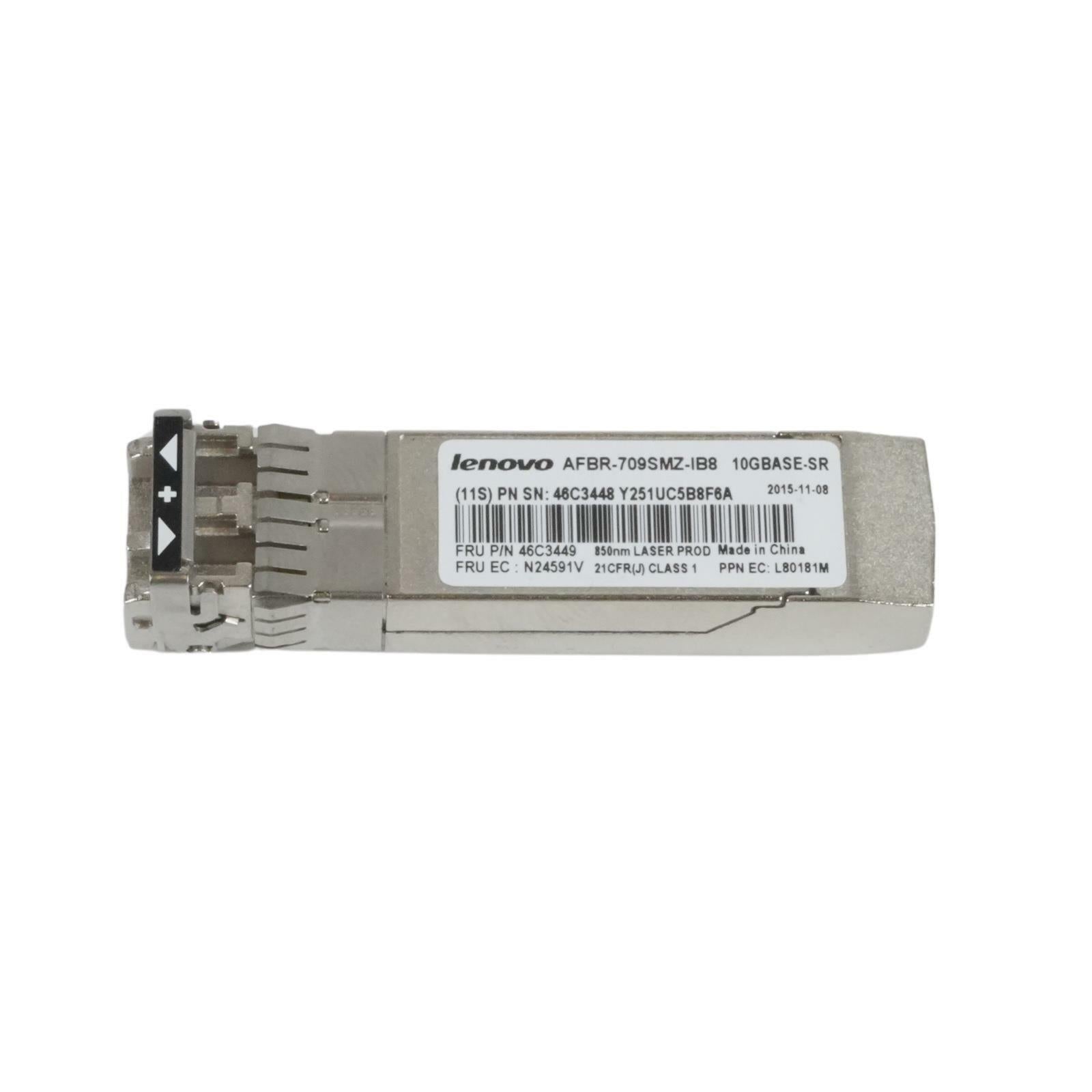

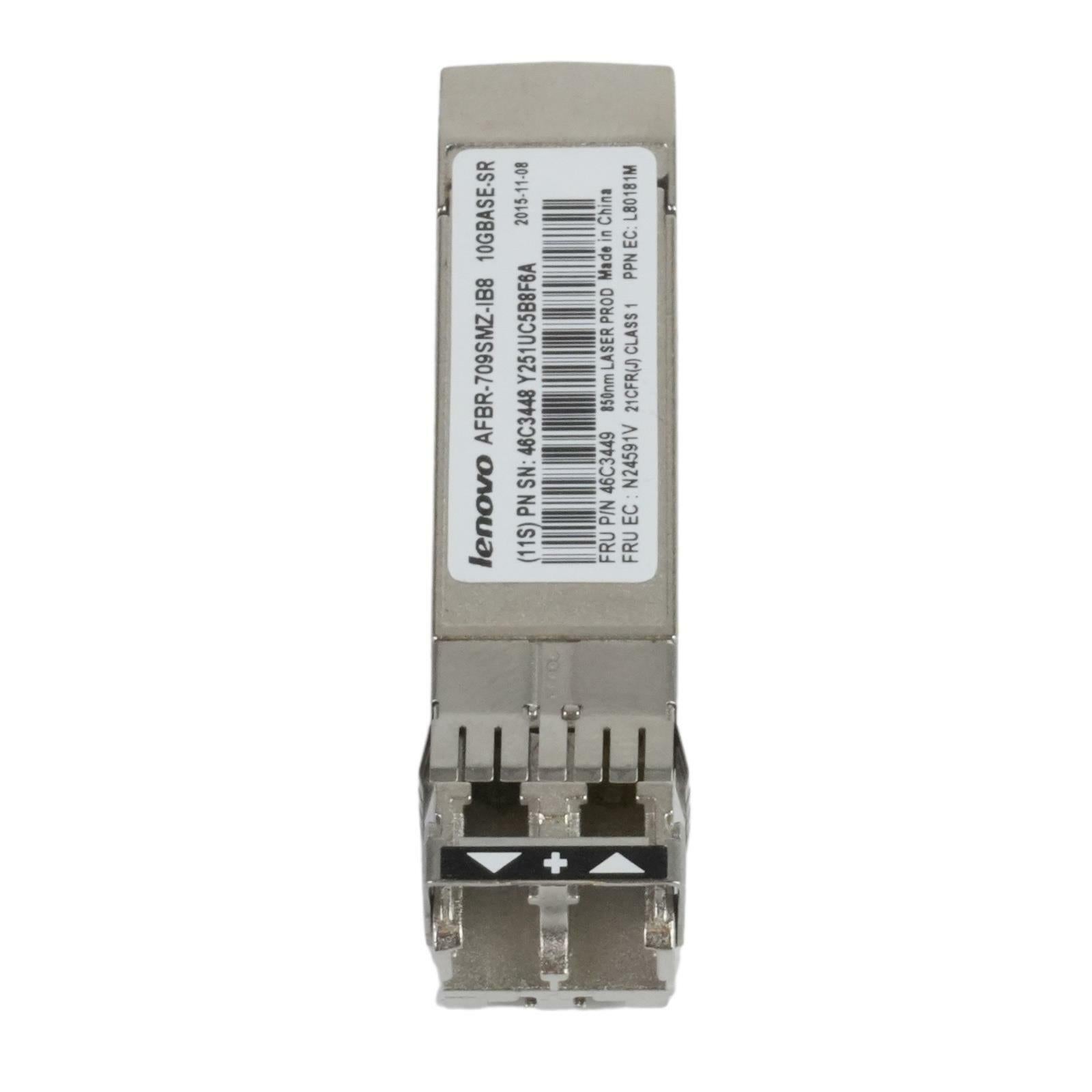

Lenovo 46C3449 10GBase-SR SFP+ 850nm 300m MMF SW Optical Transceiver 46C3448
94202Lenovo 46C3449 10GBase-SR SFP+ 850nm 300m MMF SW Optical Transceiver 46C3448
Lenovo 46C3449 10GBase-SR SFP+ 850nm Multimode MMF SW Optical Transceiver 46C3448
Lenovo FRU P/N: 46C3449
Lenovo P/N: 46C3448
Condition: Clean, tested pull - Guaranteed 100% working!
30-Day Warranty!
Manufacturer's description and specifications:
The Lenovo FRU: 46C3448 and 46C3449 are OEM part numbers for identical 10Gb SFP+ Short Range (SR) Optical Transceiver Modules, originally developed for IBM Blade Network Technologies (BNT) systems, now under Lenovo Networking. These hot-pluggable modules provide high-speed 10 Gigabit Ethernet connectivity over multimode fiber, ideal for data centers, enterprise networks, and short-distance links. They support 10GBASE-SR (10.3125 Gbps) for Ethernet and 10GBASE-SW (9.953 Gbps) for Fibre Channel, with full interoperability across IBM/Lenovo switches, servers, and multi-vendor equipment.
Key highlights:
- 850nm VCSEL laser for reliable short-range multimode fiber transmission
- Up to 300m reach on OM3 fiber – suitable for intra-building or rack-to-rack connections
- Digital Optical Monitoring (DOM) for real-time diagnostics via I2C interface
- Duplex LC connector for easy multimode fiber integration
- Low power consumption (<1.5W) and commercial temperature range for 24/7 operations
Compatibility: IBM/Lenovo RackSwitch (e.g., G8264, EN2092), System x servers, and standards-compliant 10G Ethernet/Fibre Channel gear.
| Category | Specification | Details |
|---|---|---|
| Form Factor | SFP+ | Small Form-factor Pluggable Plus, hot-pluggable MSA compliant |
| Data Rate | 10.3125 Gbps (10GBASE-SR) or 9.953 Gbps (10GBASE-SW) | Supports 10 Gigabit Ethernet and 10G Fibre Channel; bi-directional |
| Wavelength | 850 nm | VCSEL laser transmitter for multimode applications |
| Connector Type | Duplex LC | Standard for multimode fiber optic cables |
| Cable Type | Multimode Fiber (MMF) | OM3 (50/125 µm) primary; supports OM2 (up to 82m), OM1 (up to 33m) |
| Transmission Distance | Up to 300 m | OM3 MMF: 300 m; OM2 MMF: 82 m; OM1 MMF: 33 m |
| Optical Budget | Minimum 7.3 dB | Ensures robust signal integrity over max distance |
| Power Supply | Single 3.3V | Max consumption: 1.5W; TTL logic interface |
| Operating Temperature | 0°C to 70°C | Commercial (COM) temperature range; extended options available |
| Standards Compliance | IEEE 802.3ae, SFF-8431, SFF-8432, SFF-8472 | 10GBASE-SR/SW, 10GFC; DOM/DDM supported via 2-wire serial bus |
| Receiver Type | PIN Photodiode (Limiting) | High-sensitivity detection for error-free transmission |
| Dimensions | Standard SFP+ (56.5 x 13.7 x 13.4 mm) | Fits SFF-8432 mechanical specifications; ~20g weight |
| Other Features | DOM Supported, ROHS Compliant | Laser safety Class 1; EMI compliant; IBM BNT programmed for interoperability |
