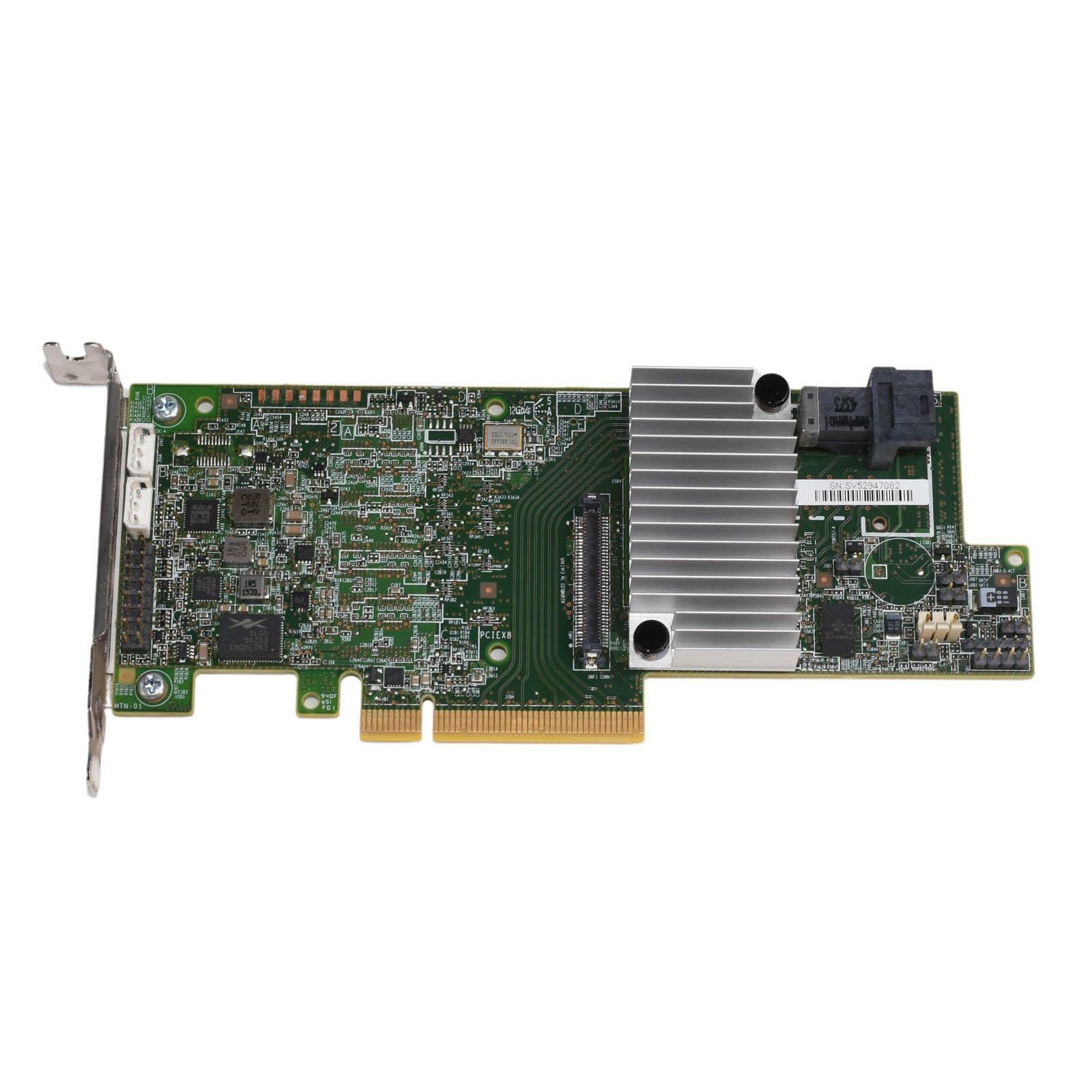

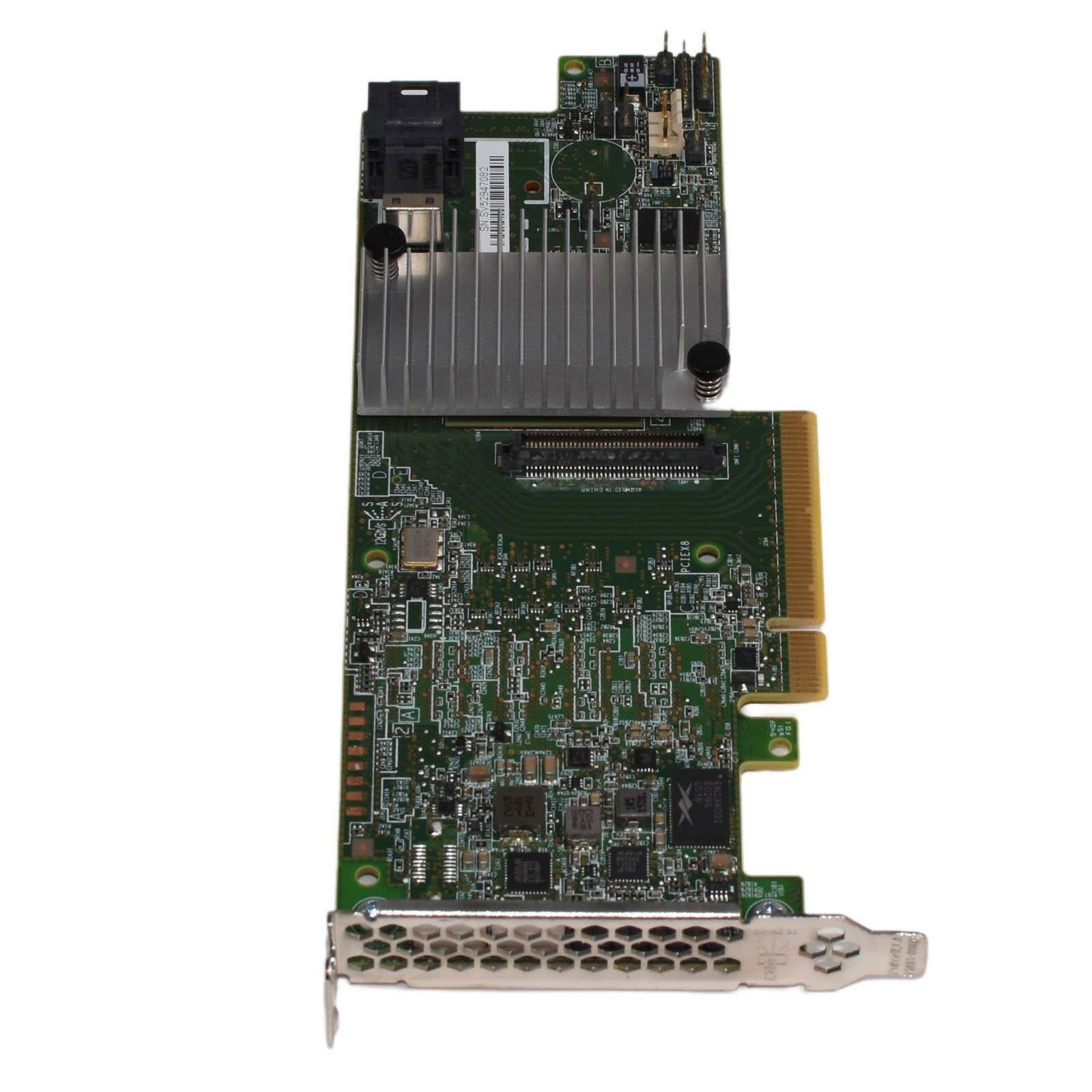

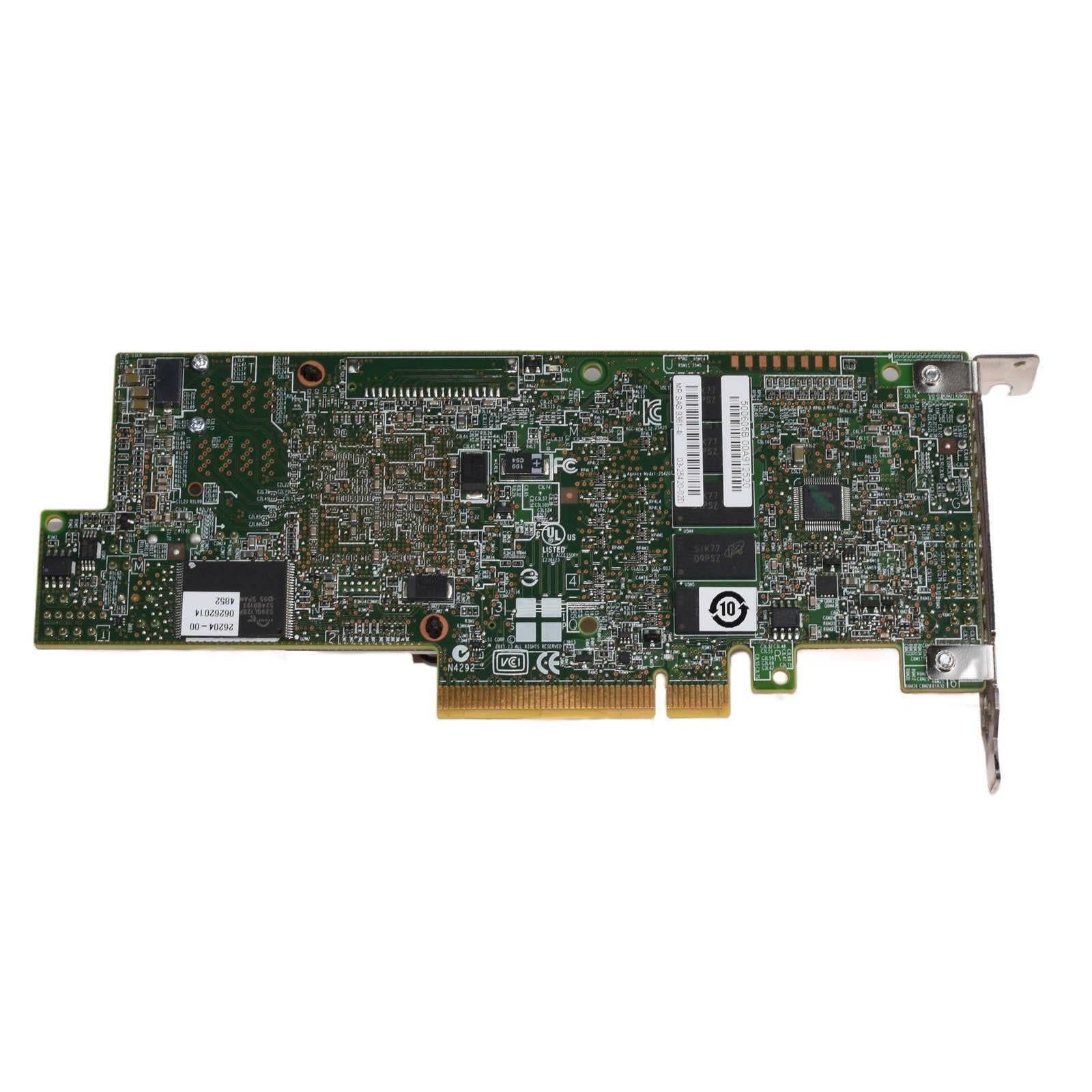

LSI 9300 MegaRAID SAS 9361-4i PCIe SATA/SAS 4-Port 12Gb/s RAID Controller SFF

88881

LSI 9300 MegaRAID SAS 9361-4i PCIe SATA/SAS 4-Port 12Gb/s RAID Controller SFF

Skip to product information
1 of 1

LSI

Regular price $39.95 USD
Regular price Sale price $39.95 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 2 left

View full details

LSI 9300 MegaRAID SAS 9361-4i PCIe SATA/SAS 4-Port 12Gb/s RAID Controller SFF

LSI 9300 MegaRAID SAS 9361-4i PCIe 3.0 x8 SATA/SAS 4-Port 12Gb/s RAID Controller with Low Profile SFF Small Form Factor Mounting Bracket

Broadcom / Avago / LSI Model: 9361-4i

Broadcom / Avago / LSI P/N: LSI00415

Mounting bracket: Low Profile SFF Small Form Factor

Condition: Clean, tested pull - Guaranteed 100% working!

No software, cables or other accessories included. Comes with low profile SFF small form factor bracket only.

30-Day Warranty!

Manufacturer's description and specifications:

Datacenter, cloud and high-performance computing environments not only require large amounts of storage capacity, they also must provide the data protection and performance today’s applications and end users demand. The MegaRAID SAS 9361-4i 12Gb/s SAS and SATA RAID controller card addresses these needs by delivering proven performance and RAID data protection for a range of server storage applications.

Key Features:

  • Connect up to 128 SATA or SAS drives with four internal 12Gb/s SATA and SAS ports
  • Fit into rack-mounted servers with low-profile form factor and side-mounted SAS connectors
  • Support critical, high-bandwidth applications with PCIe® 3.0 connectivity
  • Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
  • Add more protection and peace of mind with optional CacheVault® flash cache protection (not included in the listing).
RAID-on-Chip Controller LSISAS3108 dual core RAID on Chip (ROC)
Generation 12 Gb/s
RAID Management Software LSA (LSI Storage Authority), MegaRAID Storage Manager, StorCLI (command-line interface), CTRL-R (BIOS configuration utility), HII (UEFI Human Interface Infrastructure)
Cache Protection Optional CacheVault Flash Module (LSICVM02) Includes CVFM04, CVPM02, mounting clip, and cable (not included in the listing)
Physical Dimensions 6.6" x 2.536" (Low-Profile)
Host Bus Type x8 lane PCI Express® 3.0
Cache Memory 1GB 1866MHz DDRIII SDRAM
Internal Ports 4
Data Transfer Rates Up to 12Gb/s per port
Devices Supported Up to 128 SAS and/or SATA hard drives and SSDs
Internal Connectors 1 HD Mini-SAS SFF8643 (Horizontal mount)
MTBF 1,343,187 hours
Operating Temperature Maximum ambient: Controller Card with included CacheVault module: 55°C
Operating Voltage (V) +3.3V, +12V
OS Extensive support includes Microsoft® Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more. *Visit the downloads page for the most complete list of supported operating systems
Regulatory Certifications Australia/New Zealand (AS/NZS 3548), Canada (ICES-003), EMC: Class B-US (CFR 47, P15B), Europe (EN55022/EN55024), Japan (V-3/02.04), Safety: EN60950
