LSI LSI00438 MegaRAID SAS 9380-8e 8-Port 12Gb PCIe 3.0 External RAID Controller

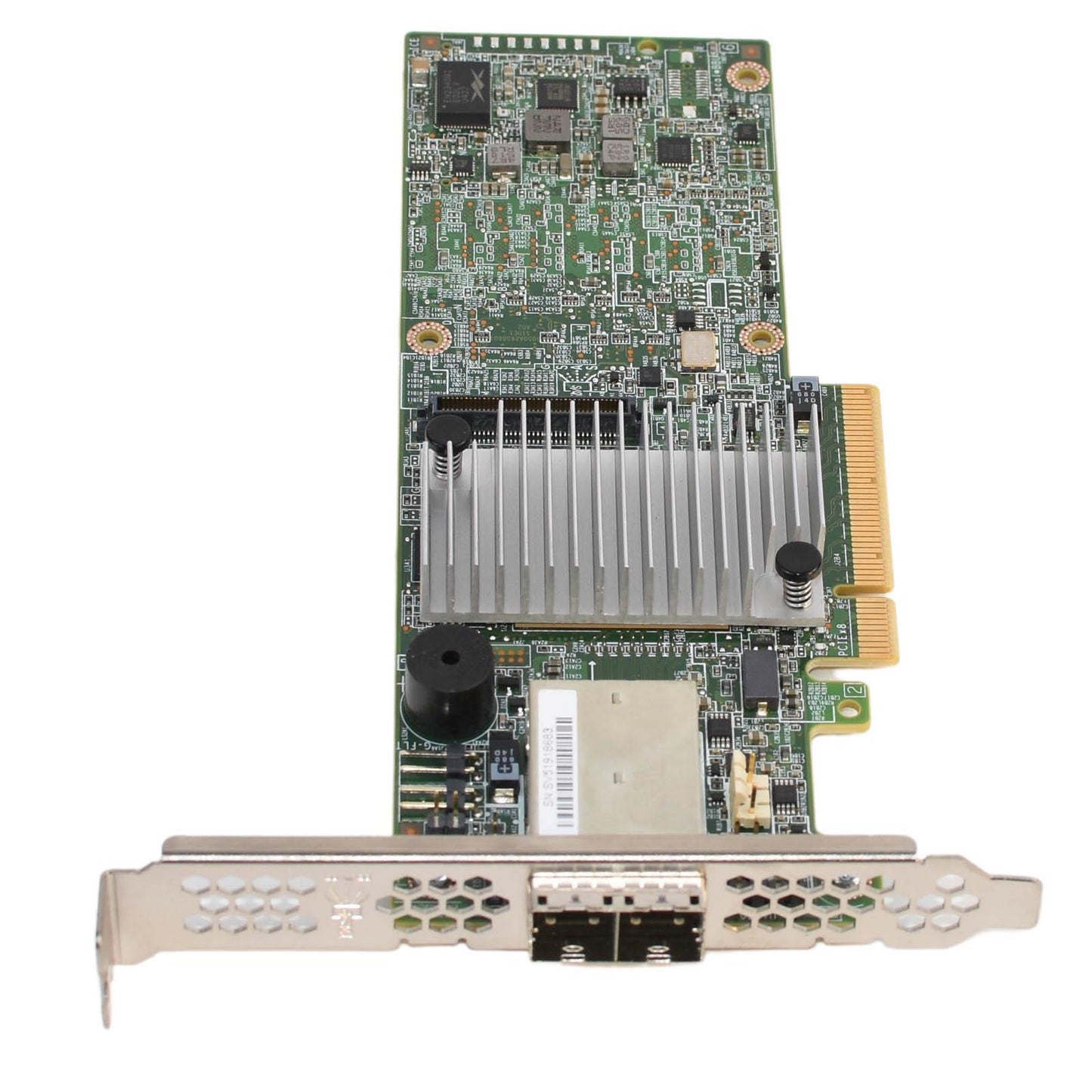

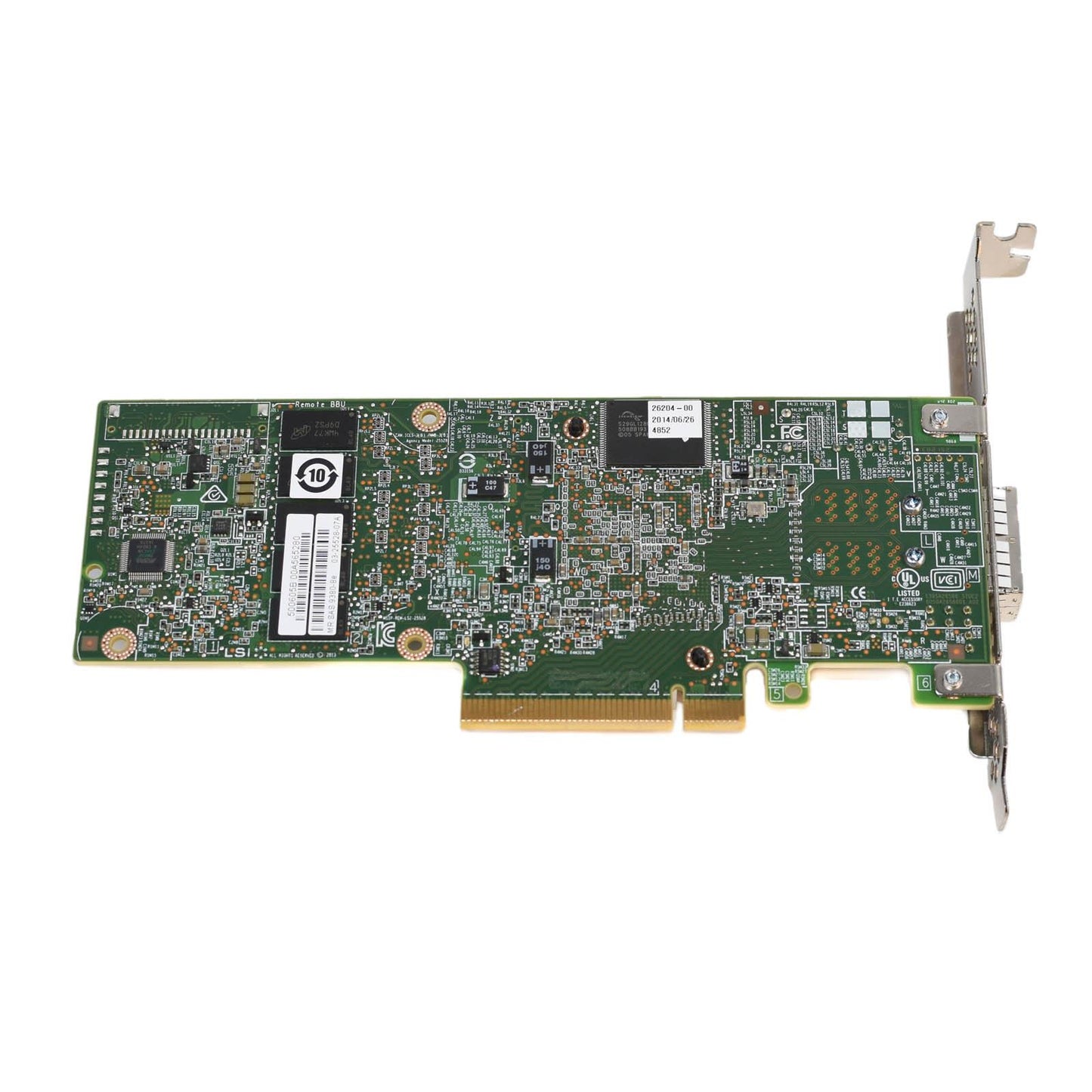

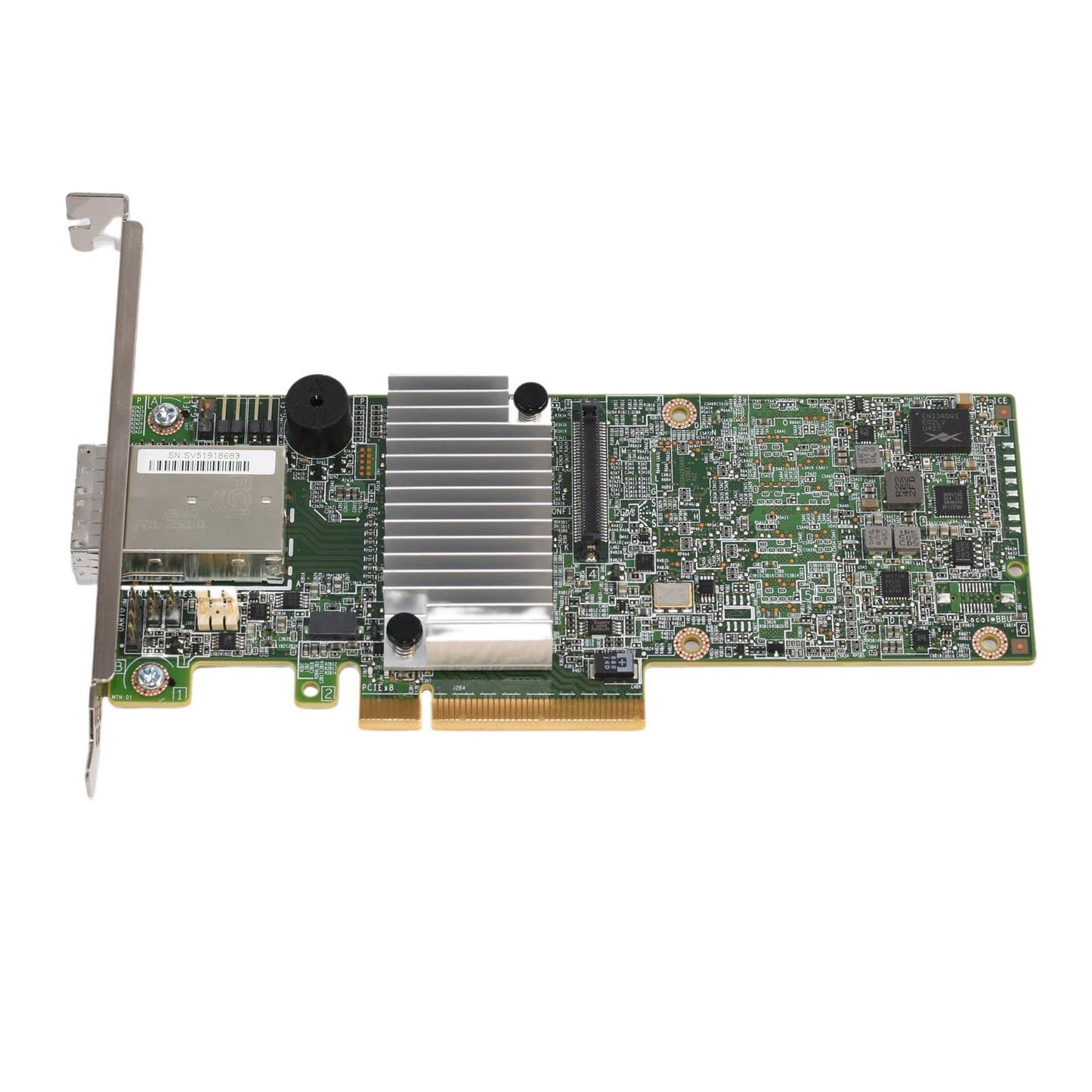

LSI LSI00438 MegaRAID SAS 9380-8e 8-Port 12Gb/s PCIe 3.0 External RAID Controller Card

LSI P/N: LSI00438

Mounting bracket: Full Height

Condition: Clean, tested pull - Guaranteed 100% working!

No software, cables or other accessories included. Comes with Full Height mounting bracket only.

30-Day Warranty!

Manufacturer's description:

Hyperscale, datacenter, and high-performance computing environments not only require large amounts of storage capacity, they also must provide the data protection and performance today’s applications and end users demand. The MegaRAID SAS 9380-8e 12Gb/s SAS and SATA RAID controller card helps address these needs by delivering proven performance and RAID data protection for a range of server storage applications

• Connect up to 240 SATA or SAS drives with eight external 12Gb/s SAS ports
• Provides external JBOD expansion and RAID data protection to address a wide range of storage performance and capacity requirements.
• Support critical, high-bandwidth applications with PCIe 3.0 connectivity
• Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
• Add more protection and peace of mind with optional CacheVault® flash cache protection.

Specifications:

• High performance 12Gb/s data transfer rates
• Eight external 12Gb/s SATA+SAS ports
• Two mini-SAS SFF8644 external connectors
• LSISAS3108: 1.2GHz PowerPC? 476 dual core
• 12Gb/s ROC
• PCI Express 3.0 host interface
• 1GB DDRIII cache memory
• RAID levels 0, 1, 5, 6, 10, 50, and 60
• Support for CacheVault flash cache protection
