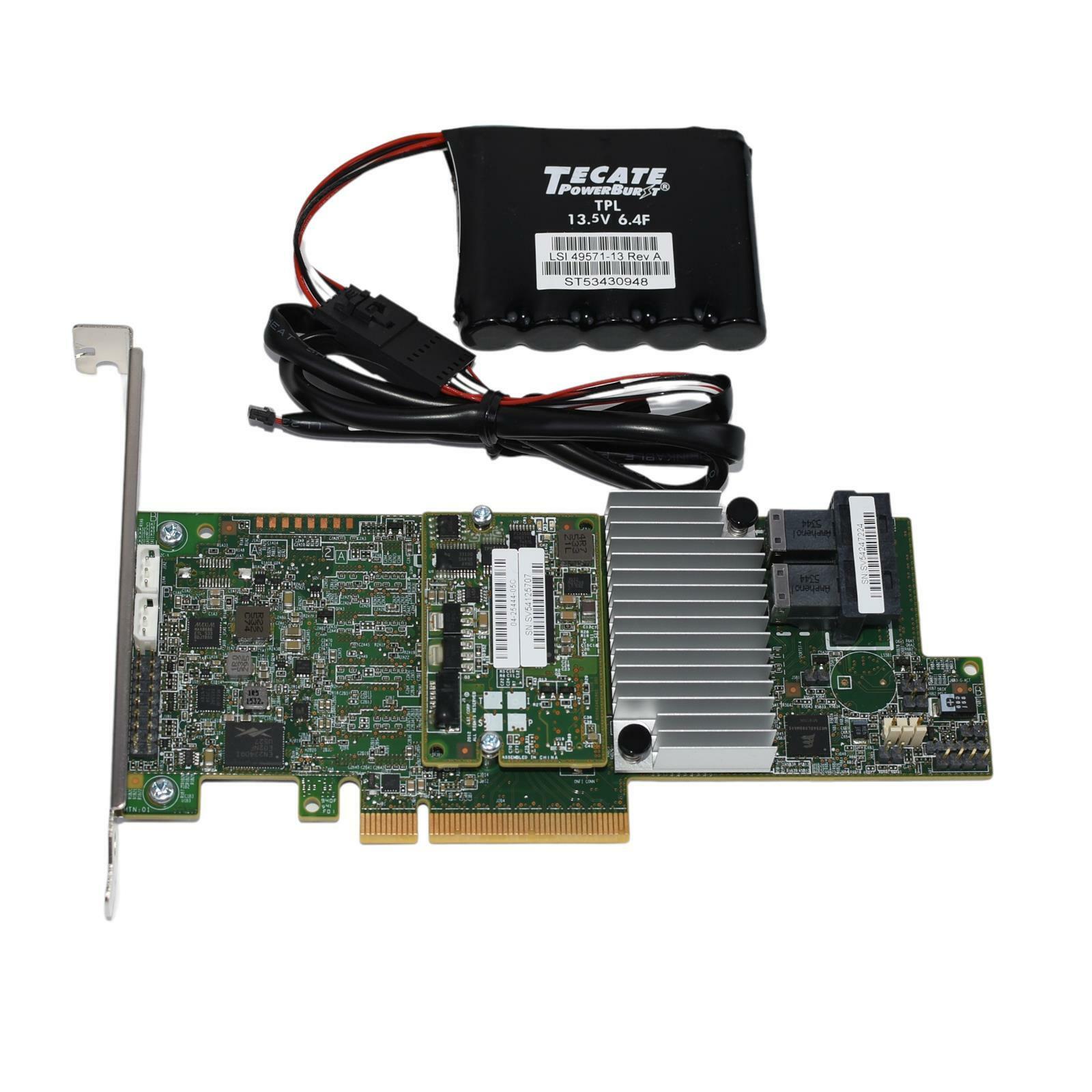

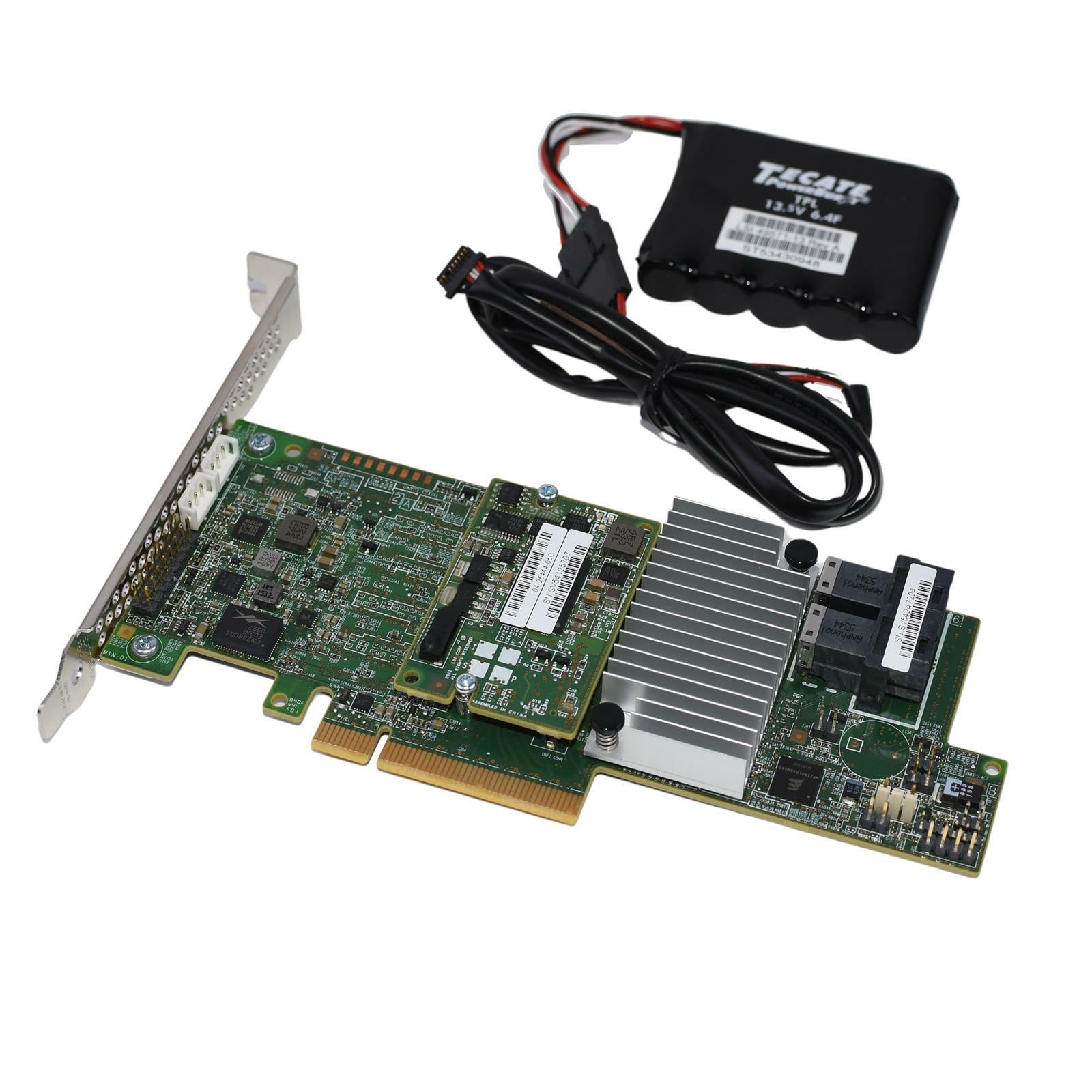

LSI MegaRAID 9361-8i PCIe 3.0 x8 SATA SAS 8-Port 12Gb/s RAID + BBU & CacheVault

LSI MegaRAID SAS 9361-8i PCI-Express 3.0 x8 SATA / SAS High Performance 8-Port 12Gb/s RAID Controller with CacheVault LSICVM02 module and Battery Power Cap

Data-center, cloud, and high-performance computing environments not only require large amounts of storage capacity, they must also provide the data protection and performance todays applications and end-users demand. The MegaRAID SAS 9361-8i 12Gb/s SAS and SATA RAID controller card address those needs by delivering proven performance and RAID data protection for a range of server storage applications.

This card is powered by a dual-core RAID on Chip (ROC) and 1GB DDR3 cache, capable of handling today's complicated RAID computing. Eight internal ports support up to 128 SATA/SAS drives. The PCIe 3.0 x8 host interface eliminates bottlenecks to maximize the operational performance of the latest 12Gb/s SAS infrastructure. This card supports RAID 0, 1, 5, 6, 10, 50, and 60, and also supports the optional CacheVault Flash cache-protection module to further strengthen data-protection capabilities.

• High-performance 12Gb/s data transfer rates
• Four internal 12Gb/s SATA+SAS ports
• Two mini-SAS SFF8643 internal connectors (horizontal mount)
• LSI SAS 3108: 1.2GHz PowerPC 476 dual-core 12Gb/s ROC
• PCI Express 3.0 host interface
• 1GB DDRIII cache memory
• RAID levels 0, 1, 5, 6, 10, 50 and 60
• Support for CacheVault flash cache protection

• 12Gb/s solutions accelerate performance for next-generation data centers + web and cloud use
• Delivers enterprise-class data protection and security
• Preserves investment in 6Gb/s and 3Gb/s drives
• Support for advanced-software options
• Connect up to 128 3Gb/s, 6Gb/s or 12Gb/s SATA and SAS devices

Mounting bracket: Full Height

Tested, guaranteed 100% working pull.

Item comes with an optional LSICVM02 CacheVault module and battery included. Comes with a Full Height bracket only.

30-Day Warranty!
