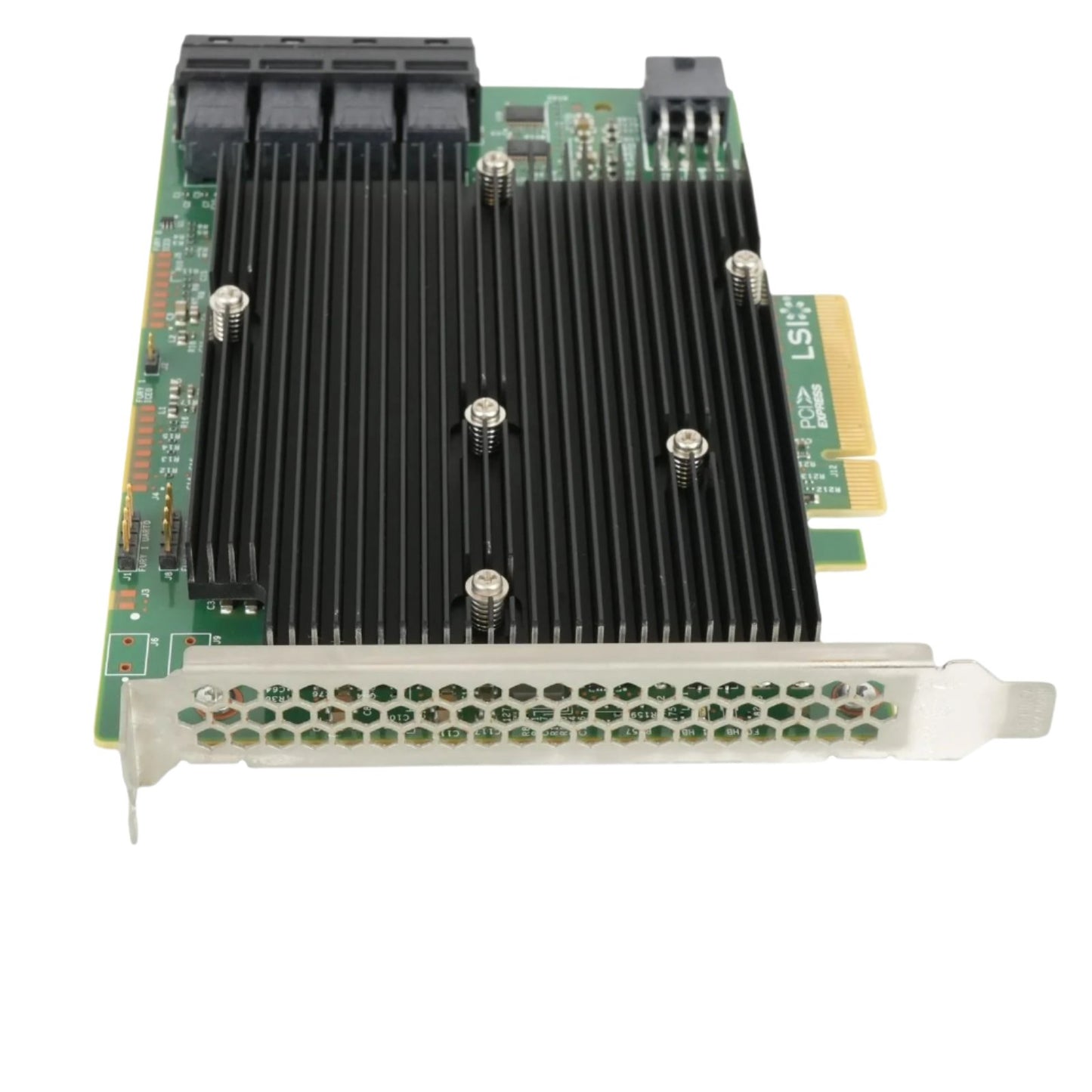

LSI SAS9300-16i LSI00447 16-port SATA 6G/SAS 12G PCI-E 3.0 x8 HBA 03-25600-00

LSI Avago Broadcom SAS9300-16i LSI00447 16-port SATA 6Gbps/SAS 12Gbps PCI-E 3.0 HBA Adapter 03-25600-00 03-25600-01B

BROADCOM Model: SAS9300-16I

BROADCOM MPN: 03-25600-00

BROADCOM OPN: LSI00447

Mounting bracket: Full Height

Condition: Clean, tested pull - Guaranteed 100% working!

No software, cables or other accessories included. Comes with Full Height mounting bracket only.

30-Day Warranty!

Manufacturer's description and specifications:

For applications demanding high levels of storage connectivity and performance, 16-port 12Gb/s SAS HBAs connect servers and appliances to internal and external storage, achieving close to 2 million IOPS.

Overview

The Avago SAS 9300 16-port, 12Gb/s SAS HBA family provides increased connectivity and maximum performance for high-end servers and appliances within internal storage, or connecting to large scale storage enclosures. The SAS 9300 16-port HBA family is based on the SAS 3008 IO controller, integrating the latest enhancements in SAS and PCI Express® (PCIe) technology. The SAS 9300-16i support 16 SAS ports operating at 12Gb/s data transfer rates, and can reach close to 2 million IOPS.

The 16-port adapter family supports 8 PCIe lanes that comply with the latest PCIe 3.0 specifi cations.

In addition, these adapters are backwards compatible with previous SAS and PCIe generations

through automatic negotiation, and provide SAS data transfer rates of 12, 6, and 3 Gb/s per lane,

and SATA data transfer rates of 6 and 3Gb/s per lane. Avago Technologies provides a broad suite of

industry standard operating system drivers.

Avago Storage by LSI™

Avago Technologies products serve four primary target markets: wireless communications, wired infrastructure, enterprise storage, and industrial. Avago Storage by LSI off ers the industry’s broadest portfolio of storage solutions, backed by decades of experience and trusted by the world’s leading server and storage suppliers. Avago provides the building blocks for storage solutions that help customers understand, prioritize, store and protect critical data.

The Avago 12Gb/s SAS portfolio includes MegaRAID® controller cards, HBAs, advanced software options, Syncro® shared DAS solutions and SAS storage ICs, including RAID-on-Chip (ROCs), I/O

controllers and expanders.

Fusion-MPT™ Architecture

The Avago SAS HBAs are based on the Fusion-MPT architected SAS controllers, which implements the Fusion-MPT (Message Passing Technology) architecture. Each controller features embedded PowerPC™ processors that help deliver maximum host CPU offl oad. The built-in intelligence enables Avago to publish a single binary OS driver to operate any Fusion-MPT controller or adapter. This architecture helps enable high performance, reduced software development, and faster time to market.

Features:

• 12Gb/s solutions accelerate performance for next-generation
• Delivers enterprise-class data protection and security
• Preserves investment in 6Gb/s and 3Gb/s drives
• Support for LSI Advanced Software options
• Connect up to 128 3Gb/s, 6Gb/s, or 12Gb/s SATA and SAS devices
• Eight internal 12Gb/s SATA+SAS ports

Specifications:

Host Bus Type: x8 Lane PCI Express 3.0
Internal Ports: 16
Cable Support: Passive Copper, Active Optical
Data Transfer Rates: 12GB/S SAS 3.0 Compliant
Devices Supported: 1024 Non-RAID SATA/SATA Devices per Controller
Fusion MPT Support: Fusion MPT 2.5
I/O Controller: 2 SAS 3008
Internal Connectors: 4 MINI-SAS HD SFF8643
PCI Power: 27W
