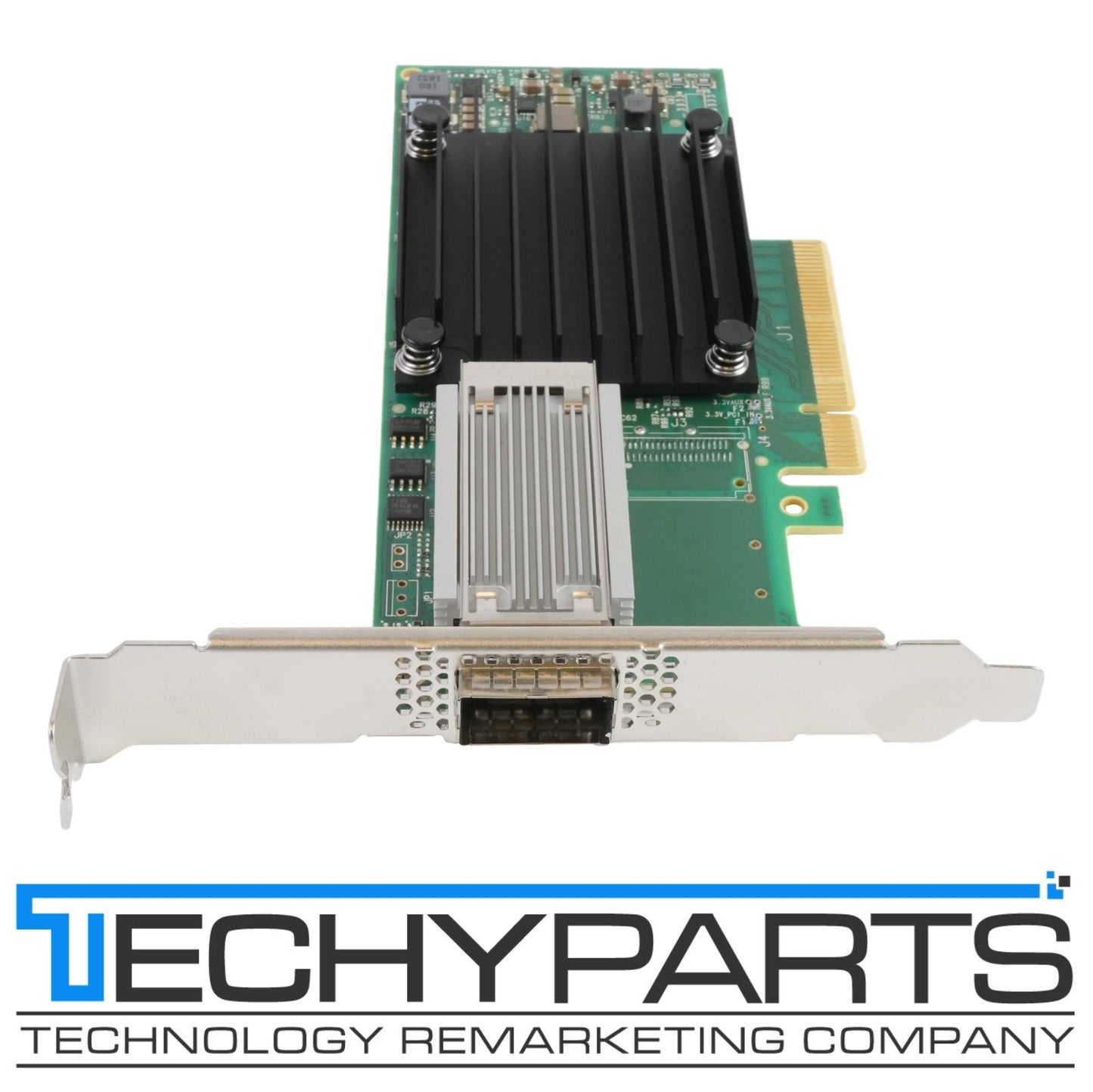

Mellanox MCX413A-GCAT ConnectX-4 EN 50GbE 1-Port QSFP28 PCIe 3.0 x8 NIC
92236Mellanox MCX413A-GCAT ConnectX-4 EN 50GbE 1-Port QSFP28 PCIe 3.0 x8 NIC
Mellanox MCX413A-GCAT ConnectX-4 EN 50GbE 1-Port QSFP28 PCIe 3.0 x8 NIC
Mellanox MCX413A-GCAT ConnectX-4 EN 50GbE 1-Port QSFP28 PCIe 3.0 x8 NIC
Mellanox P/N: MCX413A-GCAT
Mellanox Model: CX413A
Transceiver: Not included
Mounting bracket: Full Height
Condition: Clean, tested pull - Guaranteed 100% working!
No software, cables or other accessories included. Comes with Full Height mounting bracket only.
30-Day Warranty!
Manufacturer Specifications:
| Physical | |||||
Connector: Single QSFP28 (copper and optical) | |||||
| Protocol Support | Ethernet: 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 1000BASE-CX, 1000BASEKX, 10GBASE-SR, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII |
||||
Data Rate: 1/10/25/40/50 Gb/s– Ethernet | |||||
PCI Express Gen3: SERDES @ 8.0GT/s, 8 lanes (2.0 and 1.1 compatible) | |||||
| Power and Airflow | Voltage: 12V, 3.3V |
||||
| Power | Cable Type | ||||
Typical Power(a) |
Passive Cables |
9.9W |
|||
Maximum Power |
Passive Cables |
12.5W |
|||
1.5W Active Cables |
15.8W |
||||
2.5W Active Cables |
18.0W |
||||
Maximum power available through QSFP28 port: 3.5W | |||||
Airflow (LFM) |
Heatsink to Port | Port to Heatsink | |||
Passive Cables |
Active 1.5W Cables |
Passive Cables |
Active 1.5W Cables |
||
400LFM |
400LFM |
400LFM |
400LFM |
||
| Environmental | Temperature | Operational |
0°C to 55°C |
||
Non-operational |
-40°C to 70°C(b) |
||||
| Humidity | Operational |
10% to 85% relative humidity |
|||
Non-operational |
10% to 90% relative humidity |
||||
| Altitude (Operational) | 3050m |
||||
| Regulatory | Safety |
CB / cTUVus / CE |
|||
EMC |
CE / FCC / VCCI / ICES / RCM |
||||
RoHS |
RoHS compliant |
||||
Notes: a. Typical power for ATIS traffic load.b. The non-operational storage temperature specifications apply to the product without its package.
