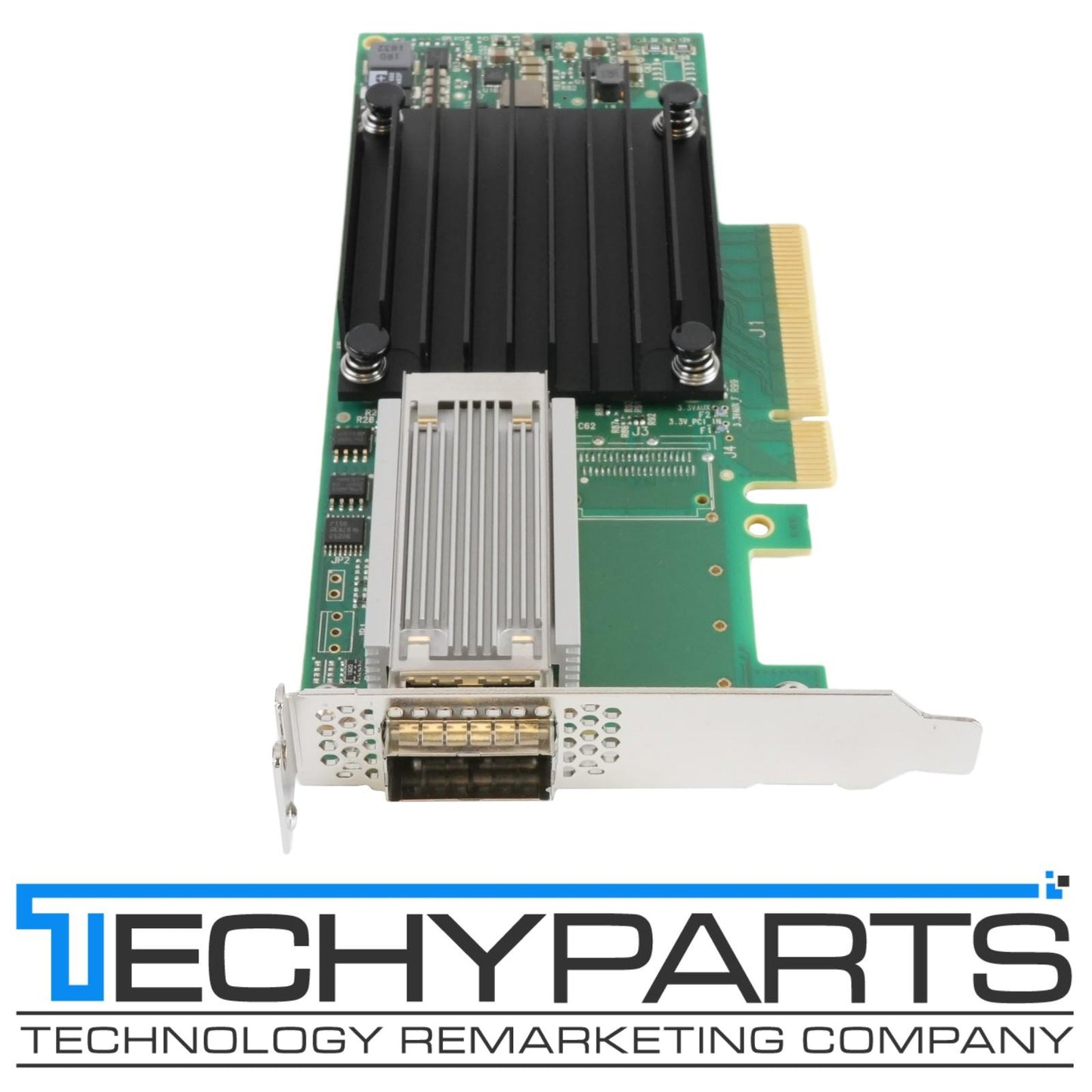

Mellanox MCX413A-GCAT ConnectX-4 EN 50GbE 1-Port QSFP28 PCIe 3.0 x8 NIC SFF
92235Mellanox MCX413A-GCAT ConnectX-4 EN 50GbE 1-Port QSFP28 PCIe 3.0 x8 NIC SFF
Mellanox MCX413A-GCAT ConnectX-4 EN 50GbE 1-Port QSFP28 PCIe 3.0 x8 NIC SFF
Mellanox MCX413A-GCAT ConnectX-4 EN 50GbE 1-Port QSFP28 PCIe 3.0 x8 NIC SFF
Mellanox P/N: MCX413A-GCAT
Mellanox Model: CX413A
Transceiver: Not included
Mounting bracket: Short SFF
Condition: Clean, tested pull - Guaranteed 100% working!
No software, cables or other accessories included. Comes with Short SFF mounting bracket only.
30-Day Warranty!
Manufacturer Specifications:
| Physical | |||||
Connector: Single QSFP28 (copper and optical) | |||||
| Protocol Support | Ethernet: 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 1000BASE-CX, 1000BASEKX, 10GBASE-SR, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII | ||||
Data Rate: 1/10/25/40/50 Gb/s– Ethernet | |||||
PCI Express Gen3: SERDES @ 8.0GT/s, 8 lanes (2.0 and 1.1 compatible) | |||||
| Power and Airflow | Voltage: 12V, 3.3V | ||||
| Power | Cable Type | ||||
Typical Power(a) | Passive Cables | 9.9W | |||
Maximum Power | Passive Cables | 12.5W | |||
1.5W Active Cables | 15.8W | ||||
2.5W Active Cables | 18.0W | ||||
Maximum power available through QSFP28 port: 3.5W | |||||
Airflow (LFM) | Heatsink to Port | Port to Heatsink | |||
Passive Cables | Active 1.5W Cables | Passive Cables | Active 1.5W Cables | ||
400LFM | 400LFM | 400LFM | 400LFM | ||
| Environmental | Temperature | Operational | 0°C to 55°C | ||
Non-operational | -40°C to 70°C(b) | ||||
| Humidity | Operational | 10% to 85% relative humidity | |||
Non-operational | 10% to 90% relative humidity | ||||
| Altitude (Operational) | 3050m | ||||
| Regulatory | Safety | CB / cTUVus / CE | |||
EMC | CE / FCC / VCCI / ICES / RCM | ||||
RoHS | RoHS compliant | ||||
Notes: a. Typical power for ATIS traffic load.b. The non-operational storage temperature specifications apply to the product without its package.
