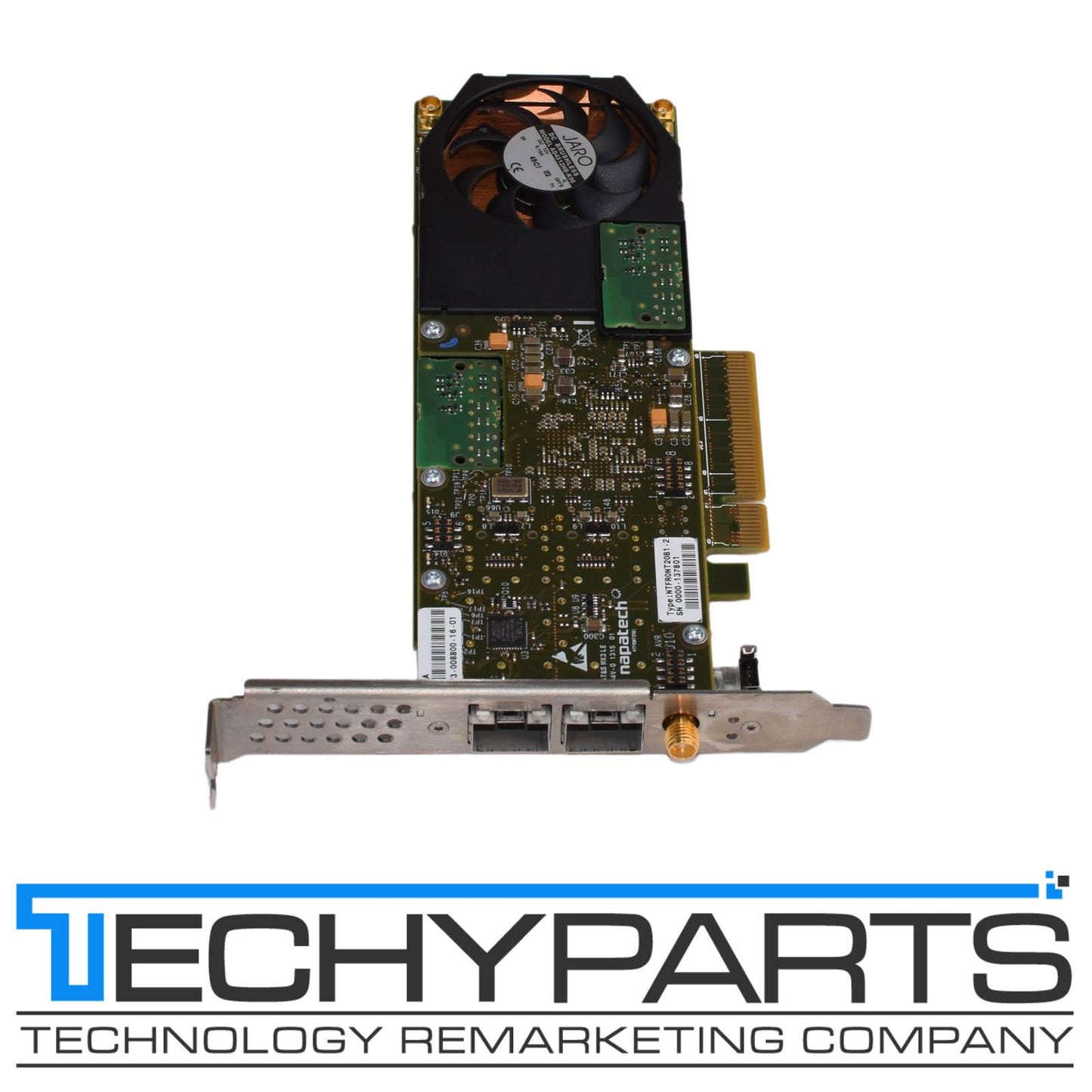

Napatech NT20E2-CAP Capture Network Adapter PCIe x8 2x10Gb SFP+ 810-0024-03-04

Napatech NT20E2-CAP Capture Network Adapter PCIe 2.0 x8 2x10Gb SFP+ 810-0024-03-04

NAPATECH P/N: NT20E2-CAP

NAPATECH P/N: 810-0024-03-04

Tranceiver: Not included

Mounting bracket: Full Height

Condition: Clean, tested pull - Guaranteed 100% working!

No software, cables or other accessories included. Comes with Full Height mounting bracket only.

30-Day Warranty!

Logs:

C:\Program Files\Napatech3\bin>productinfo.exe

productinfo (v. 3.6.6.29-e0b7b)

==============================================================================

8636: INF: Using matching kernel mode driver version: 3.6.1.47-196849

System: 3.6.6.29

------------------------------------------------------------------------------

Adapters: 1

==============================================================================

Adapter 0 NT20E2-CAP Capture Network Adapter PCIe Gen2 2x10Gb SFP+

------------------------------------------------------------------------------

P/N : 810-0024-03-04

Main Board Serial No : 0000-124224

Main Board PBA : 073-008700-12

Main Board AVR : 1.3

FPGA flash image #0 : 200-9220-44-10

FPGA flash image #1 : 200-9220-44-10

Front Board Serial No : 0000-124234

Front Board PBA : 073-008800-14

Front Board AVR : 1.3

------------------------------------------------------------------------------

C:\Program Files\Napatech3\bin>adapterinfo.exe

adapterinfo (v. 3.6.6.29-e0b7b)

==============================================================================

7708: INF: Using matching kernel mode driver version: 3.6.1.47-196849

System: 3.6.6.29

------------------------------------------------------------------------------

Adapters: 1

Ports: 2

==============================================================================

Adapter: 0 - NT20E2-CAP Capture Network Adapter PCIe Gen2 2x10Gb SFP+

------------------------------------------------------------------------------

Bus ID: 0000:01:00.0

PCI ID: 18F4:00C5

FPGA ID: 200-9220-44-10-00

Feature level: N-CAP13

Profile: CaptureReplay

Supported profiles: Capture Inline CaptureReplay TrafficGen

AVR main version: 1.3f

AVR front version: 1.3f

Ports: 2

Port Range: 0 - 1

Descriptor: Standard

Timestamp: Native Unix

TimestampMethod: EOF (End of Frame)

RX host buffers: 4

TX host buffers: 4

Port #0 MAC : 00.0D.E9.02.EE.9E

Port #1 MAC : 00.0D.E9.02.EE.9F

SDRAM size : 1GB

Bus type : PCI Express 2

Link width supported : x8

Link width negotiated : x8

Link speed : 5.0 GT/s

Max payload supported : 256

Max payload negotiated : 256

Max expected throughput : 29050 Mbps

==============================================================================
