NEW Eaton 5PX2200RT 5PX UPS 120V 1950VA NEMA 5-20P LCD 2U Rack/Tower UPS 8x5-20R

NEW, Old Stock Eaton 5PX2200RT 5PX UPS 120V 1950VA NEMA 5-20P LCD 2U Rack/Tower UPS O: 8x 5-20R

EATON P/N: 5PX2200RT

Max Power Output: 1920W

Input: 120V L5-20P

Output: 120V 8x 5-20R

Condition: New, old stock. Manufactured in 2021, mostly week 20,so about 3 years of shelf life. Original batteries are included. We test opened a couple boxes and the batteries worked great.

90-Day Warranty on the unit, no warranty on the batteries!

All original accessories are included. Optional network card is not included.

Manufacturer's description and specifications:

Eaton 5PX UPS Specifications

Product Name Eaton 5PX UPS
Catalog Number 5PX2200RT
UPC 743172035844
Product Length/Depth 20.6 in
Product Height 3.4 in
Product Width 17.4 in
Product Weight 65 lb
Compliances CE Marked, FCC Part 15 Class A
Certifications cTUVus, UL 497A, NOM, UL 1778, cUL Listed, UL Listed
Special Features ABM technology, automatic battery test, deep discharge protection, etc.
Type UPS
Topology Line-interactive

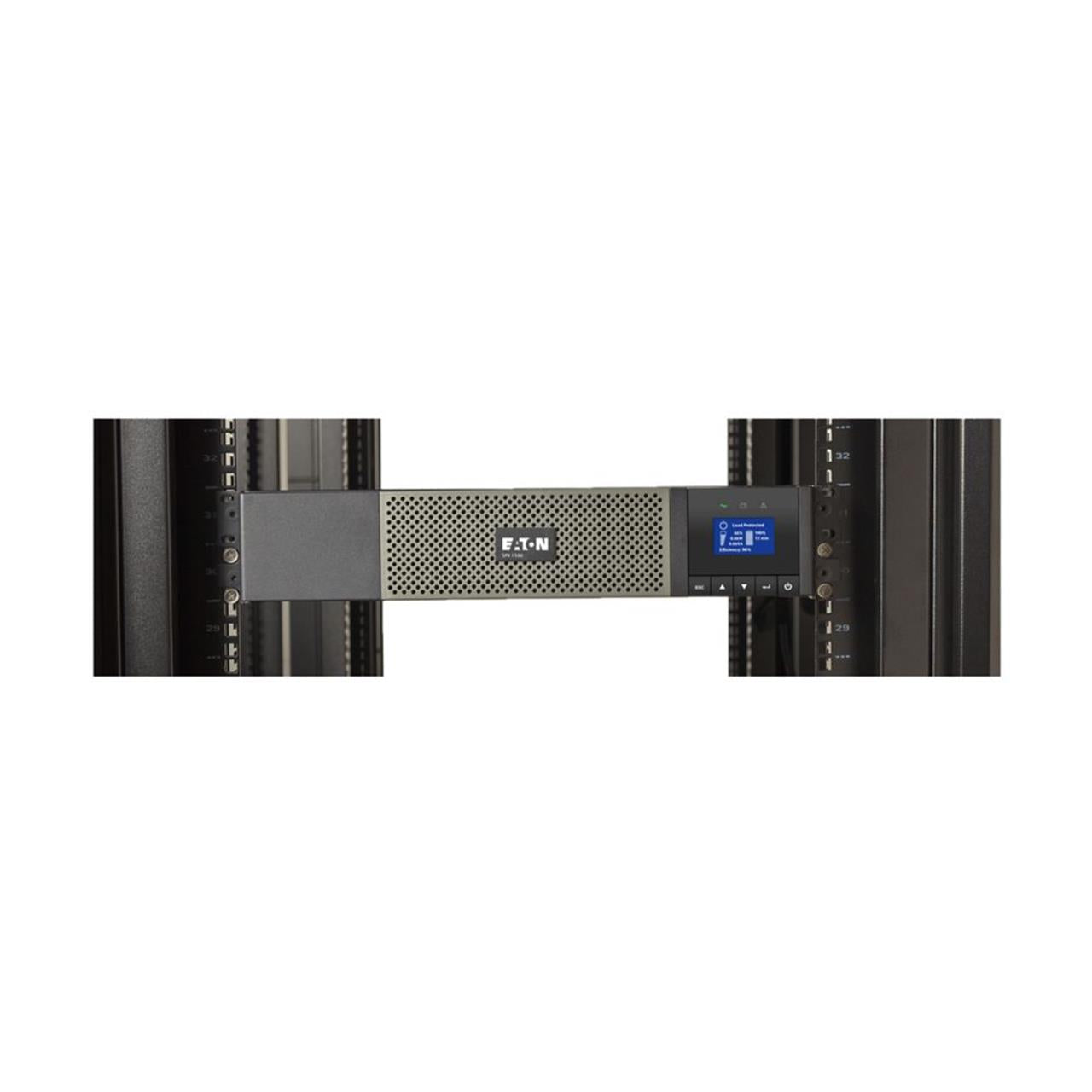

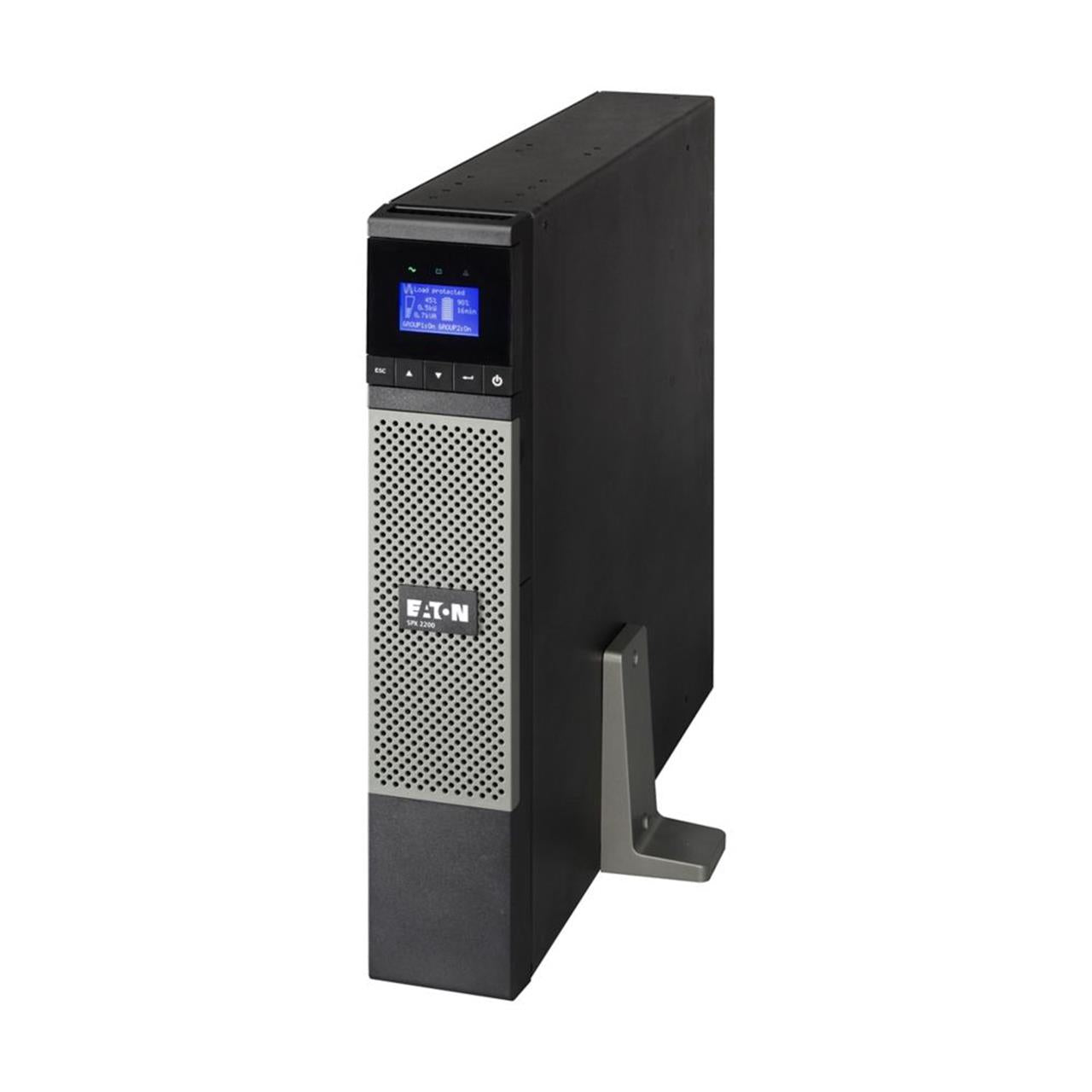

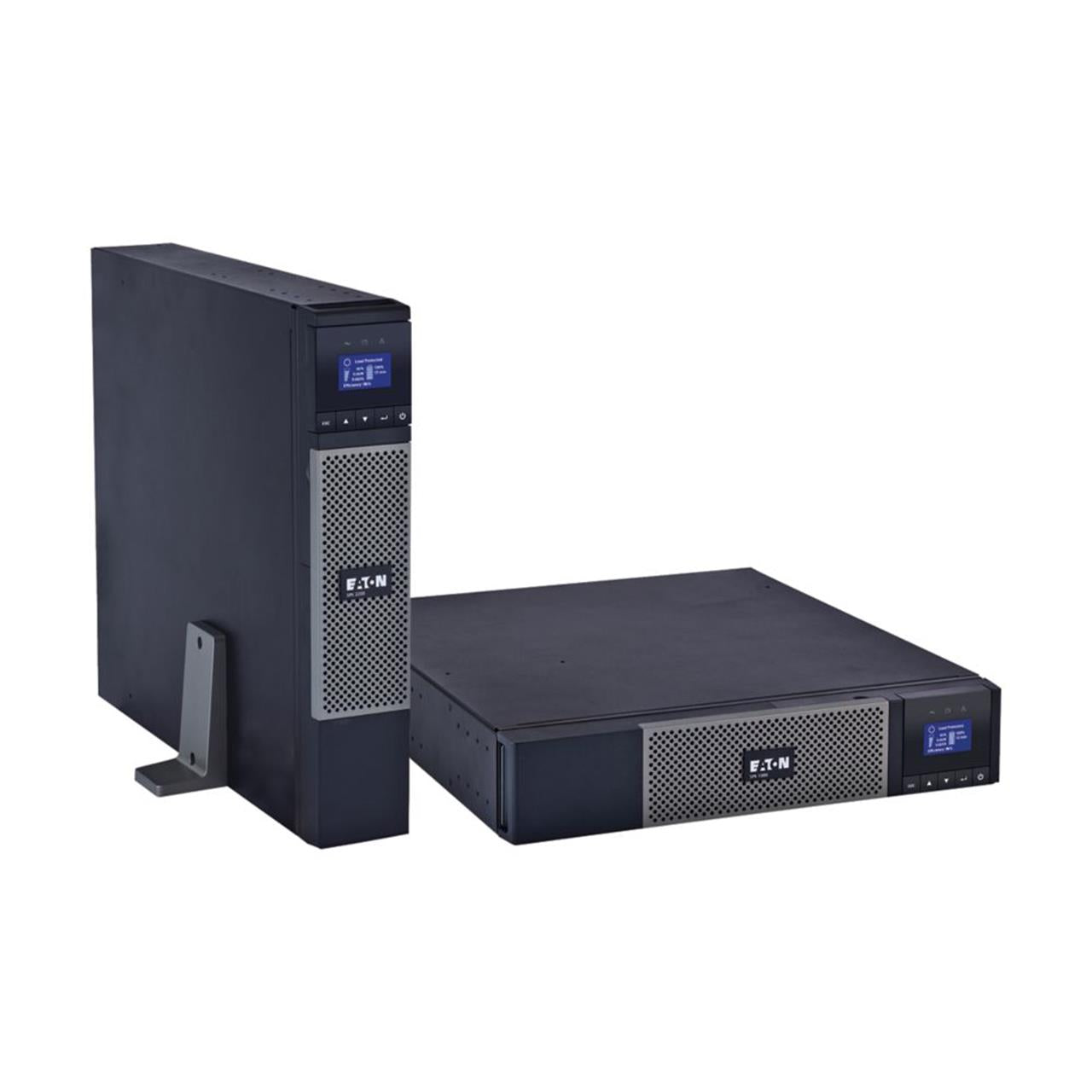

Form Factor Rack/tower
Color Black/silver
VA Rating 1950 VA
Wattage 1920 W
Rack Mounting Kit Yes
Input Connection 5-20P
Input Cord Length 8 ft
Input Nominal Voltage 120V default (100/110/120/127V)
Nominal Frequency 50-60 Hz
Input Frequency Range 47–70 Hz (50 Hz system), 56.5–70 Hz (60 Hz system), 40 Hz in low-sensitivity mode
Input Power Factor 0.98

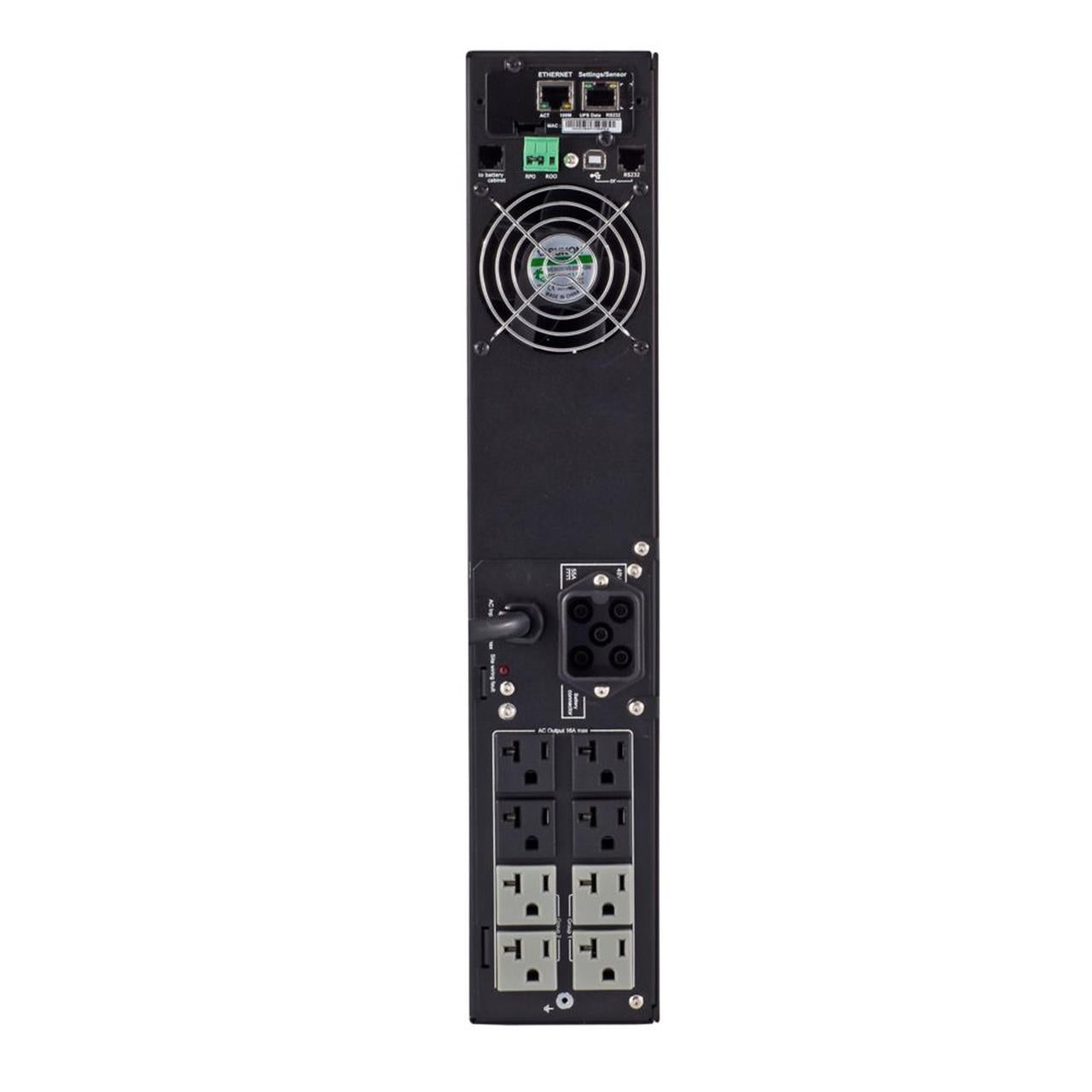

Receptacle (8) 5-20R
Output Waveform Sine wave
Voltage 120V
Output Nominal Voltage 120V default (100/120/125V)
Battery Replacement User replaceable
Battery Rating 12V/9 Ah
Extended Battery Capability Add up to 4 extended battery modules (EBM). Part number 5PXEBM48RT
Expansion Slots One slot; Network Card-MS is optional
Software Compatibility Eaton Intelligent Power Manager (included)

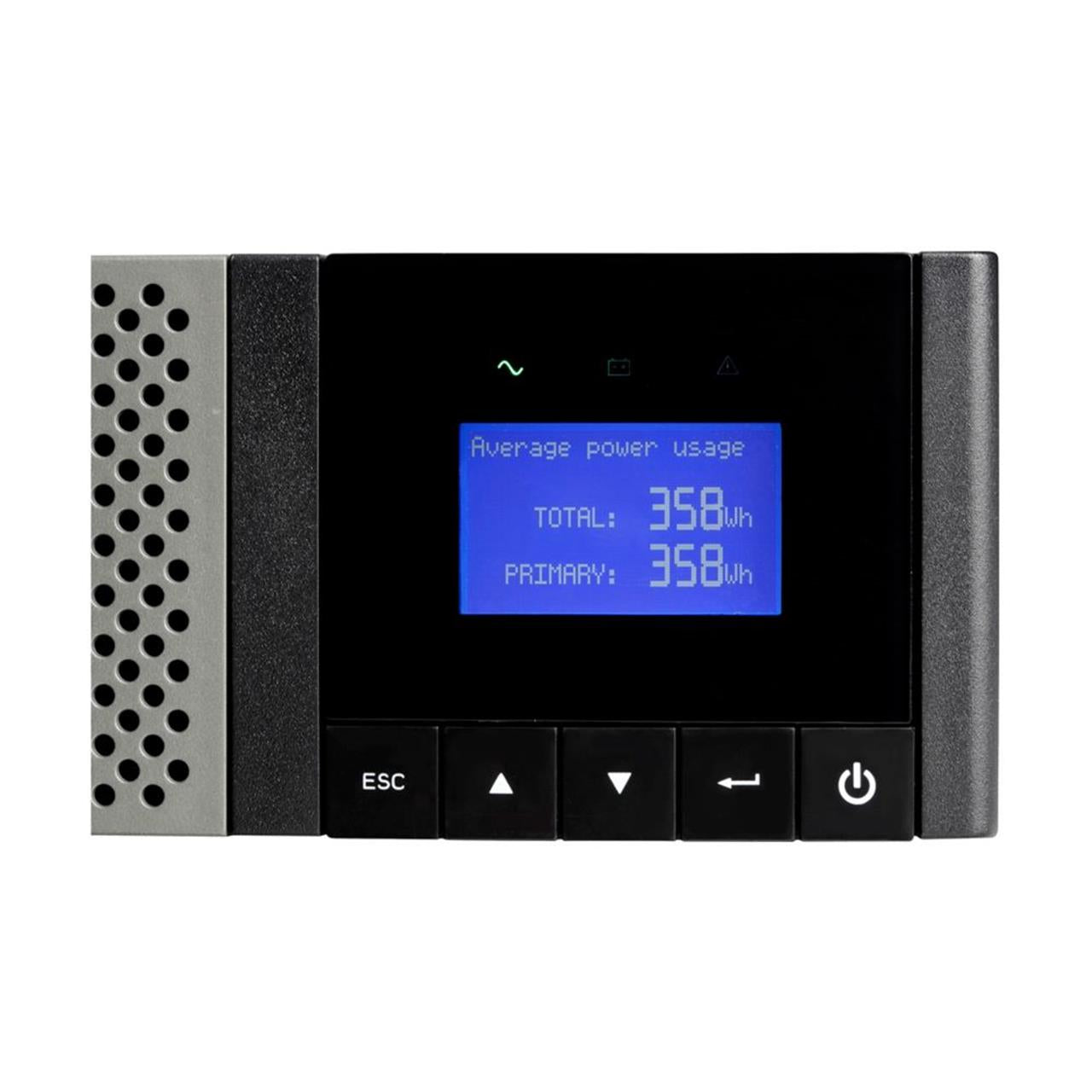

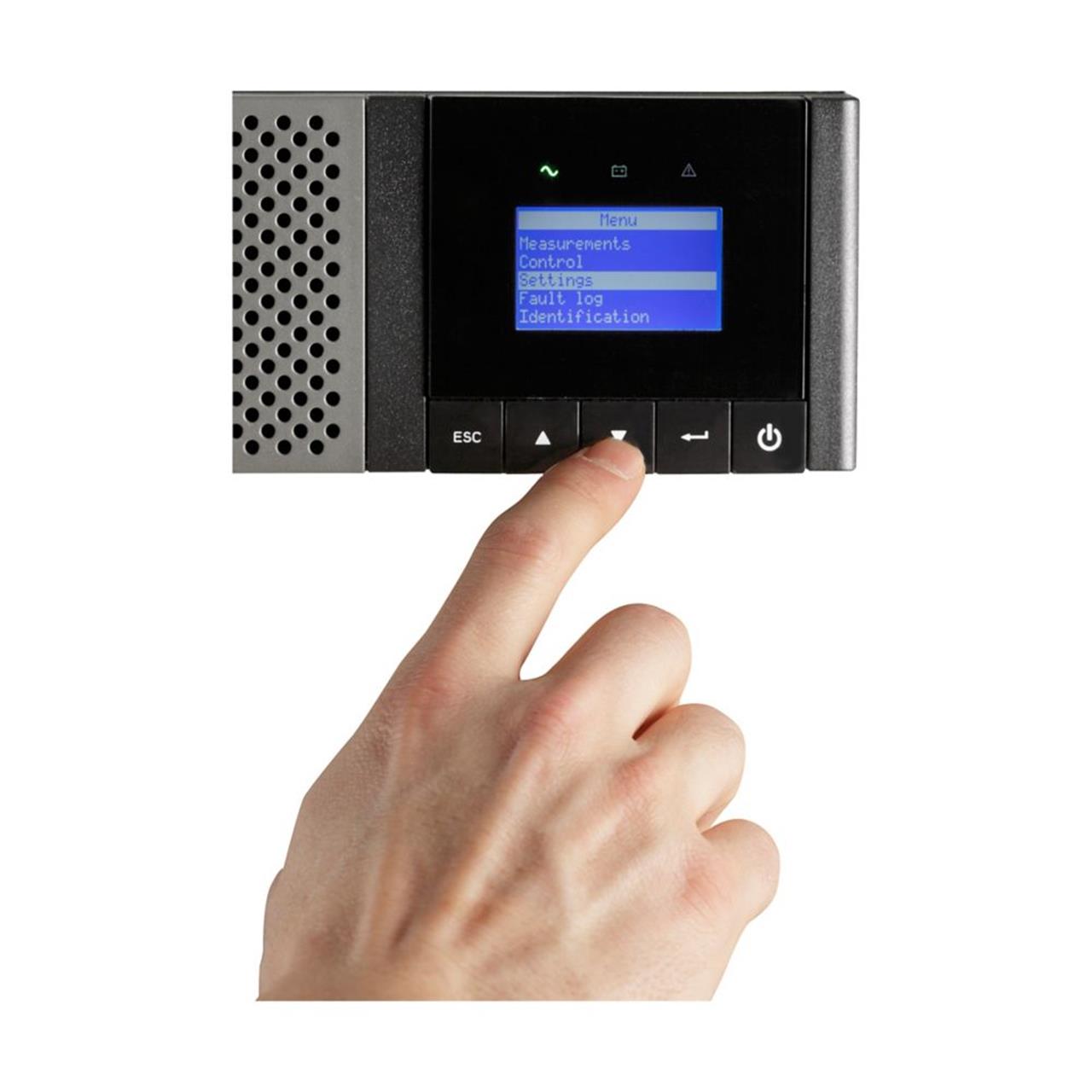

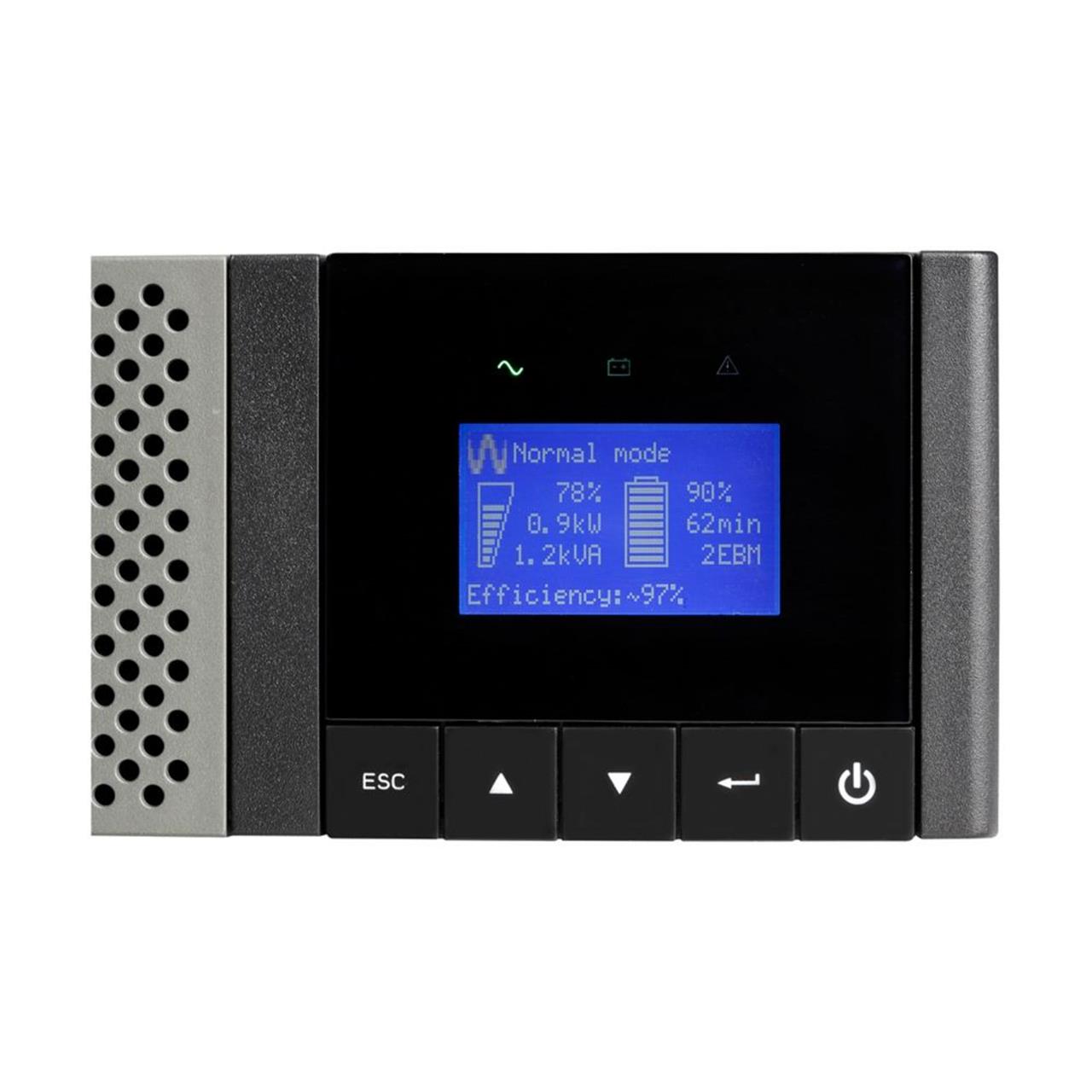

User Interface LCD graphical display
Altitude Up to 10,000 ft (3000m) without de-rating
BTU Rating Online: 305, Battery: 2047
Noise Level <45 dB at 1 meter
Relative Humidity 20-95% non-condensing
Temperature Range 0° to 40°C (32° to 104°F)
Efficiency 97%
Input Voltage Range 89-151 Vac (adjustable to 70-153 Vac)
Output Frequency 50/60 Hz
Output Power Factor 0.98
Output Voltage Range 102-132 Vac
