NEW MELLANOX MC220731V-050 Active Fiber Cable, VPI, up to FDR/56 GbE, QSFP+, 50m
NEW MELLANOX MC220731V-050 Active Fiber Cable, VPI, up to FDR/56 GbE, QSFP+, 50m
Regular price
$79.95 USD
Regular price
Sale price
$79.95 USD
Unit price
/
per
Shipping calculated at checkout.
24 in stock
Couldn't load pickup availability
SKU:91342
NEW MELLANOX MC220731V-050 Active Fiber Cable, VPI, up to FDR/56 GbE, QSFP+, 50m
View full details
NEW MELLANOX MC220731V-050 Active Fiber Cable, VPI, up to FDR/56 GbE, QSFP+, 50m

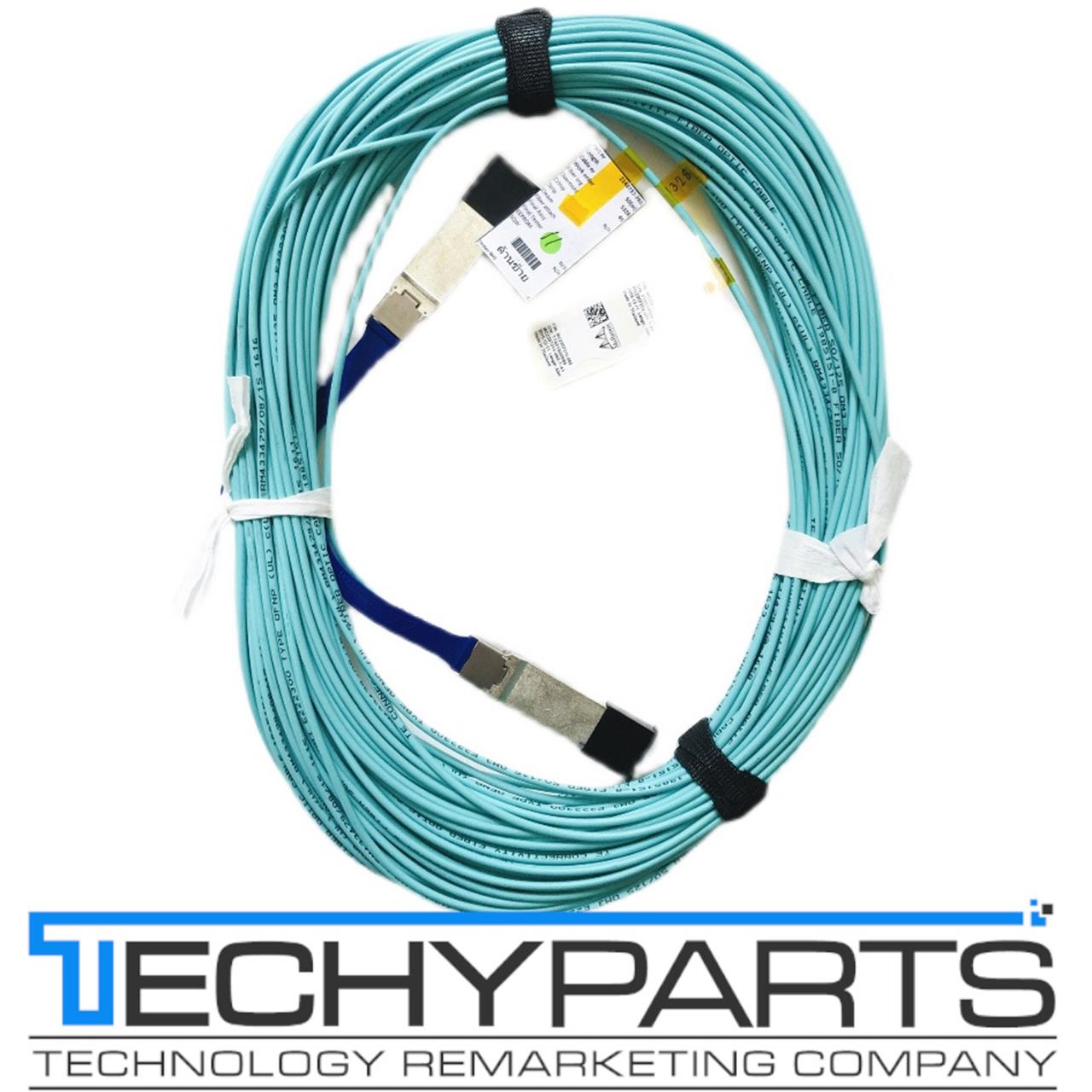

Mellanox MC220731V is a family of VCSEL-based (Vertical Cavity Surface-Emitting Laser) QSFP+ active optical cable (AOC) designed for use in 40GbE Ethernet and 56Gb/s Virtual Port Interconnect (VPI) systems. This family of AOCs offers high port density and configurability, as well as a longer reach than passive copper cables in data centers. Since the AOC is hot pluggable, it is easy to install and replace.
The MC220731V family has a standard SFF-8685 compliant QSFP+ port on the electrical side towards the host system.
MC220731V AOCs contain four multi-mode fibers (MMF) optical transceivers per end, each operating at data rates of up to 14.0625Gb/s. The transmitters have input equalizers compensating for signal attenuation across the host PCB, and the receivers have programmable output amplitude and pre-emphasis.
Rigorous production testing ensures the best out-of-the-box installation experience, performance and durability.
Highlights
- Up to 56Gb/s data rate
- 1W maximum power consumption
- SFF-8685 and SFF-8436 compliant
- Operating case temperature of 0-70°C
- 3.3V power supply
- BER better than 1E-15
- Hot pluggable
- Up to 100 meters in length
- Standard multimode fiber
- RoHS compliant
- Plenum rated (OFNP)
Condition: NEW - Original Retail Box. Genuine Mellanox item!
30-Day Warranty!
