*** NVIDIA/Mellanox Compatible TAA Compliant ***

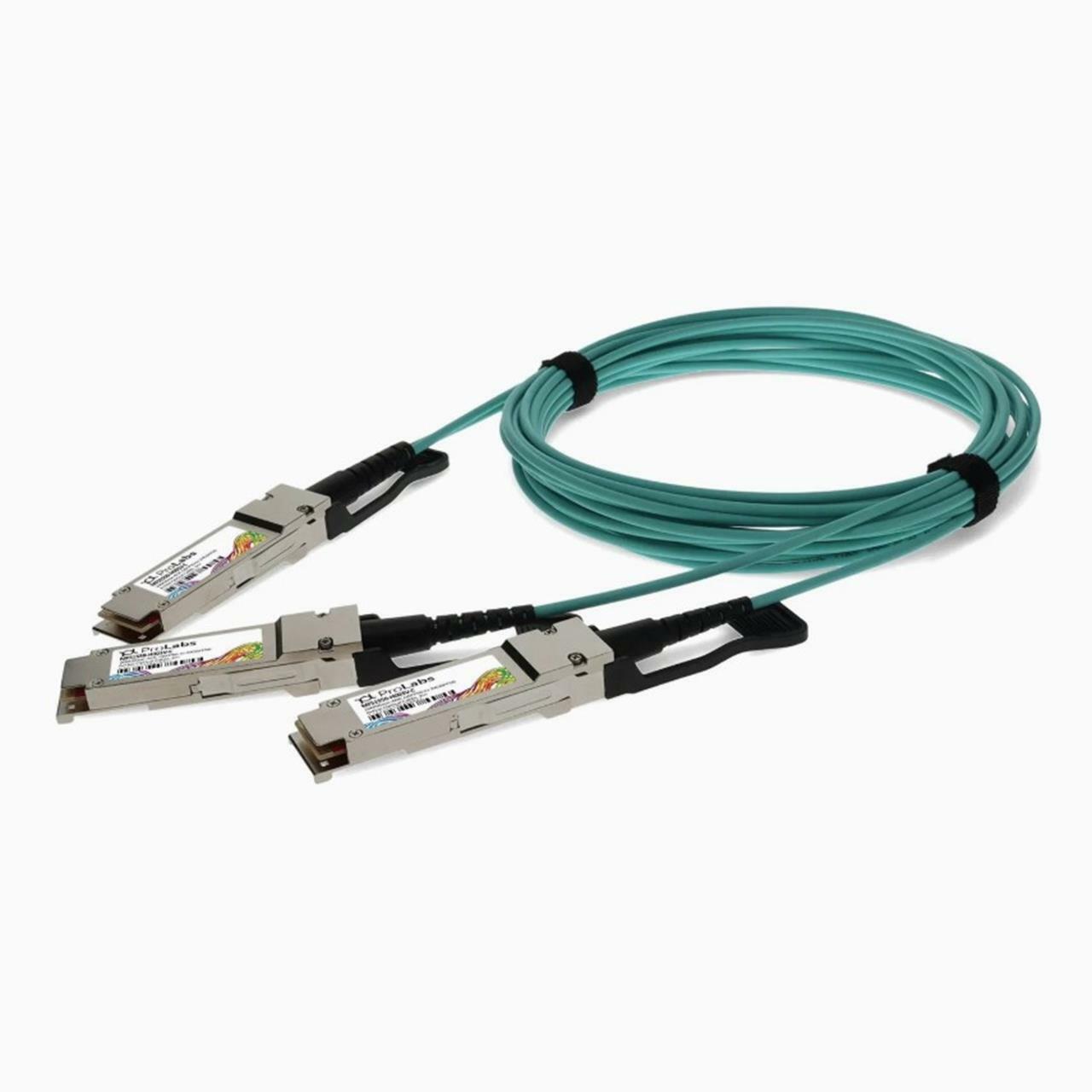

NEW ProLabs MFS1S50-H010E-C 200Gb/s HDR QSFP56 to 2x100Gb/s 2xQSFP56 Infiniband HDR Active Optical Splitter Cable AOC (850nm, MMF, 10m, LSZH)

Condition: Brand New, Bulk Packaging

Warranty: 90 Days

This is a high-quality ProLabs compatible version of the official NVIDIA MFS1S50-H010E active optical splitter cable. It splits one 200Gb/s HDR QSFP56 port into two independent 100Gb/s HDR100 QSFP56 ports.

Key Features

• High Performance Breakout: 200Gb/s (QSFP56) → 2x 100Gb/s (QSFP56) with PAM4 modulation
• Low Latency: DSP-free electronics-based CDR for minimal signal delay
• Energy Efficient: Low power consumption (~3.6W on 200G end)
• Durable & Safe: LSZH aqua jacket, 3.0mm diameter, 30mm minimum bend radius
• Hot Pluggable: Easy installation with single 3.3V power supply
• Reliable: Programmed, serialized, and traffic-tested for full compatibility

Compatible Switches

NVIDIA Quantum HDR Switches:

• MQM8700-HS2F (Managed, P2C airflow) — Most common
• MQM8700-HS2R (Managed, C2P reverse airflow)
• MQM8790-HS2F (Unmanaged/Smart, P2C airflow)
• MQM8790-HS2R (Unmanaged/Smart, C2P reverse airflow)

Note: Switch port must be configured in 2x100G split mode (HDR2X).

Compatible Adapters (100G side)

• NVIDIA ConnectX-6 (HDR100 mode)

Specifications

• Length: 10 meters (+300mm / -0mm tolerance)
• Connectors: QSFP56 (200G) to 2× QSFP56 (100G)
• Data Rate: 200Gb/s HDR → 2× 100Gb/s HDR100
• Modulation: 4× 50Gb/s PAM4
• Fiber Type: 850nm Multimode Fiber (MMF)
• Power Supply: 3.15–3.47V
• Operating Temperature: 0°C to 70°C
• Jacket: LSZH (Low Smoke Zero Halogen), Aqua
• Standards: SFF-8665, SFF-8636, RoHS, TAA compliant

Manufacturer Description:

NVIDIA®/Mellanox® compatible active fiber splitter cable, IB HDR, 200Gb/s to 2x100Gb/s, QSFP56 to 2xQSFP56, LSZH, 10m active optical cable that operates over active fiber with a maximum reach of 10m. It has been programmed, uniquely serialized, and data-traffic and application tested to ensure it is 100% compliant and functional. This cable is TAA (Trade Agreements Act) compliant and is built to comply with MSA (Multi-Source Agreement) standards.

Compatible NVIDIA cable part number: 980-9I95A-00H010, MFS1S50-H010E
