Mellanox Compatible TAA Compliant

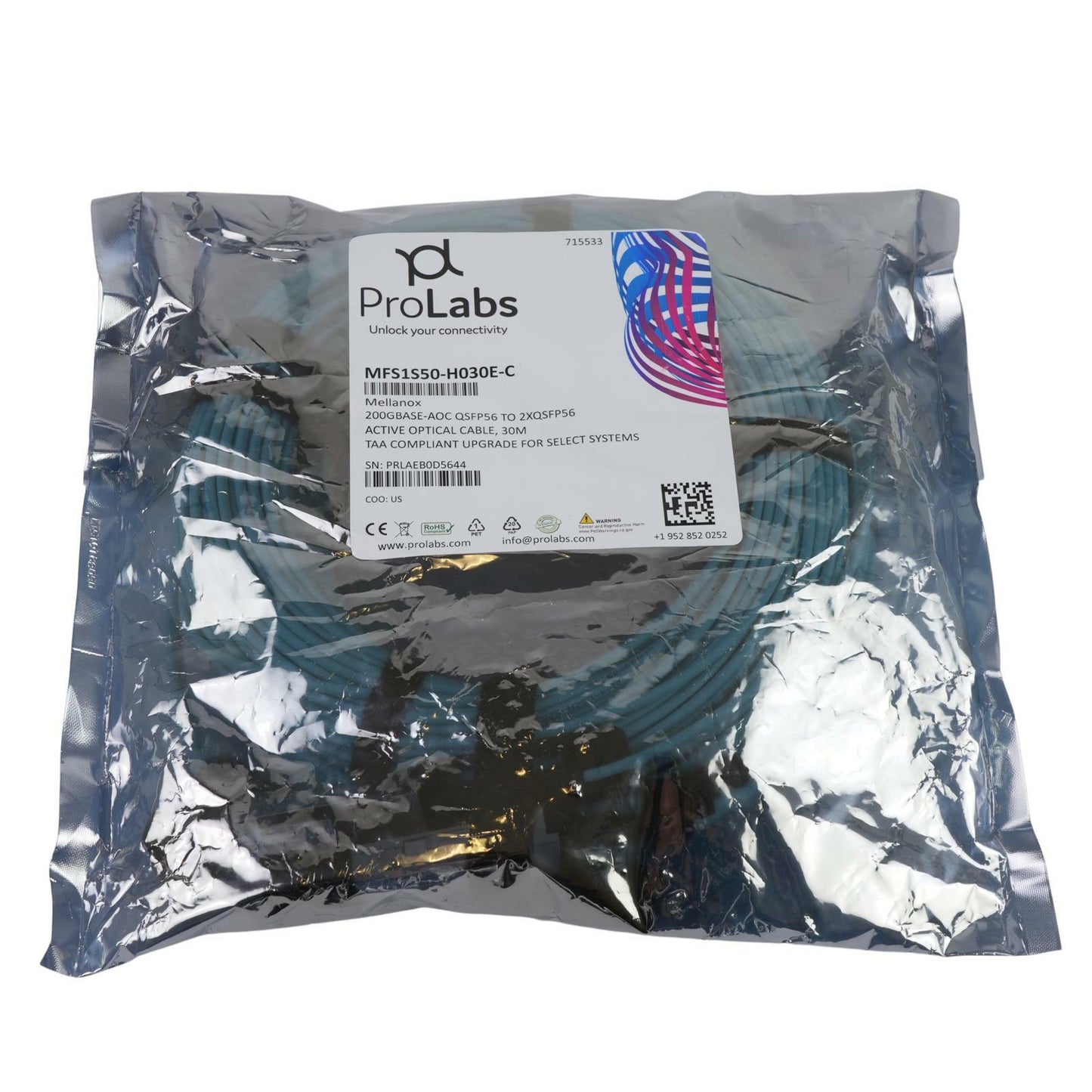

NEW ProLabs MFS1S50-H030E-C 200GBase-AOC 200Gb/s to 2x100Gb/s QSFP56 to 2xQSFP56 Infiniband HDR Active Optical Splitter Cable AOC (850nm, MMF, 30m, LSZH)

Condition: Brand New, Bulk Packaging

Warranty: 90 Days!

This is a Mellanox MFS1S50-H030E Compatible 200GBase-AOC QSFP56 to 2xQSFP56 Infiniband HDR LSZH
active optical cable that operates over active fiber with a maximum reach of 30m. It has been programmed,
uniquely serialized, and data-traffic and application tested to ensure it is 100% compliant and functional. We
stand behind the quality of our products and proudly offer a limited lifetime warranty. This cable is TAA (Trade
Agreements Act) compliant and is built to comply with MSA (Multi-Source Agreement) standards.

Key Features:

• High Performance: Supports 200Gb/s (QSFP56) to 2x100Gb/s (QSFP56) breakout with PAM4 modulation for efficient data transfer.
• Low Latency: DSP-free electronics-based CDR ensures minimal signal delay.
• Energy Efficient: Low power consumption (3.6W on 200G end, 2.3W on 100G end with all CDRs enabled).
• Durable Design: LSZH (Low Smoke Zero Halogen) aqua jacket, 3.0mm diameter, and 30mm minimum bend radius for safe and flexible installation.
• Hot Pluggable: Easy to install with a single 3.3V power supply.
• Reliable Operation: Operates at 0 to 70C with a pre-FEC BER of 2.4x10?4 at 26.5625GBd.
• Standards Compliant: RoHS, lead-free, and MSA-compliant for seamless interoperability.

Specifications:

• Cable Length: 30 meters (+300mm/-0mm tolerance)
• Connector Type: QSFP56 to 2xQSFP56
• Fiber Type: 850nm multimode fiber (MMF)
• Data Rate: Up to 56.15Gbps per lane (26.5625GBd default, 25.78125/28.07618Gbaud available)
• Power Supply: 3.153.47V, 1100mA (200G end), 1250mA max
