*NEW* Supermicro 846BE1C-R1K28B 4U 24-Bay Server Chassis 2x1280W BPN-SAS3-846EL1

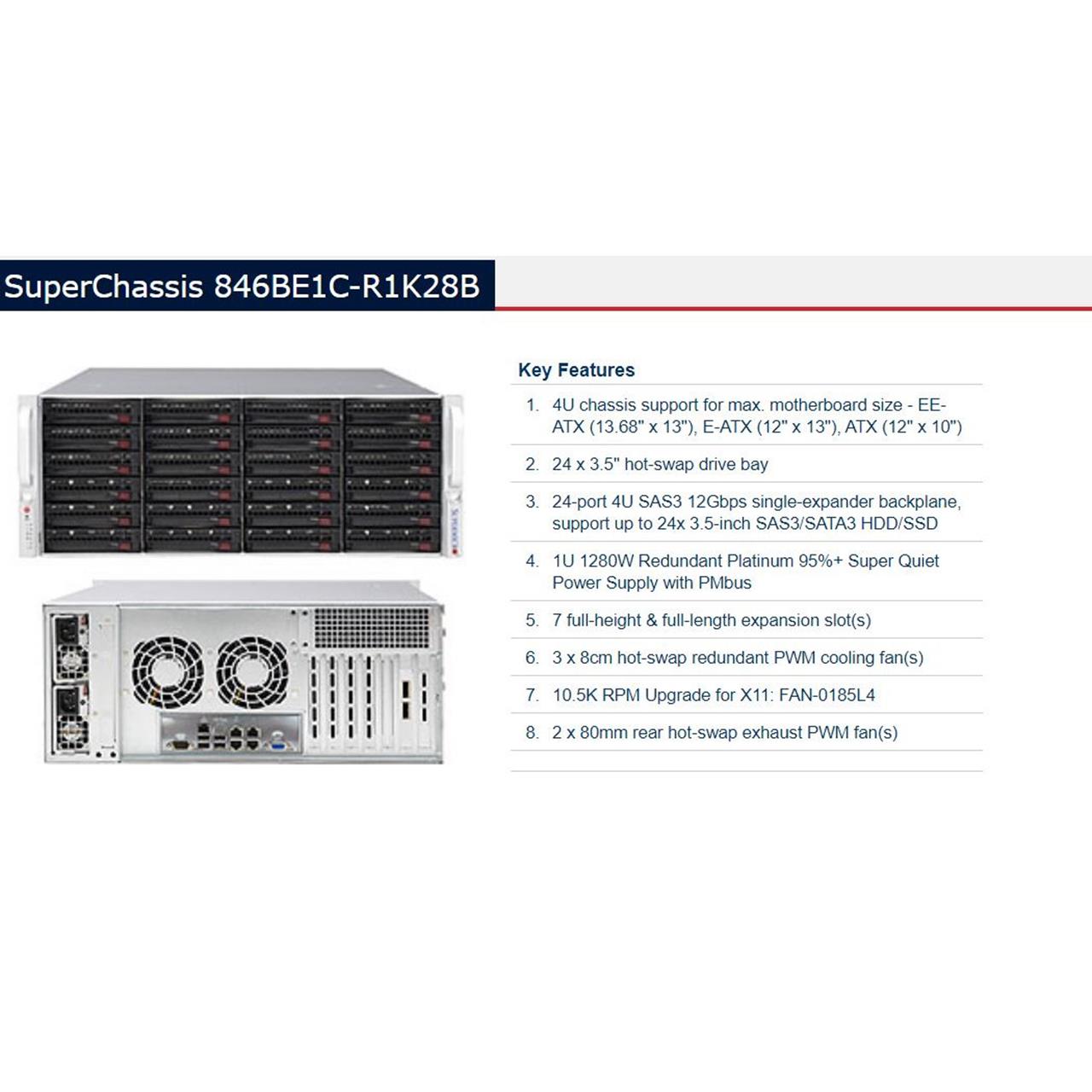

Supermicro CSE-846BE1C-R1K28B SuperChassis 846BE1C-R1K28B 4U 24-Bay Rackmount Server Chassis with 2x 1280W PSUs, 24 x 3.5" Front hot-swap SAS/SATA Drive Bays
Condition: Brand new, in factory sealed box with drive trays, rackmount rails and original accessories.
Specifications:
Form Factor:
- Supermicro CSE-846BE1C-R1K28B 24x 3.5" Drive Bays 4U rackmount chassis
- 4U chassis support for max. motherboard size - EE-ATX (13.68" x 13"), E-ATX (12" x 13"), ATX (12" x 10")
Expansion Slots:
- 7 full-height & full-length expansion slot(s)
Drive Bays:
- 24 x 3.5" hot-swap drive bays, SAS HDD and Enterprise SATA HDD recommended.
Supermicro BPN-SAS3-846EL1 24-port 4U SAS3 12Gbps single-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD
Front Panel:
- Buttons: Power On/Off, System Reset buttons.
LEDs: 2 Network Activity, Fan Fail/System Over Heat, HDD activity, Power Status, Unit Identification (UID)
System Cooling:
- 3 x 8cm hot-swap redundant PWM cooling fan(s)
Power Supply:
- 2x Redundant (1+1) 1280WPWS-1K28P-SQ Redundant Platinum Level Super Quiet power supplies W/PMbus
95% High-efficiency with 80 PLUS Platinum Certified
| Standard Parts List | |||
| Part Number | Qty | Description | |
| Air Shroud | MCP-310-49003-0N | 1 | SC846 Intel DP X9, X8 PC air shroud 1368x13/12x13MB |
| HD Backplane | BPN-SAS3-846EL1 | 1 | 24-port 4U SAS3 12Gbps single-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD |
| Cable(S) | CBL-0071L | 1 | ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF |
| Cable(S) | CBL-0160L | 2 | US POWER CORD 16AWG, PB FREE |
| Cable(S) | CBL-0217L | 1 | 16PIN CNTL PANEL CONVERTER CBL FOR SC826,PBF |
| Cable(S) | CBL-0234L | 1 | Y CABLE FOR 4-PIN HDD |
| Fan(s) | FAN-0125L4 | 2 | 80x32 mm 6.7K RPM SC836 Rear Exhaust Fan w/ Housing |
| Fan(s) | FAN-0127L4 | 3 | 80x80x38 mm 7K RPM SC846 Middle Fan w/ Housing |
| Front Panel | MCP-280-82601-0N | 1 | Front control board adapter (TB826) for SC216,826,936,846 |
| Drive Tray(s) | MCP-220-00075-0B | 24 | Black gen 5.5 hot-swap 3.5"; HDD tray |
| Power Distributor | PDB-PT846-2824 | 1 | PDB with 23pairs input connector support SC846B |
| Power Supply & Accessory | PWS-1K28P-SQ | 2 | 1U 1280W, redundant single output power supply |
| Power Supply & Accessory | MCP-290-84604-0N | 1 | SC846 PDB Cover |
| Mounting Rail(s) | MCP-290-00057-0N | 1 set | Rail set, quick/quick, default for 4U 17.2"; W |
| Mounting Rail(s) | MCP-410-00007-0N | 1 | Rail screw bag |
| Rear Window | MCP-240-84602-0N | 1 | 846B rear window which support 2 X 2.5" HDD module and DVD |
90-Day Warranty!
