NEW Supermicro C2SBX MBD-C2SBX-O Intel X38 ICH9R DDR3 1600 LGA775 Motherboard

NEW Supermicro C2SBX MBD-C2SBX-O Intel X38 ICH9R DDR3 1600 LGA775 Motherboard

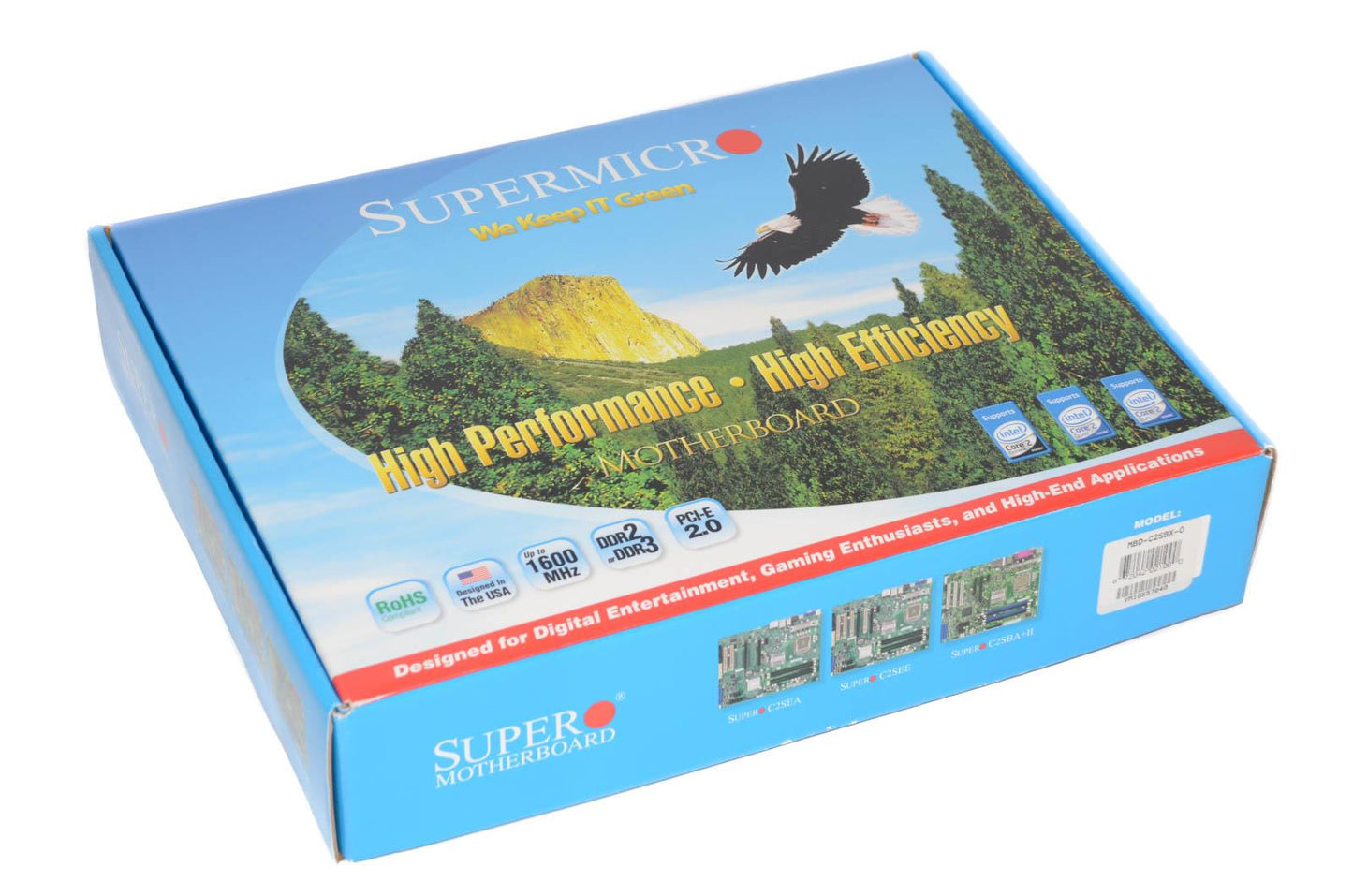

Condition: New in retail factory box with all original accessories.

30-Day Warranty!

Product SKUs
MBD-C2SBX-O
  • C2SBX (Standard Retail Pack)
Physical Stats
Form Factor
  • ATX
Dimensions
  • 12" x 9.6 ", (30.5cm x 24.4cm)
Processor/Cache
CPU
  • Single LGA775 Socket
  • Supports Intel® Core™2 Extreme QX9000/QX6000 series
  • Supports Intel® Core™2 Quad Q9000/Q8000/Q6000 series
  • Supports Intel® Core™2 Duo E8000/E7000/E6000/E4000 series
  • Supports Intel® Pentium® E5000/E2000 series
  • Supports Intel® Celeron® E1000 and 400 series
System Bus
  • 1333 / 1066 / 800 MHz system bus
System Memory
Memory Capacity
  • Four 240-pin DIMM slots
  • Supports up to 8 GB of unbuffered, ECC or non-ECC DDR3 1333/1066/800MHz memory (Dual Channel)
Memory Type
  • DDR3 1333/1066/800MHz unbuffered, ECC or non-ECC SDRAM, 240-pin gold-plated DIMMs
DIMM Sizes
  • 256 MB, 512 MB, 1 GB, 2 GB
Memory Voltage
  • 1.5 V only
On-Board Devices
Chipset
  • Intel® X38
  • ICH9R + PXH/V
Serial ATA
  • Intel® ICH9R SATA2 (3 Gbps) controller built-in
  • RAID 0, 1, 5, 10 support (Windows Only)
  • RAID 0, 1, 10 support (Linux)
Network Controllers
  • 1x Intel® 82566 Gigabit PCI-Express Ethernet
  • Supports 10 BASE-T, 100 BASE-TX, and 1000 BASE-T with RJ45 output
Audio
  • High Definition 7.1 Channel Audio
Super I/O
  • Winbond 83627DHG chip
Clock Generator
  • ICS9LPRS511
Input / Output
Serial ATA
  • Six Serial ATA ports (3 Gbps performance)
  • Six SATA hard drives supported
IDE
  • One EIDE channel supports up to two UDMA IDE devices
  • ITE8213F chipset
Floppy
  • 1 Floppy controller; 1.44 MB
LAN
  • 1x RJ45 LAN port
USB
  • 12x USB 2.0 / 1.1 compatible
  • 6 rear + 2 Type A connectors + 2 headers ( 4 ports )
Audio
  • High Definition 7.1 Channel Audio
  • Line-in / Line-out / Microphone Ports
Keyboard / Mouse
  • PS/2 keyboard and mouse ports
Serial Ports
  • 2x Fast UART 16550 serial ports
Parallel Port
  • 1x ECP / EEP Parallel Port
Firewire
  • 2x IEEE 1394 headers
Chassis ( Optimized for C2SBX )
Mid-Tower
  • CSE-733E-465B
  • CSE-733i-465B
  • CSE-733i-645
  • CSE-733T-465B
  • CSE-733T-645
  • CSE-733TQ-645
Important Note
  • To ensure system stability, a 420W (minimum) ATX power supply [4-pin +12V AND (24-pin) AND 8-pin +12V] is required.
Expansion Slots
PCI-Express
  • 2 (x16) PCI-e 2.0 slot
  • 1 (x1) PCI-e slot
PCI-X
  • 2x 64-bit 133 / 100MHz PCI-X (3.3V) slots
PCI
  • 2x 32-bit 33MHz PCI (5V) slots
System BIOS
BIOS Type
  • 16Mb SPI Flash EEPROM with Phoenix BIOS
BIOS Features
  • Plug and Play (PnP)
  • DMI 2.3
  • PCI 2.2
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
Management
Software
  • SuperDoctor® III
  • Watch Dog
  • NMI
Power Configurations
  • ACPI/APM Power Management
  • Main Switch Override Mechanism
  • Wake-On-Ring (WOR) header
  • Wake-On-LAN (WOL) header
  • Keyboard Wakeup from Soft-Off
  • Power-on mode control for AC power recovery
  • Internal / External modem remote ring-on
  • Suspend to RAM (STR)
PC Health Monitoring
Voltage
  • Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V/+5V Standby, VBAT, HT, Memory, Chipset
  • CPU Core 4-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6000V
  • Adjustable CPU clock frequency ratio (Only available if CPU is supported)
FAN
  • Total of five 4-pin fan headers
  • 5 x fans with tachometer monitoring
  • Status monitor for speed control
  • Status monitor for on / off control
  • Support 3-pin PWM fans (without speed control)
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan conn.
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Monitor 2 (TM2) Support
  • PECI
LED
  • CPU / System Overheat LED
  • Suspend-state indicator LED
  • +5V standby alert LED
Other Features
  • Chassis intrusion Detection
  • Chassis intrusion Header
OS Compatibility

Contact Manufacturer
