NEW Supermicro CSE-216BE1C4-R1K23LPB 24x2.5" SAS3/4x NVMe 2x1200W 2U Chassis
94612NEW Supermicro CSE-216BE1C4-R1K23LPB 24x2.5" SAS3/4x NVMe 2x1200W 2U Chassis

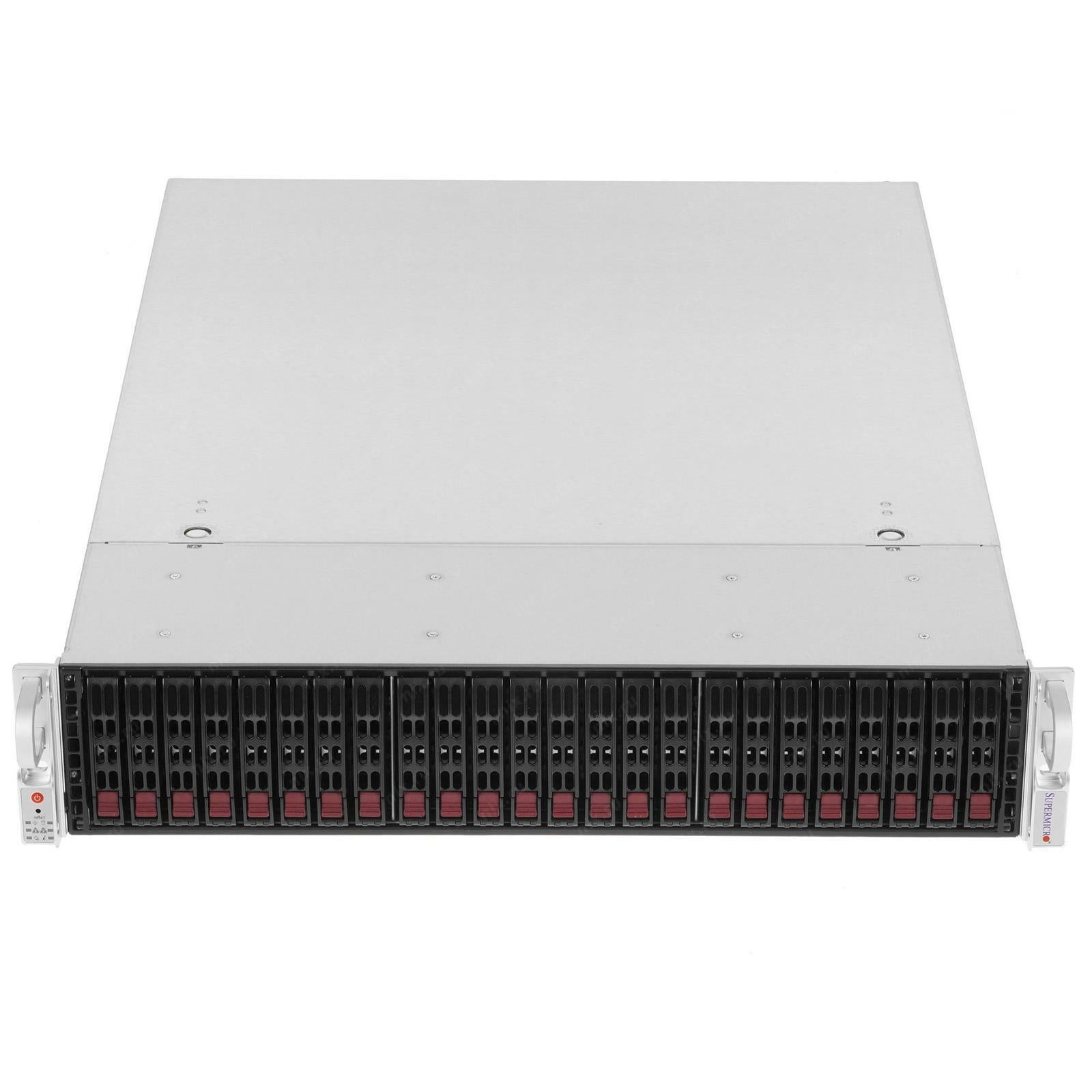

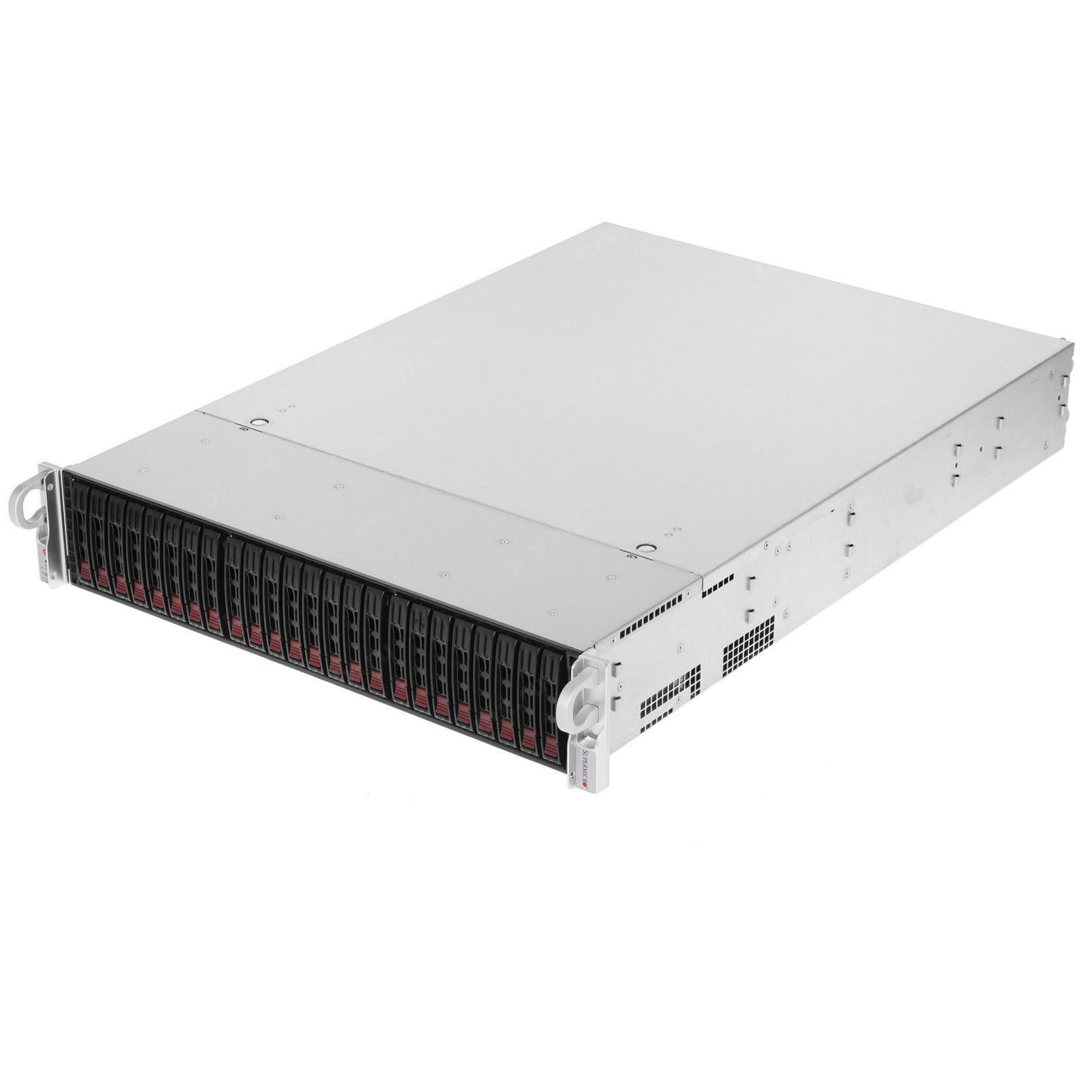

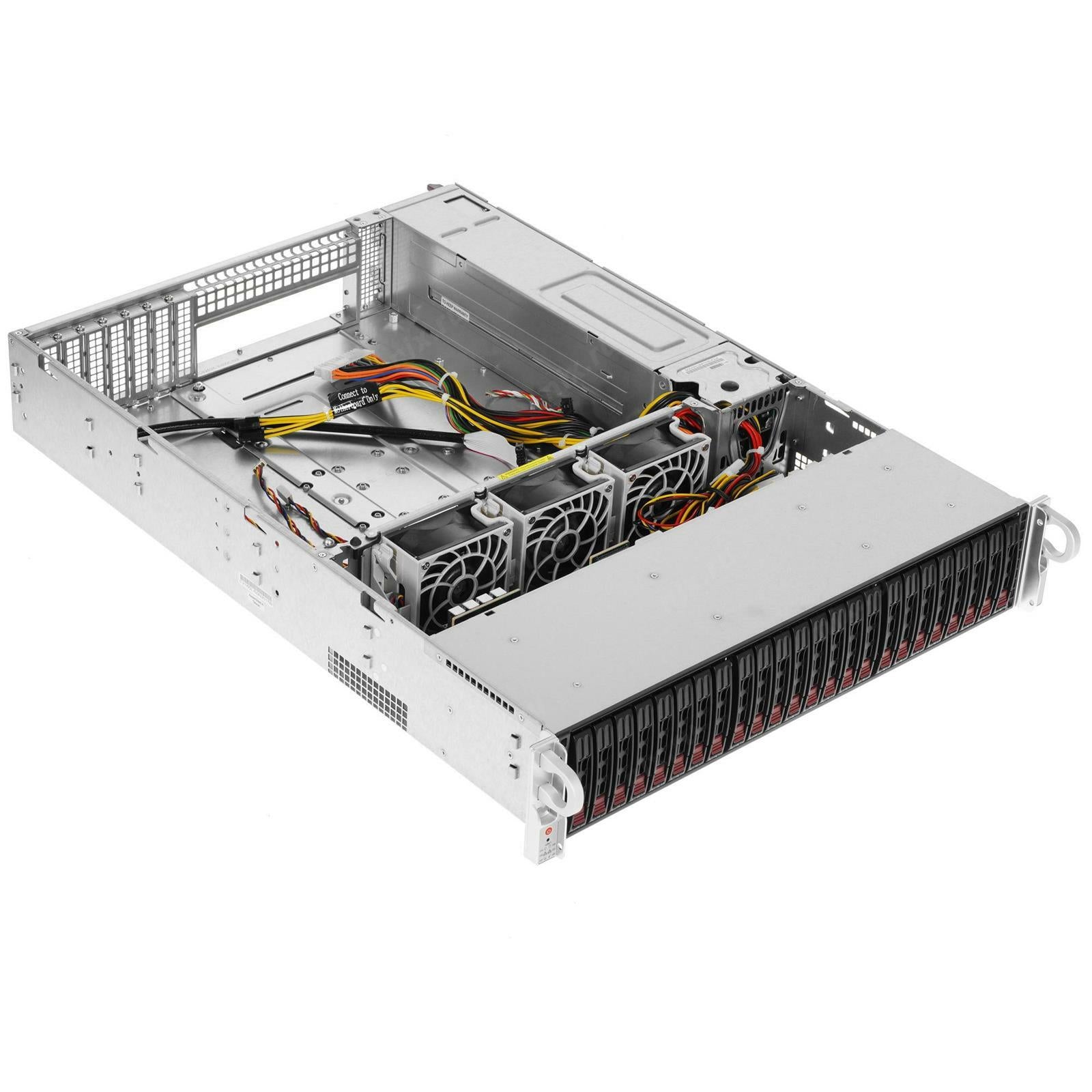

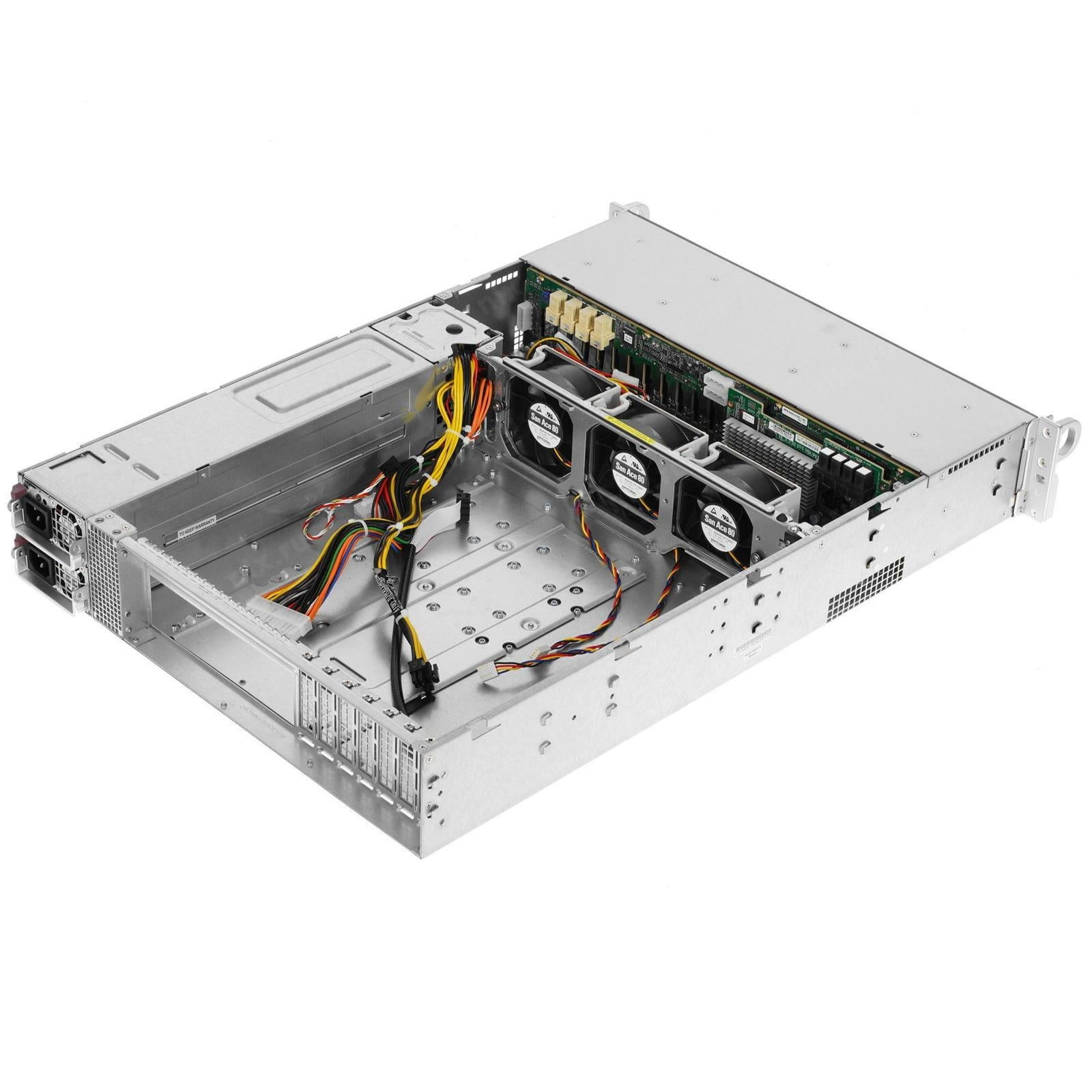

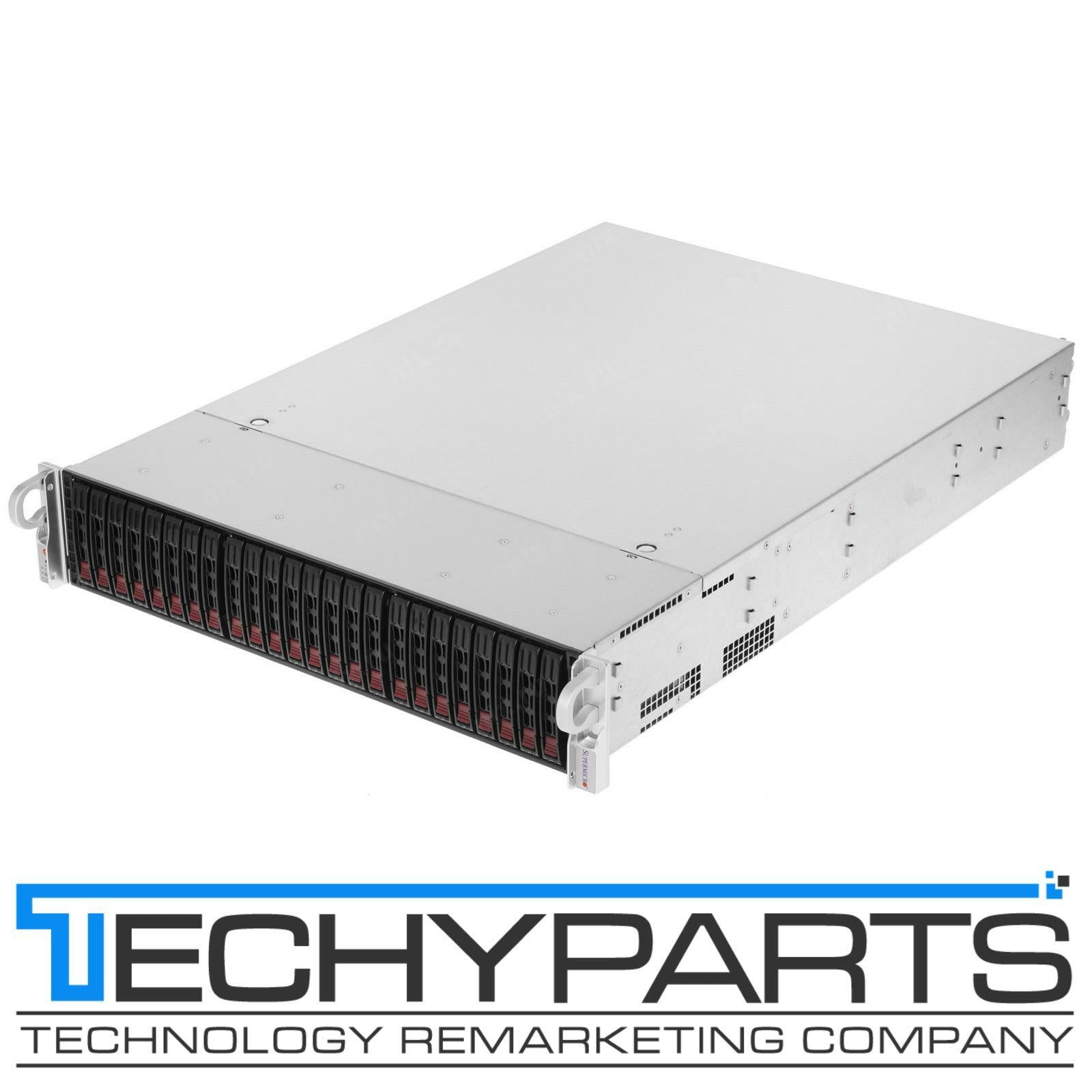

NEW Supermicro CSE-216BE1C4-R1K23LPB 2U Server Chassis - 24x 2.5" SAS3 Hot-Swap Bays + 4x NVMe Support, Dual 1200W Titanium PSU
Model: CSE-216BE1C4-R1K23LPB
Key Features
- 2U chassis supports max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68". Supports up to ATX 12" x 13" MB with rear 2.5" HDD option installed
- 24 x 2.5" hot-swap SAS/SATA drive bays, optional 2 x 2.5" hot-swap drive bay (not included)
- 24-port 2U SAS3 12Gbps single-expander backplane, supports up to 20x 2.5-inch SAS3/SATA3 HDD/SSD and 4x NVMe/SAS3/SATA3 storage devices
- Dual 1U 1200W/1000W Titanium Power Supplies with PMBus (W76 x L336 x H40mm)
- 7 low-profile expansion slots
- 3 x 8cm high-performance PWM fans. Optional 5 x 6cm 4-pin high performance fans
Item Condition
Brand New in original box. All original standard parts and rackmount rail kit are included as listed below.
Warranty
90-Day Warranty!
This Supermicro 2U chassis delivers high-density storage with 24 hot-swap 2.5" bays and hybrid NVMe support. It is an excellent choice for building powerful enterprise storage servers, virtualization hosts, or database systems that require maximum drive capacity and performance in a compact 2U form factor.
Manufacturer's description and specifications:
Detailed Specifications
| Category | Specification |
|---|---|
| Product SKU | CSE-216BE1C4-R1K23LPB |
| Form Factor | 2U Rackmount Chassis Supports ATX (12" x 10"), E-ATX (12" x 13"), EE-ATX (13" x 13.68") Supports up to ATX 12" x 13" with optional rear 2.5" HDD kit installed |
| Processor Support | Dual and Single Intel and AMD processors |
| Dimensions | Height: 3.5" (89 mm) Width: 17.2" (437 mm) Depth: 24.8" (630 mm) Gross Weight: 53 lbs (24.04 kg) Packaging (W x H x L): 25.8" (655 mm) x 10.1" (257 mm) x 37.8" (960 mm) Available Color: Black |
| Expansion Slots | 7 low-profile PCI-E slots |
| Drive Bays | 24 x 2.5" hot-swap SAS/SATA bays Optional 2 x 2.5" rear hot-swap bays (not included) |
| Backplane | 24-port 2U SAS3 12Gb/s single-expander hybrid backplane Supports up to 20x SAS3/SATA3 HDD/SSD + 4x NVMe/SAS3/SATA3 devices |

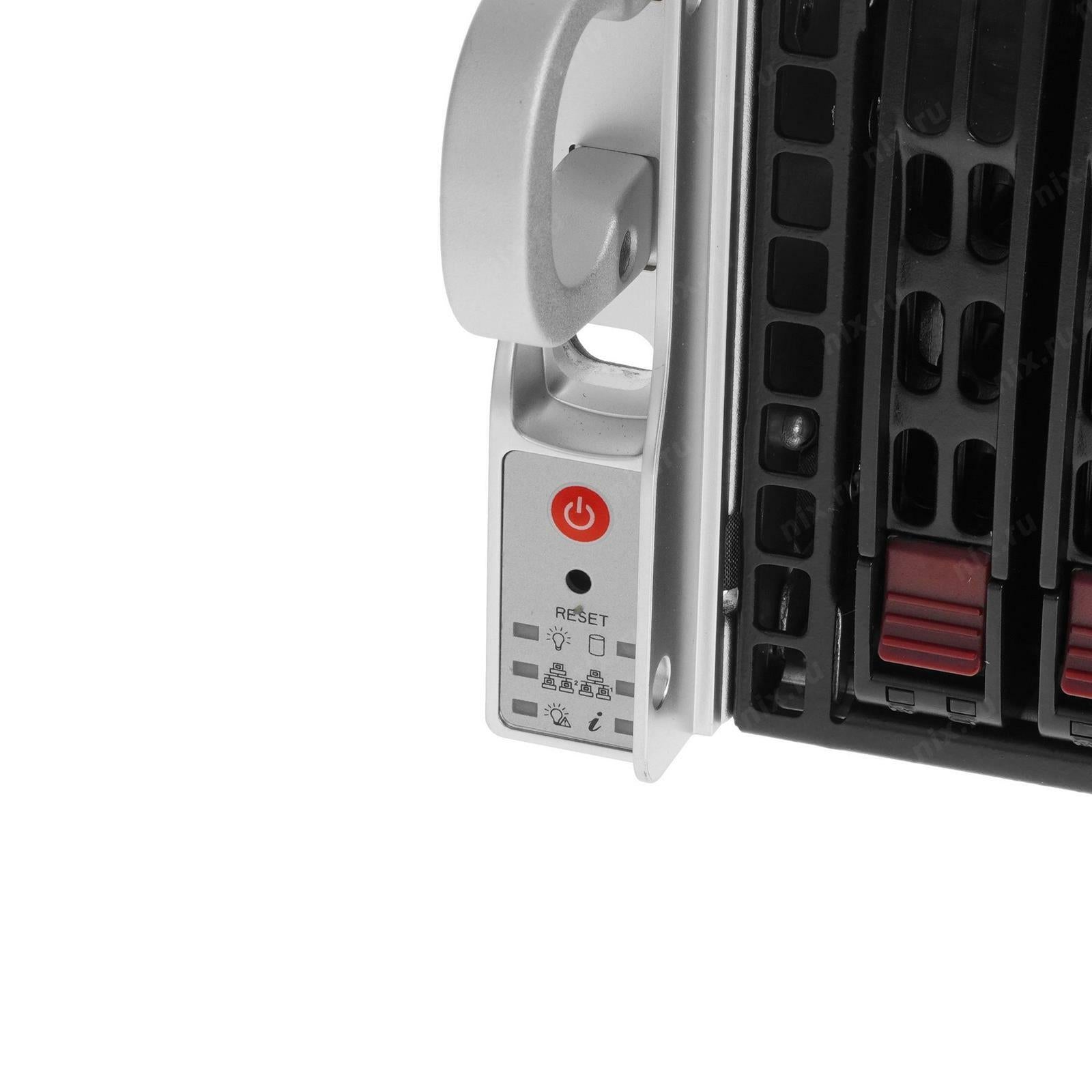

| Front Panel | Buttons: Power On/Off button, System Reset button LEDs: Power status LED, HDD activity LED, 2 Network Activity LEDs, Unit Identification (UID) LED, Fan Fail/System Over Heat LED |
| Systems Cooling | 3 x 8cm high-performance PWM fans (standard) Optional 5 x 6cm 4-pin high-performance fans |
| System Monitoring | Chassis intrusion switch |
| Operating Environment | Operating Temperature: 5C - 35C (41F - 95F) Non-Operating Temperature: -40C - 70C (-40F - 158F) Operating Relative Humidity: 8% - 90% (non-condensing) Non-Operating Relative Humidity: 5% - 95% (non-condensing) |
| Power Supply | Dual 1U 1200W/1000W Titanium redundant PSUs with PMBus Dimensions: 336 x 76 x 40 mm Power Efficiency: 96% (Titanium Certified) Total Output: 1200W (200-240Vac / 200-240Vdc), 1000W (100-127Vac) AC Input Frequency: 50-60Hz Output Type: Backplanes (gold finger) +12V: Max 100A (200-240V), Max 83A (100-127V) +5Vsb: Max 4A Power Distributor: PDB-PT216-2824 (12V/100, +5V 30A, +3.3V 24A, -12V 0.6A) |
| Regulatory (Power Supply) | BSMI, CCC, CE/EMC, FCC Class A, UL/CB, UL/CUL |

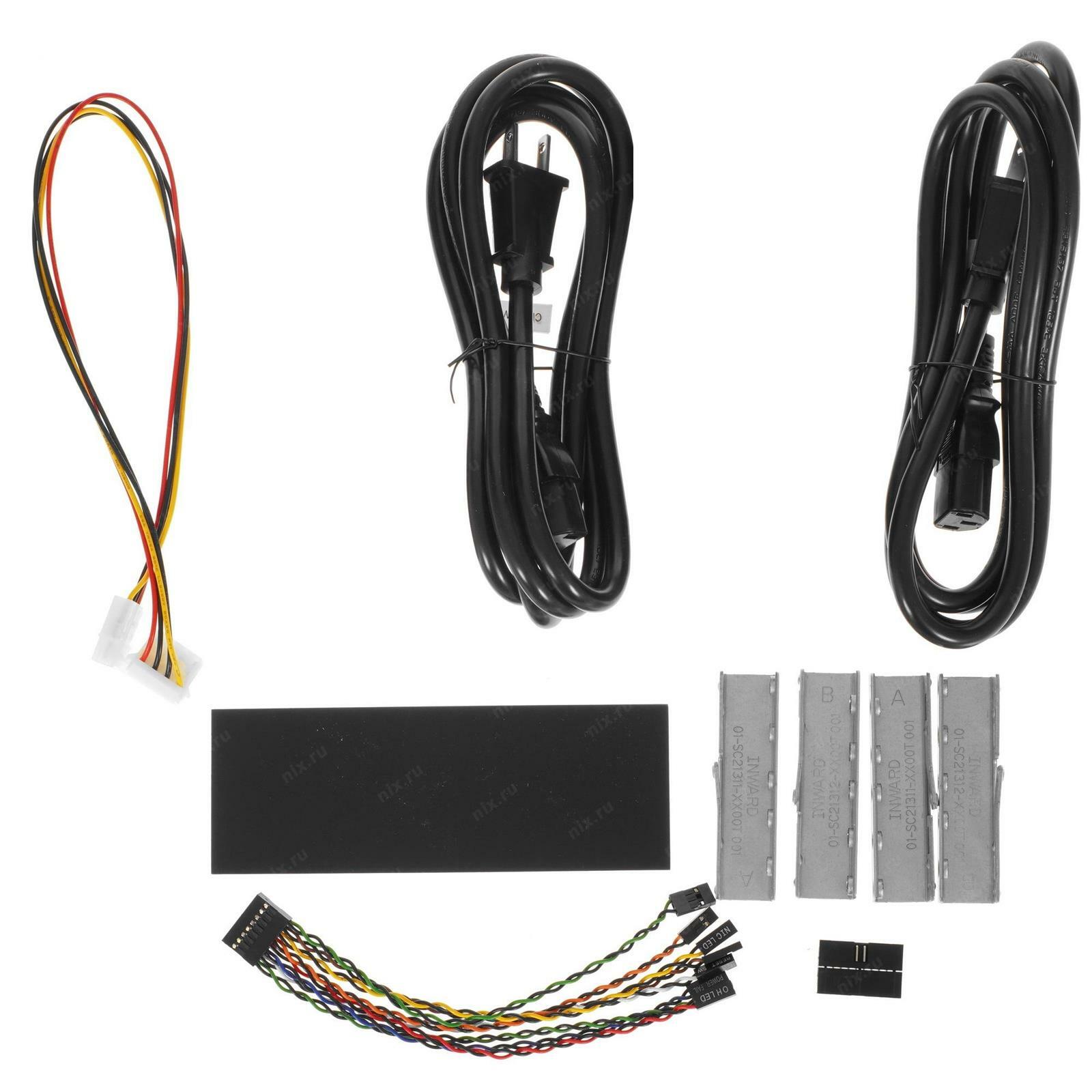

Standard Parts Included
| Category | Part Number | Qty | Description |
|---|---|---|---|
| Air Shroud | MCP-310-29001-0N | 1 | SC825/826/216/213 Intel DP X9/X8 air shroud 13.68x13/12x13 |
| Bracket | MCP-320-82601-0N | 1 | Middle fan bracket for 826B/216B with 3 x 8cm fan |

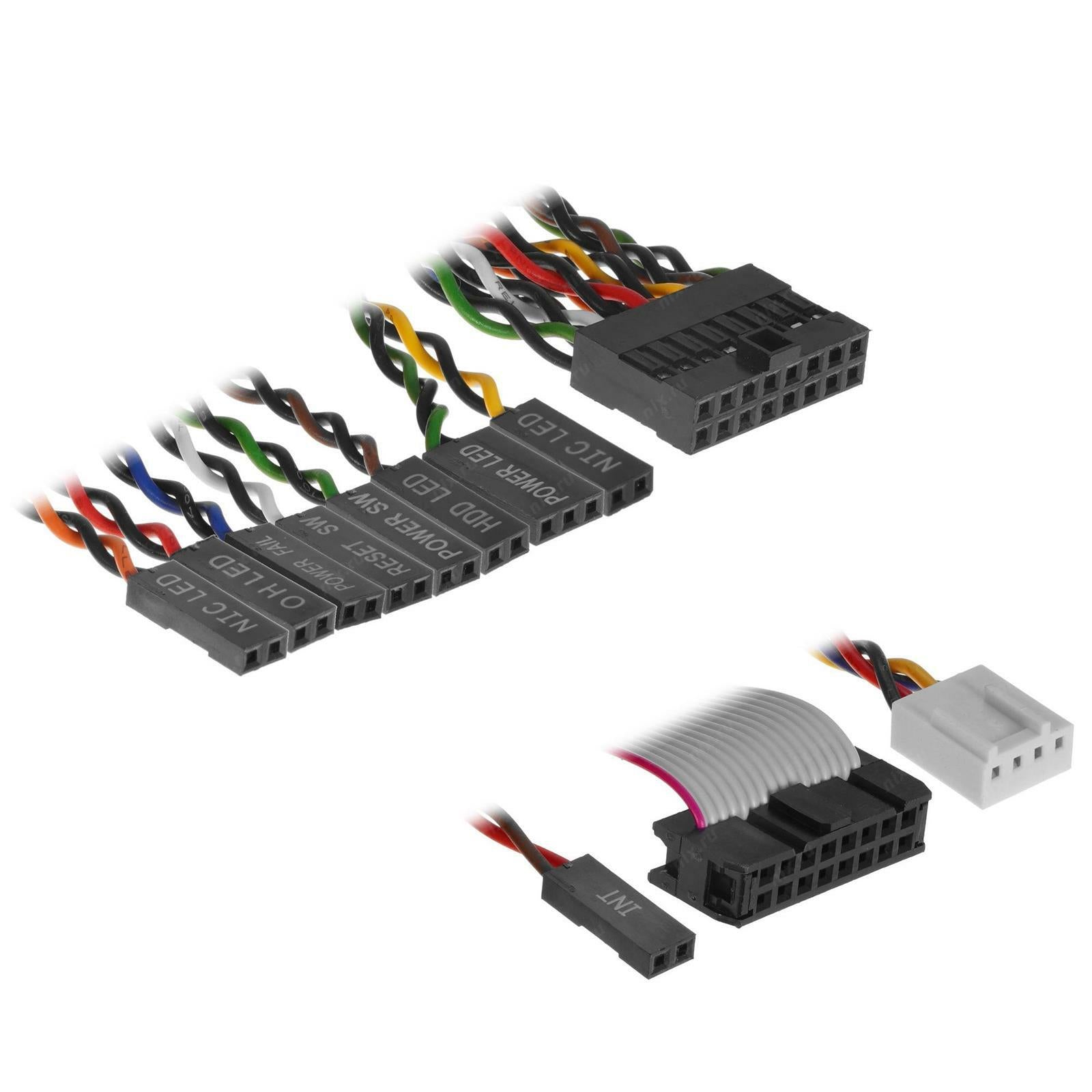

| Cable(s) | CBL-0071L | 1 | ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF |
| Cable(s) | CBL-0088 | 3 | 10.5", 4 PIN MIDDLE FAN POWER EXTENSION (PWM) |
| Cable(s) | CBL-0160L | 2 | US POWER CORD 16AWG, PB FREE |
| Cable(s) | CBL-0182L | 1 | PWR EXTENSION HDD TO RIGHT ANGLE HDD, PBF |
| Part(s) | MCP-290-00088-0N | 1 | SC119 Intrusion assembly |
| Part(s) | MCP-290-21604-0V | 1 | Silver chassis handle set for SC216 / 216B, RoHS |

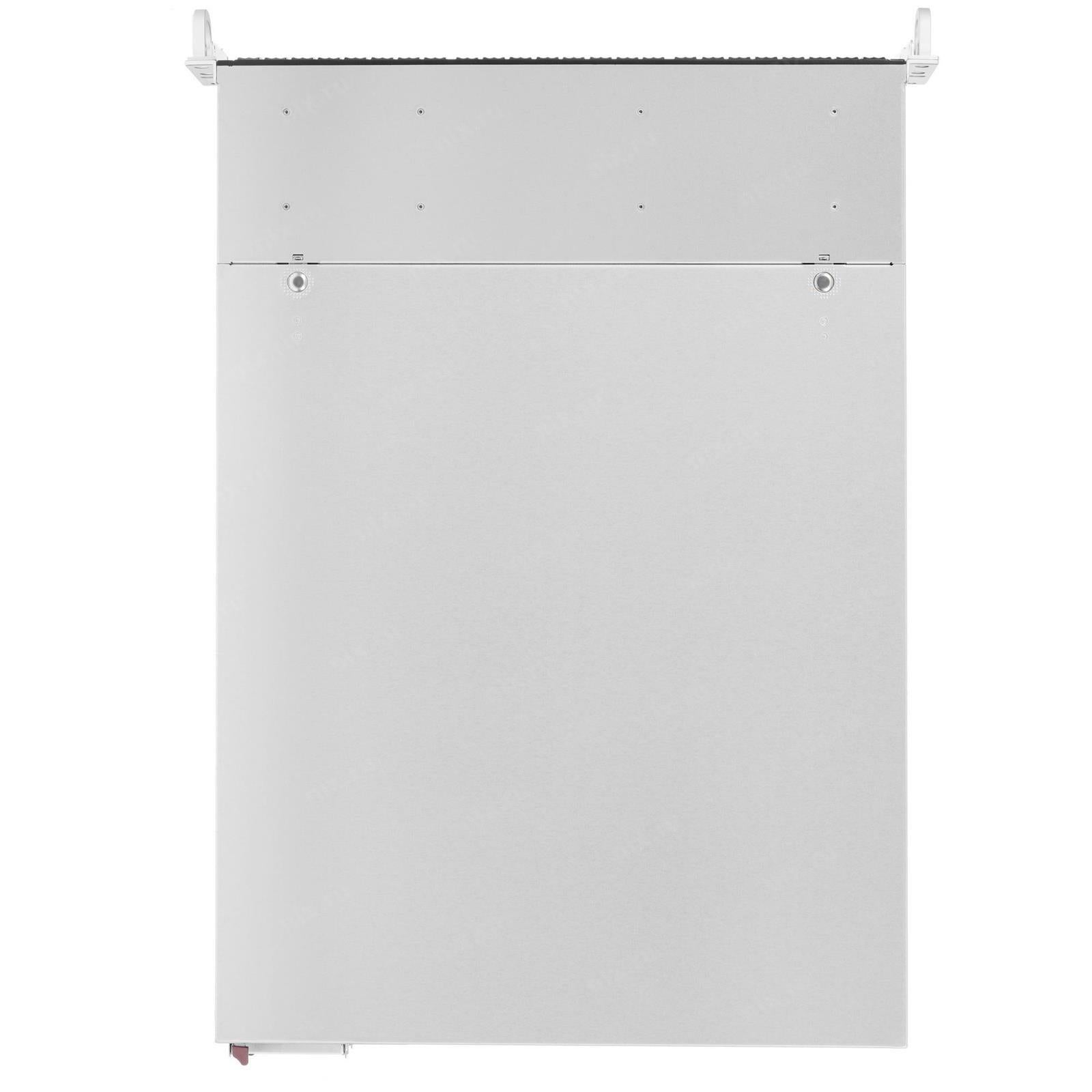

| Part(s) | MCP-230-82602-0N | 1 | Top cover for SC826B/216B/825B |
| Fan(s) | FAN-0203L4 | 3 | 80x80x38 mm, 10.5K RPM, Middle Cooling Fan w/ New Plastic Ma |
| Front Panel | FPB-FP826-D | 1 | Front control board Dual color LED (FP826-D) for SC826,213,216 |
| Front Panel | FPB-TB826 | 1 | 16 pin Cable Adaptor Board for SC826 |

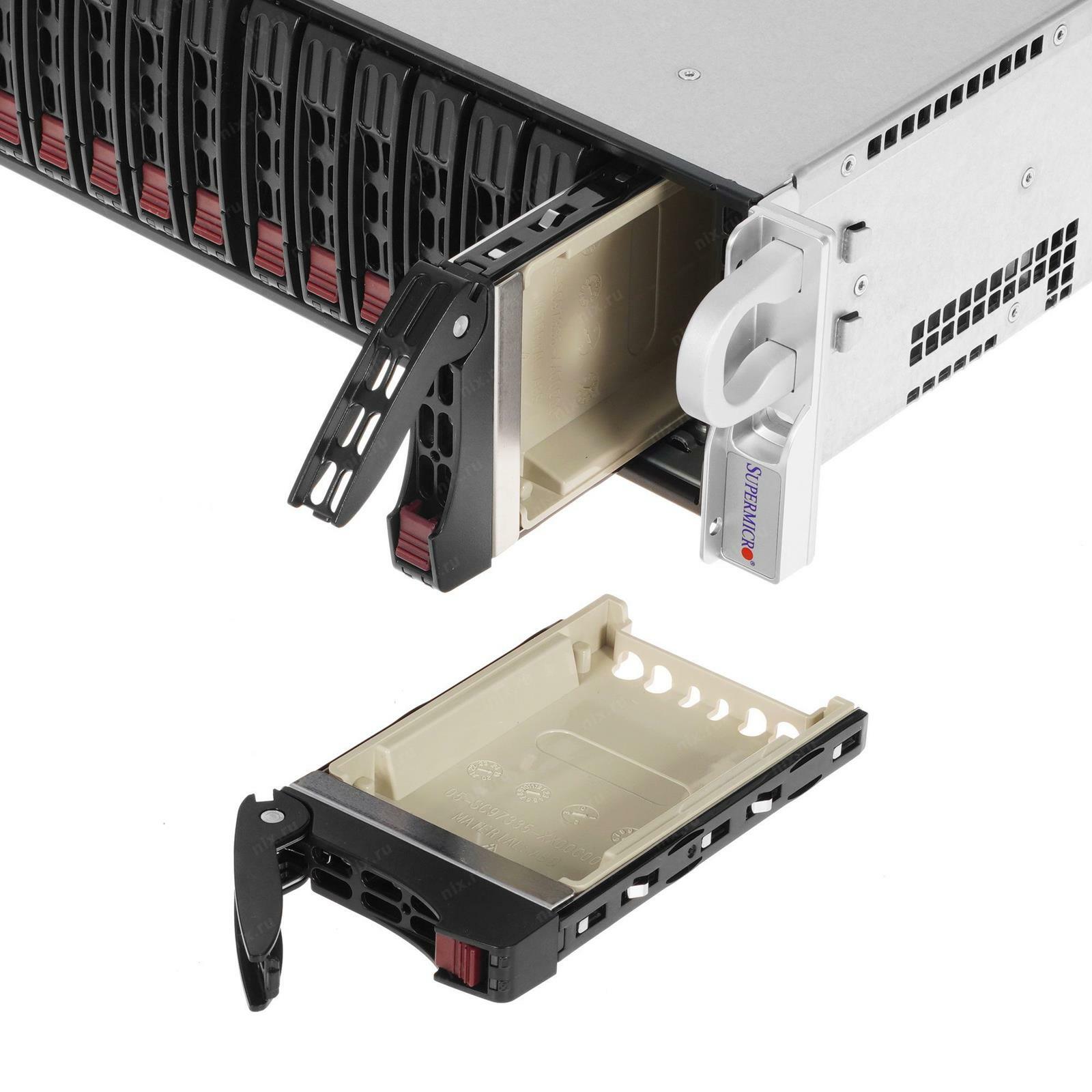

| Drive Tray(s) | MCP-220-00047-0B | 24 | Black gen 3rd hot-swap 2.5inch HDD tray |
| Drive Tray(s) | MCP-290-82607-0N | 1 | 826B/216B rear dummy cover for 2 X 2.5" HDD cage, RoHS |
| Power Distributor | PDB-PT216-2824 | 1 | PDB with 23 pairs input connectors for SC216B |
| Power Supply & Accessory | PWS-1K23A-1R | 2 | AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 336x76x40 mm, HF, RoHS/REACH |
| Mounting Rail(s) | MCP-410-00007-0N | 1 | Rail screw bag |

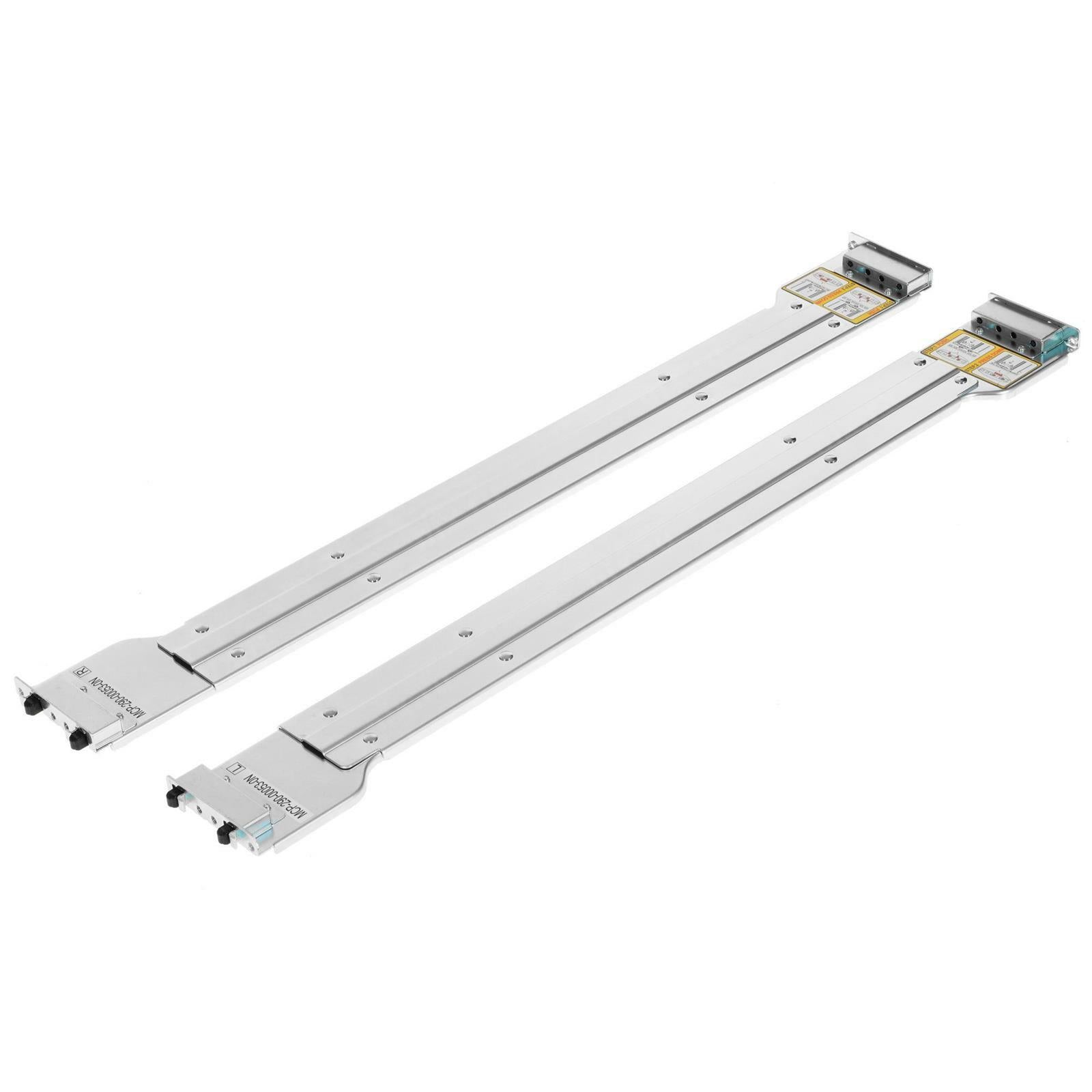

| Mounting Rail(s) | MCP-290-00053-0N | 1 | Rail set, quick/quick, default for 2,3U 17.2"W |
| Mounting Rail(s) | MCP-290-00060-0N | 1 | Threaded rail adapter default for round hole rack |

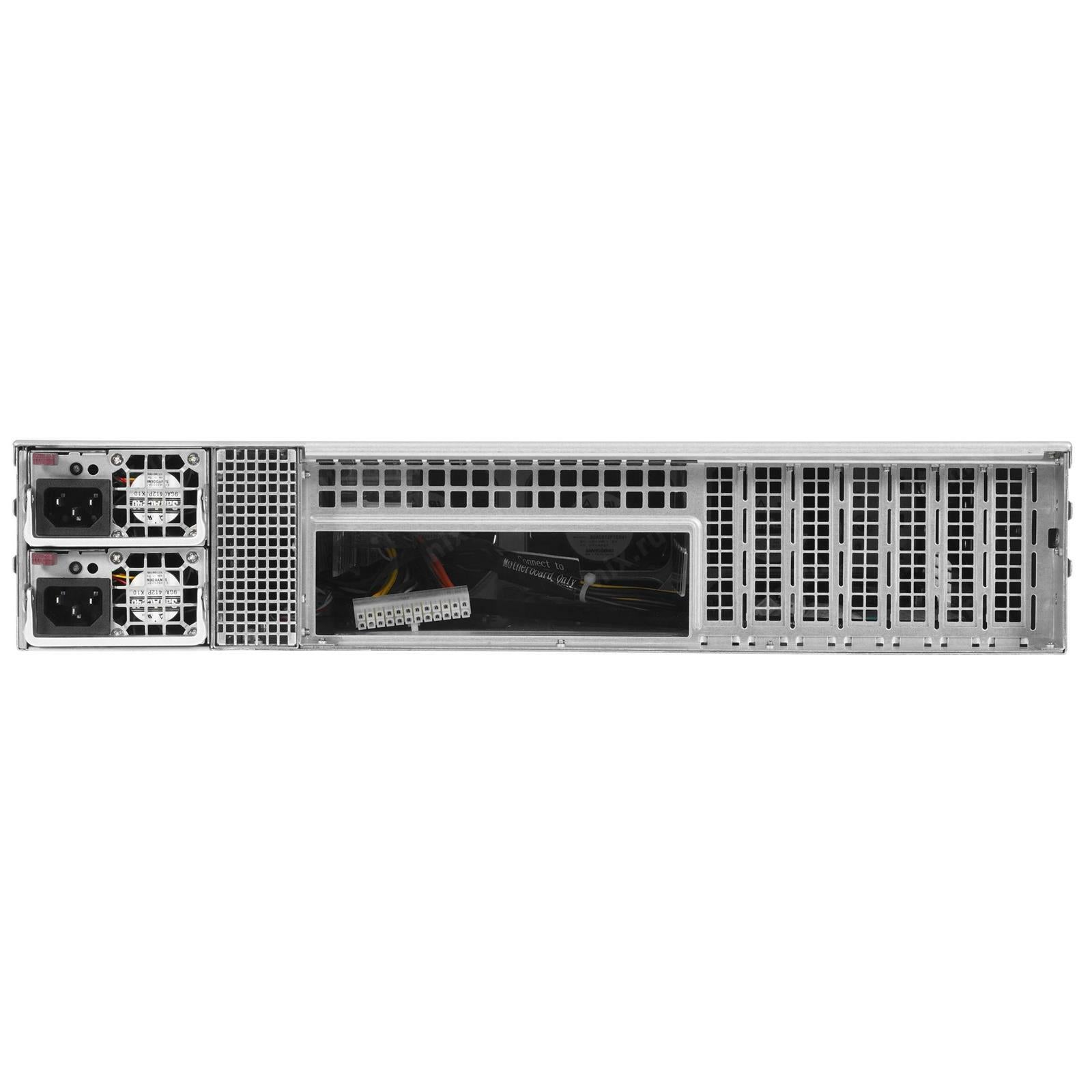

| Rear Window | MCP-240-82608-0N | 1 | 216B/826B LP rear window, RoHS/REACH, PBF |
