NEW Supermicro SYS-E300-12D-8CN6P X12SDV-8C-SP6F Xeon D-1736NT Mini-1U Server
95117NEW Supermicro SYS-E300-12D-8CN6P X12SDV-8C-SP6F Xeon D-1736NT Mini-1U Server
NEW Supermicro SYS-E300-12D-8CN6P X12SDV-8C-SP6F Xeon D-1736NT Mini-1U CTO Server
Mini-1U Embedded System with Intel Ice Lake-D CPU with 8 cores Super Server
Manufacturer: Supermicro
Model: SYS-E300-12D-8CN6P
This is a Supermicro SYS-E300-12D-8CN6P Mini-1U server. The box was only opened to remove the factory-installed memory and M.2 drive, power on the system for testing, and update the BIOS and IPMI firmware to the latest available versions.
Current Firmware:
BIOS: 2.2a
IPMI: 1.06.08
IPMI Login: ADMIN / ADMIN
Condition: in box. Fully tested and confirmed working. Memory and M.2 drive have been removed.
What's Included:
Supermicro SYS-E300-12D-8CN6P Server
Original packaging
1x CBL-PWEX-0982 (SATA Power Cable, 1x4F/P2.50 to SATA Power, 25cm)
1x CBL-0473L (SATA Data Cable)
1x Short SFF-8484 to SATA + Molex LP4 Power Cable (from ACC-E300 accessories kit)
Riser cage
Low Profile slot cover
Screws
Note: PCIe riser is NOT included. Memory and M.2 drive are not included.
90-Day Warranty Included!
Key Applications:
- IoT Gateway
- Universal Customer Premise Equipment (uCPE)
- Network Function Virtualization (NFV)
- Networking Security Appliance
- SD-WAN
Key Features:
- Intel Xeon D-1736NT Processor
- 4x DDR4-2933MHz RDIMM (max 256GB) or UDIMM (max 128GB)
- Support for M.2 M/B/E-Key with Nano SIM Card Slot
- Optional PCIe 4.0 x16 Slot (not included)
- 4x 1GbE LAN + 2x 25GbE SFP28 + Dedicated IPMI
- Optional 1x 2.5" drive bay (not included)
Detailed Specifications:
| Category | Details |
|---|---|

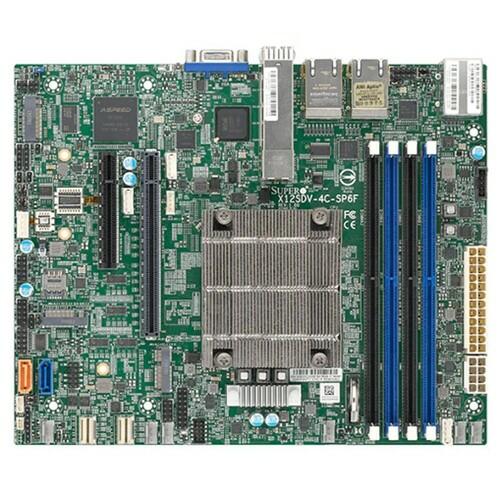

| Motherboard | Super X12SDV-8C-SP6F |
| Processor | Intel Xeon D-1736NT Single FCBGA-2227 Up to 8 Cores / 16 Threads Up to 15MB Cache Supports up to 67W TDP (Air Cooled) |
| System Memory | 4 DIMM slots Max Memory: Up to 256GB 2933MT/s ECC/non-ECC DDR4 RDIMM/UDIMM Memory Voltage: 1.2V |

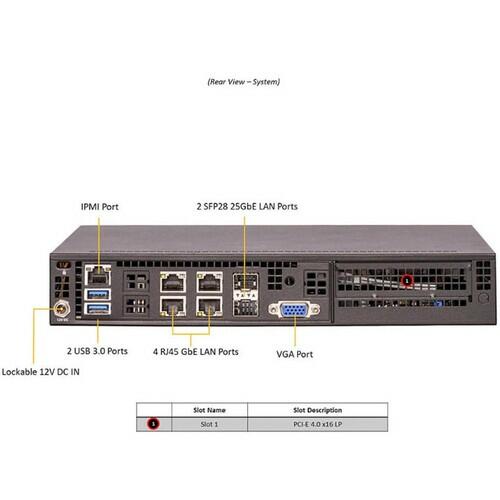

| Network Connectivity | 2x SFP28 25GbE 2x RJ45 1GbE (Intel I210-IT) 2x RJ45 1GbE (Intel I350-AM2) 1x RJ45 1GbE Dedicated BMC/IPMI port |
| I/O Ports | 2x USB 3.0 Type-A (Rear) 1x VGA (Rear) |

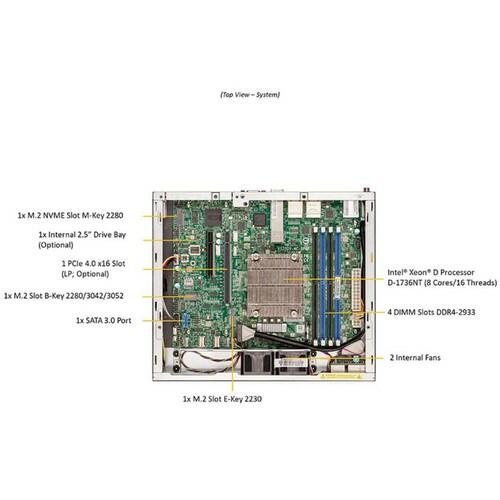

| Expansion | 1x PCIe 4.0 x16 Low Profile slot (riser NOT included) 1x M.2 PCIe 3.0 x1 (E-key 2230) 1x M.2 PCIe 3.0 x2 SATA (B-key 2280/3042/3052) 1x M.2 PCIe 3.0 x4 NVMe/SATA (M-key 2280) |
| Storage | 1x Internal fixed 2.5" SATA drive bay (optional / NOT included) |

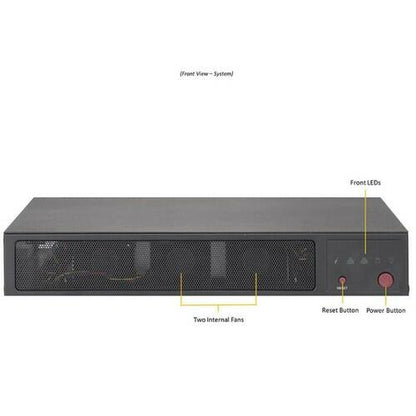

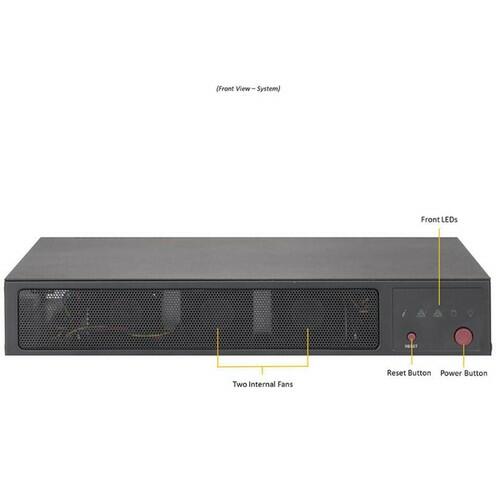

| System Cooling | 2x 40x40x28mm 4-pin PWM fans included |
| Power Supply | 1x 180W Power Supply Input: 100-240Vac / 47-63Hz |
| Dimensions | Height: 1.69" (43mm) Width: 10.43" (264.8mm) Depth: 8.89" (225.8mm) Net Weight: 3.7 lbs (1.6 kg) |
| Operating Environment | Operating Temperature: 0C to 40C (32F to 104F) Non-operating Temperature: -40C to 70C (-40F to 158F) |
| Security Features | TPM 2.0 Silicon Root of Trust (NIST 800-193 Compliant) Secure Boot, Secure Firmware Updates, System Lockdown |
Parts List (What is Actually Included):
| Category | Part Number | Qty | Description |
|---|---|---|---|
| Motherboard / Chassis | MBD-X12SDV-8C-SP6F CSE-E300 | 1 1 | Super X12SDV-8C-SP6F Motherboard Mini-1U Chassis |
| Power Cable | CBL-PWEX-0982 | 1 | SATA Power Cable (1x4F/P2.50 to SATA Power, 25cm) |
| Data Cable | CBL-0473L | 1 | SATA Data Cable |
| Power/Data Cable | 1 | Short SFF-8484 to SATA + Molex Power Cable (from ACC-E300 kit) | |
| FAN | FAN-0100L4 | 2 | 40x28mm 4-Pin PWM Fan |
| Power Supply | MCP-250-10133-0N | 1 | 180W AC-DC Lockable Power Adapter with US Power Cord |
| Accessories | 1 | Riser cage + LP slot cover + Screws |
Not Included:
PCIe Riser
Memory
M.2 Drive
2.5" Drive
