NOB LSI AVAGO Broadcom SAS 9305-16E 16-port External 12Gbps SAS PCIe 3.0 x8 HBA
94906NOB LSI AVAGO Broadcom SAS 9305-16E 16-port External 12Gbps SAS PCIe 3.0 x8 HBA

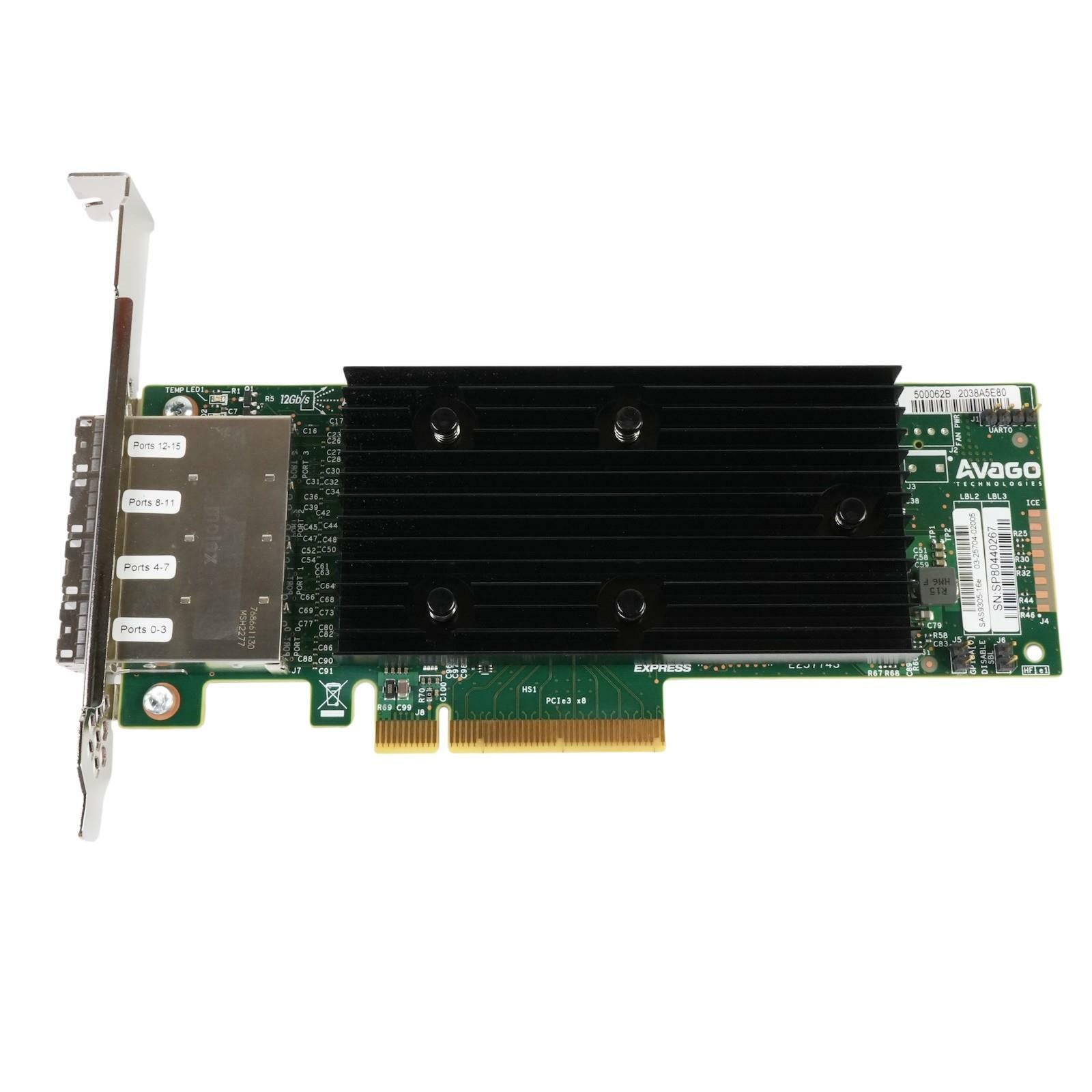

New Open Box - LSI AVAGO Broadcom SAS 9305-16E 16-port External 12Gbps SAS PCIe 3.0 x8 HBA Host Bus Adapter
LSI P/N: SAS 9305-16E
Additional P/N: 03-25704-02005

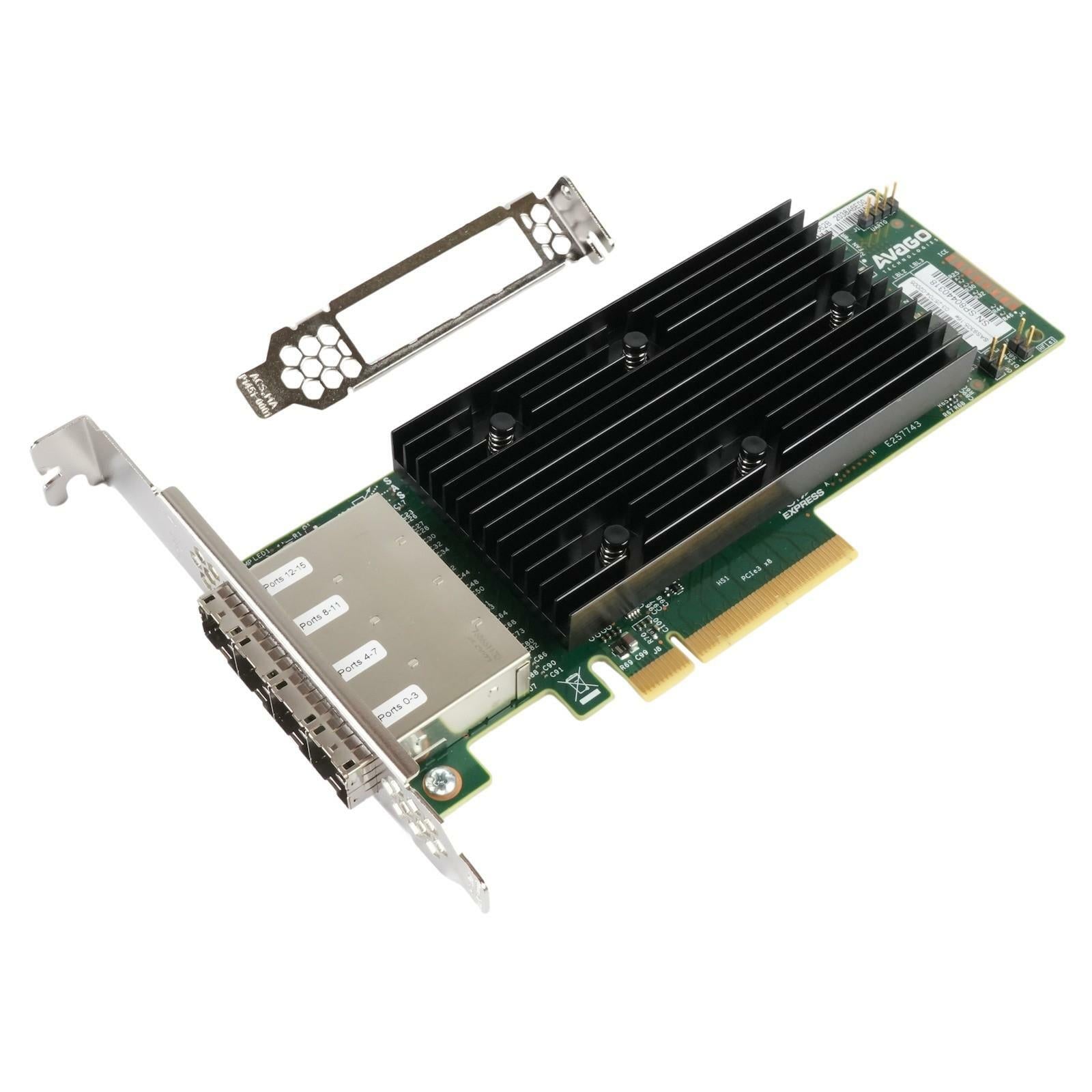

Mounting bracket: Full Height and Low Profile
Condition: New Open Box

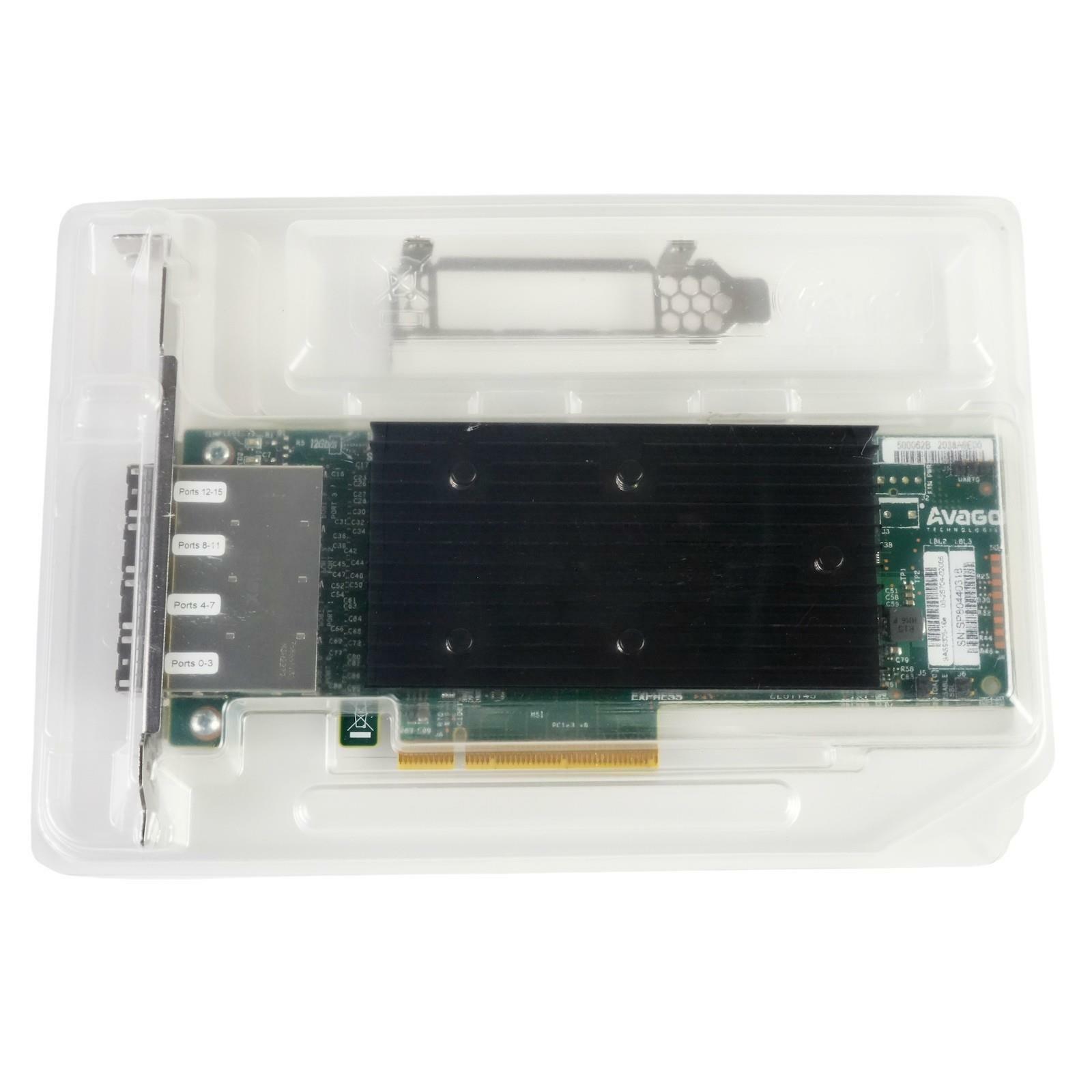

No software, cables or other accessories included. Comes with Full Height and Low Profile mounting bracket only.
30-Day Warranty!
Manufacturer's description and specifications:
Designed for large-scale, data-intensive applications, the SAS 9305-16e 12Gb/s SAS HBA is ideal for tiered storage or multiple external storage enclosures.
The 9305-16e is a single-chip low-profile adapter providing up to 16 direct external drive connections or full scalability using expanders. With performance of over 1.5 million input-output operations per second (IOPS), this adapter delivers the performance and scalability needed for critical applications.
- Connects up to 1024 SAS and SATA devices with 16 external 12Gb/s SAS ports
- Provides maximum connectivity and performance for external JBOD and external RAID enclosures
- Support critical applications with the bandwidth of PCIe 3.0 connectivity
- Achieve more than 1.5 million IOPS for performance-sensitive applications
| Host Bus Type | x8 lane PCI Express 3.0 |
|---|---|

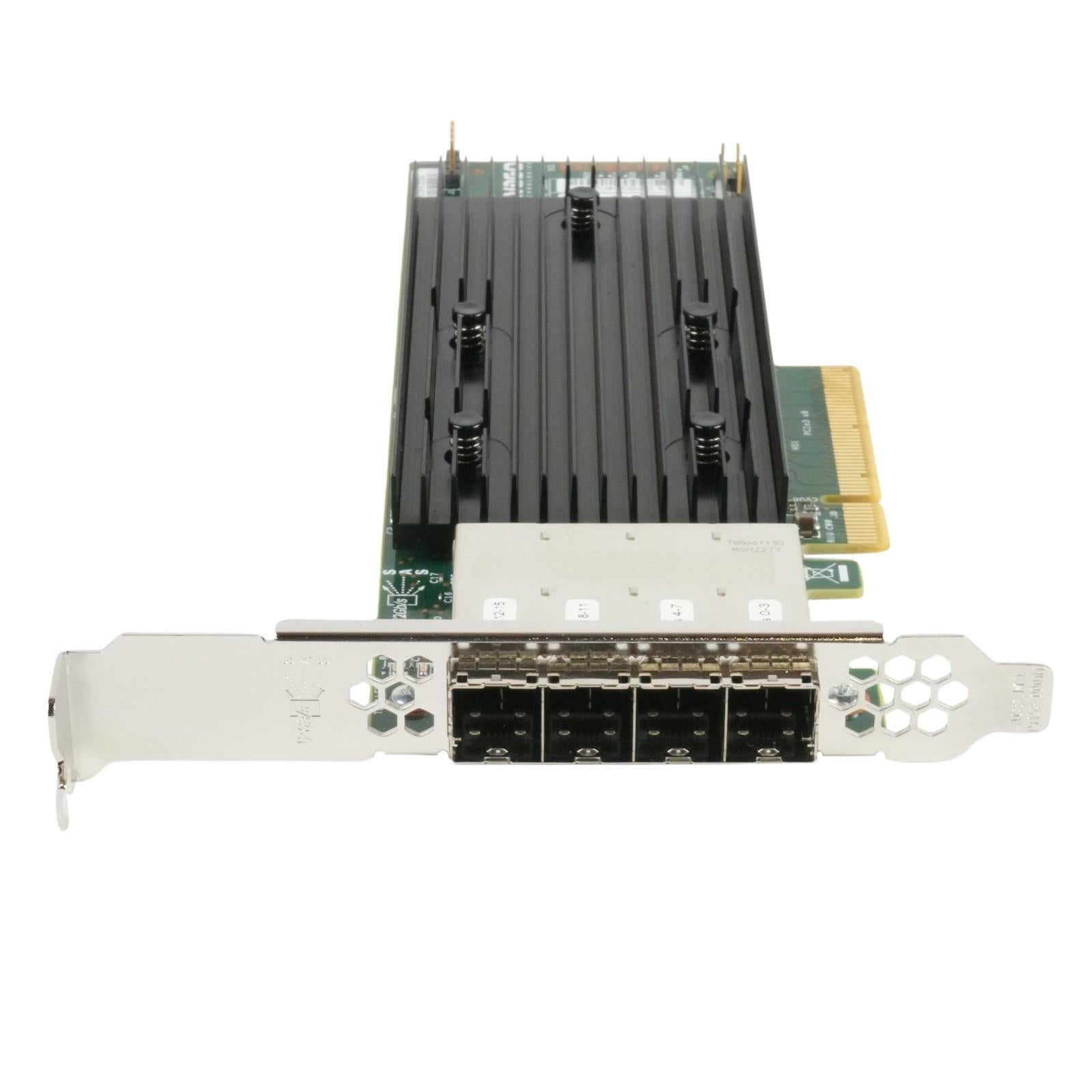

| External Connectors | 4 mini-SAS HD SFF8644 |
| Operating Temperature | 0C to 55C |
| Operating Voltage (V) | +12V +/-8%, 3.3V +/-9% |
| OS Support | Microsoft Windows, Linux (Oracle, SuSE, Red Hat), Solaris, VMware, FreeBSD, CentOS, Canonical |
| PCI Power | Typical: 13.0W |
| Cable Support | Passive Copper, Active Optical |
| I/O Controller | SAS3216 |
| Operating Humidity | 20% to 80% Non-condensing |
| Regulatory Certifications | Australia/New Zealand (AS/NZS 3548), Canada (ICES-003), EMC: Class B-US (CFR 47, P15B), Europe (EN55022/EN55024), RoHS, Safety: EN60950, WEEE |
| Data Transfer Rates | 12Gb/s SAS-3 Compliant |
| Management Software | MegaRAID Storage Manager (MSM), StorCLI (Command-Line Interface), LSI Storage Authority (LSA), HII UEFI Human Interface Infrastructure), CTRL-R |
