NOB Supermicro SuperServer 6029U-E1CRT 2U 12-Bay X11DPU AOC-S3008L-L8E Server
90259NOB Supermicro SuperServer 6029U-E1CRT 2U 12-Bay X11DPU AOC-S3008L-L8E Server
NOB Supermicro SuperServer 6029U-E1CRT 2U 12-Bay X11DPU AOC-S3008L-L8E Server

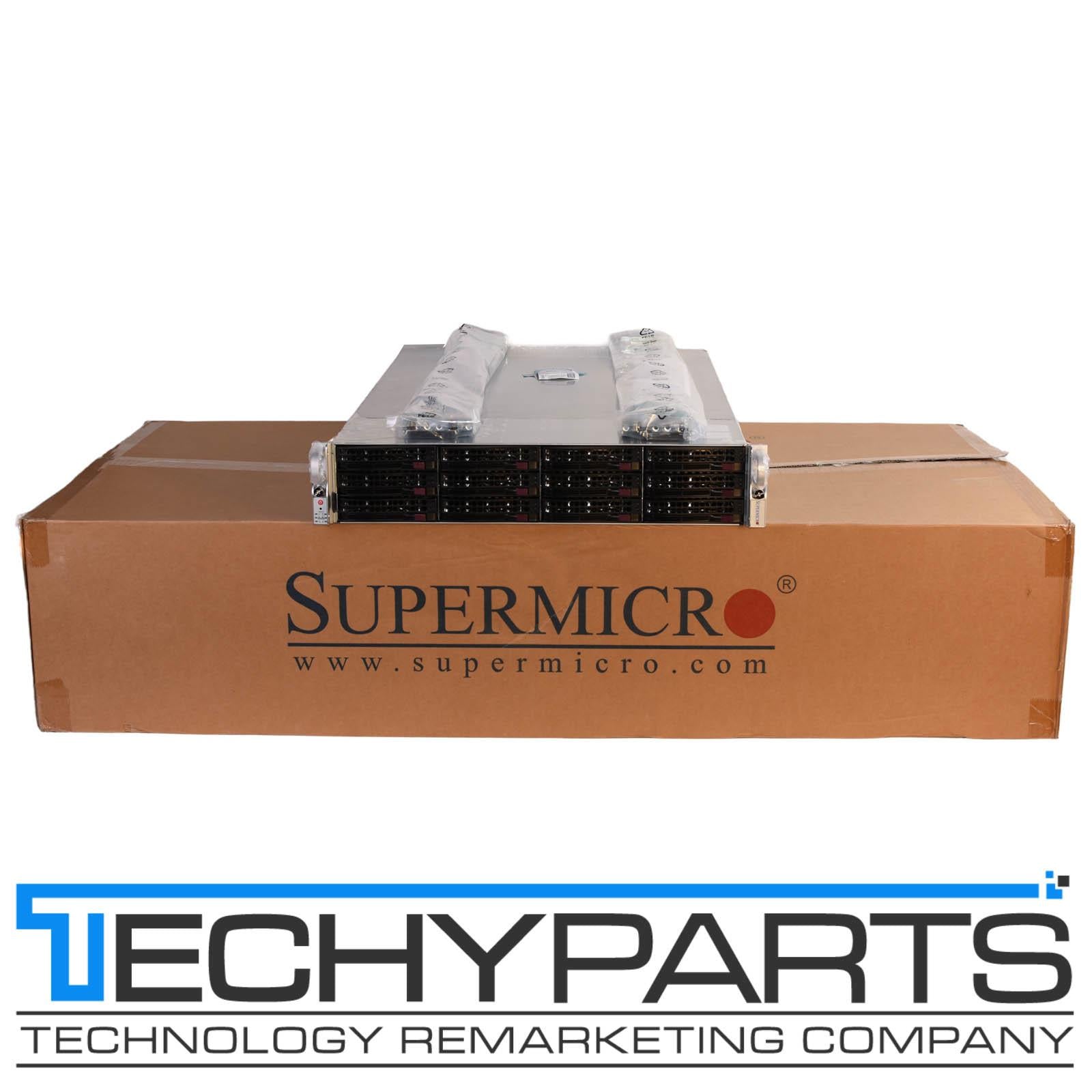

New, open box - Supermicro Ultra SuperServer 6029U-E1CRT 2U 12-Bay X11DPU CTO Barebone Server with Supermicro AOC-S3008L-L8E HBA, Optional hot-swap 2.5" rear drive bays for SSDs and Rackmount Rails
Ideal use cases: Virtualization, Hyperconverge Storage, Cloud Computing, High End Enterprise Server.
Barebone unit. Add memory, processors and hard drives to complete your preferred configuration.
Condition: Server is brand new, open box. Servers were purchased for a project that has been cancelled. We open the boxes only to flash latest Supermicro BIOS and IPMI and pull processors, memory and drives that are available for sale in a separate listing.
No memory (RAM), No processors (CPUs), No Hard Drives Installed!
Key Features:
- Supermicro CSE-829U2E1C4-R1K02-T Chassis
- Supermicro X11DPU 2x LGA-3647 Intel C621 SuperServer Motherboard
- Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) - 2x Supermicro SNK-P0068PS heatsinks
- 24x DIMMs - Support up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
- 1x PCI-E 3.0 x16 slot (FH, 10.5" L)
- 5x PCI-E 3.0 x8 slots (FH, 10.5" L)
- 1x PCI-E 3.0 x8 slot (LP)
- 1x PCI-E 3.0 x8 slot (internal LP)
- 2x 10GBase-T LAN ports via Intel X540
- 12 Hot-swap 3.5" drive bays: 12x SAS3 via AOC-S3008L-L8E
- 4x hybrid ports - optional 4 NVMe - requires additional cables and NVMe controller card
- 2x Optional hot-swap 2.5" rear drive bays for SSDs included
- 4x Heavy duty 8cm PWM fans
- 2x 1000W High efficiency (96%) Redundant PSUs - Titanium Level
- Supermicro 2U Ball-bearing Rail Kit included
| Parts List - (Items Included) | |||
| Part Number | Qty | Description | |
| Motherboard / Chassis | MBD-X11DPU CSE-829U2E1C4-R1K02-T |
1 1 |
Super X11DPU Motherboard 2U Chassis |
| Add-on Card / Module | AOC-2UR68-I2XT | 1 | 2U Ultra Riser based on Intel X540 controller with 2 10Gbase-T ports, 1 internal PCI-E x8 3.0 slot, 1 PCI-E x16 3.0, and I PCI-E x8 3.0 (in x16 slot) |
| Backplane | BPN-SAS3-826EL1-N4 | 1 | 12-port 2U SAS3 12Gbps single-expander backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x NVMe/SAS3/SATA3 storage devices |
| Cable 1 | CBL-PWEX-0652 | 1 | 8 pin female to 2x RA(Right Angle) big 4 pin female power, 60/65CM, 18AWG,RoHS/REACH |
| Cable 2 | CBL-PWEX-0673 | 1 | 8 pin female to 2x big 4 pin female power, 65/70CM, 18AWG,RoHS/REACH |
| Cable 3 | CBL-SAST-0593 | 2 | MINI SAS HD,12G,INT,60CM,30AWG |
| Parts | MCP-240-82909-0N | 1 | Ultra I/O bracket for SC829U, 219U (i2XT),RoHS/REACH |
| Air Shroud | MCP-310-82921-0N | 1 | Plastic air shroud for SC829U, 219U (X11 24DIMM, left side) |
| Air Shroud | MCP-310-82922-0N | 1 | Plastic air shroud for SC829U, 219U (X11 24DIMM, right side) |
| Riser Card | RSC-R1UW-E8R | 1 | 1U RHS WIO Riser card with one PCI-E x8 slot |
| Riser Card | RSC-R2UW-4E8 | 1 | 2U LHS WIO Riser card with four PCI-E x8 slots |
| Heatsink / Retention | SNK-P0068PS | 2 | 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism |
| Power Supply | PWS-1K02A-1R | 2 | 1U 1000W Redundant Power Supply 73.5mm width Titanium Level,RoHS/REACH |
| FAN 1 | FAN-0118L4 | 4 | 80 x 80 x 38 mm, 9.5K RPM, 4-pin PWM Fan, Hot |
| 2 Rear 2.5" Hot-swap SATA Drive Bays | MCP-240-82922-0N-OEM | 1 | Rear 2x 2.5" HDDs riser bracket kit for SC829U/219U, tool-less |
Custom configurations are available. Please contact us for a quote or if you have questions regarding current configuration.
30-Day Warranty!
Manufacturer's Specifications:
| SYS-6029U-E1CRT |
|
| Motherboard |
|
| Processor | |
| CPU |
|
| Cores |
|
| System Memory | |
| Memory Capacity |
|
| Memory Type |
|
| Note | † 2933MHz in two DIMMs per channel can be achieved by using Cascade Lake only. |
| On-Board Devices | |
| Chipset |
|
| SATA |
|
| Network Connectivity |
|
| IPMI |
|
| Graphics |
|
| Input / Output | |
| SAS |
|
| LAN |
|
| USB |
|
| Video |
|
| Serial Port / Header |
|
| DOM |
|
| System BIOS | |
| BIOS Type |
|
| Management | |
| Software |
|
| Power Configurations |
|
| PC Health Monitoring | |
| CPU |
|
| FAN |
|
| Temperature |
|
| Chassis | |
| Form Factor |
|
| Model |
|
| Dimensions and Weight | |
| Width |
|
| Height |
|
| Depth |
|
| Weight |
|
| Available Colors |
|
| Front Panel | |
| Buttons |
|
| LEDs |
|
| Expansion Slots | |
| PCI-Express |
(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.) |
| Drive Bays / Storage | |
| Hot-swap |
|
| M.2 |
|
| Backplane | |
| 2U SAS/SATA backplane | |
| System Cooling | |
| Fans |
|
| Power Supply | |
| 1000W Redundant Power Supplies with PMBus | |
| Total Output Power |
|
| Dimension (W x H x L) |
|
| Input |
|
| +12V |
|
| 12Vsb |
|
| Output Type |
|
| Certification |
|
| Operating Environment | |
| RoHS |
|
| Environmental Spec. |
|
