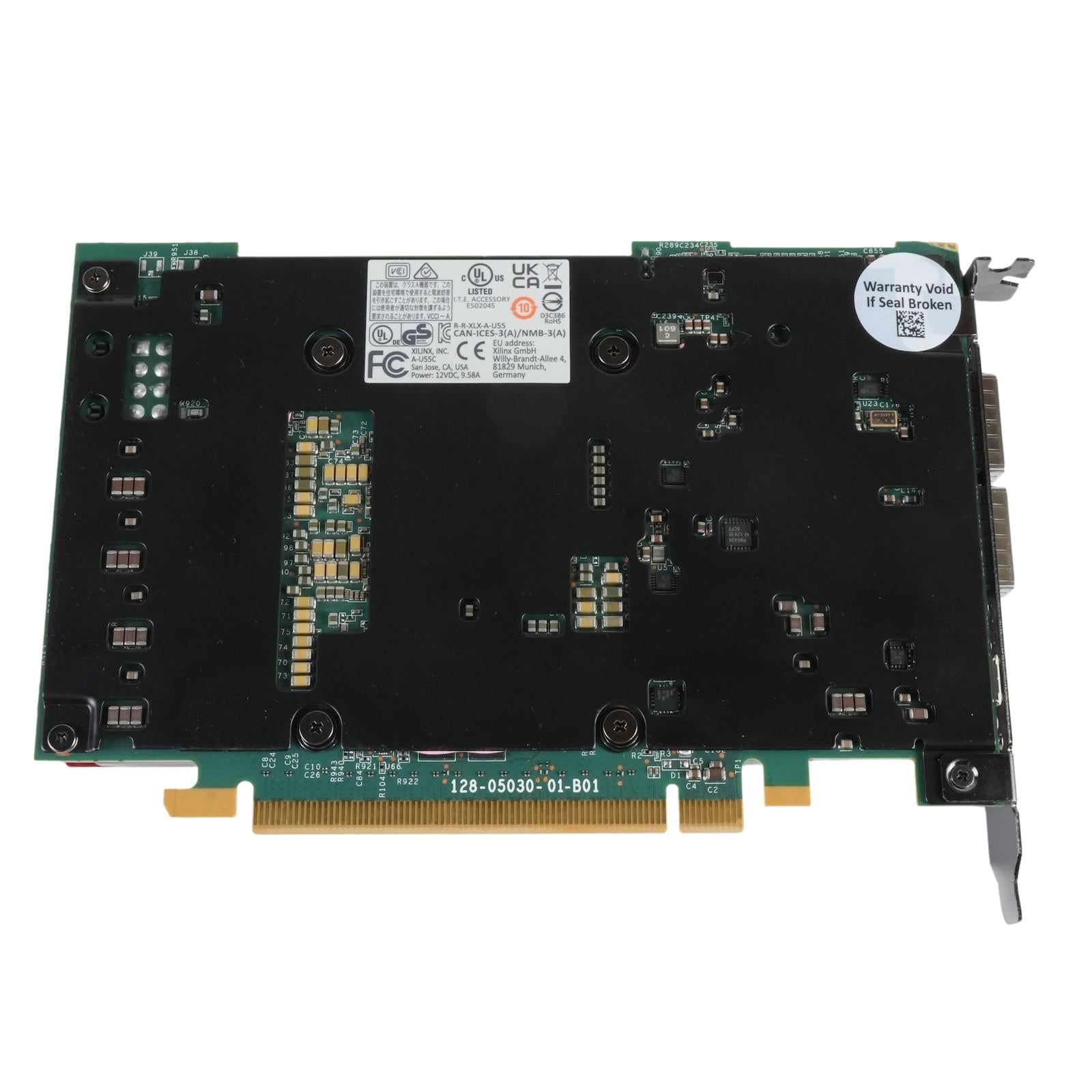

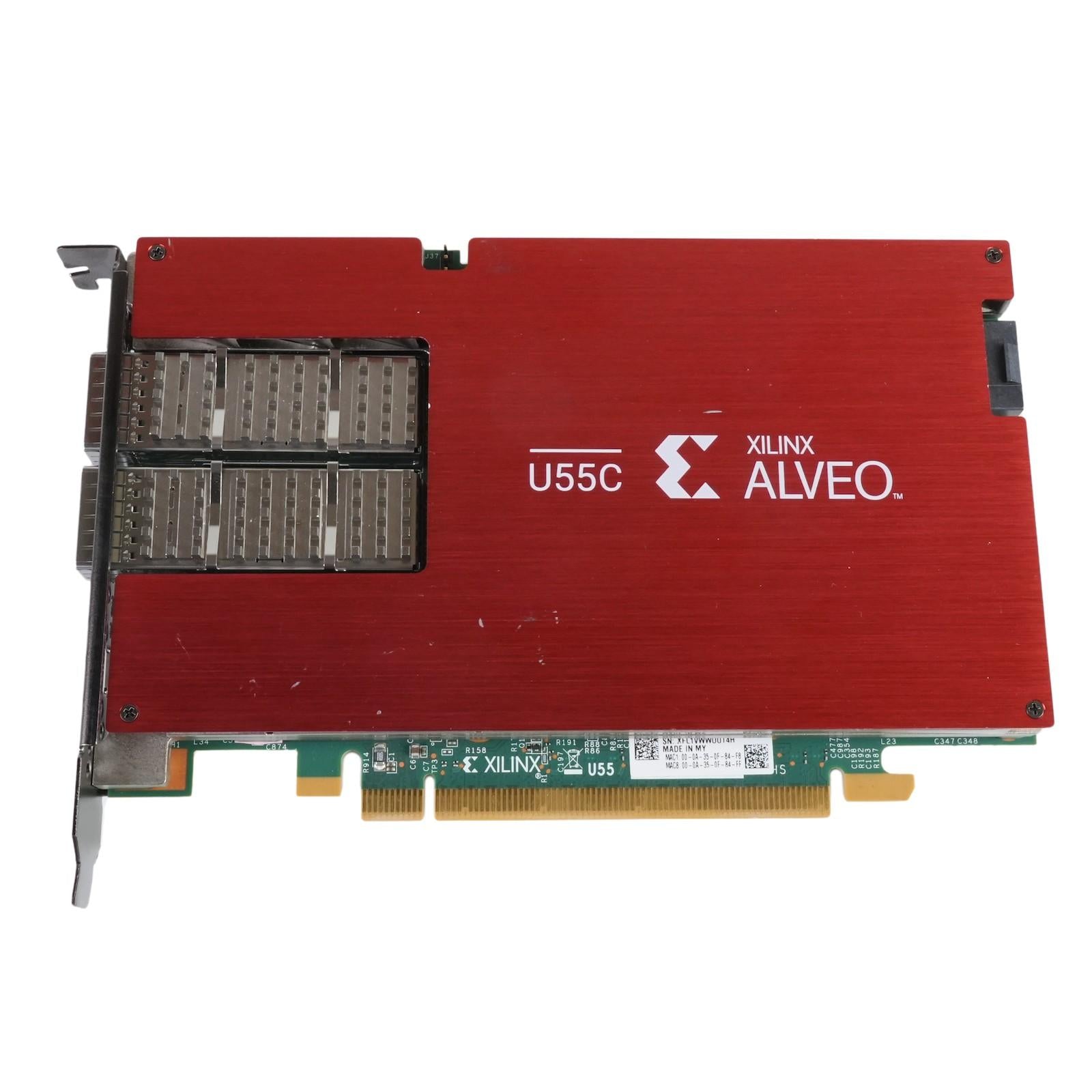

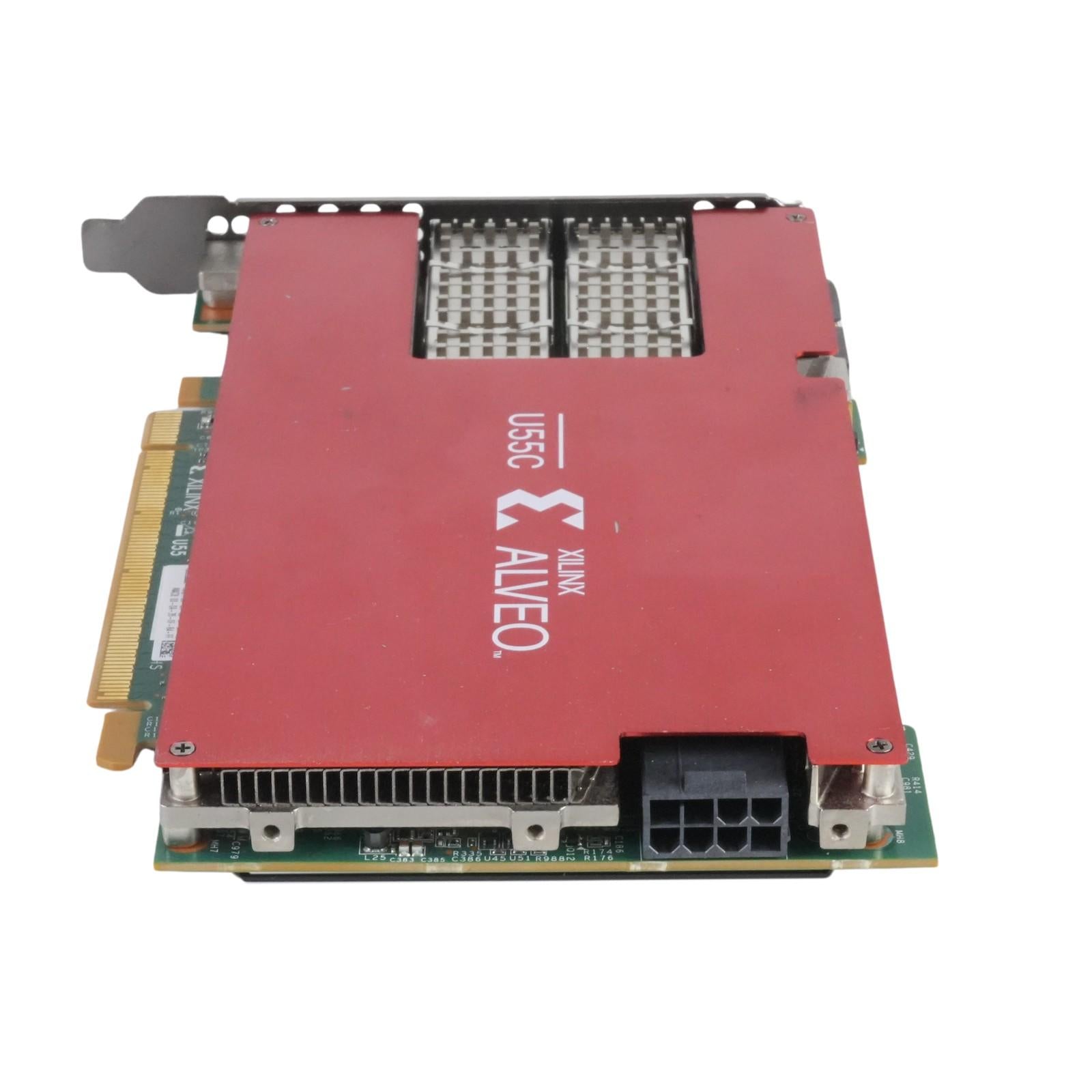

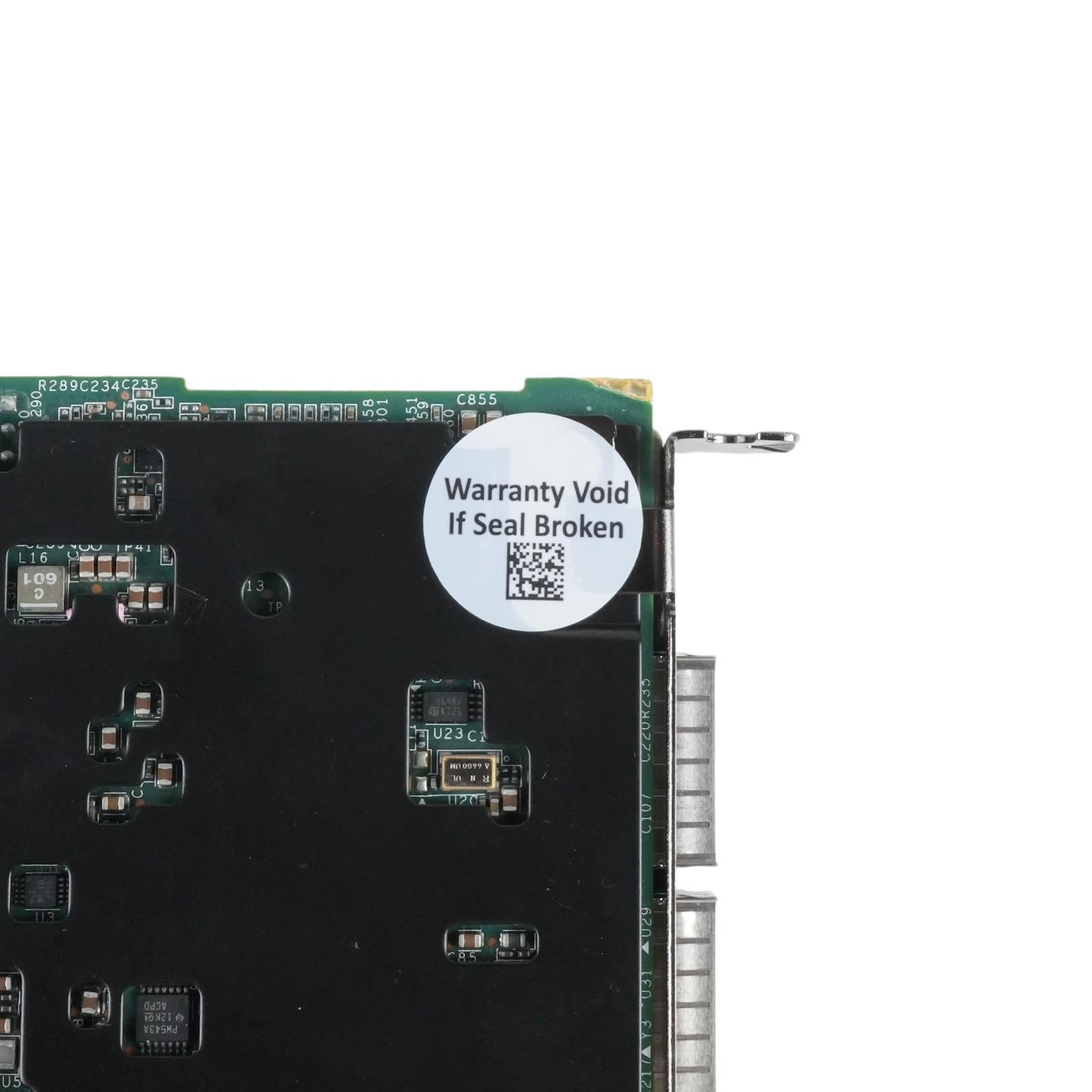

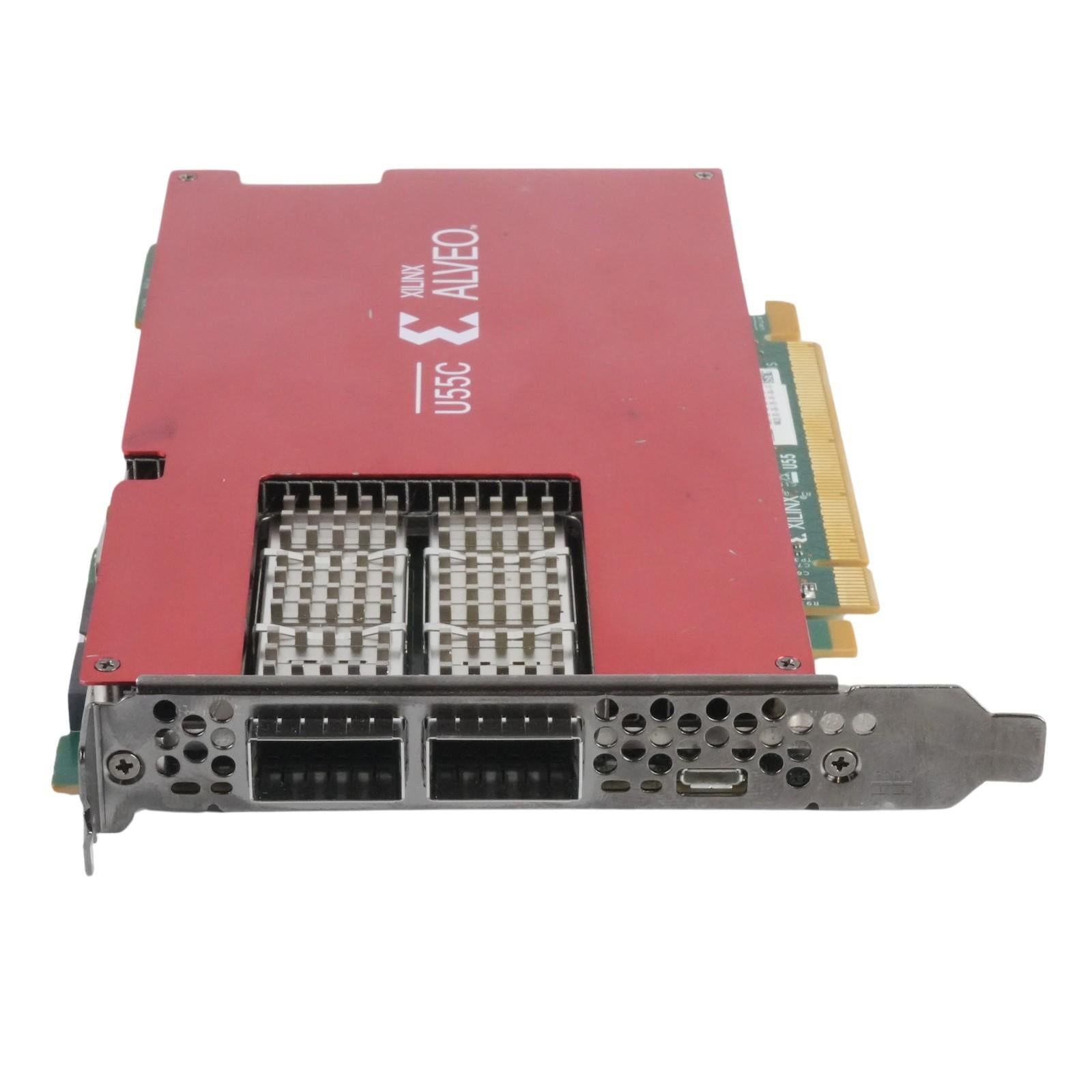

*Damaged* AMD Xilinx Alveo U55C Data Center PCIe 3.0 x16 PCIe 4.0 x8 Accelerator Card A-U55C-P00G-PQ-G

AMD P/N: A-U55C-P00G-PQ-G

Transceiver: Not included

Mounting bracket: Full Height

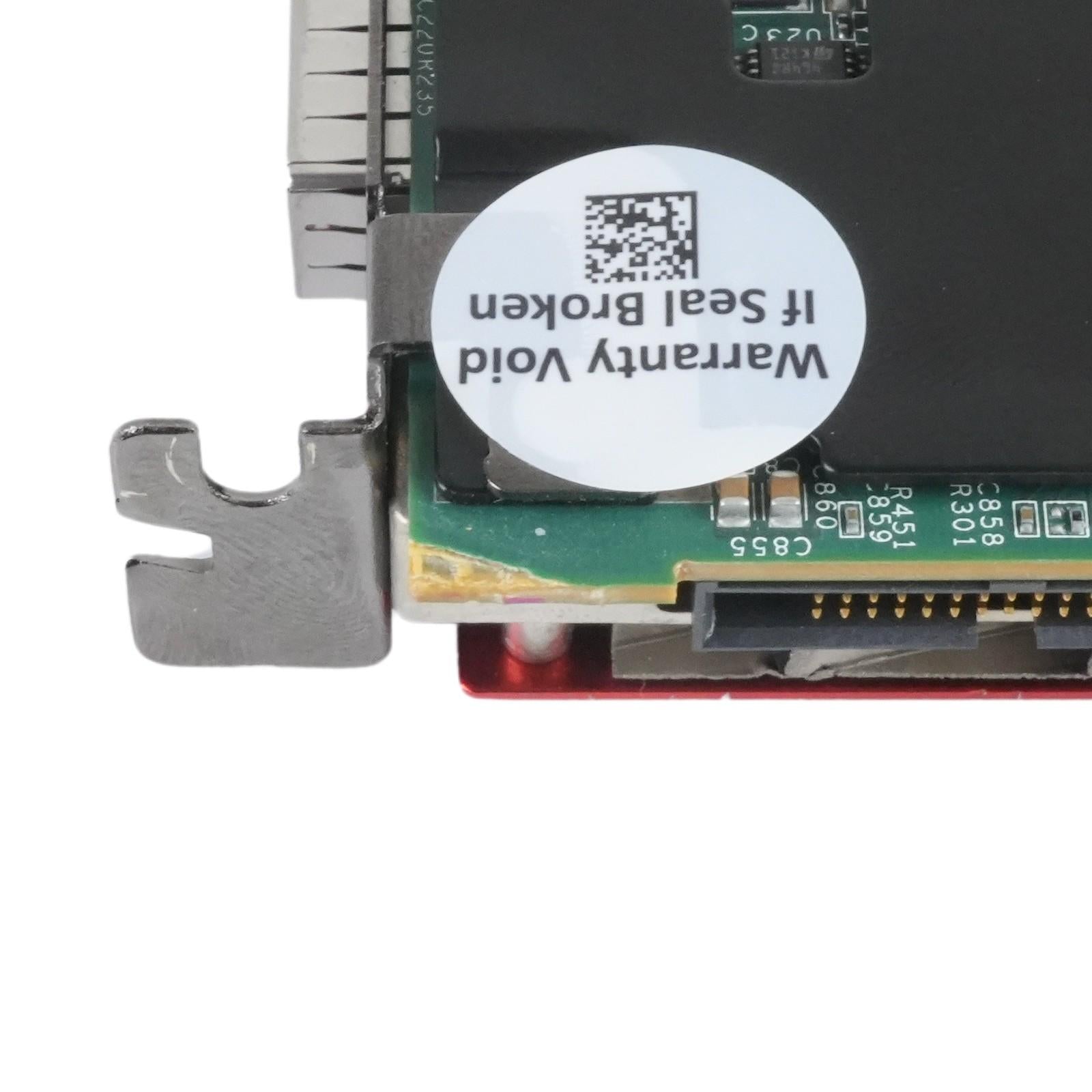

Condition: USED - Damaged - PCB chipped on top corner. Tested pull - Guaranteed 100% working!

No software, cables or other accessories included. Comes with Full Height mounting bracket only.

30-Day Warranty!

Manufacturer's Details:

The AMD Alveo™ U55C high performance compute card provides optimized acceleration for workloads in financial computing, machine learning, computational storage, and data search and analytics.

Compute Resources

Look-up Tables (LUTs) - 1,304K
Registers - 2,607K
DSP Slices - 9,024

Dimensions

Height - Full Height
Length - Half Length
Width - Single Slot

Memory

HBM Memory Capacity - 16 GB
HBM Total Bandwidth - 460 GB/s
Internal SRAM Capacity - 43 MB
Internal SRAM Total Bandwidth - 35 TB/s

Physical Interfaces

PCI Express - Gen3 x16, 2 x Gen4 x8
Network Interfaces - 2x QSFP28

Tool Support

Vitis Developer Environment - Yes
Vitis Platform - Gen3 x16 XDMA
Vivado Design Suite - Yes

Power & Thermal

Maximum Total Power - 150W
Typical Power - 115W
Thermal Cooling - Passive
