Ruckus ICX 7150-C12P Compact 12-Port Gigabit POE Switch 2x 1GbE SFP/RJ45 Uplink

86949

Ruckus ICX 7150-C12P Compact 12-Port Gigabit POE Switch 2x 1GbE SFP/RJ45 Uplink

Skip to product information
1 of 1

RUCKUS

Regular price $249.95 USD
Regular price Sale price $249.95 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

View full details

Ruckus ICX 7150-C12P Compact 12-Port Gigabit POE Switch 2x 1GbE SFP/RJ45 Uplink

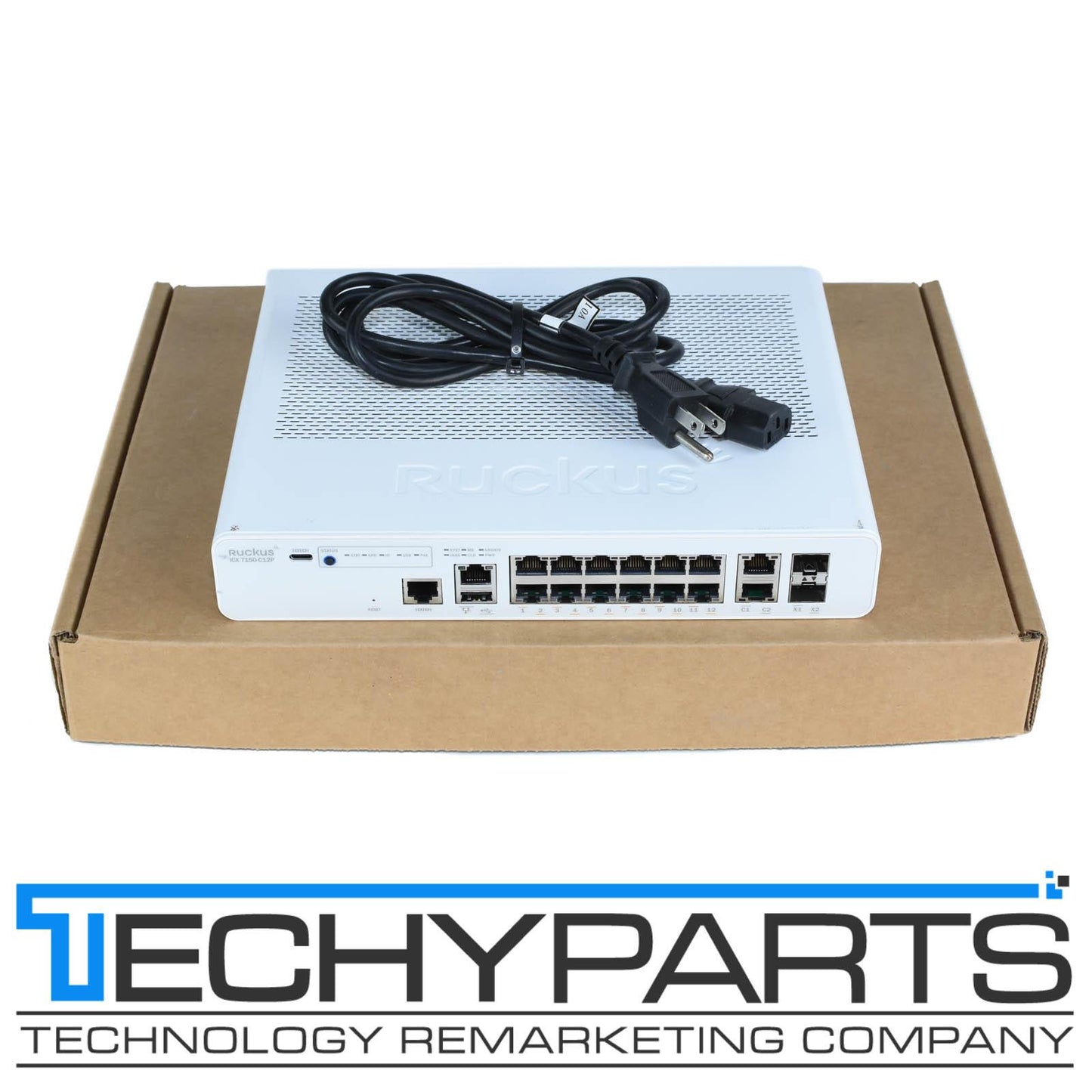

Ruckus ICX 7150-C12P Compact 12-Port Gigabit POE Switch with 2x 1GbE SFP or RJ45 Uplink Ports

Ruckus P/N: ICX7150-C12P-2X1G

Firmware version: 08.0.92T211

Tested, guaranteed 100% working.

Switch has been reset to Factory Default settings and flashed with latest available firmware.

Power cord and console cable are included. No other accessories will be included.

30-Day Warranty!

Console output:

ICX7150-C12 Switch>show ver

Copyright (c) Ruckus Networks, Inc. All rights reserved.

UNIT 1: compiled on Nov 4 2019 at 10:22:18 labeled as SPS08092

(28237828 bytes) from Primary SPS08092.bin (UFI)

SW: Version 08.0.92T211

Compressed Primary Boot Code size = 786944, Version:10.1.17T225 (mnz10117)

Compiled on Wed Oct 9 08:08:30 2019

HW: Stackable ICX7150-C12-POE

==========================================================================

UNIT 1: SL 1: ICX7150-C12-2X1G POE 12-port Management Module

Serial #:FEK3816Q07J

Software Package: BASE_SOFT_PACKAGE

Current License: 2X1G

P-ASIC 0: type B160, rev 11 Chip BCM56160_B0

==========================================================================

UNIT 1: SL 2: ICX7150-2X1GC 2-port 2G Module

==========================================================================

UNIT 1: SL 3: ICX7150-2X10GF 2-port 20G Module

==========================================================================

1000 MHz ARM processor ARMv7 88 MHz bus

8192 KB boot flash memory

2048 MB code flash memory

1024 MB DRAM

STACKID 1 system uptime is 32 minute(s) 45 second(s)

The system started at 00:43:04 GMT+00 Sat Jan 01 2000

The system : started=warm start reloaded=by "reload"

ICX7150-C12 Switch>show module

Module Status Ports Starting MAC

U1:M1 ICX7150-C12 POE 12-port Management Module OK 12 d4c1.9e99.86b0

U1:M2 ICX7150-2X1GC 2-port 2G Module OK 2 d4c1.9e99.86bd

U1:M3 ICX7150-2X10GF 2-port 20G Module OK 2 d4c1.9e99.86bf

ICX7150-C12 Switch>show chassis

The stack unit 1 chassis info:

Power supply 1 (AC - PoE) present, status ok

Fanless model

Slot 1 Current Temperature: 63.2 deg-C (Sensor 1), 10.0 deg-C (Sensor 2), 47.3 deg-C (Sensor 3), 47.0 deg-C (Sensor 4)

Slot 2 Current Temperature: NA

Slot 3 Current Temperature: NA

Warning level.......: 100.0 deg-C

Shutdown level......: 109.0 deg-C

Boot Prom MAC : d4c1.9e99.86b0

Management MAC: d4c1.9e99.86b0

ICX7150-C12 Switch>show license

Unit License Name L3 Premium Port Speed Upgrade Speed Ports MACsec

1 2X1G No No 10G 0 NA
