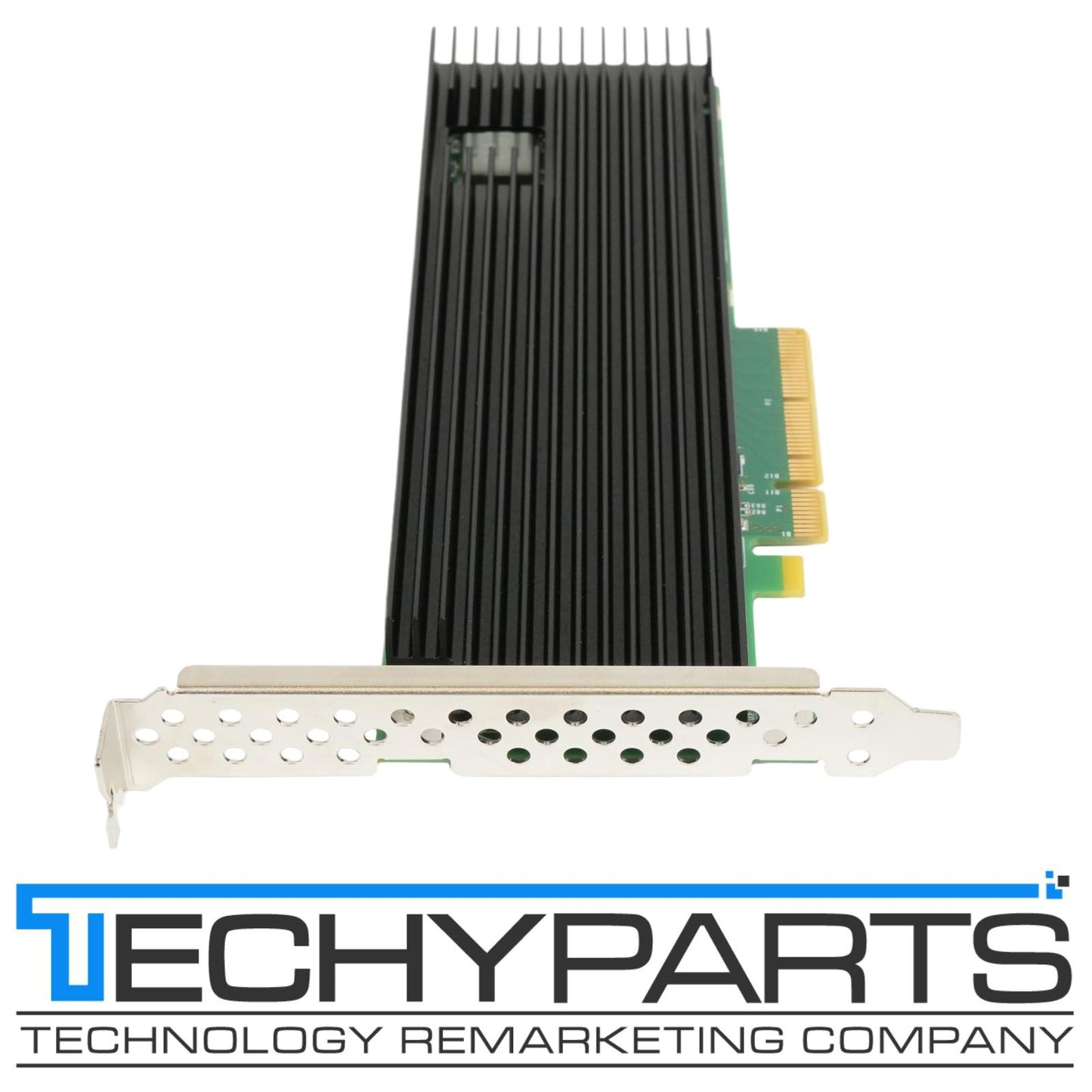

Silicom PE2iSCO3 SKU3 Hardware Accelerator Crypto Compression PCI-Express 2.0 x8 Intel DH8955CL based Server Adapter
SILICOM P/N: PE2ISCO3
Controller: Intel DH8955CL
Mounting bracket: Full Height
Condition: Clean, tested pull - Guaranteed 100% working!
No software, cables or other accessories included. Comes with Full Height mounting bracket only.
30-Day Warranty!
Manufacturer's description and specifications:
Coleto Creek performance: | |
| Intel® chip | Sku3 |
| Intel@ Quick Assist Techinlogoy Capability | *50Gbps |
| IPSec | *43Gbps |
| SSL | *50Gbps |
| Compression | *24Gbps |
| Kasumi/ Snow3G | *Up to 30Gbps |
| RSA Decrypt 1k-bit | 190K (ops/sec) |
| RSA Decrypt 2k-bit | 40K (ops/sec) |
*PCI Ex8/ Gen2 will limit the IO performance to 27 Gbps
Operating Systems Support | |
| Operating system support: | Linux |
PE3iSCO2/3: General Technical Specifications | |
| Interface Standard: | PCI-Express Base Specification Revision 2.0 ( 5 GTs) |
| Board Size: | Low profile short add-in card: 167.64mm X 68.91mm (6.60”X 2.713”) |
| PCI Express Card Type: | x8 Lane |
| PCI Express Voltage: | +12V +- 8% |
| PCI Connector: | Gold Finger: X8 |
| Controller: | Sku1: Intel DH8955CL |
| Holder: | Metal Bracket: Full Height and Low Height |
| Operating Humidity: | 0%–90%, non-condensing |
| Operating Temperature: | 0°C – 45°C (32°F – 113°F) Air flow requirement for this adapter is 200 LFM |
| Storage: | -40°C–65°C (-40°F–149°F) |
| EMC Certifications: | FCC Part 15, Subpart B Class A Conducted Emissions Radiated Emissions CE EN 55022: 1998 Class A Amendments A1: 2000; A2: 2003 Conducted Emissions Radiated Emissions CE EN 55024: 1998 Amendments A1: 2000; A2: 2003 Immunity for ITE Amendment A1: 2001 CE EN 61000-3-2 2000, Class A Harmonic Current Emissions CE EN 61000 3-3 1995, Amendment A1: 2001 Voltage Fluctuations and Flicker CE IEC 6100-4-2: 1995 ESD Air Discharge 8kV. Contact Discharge 4kV. CE IEC 6100-4-3:1995 Radiated Immunity (80-1000Mhz), 3V/m 80% A.M. by 1kHz CE IEC 6100-4-4:1995 EFT/B: Immunity to electrical fast transients 1kV Power Leads, 0.5Kv Signals Leads CE IEC 6100-4-5:1995 Immunity to conductive surges COM Mode; 2kV, Dif. Mode 1kV CE IEC 6100-4-6:1996 Conducted immunity (0.15-80 MHz) 3VRMS 80% A.M. By 1kHz CE IEC 6100-4-11:1994 Voltage Dips and Short Interruptions V reduc >95%, 30% >95% Duration 0.5per, 25per, 250per |
