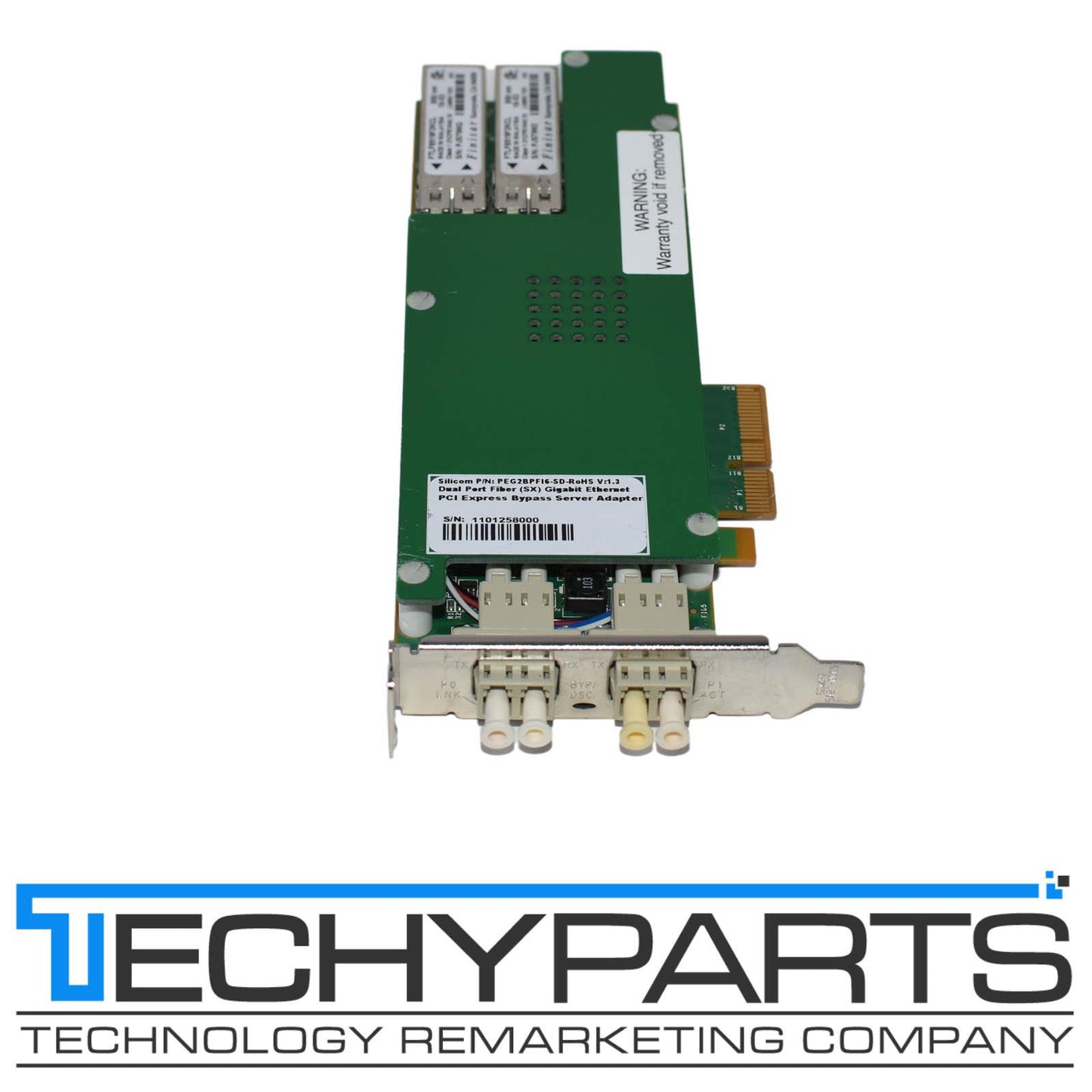

Silicom PEG2BPFI6-SD-RoHS 2-Port Fiber Gigabit Ethernet PCI-E Bypass Adapter SFF

Silicom PEG2BPFI6-SD-RoHS 2-Port Fiber Gigabit Ethernet PCI-E x4 Bypass Server Adapter Intel 82576EB Based with with Low Profile, Half-height SFF Mounting Bracket

SILICOM P/N: PEG2BPFI6-SD-ROHS

Mounting bracket: Low profile, Half-height - SFF

Condition: Clean, tested pull - Guaranteed 100% working!

No software, cables or other accessories included. Comes with low profile, half-height SFF mounting bracket only.

30-Day Warranty!

Manufacturer's description:

Silicom’s Dual Port fiber Gigabit Ethernet Bypass server adapter is a PCI-Express X4 network interface card that contains four Gigabit Ethernet ports on a PCI-E adapter.

The Silicom’s Dual Port fiber Gigabit Ethernet Bypass server adapter is targeted to inline network system that maintains network connectivity when system fails.

Silicom’s Dual Port Fiber Gigabit Ethernet Bypass server adapter supports Normal, Bypass and Disconnect modes. In Normal mode, the ports are independent interfaces. In Bypass mode, all packets received from one port are transmitted to the adjacent port. In Disconnect mode, the adapter simulates switch / rout cable disconnection.

Silicom’s Dual Port Fiber Gigabit Ethernet Bypass server adapter can Bypass or disconnect its Ethernet ports on a host system failure, power off, or upon software request. In Bypass mode, the connections of the Ethernet ports are disconnected from the system and switched over to the other port to create a crossed connection loop-back between the Ethernet ports.

Hence, in bypass mode all packets received from one port are transmitted to the adjacent port and vice versa. This feature enables to bypass a failed system and provides maximum up time for the network. In Disconnect mode, the adapter simulates switch / router cable disconnection. In Disconnect mode, the switch / router does not detect link partner of the adapter.

Silicom’s Dual Port Fiber Gigabit Bypass server adapter includes an on board WDT (Watch Dog Timer) controller. The adapter’s software drivers or software application can write commands to the on board WDT controller.

The adapter’s software drivers, WDT controller and the Bypass circuitry provide an interface that control and manage the mode of the adapter.

Silicom’s Dual Port Fiber Gigabit Ethernet Bypass server adapter is based on Intel 82576 Dual port Gigabit Ethernet MAC+PHY of Intel Controller.

Bypass / Disconnect:

• Bypass / Disconnect Ethernet ports on Power Fail, System Hangs or Software Application Hangs
• Software programmable Bypass, Disconnect or Normal Mode
• On Board Watch Dog Timer (WDT) Controller
• Software programmable time out interval
• Software Programmable WDT Enable / Disable counter
• Software programmable Bypass Capability Enable / Disable
• Software Programmable Disconnect Capability Enable / Disable
• Software Programmable mode (Bypass, Normal or Disconnect mode) at Power up
• Software Programmable mode (Bypass, Normal mode) at Power off
• Independent Bypass operation in every two ports
• Emulates standard NIC

Performance Features:

• 16 Transmit and Receive queues per port
• Up to 16 queues of Receive Side Scaling (RSS) minimize CPU utilization across multiple processor systems
• Support for 8 pools of virtual machine Device Queues ( VMDq) per port
• Support Direct Cache Access ( DCA)
• Support Intel I/O AT 2.0
• TSO interleaving for reduced latency
• UDP TSO
• Minimized device I/O interrupts using MSI and MSI-X
• Offload of TCP / IP / UDP checksum calculation and TCP segmentation
• SCTP receive and transmit checksum offload
• Packet interrupt coalescing timers (packet timers) and absolute- delay interrupt timers for both transmit and receive operation

Fiber Gigabit Ethernet 1000Base-SX:

• Independently Fiber Gigabit Ethernet channel/s support Gigabit Ethernet 1000Base-SX
• Small Form Factor (SFF) LC Connectors

Common Key features:

• Host Interface PCI-Express 4X Lane (Version 1.1)
• High performance, reliability, and low power use in Intel 82576 dual integrated MAC + PHY and SERDES chip controller
• Ultra deep packet buffer per channel lowers CPU utilization
• Hardware acceleration that can offload tasks from the host processor. The controllers can offload TCP/UDP/IP checksum calculations and TCP segmentation
• Priority queuing – 802.1p layer 2 priority encoding
• Virtual LANs –802.1q VLAN tagging
• Jumbo Frame (9.5KB)
• 802.x flow control
• PCI-SIG SR IOV (8 VF)
• Multicast/ broadcast Packet replication
• Statistics for SNMP
• Supports Vital Product Data (VPD)
• Integrated LinkSec security engines
• Supports IEEE 1588
• LEDs indicators for link/Activity/Bypass/ Disconnect Mode status

Functional Description

Silicom’s Dual Port Fiber Bypass adapter supports Normal, Bypass and Disconnect modes. In Normal mode, the ports are independent interfaces

(see Figure 1: Normal mode, one Bypass pair is illustrated).

Figure 1: Normal Mode Functional Block Diagram

In Bypass mode, the connections of the Ethernet network ports are Disconnected from the interfaces and switched over to the other port to create a crossed connection loop-back between the Ethernet ports. The connections of the interfaces are left not connected. (See Figure 2: one Bypass pair illustrated)

Figure 2: Bypass Mode Functional Block Diagram

In Disconnect mode, the transmit connections of the Ethernet network ports are Disconnected from the interfaces. (See Figure 3: one Bypass pair illustrated)

Figure 3: Disconnect Mode Functional Block Diagram

Silicom’s Dual Port Fiber Gigabit Ethernet Bypass server adapter supports software programmable to select Normal, Bypass or Disconnect modes.

Silicom’s Dual Port Fiber Gigabit Ethernet supports Disable Bypass, Disable Disconnected capabilities; hence, if thoseadapters receive Disable Bypass capability / Disable Disconnect commands, the adapter does not Bypass / does not Disconnect its Ethernet ports, The Disable Bypass Capabilities are reserved also after power off. This feature enables to emulate a standard NIC.

Silicom’s Dual Port Fiber Gigabit Ethernet supports Disable supports setting the default mode at power up and power off. Those setting are reserved also after power off.
