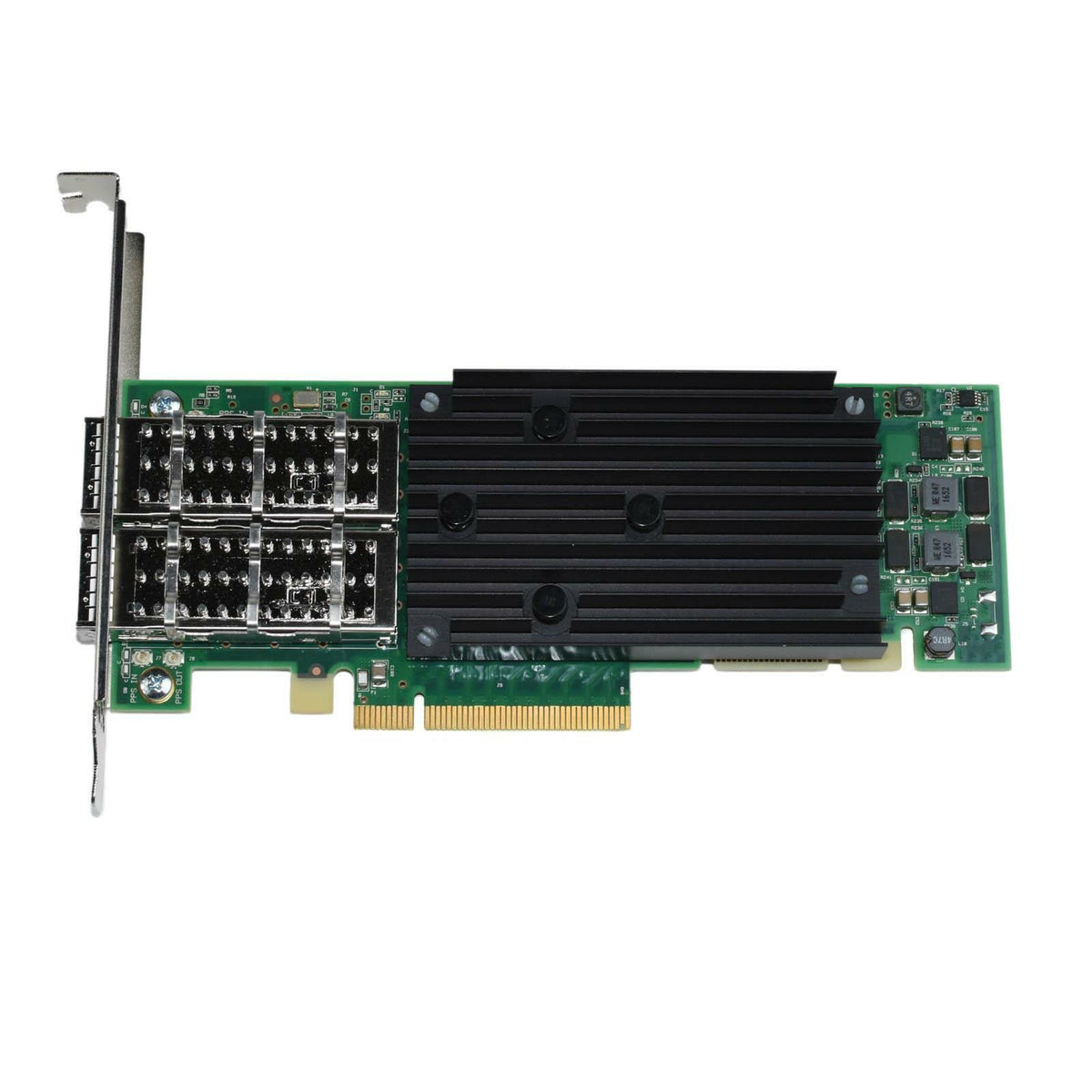

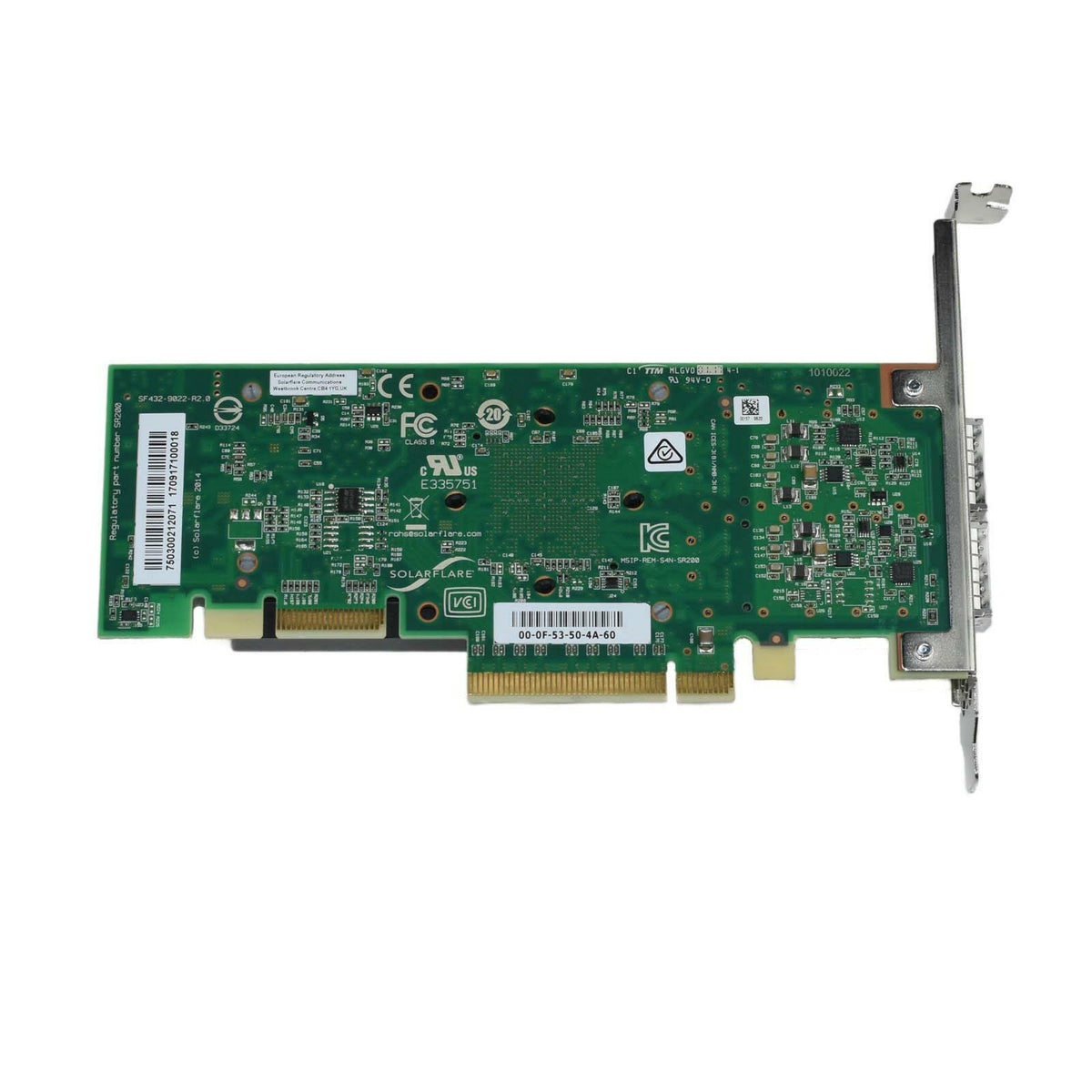

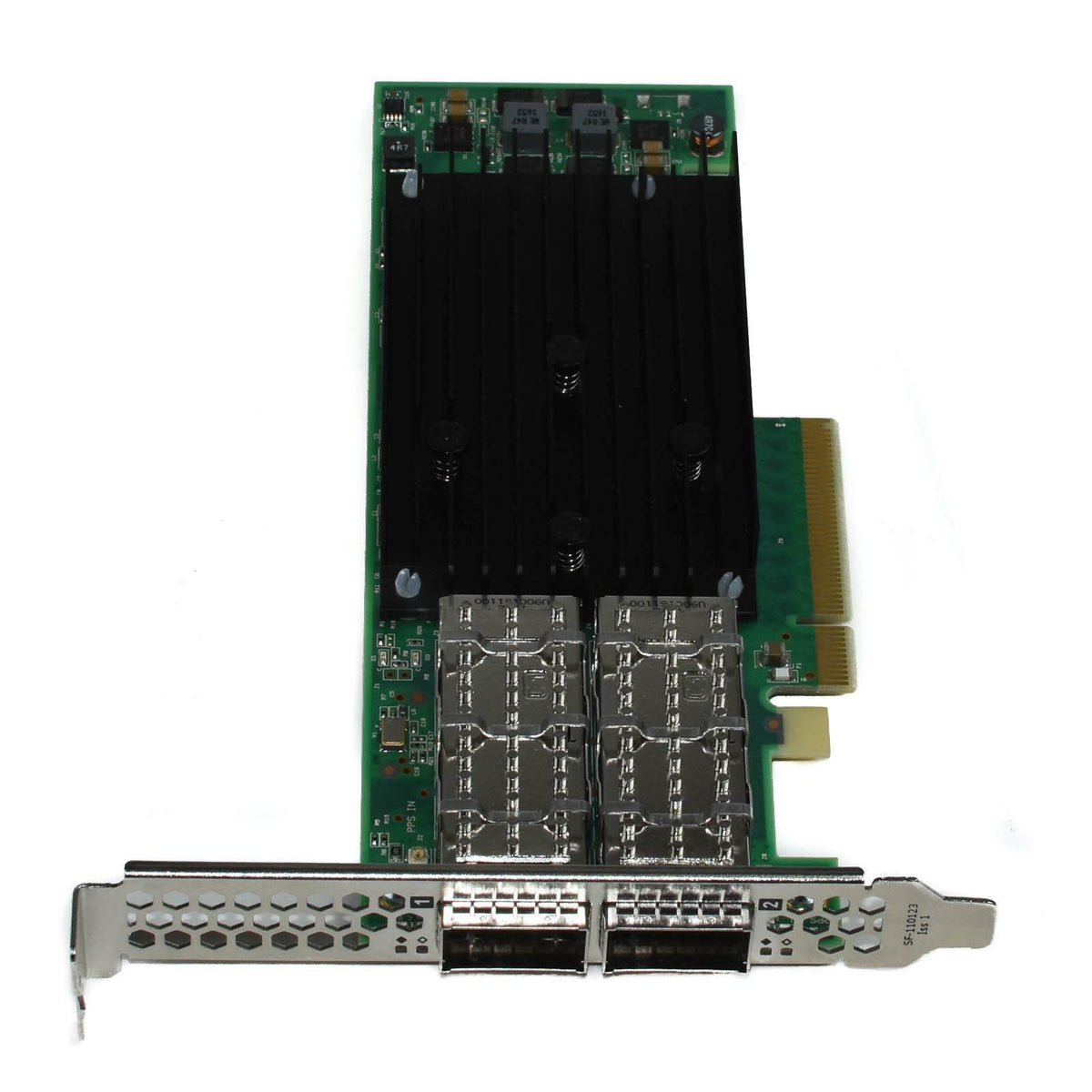

SolarFlare Flareon Ultra SFN7142Q 2-Port 40GbE QSFP+ PCIe 3.0 x8 Server NIC
88848SolarFlare Flareon Ultra SFN7142Q 2-Port 40GbE QSFP+ PCIe 3.0 x8 Server NIC
SolarFlare Flareon Ultra SFN7142Q 2-Port 40GbE QSFP+ PCI-E 3.0 x8 Server I/O Adapter NIC with Onload Key installed
SOLARFLARE P/N: SFN7142Q
Installed Keys: Onload
Transceiver: Not included
Mounting bracket: Full Height
Condition: Clean, tested pull - Guaranteed 100% working!
No software, cables or other accessories included. Comes with Full Height mounting bracket only.
30-Day Warranty!
Manufacturer's description and specifications:
| General Information | |
|---|---|
| Main Specifications | |
| Dimensions & Weight | |
| Environmental Parameters | |
| Expansion / Connectivity | |
| General | |
| Miscellaneous | |
| Networking | |
| Power | |
| Software / System Requirements | |
| Category | Network interface cards |
| Description | Solarflare Flareon Ultra SFN7142Q - Network adapter - PCIe 3.0 - 40 Gigabit QSFP+ x 2 |
| Manufacturer | Solarflare Communications |
| Dimensions & Weight / Depth | 13.4 cm |
| Dimensions & Weight / Height | 6.9 cm |
| Header / Brand | Solarflare |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | 40 Gigabit Ethernet |
| Networking / Data Transfer Rate | 40 Gbps |
| Networking / Type | Network adapter |
| Packaged Quantity | 1 |
| System Requirements / OS Required | Linux;Microsoft Windows Server 2008 R2;Microsoft Windows Server 2012;Microsoft Windows Server 2012 R2;Red Hat Enterprise Linux 5;Red Hat Enterprise Linux 6;Red Hat Enterprise Linux 7;SUSE Linux Enterprise Real Time;SuSE Linux Enterprise Server 10;SuSE Linux Enterprise Server 11; |
| Depth | 13.4 cm |
| Height | 6.9 cm |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Interfaces | 2 x 40Gb Ethernet - QSFP+ |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 3.0 |
| PCI Specification Revision | PCIe 3.0 |
| Compliant Standards | RoHS, ACPI 3.0 |
| Capacity | Multicast filters: 4096 ¦ Virtual interfaces (VLANs): 4096 ¦ Number of virtual functions: 240 ¦ Number of virtual NIC: 2048 ¦ Number of physical functions: 16 |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ba |
| Connectivity Technology | Wired |
| Data Link Protocol | 40 Gigabit Ethernet |
| Data Transfer Rate | 40 Gbps |
| Features | Layer 2 switching, VLAN support, packet filtering, IPv6 support, TCP/IP offloading, Jumbo Frames support, IPv4 support, PXE support, LACP support, Giant Send Offload (GSO), Large Receive Offload (LRO), Receive Side Scaling (RSS), Single Root I/O Virtualization (SR-IOV), TCP Segmentation Offload (TSO), checksum offload support, UDP/IP offloading, iSCSI remote boot, Accelerated Receive Flow Steering (RFS), Solarflare Accelerated Receive Flow Steering (SARFS), Programmed I/O (PIO) mode |
| Network / Transport Protocol | TCP/IP, UDP/IP, iSCSI |
| Ports | 40 Gigabit QSFP+ x 2 |
| Remote Management Protocol | SNMP |
| Power Consumption Operational | 13 Watt |
| OS Required | Linux, SuSE Linux Enterprise Server 11, Microsoft Windows Server 2008 R2, SUSE Linux Enterprise Real Time, SuSE Linux Enterprise Server 10, Red Hat Enterprise Linux 5, Red Hat Enterprise Linux 6, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 7 |
