SuperMicro 2028TP-HC0R 2U SuperServer 4-Node X10DRT-P 8x LGA2011v3 E5-2600v3/v4
87466SuperMicro 2028TP-HC0R 2U SuperServer 4-Node X10DRT-P 8x LGA2011v3 E5-2600v3/v4
SuperMicro 2028TP-HC0R 2U SuperServer 4-Node X10DRT-P 8x LGA2011v3 E5-2600v3/v4

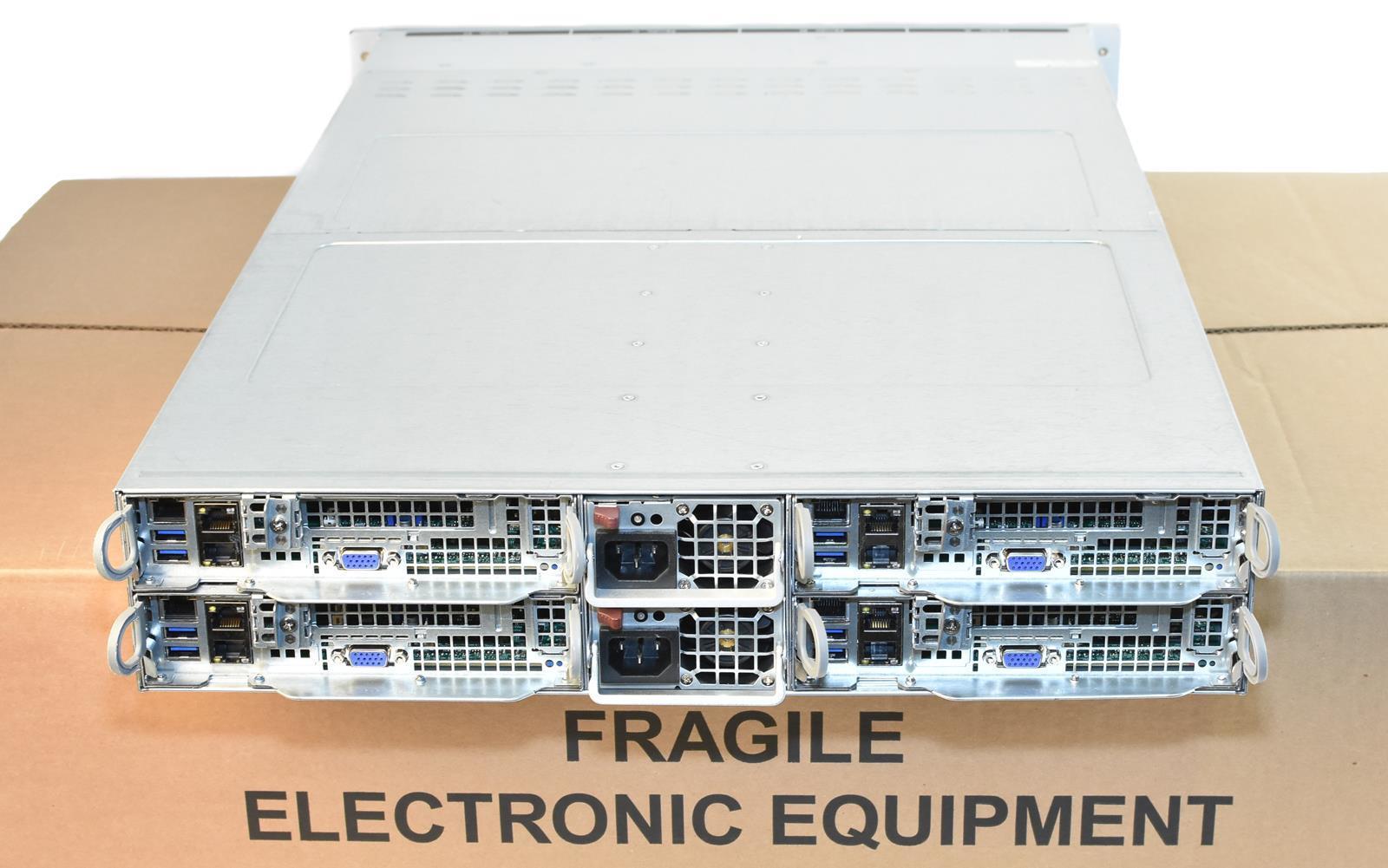

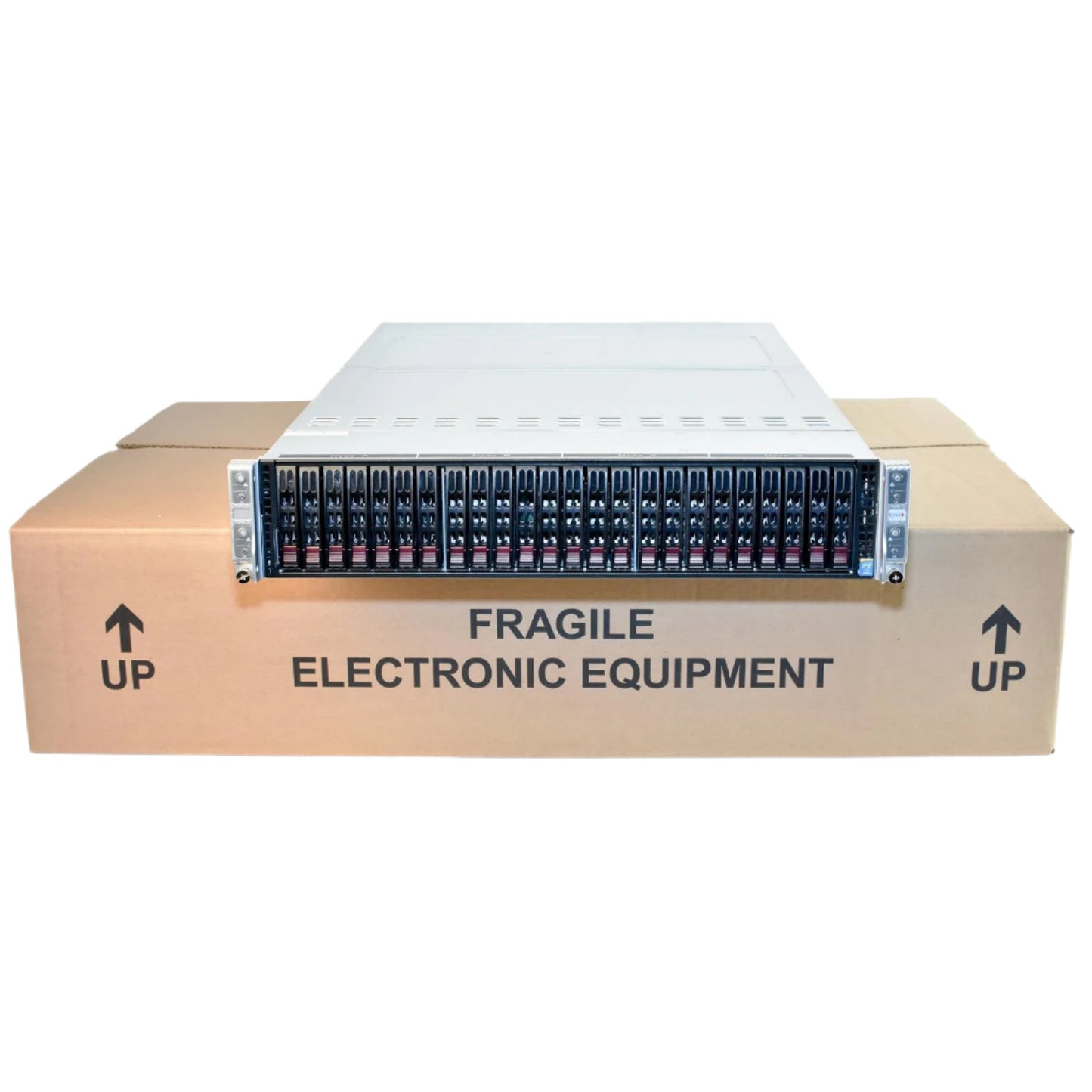

SuperMicro 2028TP-HC0R 2U SuperServer 4-Node X10DRT-P 8x LGA2011v3 E5-2600v3/v4 Barebone CTO Server with Redundant 2000W Power Supplies
SuperMicro SuperServer 2028TP-HC0R configured as follows:
- SuperMicro 2U Chassis Model#: CSE-217HQ+-R2K04B

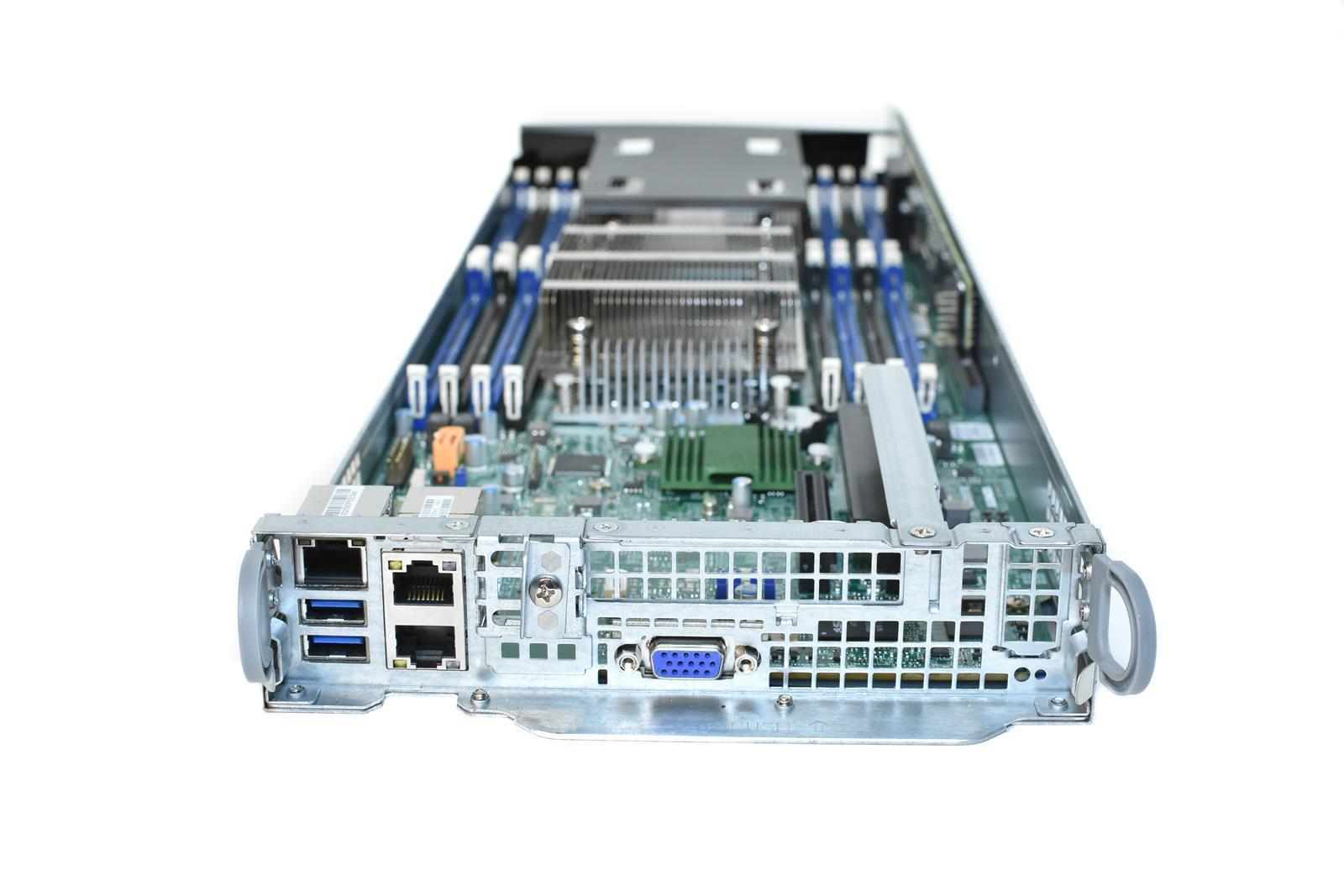

- Four hot-pluggable systems (nodes) SuperMicro X10DRT-P Dual Socket R3 (LGA 2011v3) supporting Intel Xeon processor E5-2600v3/v4 family processors
- Broadcom 3008 SAS3 (12Gbps) controller; RAID 0, 1, 10 support
- 2x SuperMicro 2000W Redundant Power Supplies Model#: PWS-2K02P-1R or PWS-2K04A-1R
- 24x 2.5" Hard Drive Caddies with screws
- 8x Heatsinks
- Rackmount rails are not included
- No memory (RAM), No processors (CPUs), No Hard Drives Installed
Add memory, processors,and hard drives to complete your preferred configuration.
Specifications:
| Form Factor | 2U Rack Mount |
|---|---|
| Model | SuperMicro 2028TP-HC0R - 24 2.5" Bays |
| Supported Processors |
Support up to 8x Intel® Xeon® processor E5-2600 v4/ v3 family (up to 145W TDP) across all 4 nodes. Up to 22 Cores / Up to 55MB Cache - QPI up to 9.6 GT/s Dual Socket R3 (LGA 2011) per node |
| Max Supported Memory | 16x 288-pin DDR4 DIMM slots per node Up to 2TB ECC 3DS LRDIMM, 512GB ECC RDIMM per node |
| Hard Drives | 6x Hot-swap 2.5" SAS/SATA HDD Bays per node |
| RAID Controller | BPN-ADP-S3008L-L6IP - Broadcom 3008 SAS3 (12Gbps) controller |
| RAID Levels | RAID 0, 1, 10 support |
| Power Supply | 2x 2000W Redundant Power Supplies |
| Network | Intel i350-AM2 Dual Port Gigabit Ethernet |
| Remote Access | Integrated IPMI 2.0 with KVM and Dedicated LAN |
| Rackmount Rails | Not included |
| Power Cord | Not included |
Condition: Off-lease equipment. Clean and tested by qualified technician.
Each server is configured to order. This process involves rigorous quality control which includes:
- Throughout visual inspection for physical damages
- Verification of all components and their functionality
- Full diagnostic test is performed utilizing manufacturer's diagnostic tools
- BIOS and firmware updates are installed
- All logs are cleared
- Passwords and settings are restored to factory defaults
Custom configurations are available. Please contact us for a quote or if you have questions regarding current configuration.
30-Day Warranty!
