SuperMicro 2029BT-HNC1R 2U 24-Bay 4-Node X11DPT-B SuperServer CTO w/AOC-MTG-i2TM

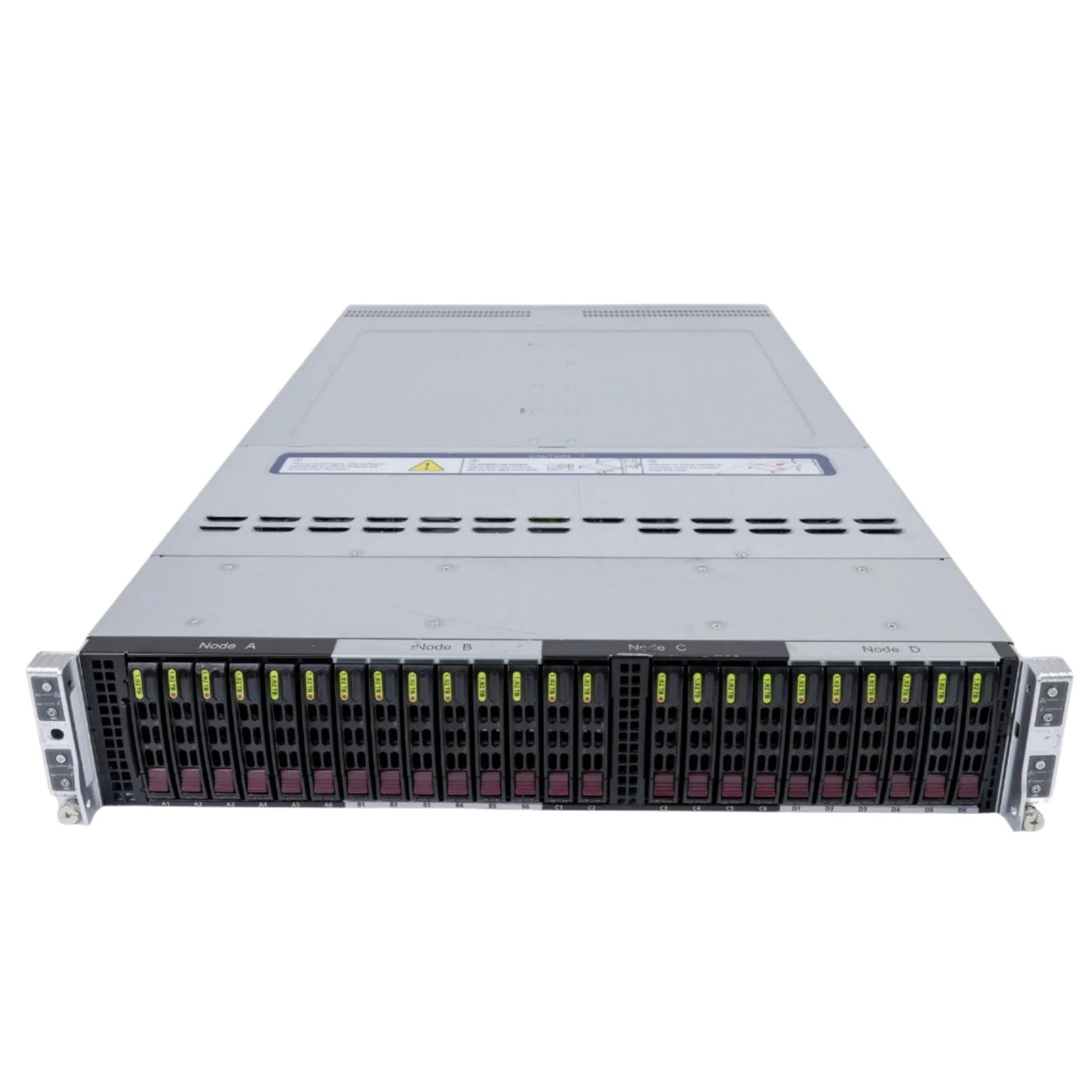

SuperMicro 2029BT-HNC1R 2U 2.5" SFF 24-Bay 4-Node X11DPT-B SuperServer CTO with Supermicro AOC-S3108L-H8IR-16DD RAID Controller and AOC-MTG-i2TM SIOM

Key Applications / Features:

  • Compute Intensive Application
  • HPC, Data Center, Enterprise Server
  • Hyperscale / Hyperconverged

Condition: Off-lease equipment. Clean and tested by a qualified technician. NO CPUs/NO MEMORY/NO HDDs. Rackmount rails are not included.

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

  • Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)‡
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM††
  • 1 PCI-E 3.0 x16 (LP) slot
  • Supermicro AOC-MTG-i2T 2-port Intel X550 10GbE RJ45 Ethernet Controller Super I/O Module (SIOM)
  • 1 Carrier Card slot (for M.2 support)
  • IPMI 2.0 + KVM with dedicated LAN
  • 6x SAS3 or 4x NVMe + 2x SAS3 Hot-swap 2.5" drive bays;
  • 2x M.2 SATA3 or NVMe support via optional AOC-SMG3-2H8M2-B (not included)
  • SAS3 support via Broadcom 3108 based Supermicro AOC-S3108L-H8IR-16DD-P RAID 0, 1, 5, 6, 10, 50, 60 Controller
  • 2200W Redundant Titanium Level (96% efficiency) Power Supplies

Parts List - (Items Included)

Part Number Qty Description
Motherboard / Chassis MBD-X11DPT-B

CSE-217BHQ+-R2K22BP2		 4

1		 Super X11DPT-B Motherboard

2U Chassis
Backplane AOC-S3108L-H8IR-16DD-P 4 Supermicro AOC-S3108L-H8iR-16DD Broadcom 3108 based RAID Controller
Backplane BPN-SAS3-217BHQ-N4 1 2U 4-Node 24-Port Backplane Supports 2x2.5\" SATA3/SAS3 SSD/HDD and 4x2.5\" SATA3/SAS3/NVMe Storage Media per Node
Cable CBL-SAST-0846-1 4 SLIMLINE SAS to MiniSAS HD 2X,INT,48CM, SB
Drive Tray(s) MCP-220-00047-0B 24 Supermicro Black (Gen 3) Hot-Swap 2.5" Drive Tray Caddy
Parts MCP-240-21730-0N 1 217B BigTwin type I (Impact) BPN retention bkt w/ foam assy
Riser Card RSC-P-6 4 RSC-P-6 (1U LHS TwinPro RSC with 1 PCI-Ex16),RoHS
Riser Card RSC-R1UTP-E16R 4 1U RHS TwinPro Riser card with one PCI-E x16 slot
Heatsink / Retention SNK-P0067PS 4 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
Heatsink / Retention SNK-P0067PSM 4 1U Passive CPU Heat Sink with a 26-mm Wide Middle Air Channel for X11 Purley Platform Equipped with a Narrow Retention Mechanism
Fan FAN-0183L4 4 80x80x38 mm, 16.5K RPM, Non-hot-swappable Middle Cooling Fan
Super I/O Module AOC-MTG-i2T 4 2-port Intel X550 10GbE RJ45 Ethernet Controller SIOM
Power Supply PWS-2K22A-1R 2 1U 2200W Redundant Power Supply Titanium, 45(W) X 40(H) X 48

Condition: Off-lease equipment. Clean and tested by a qualified technician. NO CPUs/NO MEMORY/NO HDDs. Rail kit is not included.

30-Day Warranty!

Manufacturer's description and specifications:

Product SKU SYS-2029BT-HNC1R
  • SuperServer 2029BT-HNC1R (Black)
Motherboard Super X11DPT-B
Processor (per Node)
CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡, Dual UPI up to 10.4GT/s
  • Support CPU TDP 70-205W*
Cores
  • Up to 28 Cores
Note * 200W/205W CPUs are supported under certain configurations. Please contact Supermicro Technical Support for additional information about specialized system optimization
Note ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R).


Extended thermal solutions may be required to support CPUs higher than 165W TDP, please contact Supermicro Technical Support for additional information.
System Memory (per Node)
Memory Capacity
  • 24 DIMM slots
  • Up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM††
Memory Type
  • 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.
On-Board Devices
Chipset
  • Intel® C621 chipset
SAS
  • SAS3 (12Gbps) via Broadcom 3108; RAID 0, 1, 5, 6, 10, 50, 60
Network
  • Must bundle with at least one SIOM network card
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
  • ASPEED AST2500 BMC
Input / Output (per Node)
LAN
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
Video
  • 1 VGA port
DOM
  • 1 SuperDOM (Disk on Module) port
Others
  • M.2 and SATA DOM for boot drive only
System BIOS
BIOS Type
  • AMI 32Mb SPI Flash ROM
Management
Software
  • Intel® Node Manager
  • IPMI 2.0
  • KVM with dedicated LAN
  • SSM, SPM, SUM
  • SuperDoctor® 5
  • Watch Dog
Power Configurations
  • ACPI / APM Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-217BHQ+-R2K22BP2
Dimensions and Weight
Width
  • 17.6" (447mm)
Height
  • 3.47" (88mm)
Depth
  • 28.75" (730mm)
Package
  • 24.65" (H) x 9.76" (W) x 45.28" (D)
Weight
  • Gross Weight: 85 lbs (38.6kg)
  • Net Weight: 54.5 lbs (24.7 kg)
Available Colors
  • Black
Front Panel
Buttons
  • Power On/Off button
  • UID button
LEDs
  • Power status LED
  • HDD activity LED
  • Network activity LEDs
  • Universal Information (UID) LED
Expansion Slots (per Node)
PCI-Express
  • 1 PCI-E 3.0 (x16) Low-profile slots
  • 1 SIOM card support

    (must bundle with network card)
Drive Bays / Storage (per Node)
Hot-swap
  • 6 Hot-swap 2.5" SAS3 drive bays or 4 NVMe + 2 SAS3 Hot-swap 2.5"


    Please contact Supermicro Technical Support for additional information about HDD and SSD if mixed. Some restrictions and configuration rules that apply to SSD are different from HDD.
M.2
  • 2 M.2 NVMe or SATA (2240/2260/2280) via optional AOC-SMG3-2H8M2-B
System Cooling
Fans
  • 4 Heavy duty 8cm PWM fans with air shroud
Power Supply 2200W Redundant Power Supplies with PMBus
Total Output Power
  • 1200W/1800W/1980W/2090/2200W
Dimension

(W x H x L)
  • 45 x 40 x 480 mm
Input
  • 1200W: 100-127Vac / 50-60Hz
  • 1800W: 200-220Vac / 50-60Hz
  • 1980W: 220-230Vac / 50-60Hz
  • 2090W: 230-240Vac / 50-60Hz
  • 2090W: 180-220Vac (for UL/cUL only)
  • 2200W: 220-240Vac (for UL/cUL only)
  • 2090W: 230-240Vdc (for CCC only)
+12V
  • Max: 100A / Min: 0A (100-127Vac)
  • Max: 150A / Min: 0A (200-220Vac)
  • Max: 165A / Min: 0A (220-230Vac)
  • Max: 174.17A / Min: 0A (230-240Vac)
  • Max: 174.17A / Min: 0A (180-220Vac, UL/cUL only)
  • Max: 183.33A / Min: 0A (220-240Vac, UL/cUL only)
  • Max: 174.17A / Min: 0A (230-240Vdc, CCC only)
12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • Gold Finger
Certification Titanium Level
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
