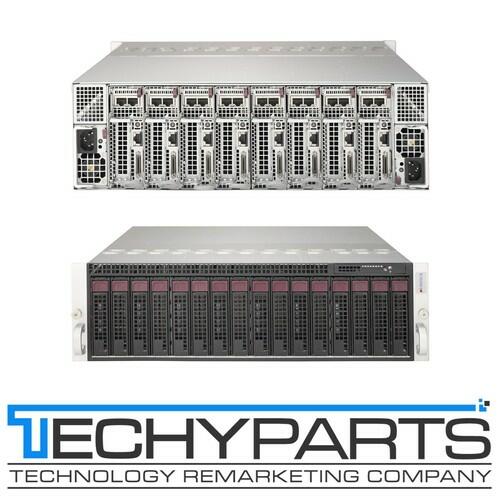

Supermicro 5038MD-H8TRF 8-Node Xeon D-1541 2.1GHz 3U MicroCloud Server w/Rails
95018Supermicro 5038MD-H8TRF 8-Node Xeon D-1541 2.1GHz 3U MicroCloud Server w/Rails
Supermicro SYS-5038MD-H8TRF 8-Node Xeon D-1541 3U MicroCloud Server CTO
Manufacturer: Supermicro
Model: SuperServer 5038MD-H8TRF
Part Number: SYS-5038MD-H8TRF
Condition: Clean working pull from enterprise equipment. Fully tested by a qualified technician and guaranteed 100% working.
What's Included:
Supermicro CSE-938BH-R1K68B 3U MicroCloud Chassis
8x Super X10SDD-F Motherboards with Integrated Intel Xeon D-1541 CPUs (one per node)
8x AOC-CGP-I2-P Intel i350 Dual GbE Controllers (one per node)
BPN-SAS-938H 16-Port SAS/SATA Backplane
8x Air Shrouds + 8x RSC-RR1U-E8 Riser Cards
Note: No memory, no drives, and no KVM cables included. Sold as pictured.
30-Day Warranty Included!
Maximize density and efficiency with this 8-node MicroCloud server - perfect for virtualization, containerized workloads, or high-density computing environments.
This is a genuine Supermicro SYS-5038MD-H8TRF 3U MicroCloud server featuring eight independent nodes, each powered by an Intel Xeon D-1541 8-core processor. Built for scalability and low power consumption, it is ideal for edge computing, cloud infrastructure, or enterprise deployments.
Manufacturer's description and specifications:
Supermicro SYS-5038MD-H8TRF 8-Node Xeon D-1541 3U Rackmount MicroCloud Server.
Key Specifications:
- Form Factor: 8-Node 3U Rackmount (CSE-938BH-R1K68B Chassis)

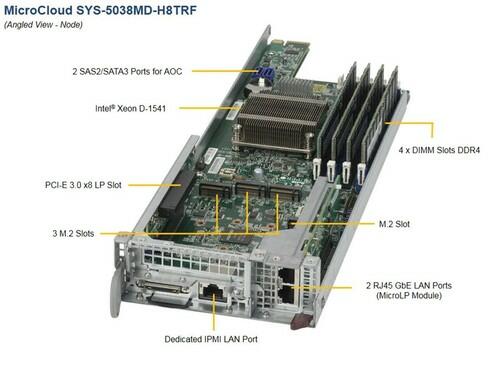

- Processor: 8x Intel Xeon D-1541 8-Core/16-Thread 2.1-2.7GHz 45W TDP (one per node, integrated on X10SDD-F)
- Memory: None included (4x DDR4 DIMM slots per node, up to 128GB ECC RDIMM)
- Expansion: 1x PCI-E 3.0 x8 + 1x Micro-LP per node; 4x M.2 interfaces per node

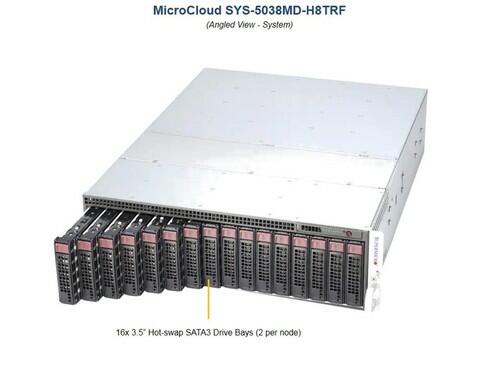

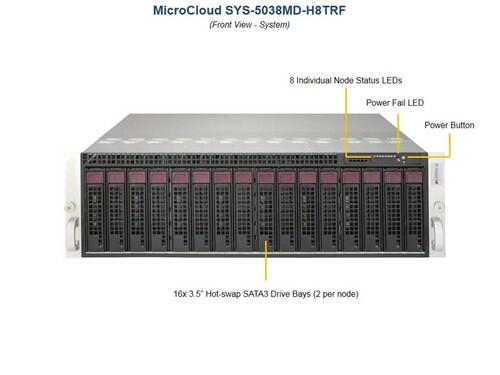

- Storage: 2x SATA3 (6Gbps) ports per node (no drives included)
- Networking: 2x GbE RJ45 per node via Intel i350 (AOC-CGP-I2-P)
- Power Supply: 2x 1600W PWS-1K68A-1R Titanium Redundant PSUs

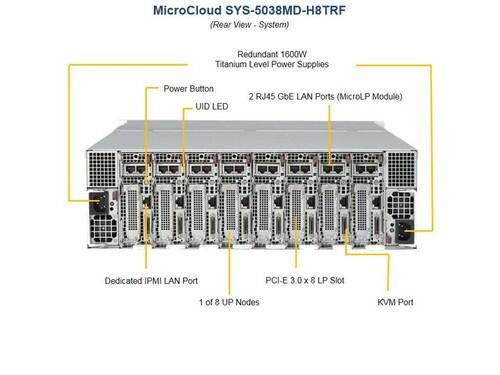

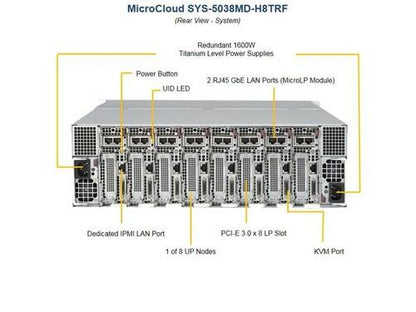

- Remote Management: IPMI 2.0 + KVM-over-LAN with ASPEED AST2400 BMC
| Product SKUs | |
| SuperServer | SYS-5038MD-H8TRF (Black) |
| Motherboard | |
| Motherboard | Super X10SDD-F (one per node) |
| Processor/Cache (per node) | |
| CPU | Intel Xeon D-1541, 8-Core/16-Thread, 2.1-2.7GHz, 45W TDP, Socket FCBGA 1667 |
| System Memory (per node) | |
| Memory Capacity | 4x 288-pin DDR4 DIMM slots - Up to 128GB ECC RDIMM / 64GB ECC UDIMM |
| Memory Type | 2133/1866/1600MHz ECC DDR4 RDIMM and ECC/Non-ECC UDIMM |
| Expansion Slots (per node) | |
| PCI-Express | 1x PCI-E 3.0 x8 Low-profile + 1x Micro-LP + 4x M.2 (PCI-E 3.0/2.0) |
| Network Devices (per node) | |
| Micro-LP NIC | Intel i350 Dual GbE Controller (AOC-CGP-I2-P) - 2x RJ45 |
| On-Board Devices (per node) | |
| SATA | 2x SATA3 (6Gbps) ports |
| IPMI | ASPEED AST2400 BMC with IPMI 2.0 + KVM-over-LAN |
| Chassis & Physical | |
| Form Factor | 3U Rackmount - 5.21" H x 17.26" W x 23.2" D |
| Power Supply | 2x 1600W Titanium Redundant (PWS-1K68A-1R) |
| Cooling | 4x 8cm Heavy Duty Fans |
Standard Parts List (Included):
| Parts List - (Items Included) | |||
| Category | Part Number | Qty | Description |
| Motherboard / Chassis | MBD-X10SDD-F CSE-938BH-R1K68B | 8 1 | Super X10SDD-F Motherboard 3U Chassis |
| Add-on Card / Module | AOC-CGP-I2-P | 8 | Intel i350 Dual GbE Controller |
| Air Shroud | MCP-310-93804-0B | 8 | Air shroud for each node |
| Backplane | BPN-SAS-938H | 1 | 16-port 3U MicroCloud Backplane |
| Riser Card | RSC-RR1U-E8 | 8 | Riser cards |
| Power Supply | PWS-1K68A-1R | 2 | 1600W Titanium Redundant PSUs |
