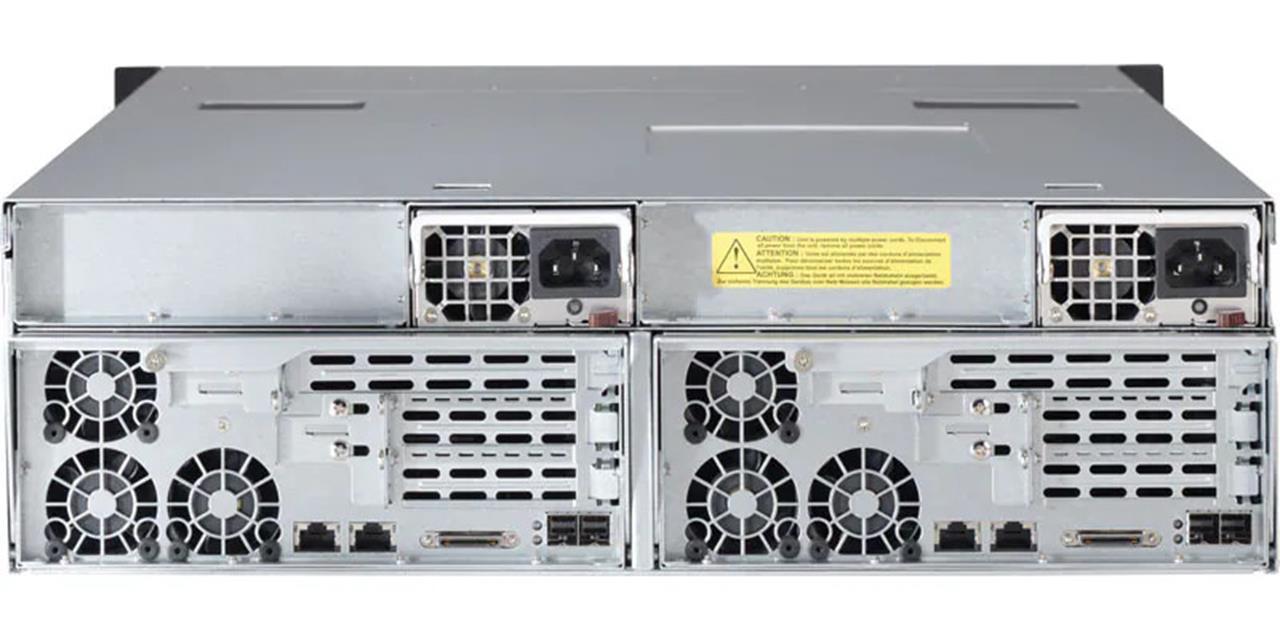

Two hot-pluggable systems (nodes) in a 3U form factor. Each node supports the following:
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 † /v3 family; QPI up to 9.6GT/s
2. Up to 1TB † ECC 3DS LRDIMM, up to DDR4- 2400 † MHz; 8x DIMM slots
3. 3 PCI-E 3.0 x8 (1 FHHL, 2 LPHL) expansion slots per controller; up to 3 add-on cards
4. Dual 10GBase-T LAN w/ Intel® X540; 100Mb private Ethernet between controller nodes
5. 16x 3.5" Hot-swap SAS3/SATA3 drive bays with SES2
6. SAS3 via Broadcom 3008 controller
7. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
8. 12x 4cm PWM cooling fans
9. 1200W Redundant Power Supplies Titanium Level (96%)
