SuperMicro 6047R-E1R24N CSE-846 X9DRi-LN4F+ LGA2011 4U 24-Bay Server Chassis CTO

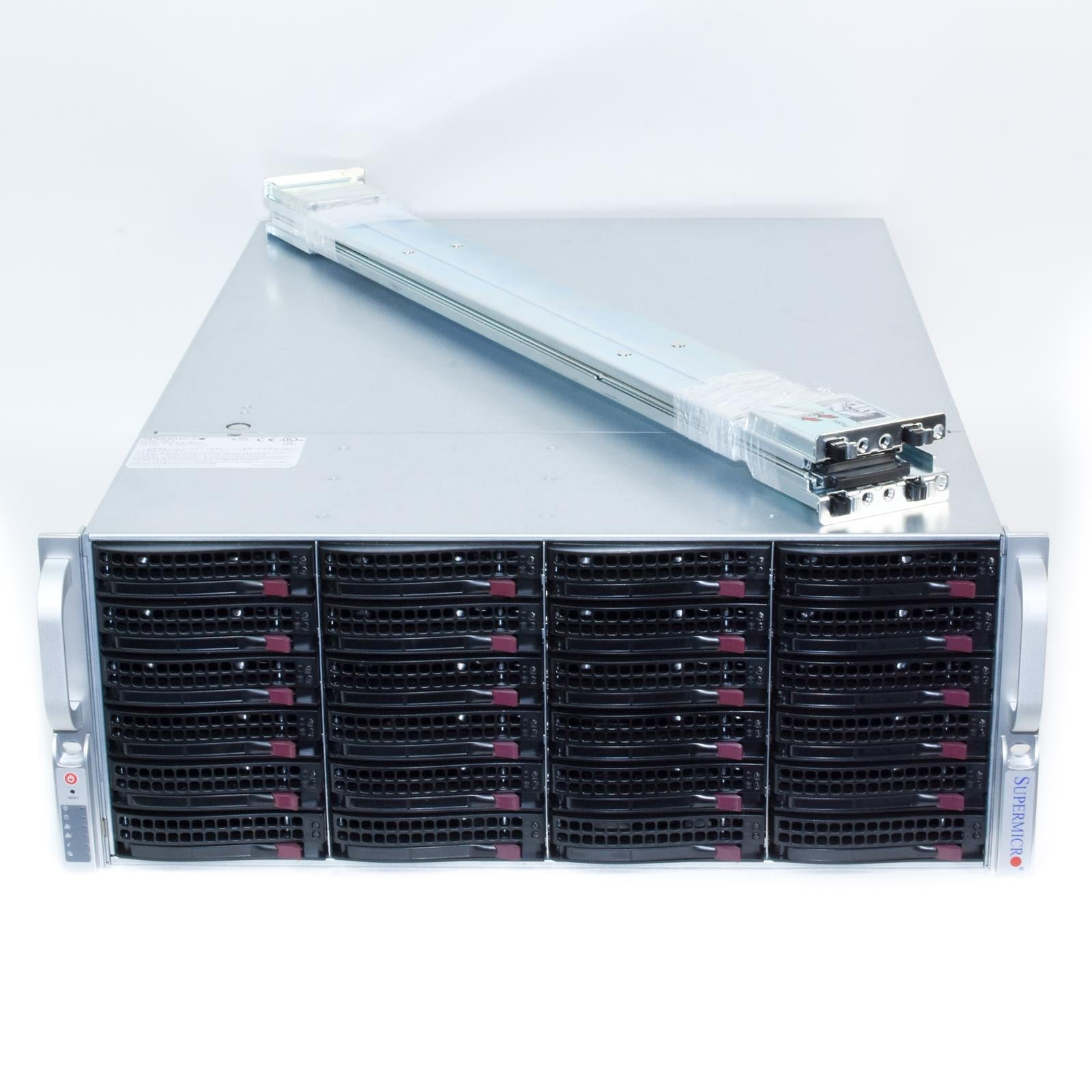

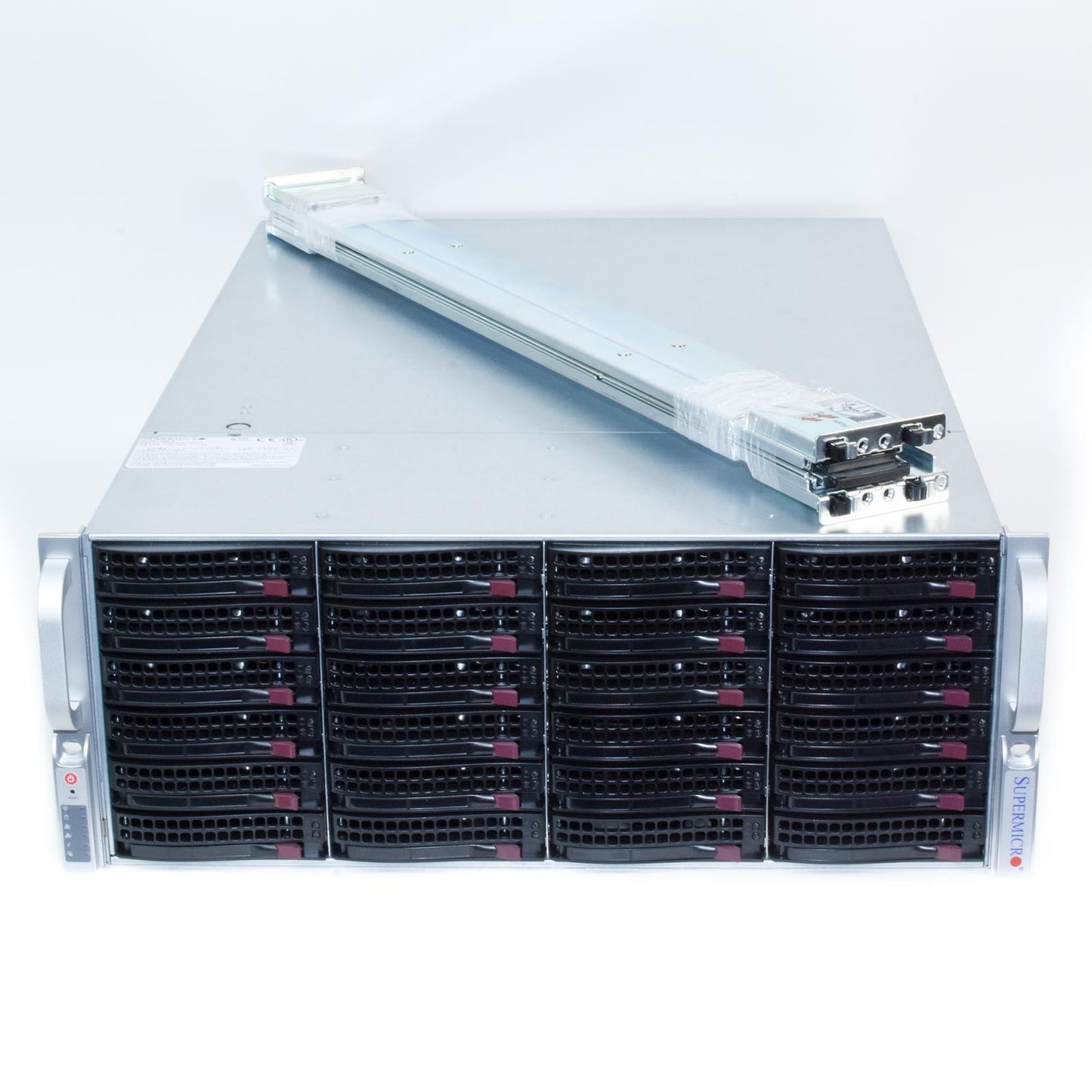

Supermicro SuperStorage 6047R-E124N 4U Server Chassis with X9DRI-LN4F+ Dual LGA2011 socket (E5-2600/E5-2600v2 Xeon compatible) motherboard, AOC-SAS2LP-H8iR 8-port SAS/SATA RAID Adapter, 2x 920W PSUs, 24 x 3.5" hot-swap SAS/SATA Drive Bays and Optional Rear 2.5 x 2 hot-swap HDD kit
Condition: Off-lease equipment. Clean and tested by qualified technician. Sold as pictured, Rail kit is included. 24x 3.5" and 2x 2.5" HDD trays and screws are included.
Specifications:
Form Factor:
- Supermicro CSE-846BE16-R920B 24x 3.5" Drive Bays 4U rackmount chassis with Optional Rear 2.5 x 2 hot-swap HDD kit installed
- 4U chassis support for max. motherboard size - 13.68" x 13" E-ATX, 12" x 10" ATX and 9.6" x 9.6" Micro-ATX
- Support up to 12"x13" MB with rear 2.5" HDD option installed.
Motherboard:
Supermicro X9DRi-LN4F+ Enhanced Extended ATX Dual Socket R (LGA 2011)
- Intel® Xeon® processor E5-2600 and E5-2600 v2 family (up to 135W TDP)
- 24x 240-pin DDR3 DIMM slots
- Intel® C602 chipset
- Intel® i350 Gigabit Ethernet (x4 ports)
- 1x Realtek RTL8201N PHY (dedicated IPMI)
RAID Adapter:
AOC-SAS2LP-H8iR 8-port SAS/SATA RAID Adapter
- 8 internal ports SAS/SATA 512MB Cache PCI-E x8 RAID Adapter Card
- LSI2108 based, 600MB/s per channel, Raid Levels 0, 1, 5, 6, 10, 50, 60 support
Expansion Slots:
- Seven full-height PCI expansion slots
Drive Bays:
- 24x 3.5" drive bays front and 2x 2.5" rear with HDD Hot-swap trays, SAS HDD and Enterprise SATA HDD recommended.
Supermicro BPN-SAS2-846EL1 (front) SAS Backplane with single expander and BPN-SAS-2PT (rear) direct attach backplane.
Expander support SAS2 6.0Gb/s
Front Panel:
- Buttons: Power On/Off, System Reset buttons.
LEDs: Power, HDD, Network activity, System Overheat, & Power Fail LEDs.
System Cooling:
- 3 x 8cm hot-swap redundant PWM cooling fan(s)
- 2 x 8cm hot-swap exhaust fan(s) & air shroud
Support redundant cooling function
Power Supply:
- 2x Redundant (1+1) 920WPWS-920P-SQ Redundant Platinum Super Quiet power supply W/PMbus
94% High-efficiency with 80 PLUS Platinum Certified
30-Day Warranty!
