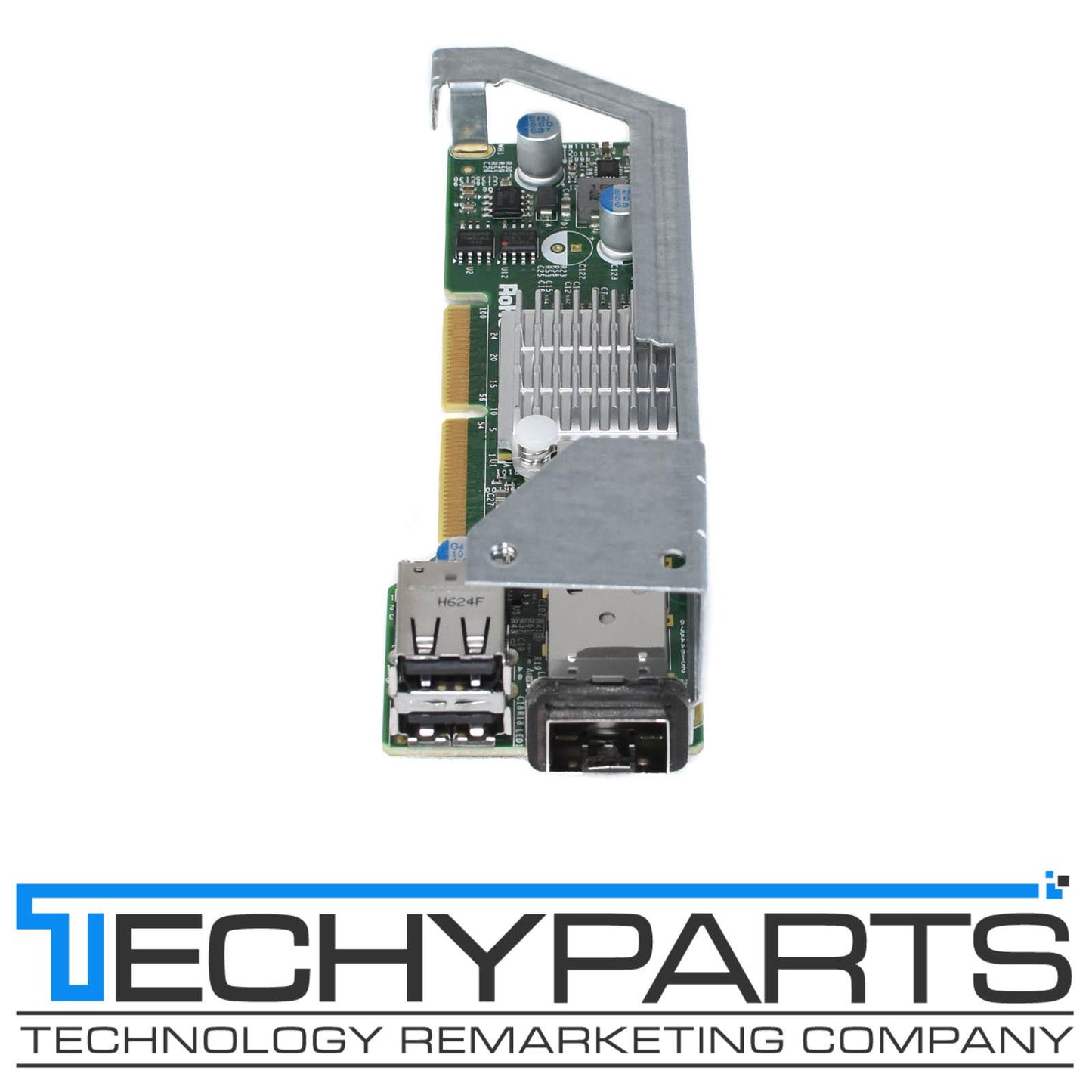

Supermicro AOC-CTG-i1S 1-Port 10Gb SFP+ MicroLP Ethernet Adapter w/2x USB 2.0

Supermicro AOC-CTG-i1S 10Gb SFP+ MicroLP Ethernet Adapter w/2x USB 2.0 without Mounting Bracket

SUPERMICRO P/N: AOC-CTG-i1S

Tranceiver: Not included

Condition: Clean, tested pull - Guaranteed 100% working!

Sold as pictured. No software, cables or other accessories included.

Please note: Mounting bracket is not included. You will need either BKT-0057L I/O bracket for 1U system or BKT-0058L I/O bracket for 2U system. Great option if you are replacing a defective card which you can pull the bracket off.

30-Day Warranty!

Manufacturer's description:

Compact and Powerful 10 Gigabit Ethernet Adapter

The AOC-CTG-i1S 10 Gigabit Ethernet Adapter is the most flexible and scalable Ethernet adapter for today's demanding data center environments. Based on the Intel® 10GbE network controller 82599EN, the AOC-CTG-i1S addresses the demanding needs of the next-generation data center by providing features for virtualization, flexibility for LAN and SAN networking, and proven reliable performance. The AOC-CTG-i1S is designed in a small microLP form factor to fit Supermicro Twin server systems.

Key Features:

  • Single SFP+ Connector
  • MicroLP Form Factor
  • PCI Express 2.0 (up to 5GT/s)
  • Intel QuickData Technology
  • VMDq, Next-Generation VMDq, and PC-SIG SR-IOV for Virtualized Environments
  • Load Balancing on Multiple CPUs
  • iSCSI Remote Boot Support
  • Fibre Channel over Ethernet (FCoE) Support
  • Support for most Network Operating Systems (NOSs)
  • Support both DAC Twin Axial and LC Fiber-Optic Cables
  • RoHS Compliant 6/6, Pb Free

Specification

General

  • Intel® 82599EN 10GbE controller
  • Compact size microLP form factor
  • Single SFP+ port and dual USB 2.0 ports
  • PCI-E x8 2.0 (5GT/s)
  • Load balancing on multiple CPUs
  • iSCSI remote boot support
  • Fibre Channel over Ethernet (FCoE) Support
  • Intel® PROSet Utility for Windows® Device Manager

I/O Features

  • Intel QuickData Technology: DMA engine that enhances
  • Data acceleration and lowers CPU usage
  • Direct Cache Access (DCA) to avoid cache misses
  • MSI-X support to minimize the overhead of interrupts
  • Allowing load-balancing between multiple cores/CPUs
  • Tx/Rx IP, SCTP, TCP and UDP checksum offloading Capabilities (IPv4, IPv6)
  • Receive and Transmit Side Scaling for Windows environments and Scalable I/O for Linux environments

Virtualization Features

  • Supports virtualization features such as VMDq,
  • Next-generation VMDq (64 queues per port) and
  • PC-SIG SR-IOV implementation
  • IPv6 Offloading
  • Advanced Packet Filtering
  • VLAN support to allow creation of multiple VLAN segments
  • VXLAN through Software

Manageability Features

  • Preboot eXecution Environment (PXE) support
  • Simple Network Management Protocol (SNMP) and Remote
  • Network Monitoring (RMON) statistics counters
  • iSCSI remote boot

OS Support

  • Windows® 7, 2003, 2008, 2008 R2, Vista
  • RedHat EL, SuSe SLES
  • FreeBSD
  • VMWare

Cables Support

  • SFP+ direct attached twin axial cables, up to 7 meters
  • LC-LC fiber-optic cables (optional SFP+ transceiver is required)

Operating Conditions

  • Operating temperature: 0°C to 55°C (32°F to 131°F)

Physical Dimensions (L x W)

  • Card PCB dimensions (without end brackets): 12.32cm (4.85in) x 3.90cm (1.54in)
