Supermicro AOC-MH25G-M2S2TM SIOM 2-port 25GbE SFP28/2-port 10GbE RJ45 Intel X550
90343Supermicro AOC-MH25G-M2S2TM SIOM 2-port 25GbE SFP28/2-port 10GbE RJ45 Intel X550
Supermicro AOC-MH25G-M2S2TM SIOM 2-port 25GbE SFP28/2-port 10GbE RJ45 Intel X550
Supermicro AOC-MH25G-M2S2TM SIOM 2-port 25GbE SFP28/2-port 10GbE RJ45 Intel X550

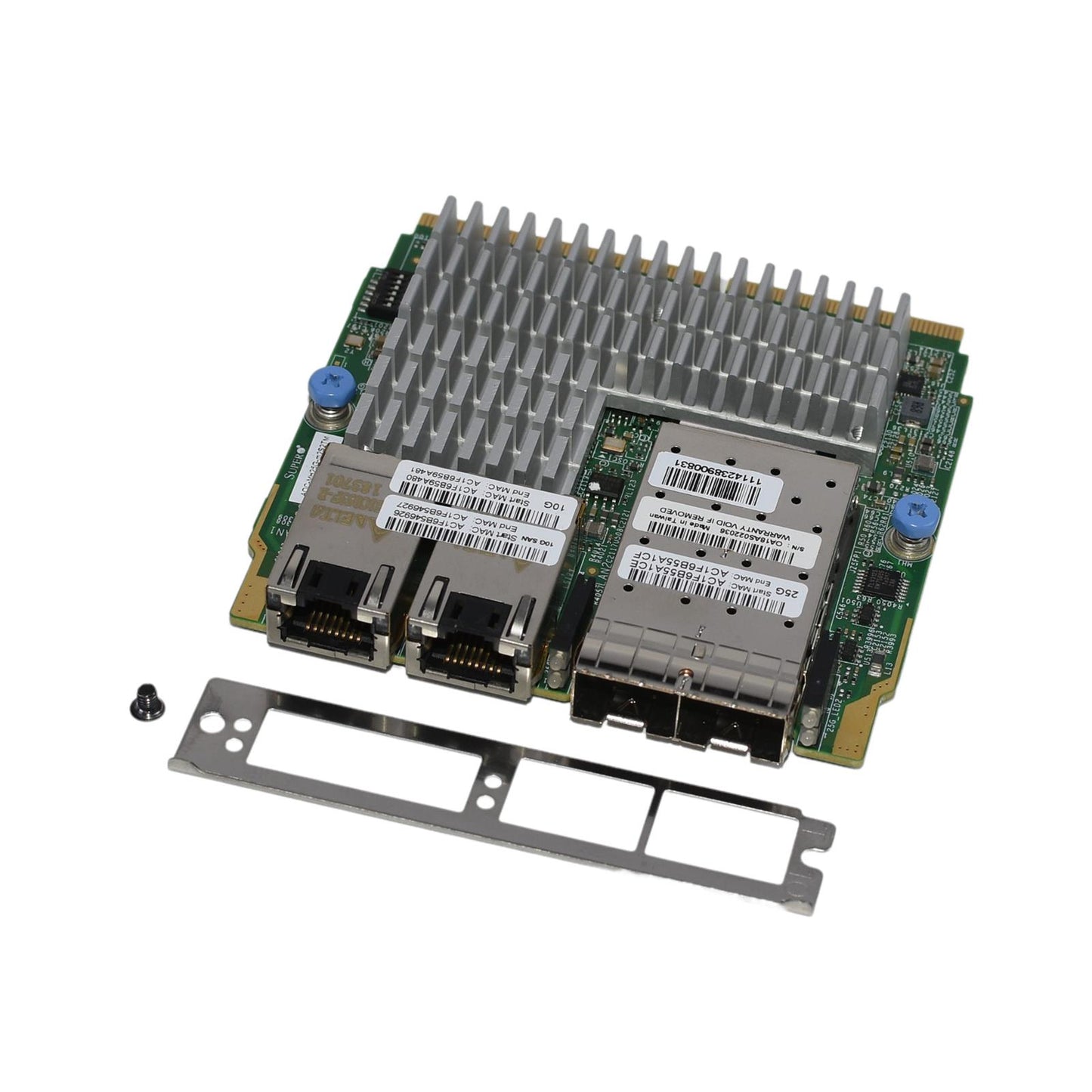

2-port 25 Gigabit & 2-port 10 Gigabit Ethernet Adapter with a BKT-0113L internal bracket for 1U chassis (Twin Servers)
Advanced 25GbE Controller Super I/O Module (SIOM)
The Supermicro AOC-MH25G-m2S2T(M) is one of the most feature-rich 25GbE controllers in the market. Based on the Mellanox® ConnectX-4 Lx EN with features such as VXLAN and NVGRE; it provides flexible connectivity for different networking requirements. It is compatible with 10GbE networks and offers the most cost-effective upgrades from 10GbE to 25GbE in Data Center and Cloud deployments.
The AOC-MH25G-m2S2T(M) also supports an additional 2-ports of 10GbE RJ45 connectivity, based on the Intel® X550 controller, providing NC-SI for Remote Management. This versatile 25GbE controller is an excellent choice to enhance data center network connectivity when high-speed throughput is required.
Key Features:
• Super I/O Module (SIOM) Form Factor
• Mellanox® ConnectX-4 Lx EN 25GbE controller Dual SFP28
connectors
• Intel® X550-AT2 10GbE controller, Dual RJ45 Connectors
• Hardware offloads for NVGRE, VXLAN, and GENEVE
encapsulated traffic
• SR-IOV for virtualization
• Low latency RDMA over Converged Ethernet(RoCE)
(25GbE Controller only)
• Jumbo Frames Support
• NC-SI for Remote Management (10GbE Controller only)
• Asset Management Features with thermal sensor
• RoHS compliant 6/6
Transceivers: Not included
Mounting bracket included: BKT-0113L
Condition: Clean, tested pull - Guaranteed 100% working!
30-Day Warranty!
