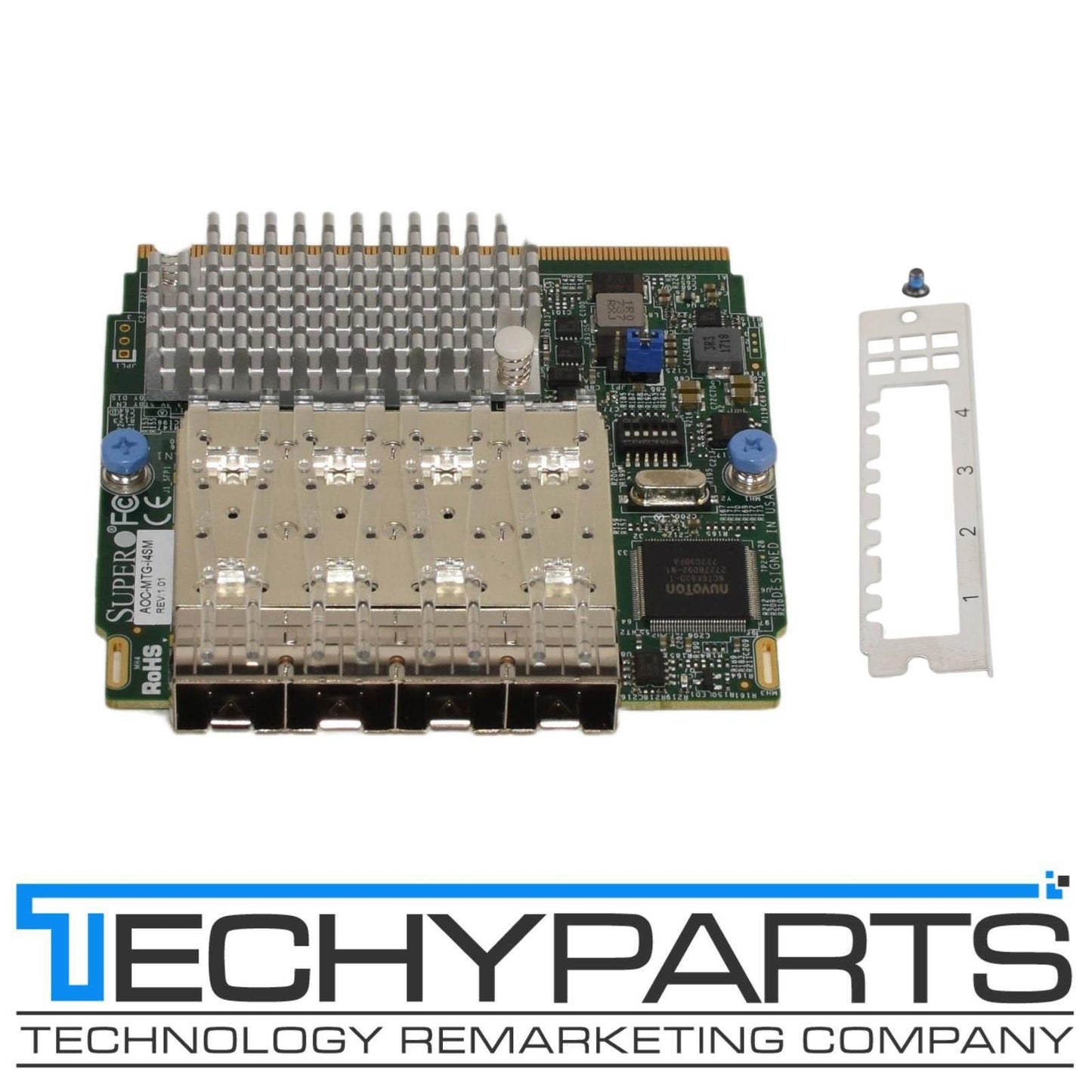

Supermicro AOC-MTG-i4SM Intel XL710 4-Port 10GbE SFP+ SIOM NIC with BKT-0091L

Supermicro AOC-MTG-i4SM Intel XL710 4-Port 10GbE SFP+ Super I/O SIOM NIC with BKT-0091L

SUPERMICRO P/N: AOC-MTG-I4SM

Transceiver: Not included

Mounting bracket: BKT-0091L

Condition: Clean, tested pull - Guaranteed 100% working!

No software, cables or other accessories included. Comes with BKT-0091L mounting bracket only.

30-Day Warranty!

Manufacturer's description and specifications:

Key Features

• Quad SFP+ Connectors
• Super I/O Module (SIOM) Form Factor
• Network Virtualization Offloads including VXLAN and NVGRE
• Small Packet Performance
• Data Plane Developer Kit for efficient packet processing
• Low Power Consumption
• Intel Flow Director
• Intelligent Offloads
• Unified networking providing a single wire support for LAN and storage
• Asset Management Features
• NC-SI for Remote Management
• RoHS compliant 6/6
• Supports Both Direct Attach Copper and Fiber Cables

General

• Intel XL710 controller
• Super I/O Module (SIOM) Form Factor
• Quad SFP+ connectors with speed up to 10Gbps per port
• Load balancing on multiple CPUs
• Intel PROSet Utility for Windows Device Manager
• Time Sync (IEEE 1588)
• Energy Efficient Ethernet (EEE)

I/O Features

• Intel Flow Director
• MSI-X support
• Multiple Queues: 1,536 TX and RX queues per port
• Tx/Rx IP, SCTP, TCP, and UDP checksum offloading (IPv4, IPv6) capabilities
• Jumbo Frame (9.5KB)

Virtualization Features

• Next-Generation VMDq with up to 256 VMDq VMs supported
• PCI-SIG SR-IOV with up to 128 virtual ports
• Virtual Machine Load Balancing (VMLB)
• Advanced Packet Filtering
• VLAN support for up to 4096 VLAN tags
• VXLAN and NVGRE support

Storage Interface Features

• Preboot eXecution Environment (PXE) support
• iSCSI remote boot
• Simple Network Management Protocol (SNMP) and Remote Network Monitoring (RMON) static counters

Management Features

• Asset Management support on Supermicro platforms
• Controller asset tags such as part number, revision, serial number, and MAC addresses
• Controller thermal sensor
• NC-SI for remote management

Advanced Software Features

• Teaming support
• IEEE 802.3ad (link aggregation control protocol)
• IEEE 802.1Q VLANs
• IEEE 802.3 2005 flow control support
• TCP segmentation/large send offload
• Interrupt moderation

OS Support

• Windows Server 2012 R2, 2012, 2008 R2 X86-64
• Linux RedHat EL 6.5 and 7.0 IA-32, X86-64, and IA-64
• Linux SuSE SLES 11 SP3 and 12 IA-32, X86-64, and IA-64
• FreeBSD 9 and 10 IA-32, X86-64, and IA-64
• UEFI 2.1 and 2.3 X86-64 and I-64
• VMware ESXi 5.1, ESXi 5.5 and ESXi 6.0 X86-64

Cable Support

• SFP+ direct attach twinaxial copper cables up to 7m
• Fiber-optic cables (with required optional SFP+ transceivers)

Power Consumption

• Typical power consumption: 4W
• Maximum power consumption: 7W

Operating Conditions

• Operating temperature: 0°C to 55°C (32°F to 131°F)
• Storage temperature: -40°C to 70°C (-40°F to 158°F)
• Storage humidity: 90% non-condensing relative humidity at 35°C

Physical Dimensions

• Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in) (W x D)
