Manufacturer's Description and Specifications:

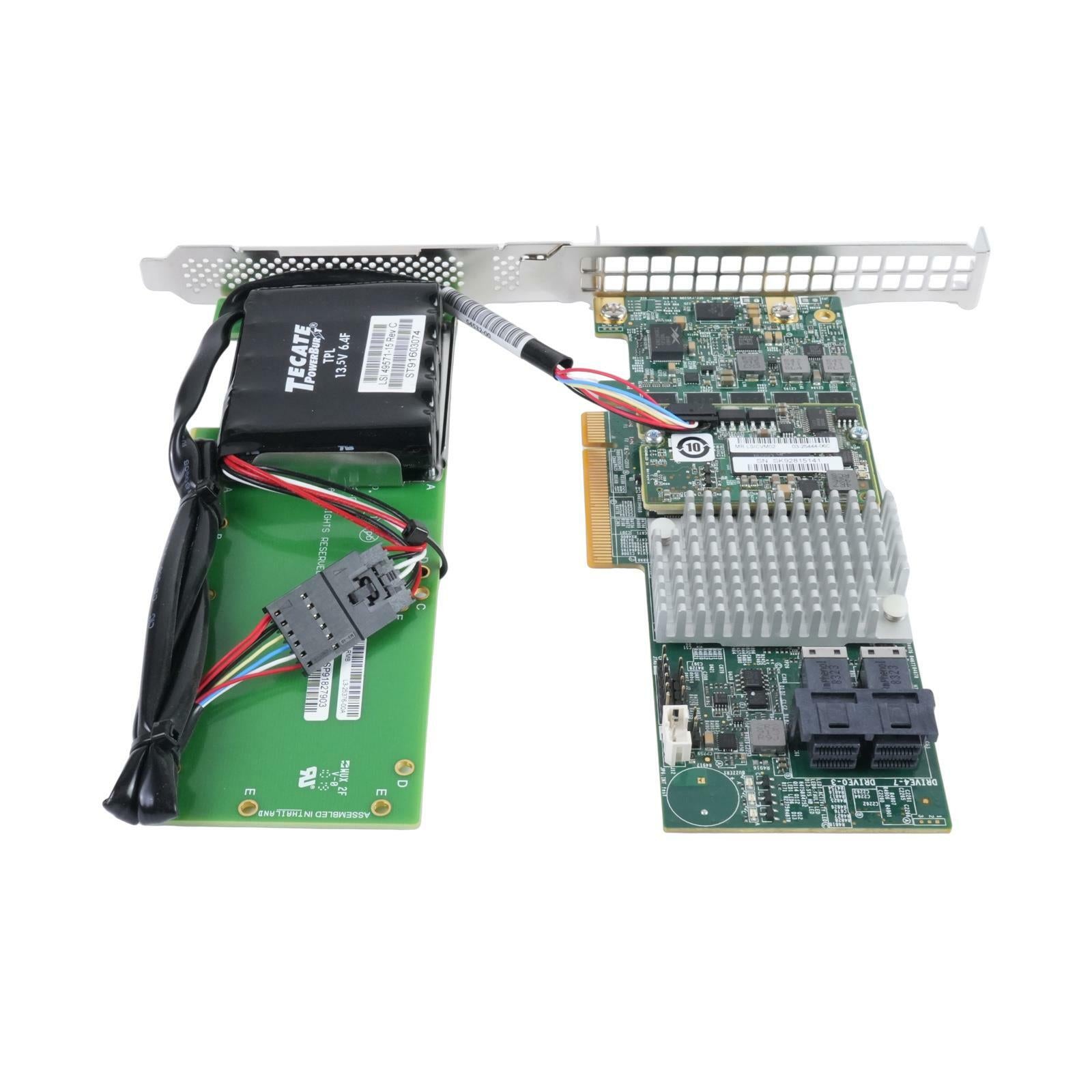

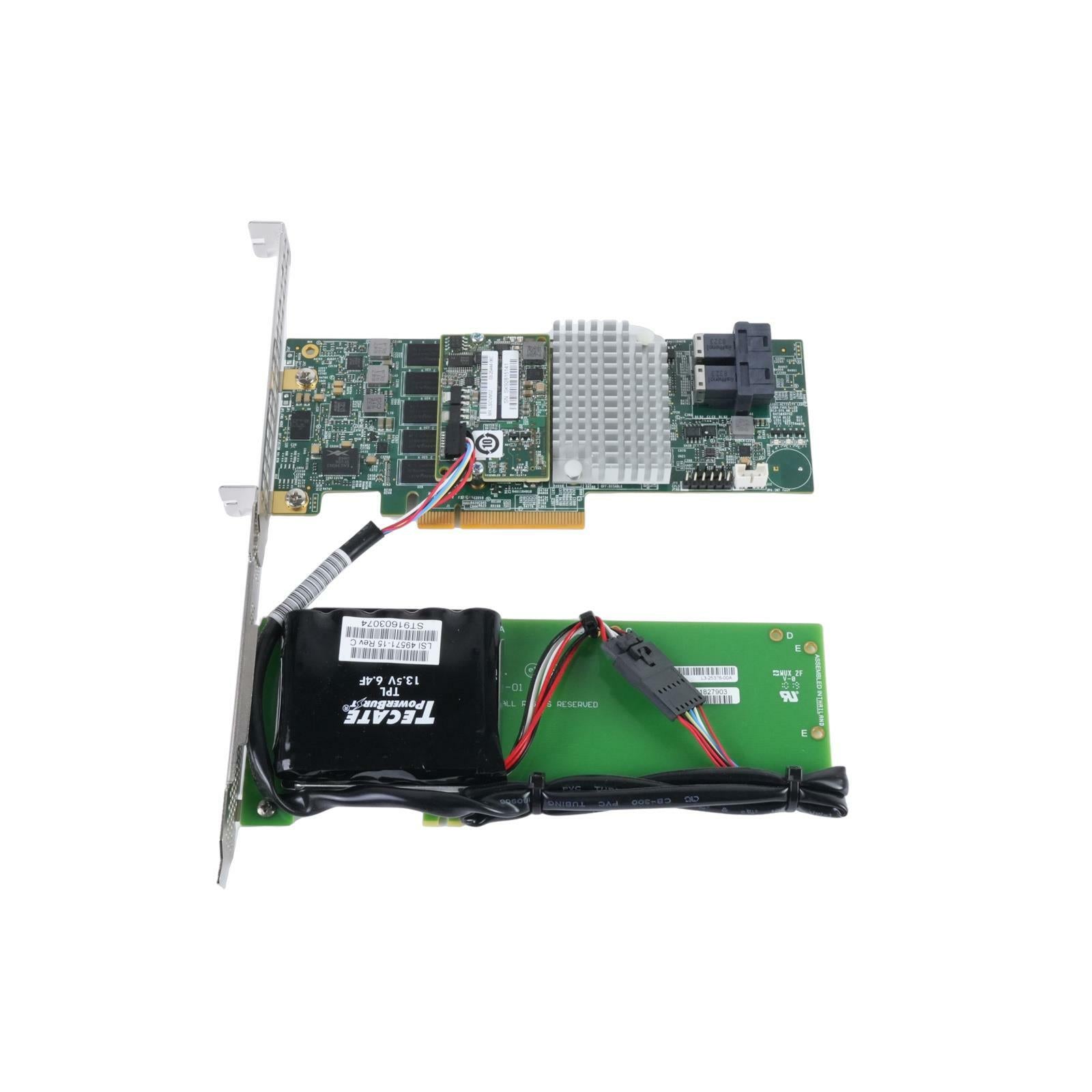

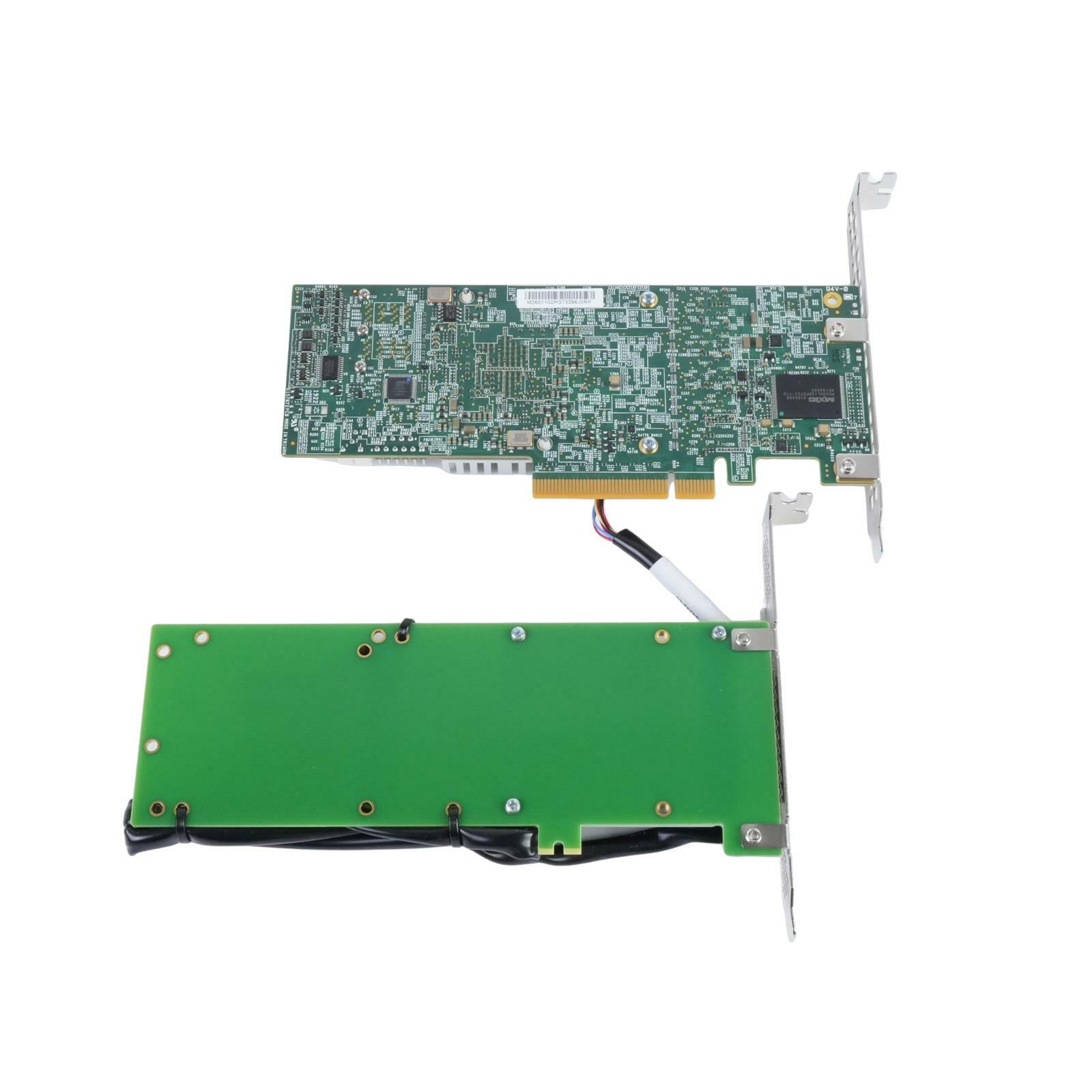

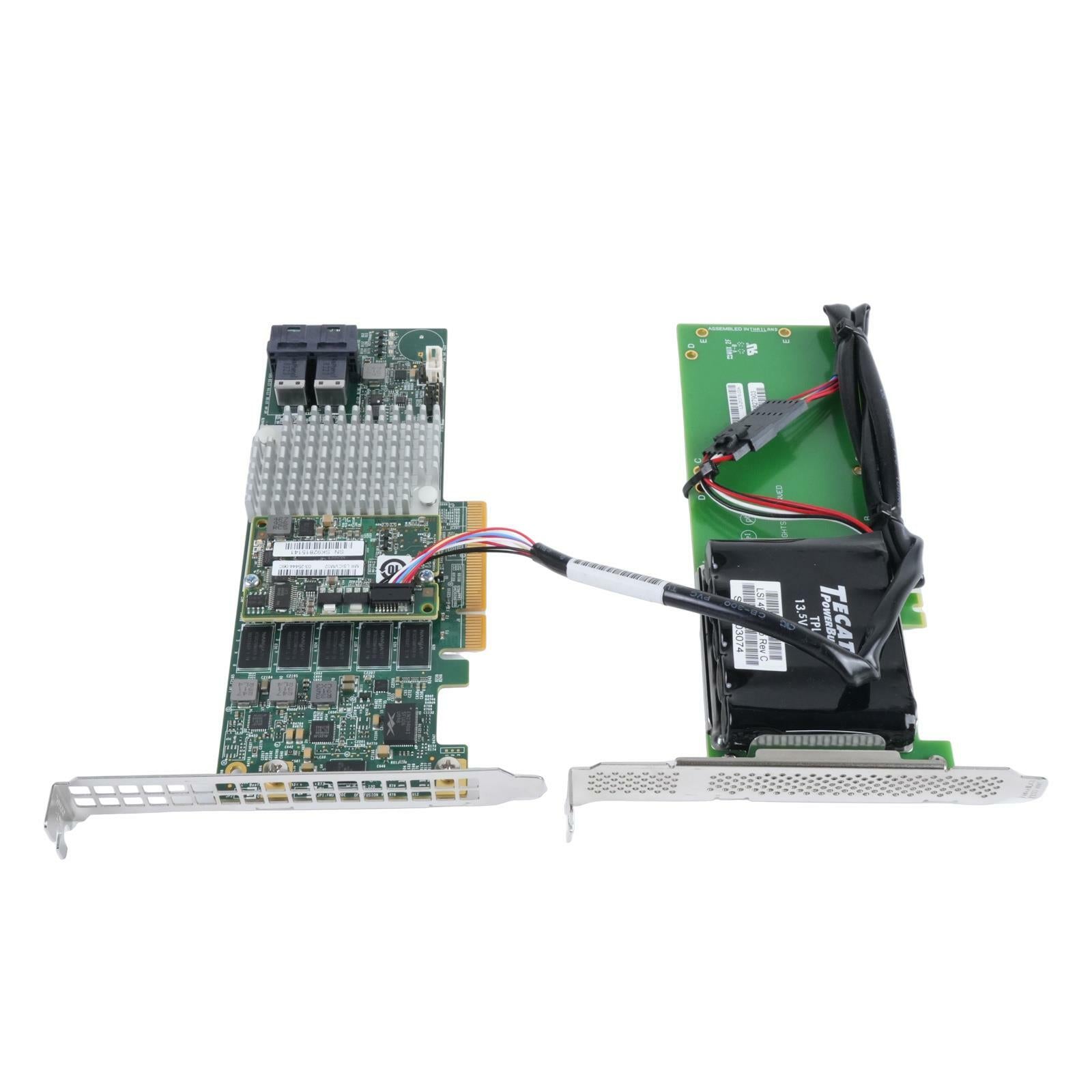

Supermicro Low Profile 12Gb/s 8-Port SAS/SATA RAID Adapter (AOC-S3108L-H8iR-16DD) with CacheVault

The Supermicro MegaRAID AOC-S3108L-H8iR-16DD features 8 internal SAS connectors for high-performance storage connectivity. Built on Broadcom SAS IC and proven MegaRAID technology, it meets the demand for increased data throughput and scalability in enterprise-class server platforms. It supports advanced RAID levels (0, 1, 5, 6, 10, 50, 60), making it ideal for high-capacity storage applications. The card offers cost-effective solutions with SATA drives and maximum performance with SAS drives.

This unit includes the BTR-TFM8G-LSICVM02 CacheVault module (Tacate PowerBurst TPL LSI 49571-13 Rev A 13.5V 6.4F Cache Battery with bracket) for cached data protection, ensuring data integrity during system failures (operating temperature: 10C to 55C). Powered by a Broadcom 3108 I/O processor and a PCI Express 3.0 host interface, it delivers optimal RAID performance and increased bandwidth for robust storage solutions.

The AOC-S3108L-H8iR-16DD supports up to 16 HDDs with RAID 0, 1, 5, 6, 10, 50, and 60. With expander backplanes, the AOC-S3108L-H8iR supports up to 240 HDDs with the same RAID levels. This product is compatible with Supermicro motherboards only and available exclusively through Supermicro. Note: X9 motherboards are end-of-life and require firmware versions 4.6800-8290 or older.

Key Features

• Broadcom 3108 8-port PCI-E SAS-3 controller
• 8 internal ports, 12Gb/s per port
• Supports RAID 0, 1, 5, 6, 10, 50, 60
• On-board hardware I/O processor
• 2GB 1866MHz DDR3 on-card cache
• Advanced array configuration and management utilities
• Automatic PCI-E link width negotiation
• Power management support
• Supports 1.5, 3.0, 6.0, and 12Gb/s SAS/SATA data transfer rates
• Port-independent auto-negotiation
• Supports SSP, SMP, STP, and SATA protocols
• Includes BTR-TFM8G-LSICVM02 CacheVault module for cached data protection (10C to 55C)
• OS Support: Windows (2012, Server 2016, Server 2019, 8, 8.1), Linux RHEL, Ubuntu, SUSE
• Uses 2 MiniSAS HD (SFF-8643) connectors
• Operating Temperature: 10C to 55C

Dimensions and Weight

• Dimensions: 2.71" x 6.6"
• Weight: 0.5 lbs

Compliance

• RoHS Compliant 6/6, Pb Free
