Supermicro AOC-S3908L-H16iR-32DD 16-Port SAS/SATA/NVMe PCIe4 RAID w/BTR-CVPM05
95439Supermicro AOC-S3908L-H16iR-32DD 16-Port SAS/SATA/NVMe PCIe4 RAID w/BTR-CVPM05
Supermicro AOC-S3908L-H16iR-32DD 16-Port SAS/SATA/NVMe PCI-Express 4.0 x8 Trimode RAID Controller with BTR-CVPM05 SuperCap/TFM unit
Manufacturer: Supermicro
OEM Controller: Broadcom SAS3916
Part Number: AOC-S3916L-H16iR-32DD
Cache Protection: BTR-CVPM05 SuperCap / TFM

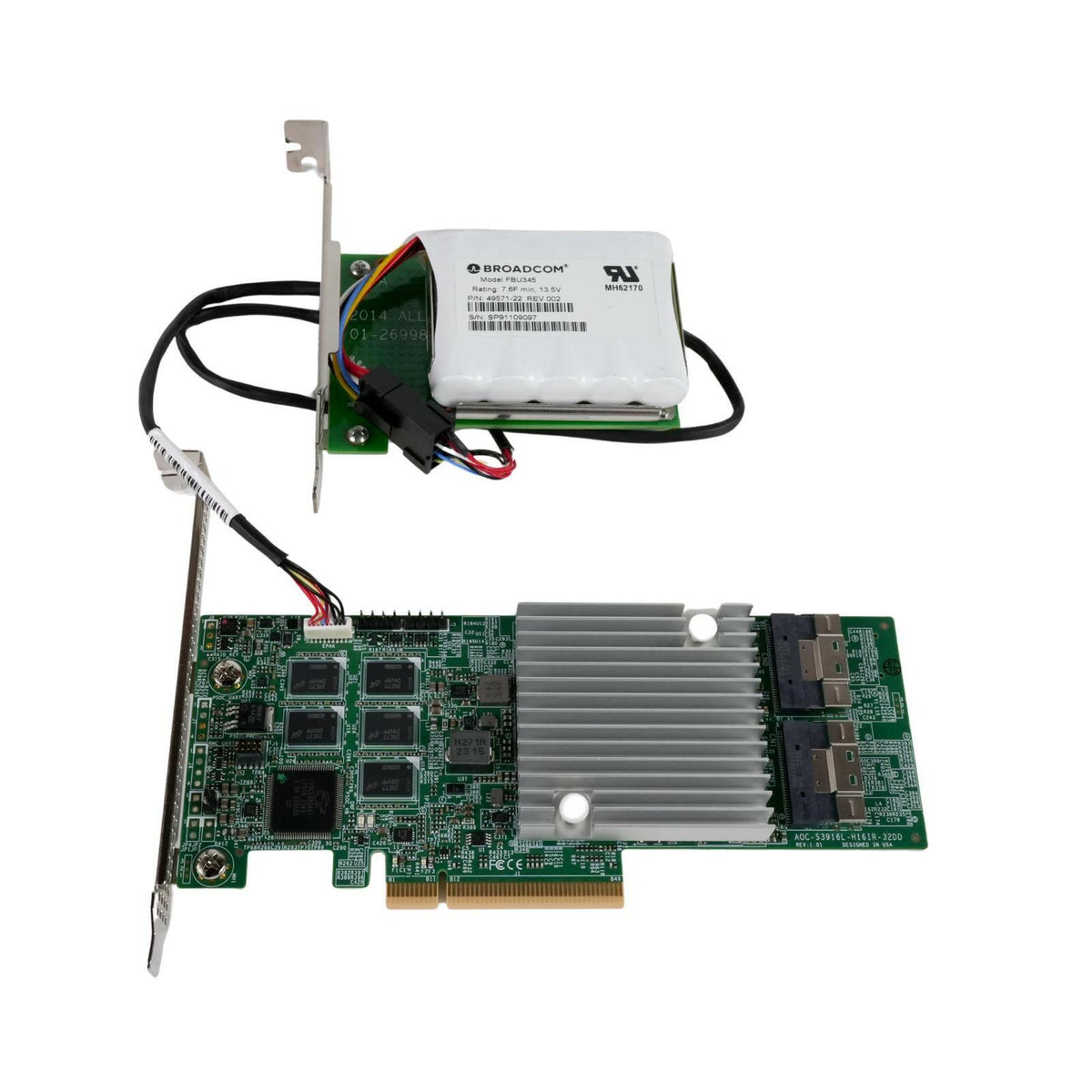

This is a genuine Supermicro AOC-S3916L-H16iR-32DD 16-port internal MegaRAID adapter with the BTR-CVPM05 SuperCap. The SuperCap backs the 8GB cache so cached writes can be protected if power is lost. It is a low-profile PCIe 4.0 x8 card for Supermicro servers that need 12Gb SAS and 6Gb SATA RAID.
Condition: Clean working pull from enterprise equipment. Fully tested by a qualified technician and guaranteed 100% working. Comes with a full height mounting bracket and the BTR-CVPM05 SuperCap/TFM unit.
30-Day Warranty Included!
16-port 12Gb SAS RAID card with 8GB cache and CacheVault SuperCap included.
Manufacturer's description and specifications:
The Supermicro AOC-S3916L-H16iR-32DD is a MegaRAID adapter built on the Broadcom SAS3916. It has 16 internal SAS ports on two SlimSAS x8 connectors and supports up to 32 drives with an expander. The onboard TFM and BTR-CVPM05 SuperCap protect the 8GB cache.
Key Specifications:
Ports: 16 internal SAS/SATA
Connectors: 2x SlimSAS x8 (SFF-8654), 100 ohm
Host Interface: PCIe 4.0 x8
Controller: Broadcom SAS3916
RAID: 0, 1, 5, 6, 10, 50, 60, JBOD
Cache: 8GB DDR4-2666
Max Devices: 32 with expander
SAS Speed: 12 / 6 / 3 Gb/s
SATA Speed: 6 / 3 Gb/s
Cache Protection: BTR-CVPM05 SuperCap/TFM included
Power: about 18W
Form Factor: Low profile card, full height bracket included
Compatibility: Supermicro motherboards
